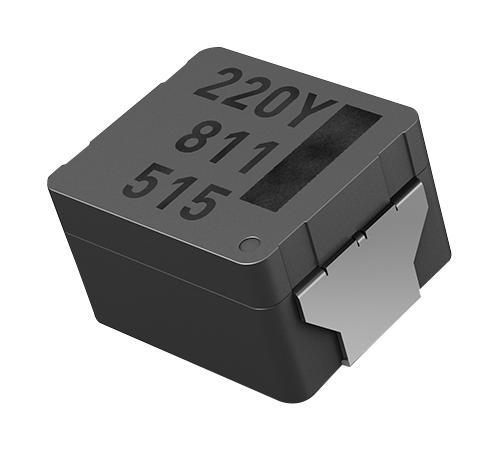

This is a Power Inductor (SMD), AEC-Q200, 1 µH, 23 A, Shielded, 37.8 A, PCC-M1050ML Series product from PANASONIC ELECTRONIC COMPONENTS with the model number ETQP5M1R0YLC
Product details
| Inductance |
1µH |
| RMS Current (Irms) |
23A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
37.8A |
| Product Range |
PCC-M1050ML Series |
| Power Inductor Case |
10.9mm x 10mm x 5mm |
| DC Resistance Max |
0.00253ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
PANASONIC ELECTRONIC COMPONENTS |
| Part Number |
ETQP5M1R0YLC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
