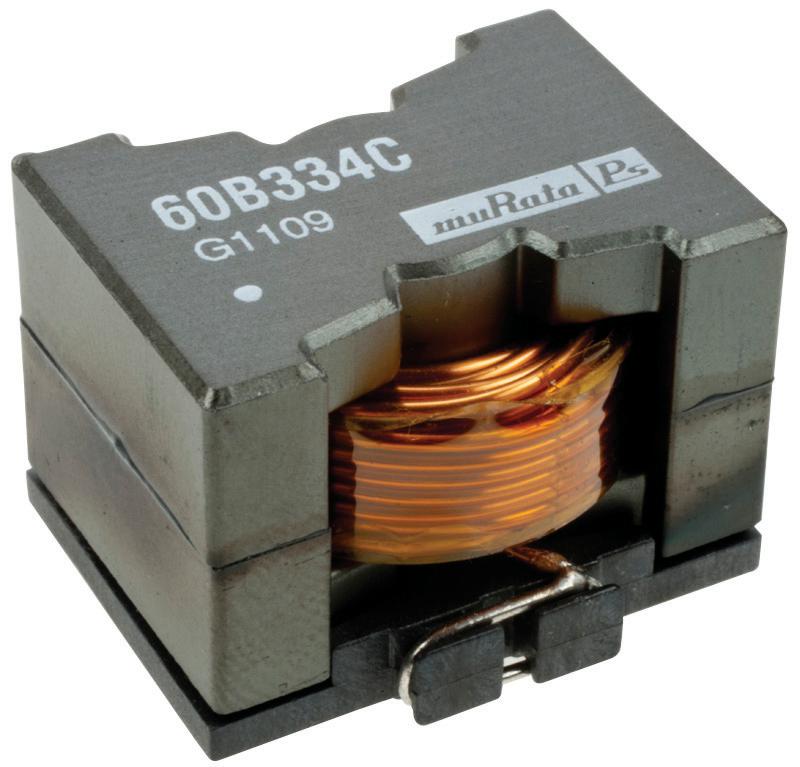

The 6000B series surface-mount high-current Power Inductor with pure tin pin finish. It is designed for use in power applications such as DC-DC converters, energy storage and input or output filtering. The maximum DC current is the value at which the inductance falls to 75% of its nominal value or when its temperature rise reaches 40°C, whichever is sooner.
- High energy storage, very low resistance
- UL94V-0 Flammability rating
- J-STD-020D.1 reflow
- -40 to 85°C Operating free air temperature range
Other details
| Brand |
MURATA POWER SOLUTIONS |
| Part Number |
60B334C |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
