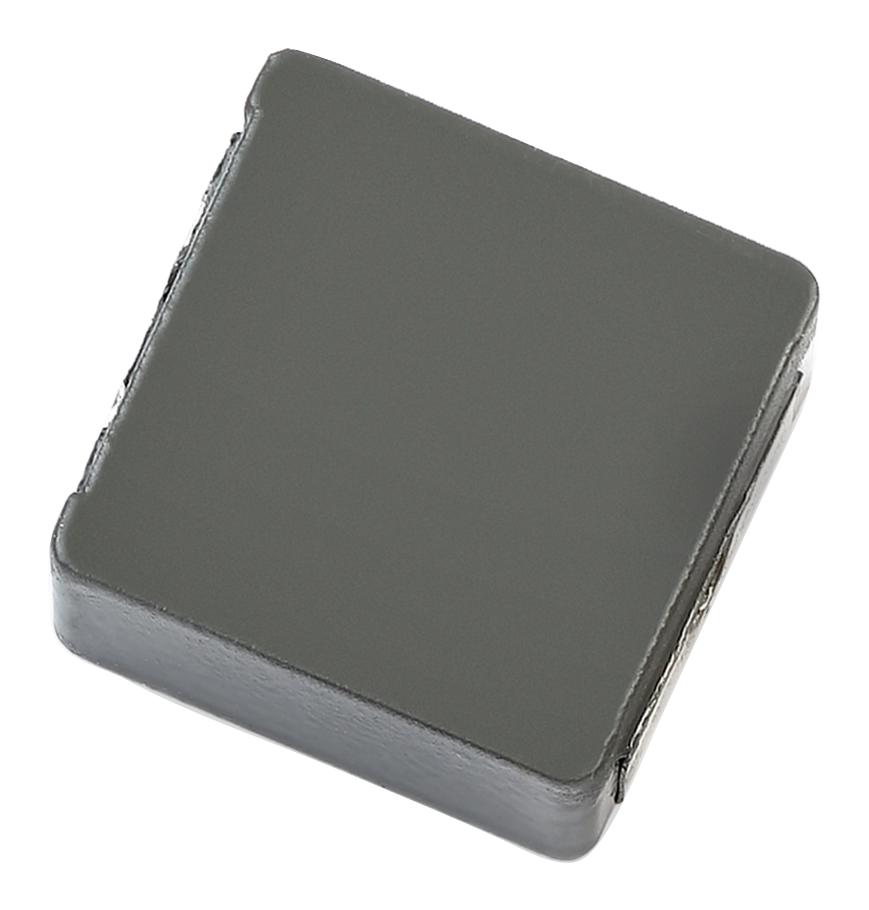

This is a HCM1A1307V2-100-R Power Inductor (SMD) , AEC-Q200, 10 µH, 8.3 A, Shielded, 13.5 A, HCM1AV2 Series New product from EATON BUSSMANN with the model number HCM1A1307V2-100-R
Product details
| Inductance |
10µH |
| RMS Current (Irms) |
8.3A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
13.5A |
| Product Range |
HCM1AV2 Series |
| Power Inductor Case |
13.45mm x 12.6mm x 6.5mm |
| DC Resistance Max |
0.0172ohm |
| Inductance Tolerance |
± 20% |
Other details
| Brand |
EATON BUSSMANN |
| Part Number |
HCM1A1307V2-100-R |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
