Description

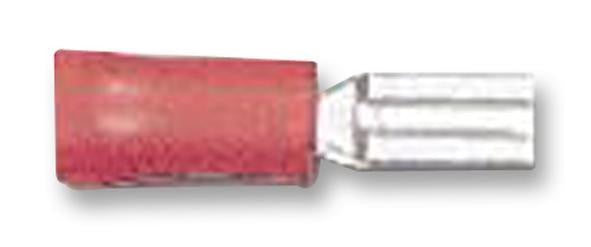

The FDD1-187(5) is a red female push-on double Crimp Terminal with vinyl insulation and brass/copper terminals as per BS6017 (1981) standard. Quick disconnect type, electro tin plated as per BS1872 (1984) standard. Easy cable entry guide which eliminates flared wire strands and bright electro tinned finish which prevents oxidization. A digit is indented above the crimp to verify correct usage. This FDD series terminal accepts 22 to 16AWG wire gauge.
- Full compliance to BS4579, IEC352-2 and ISO1996 standards
- 10A Rated current
- 600V at 105°C Maximum electrical rating
- -20 to +85°C Temperature range
Applications
Industrial, Communications & Networking
Product details
| Tab Size - Imperial | 0.187" x 0.02" |
| Insulator Material | Vinyl |
| Wire Size AWG Max | 16AWG |
| Tab Size - Metric | 4.75mm x 0.51mm |
| Product Range | FDD1 Series |
| Wire Size AWG Min | 22AWG |
| Terminal Type | Female Quick Disconnect |
| Terminal Material | Brass |
| Insulator Colour | Red |
| Conductor Area CSA | 1.5mm² |
Other details
| Brand | MULTICOMP |
| Part Number | FDD1-187(5) |
| Quantity | Pack of 100 |
| Technical Data Sheet EN |  |
