Description

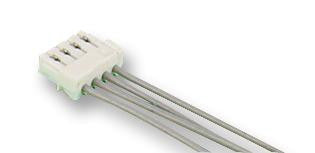

The 04SUR-04SUR-32W300 is a 300mm Ribbon Cable with 4-postion IDC receptacle at both ends. 0.8mm pitch. The 3-point insulation grip features and the strain relief ensures a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Applicable wire is of #32AWG with only 0.38mm (0.015-inch) OD, with this super fine wire, routing of wires is easy. The header is fully shrouded, but remains thin. The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection.
- 3-point Grip construction
- Twin U-slot insulation displacement section
- 32AWG Wire size
- 100MR Insulation resistance
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Cable Pitch | - |
| Cable Length - Metric | 300mm |
| Connector Type B | IDC Socket |
| No. of Positions | 4Ways |
| Connector Type A | IDC Socket |
| Product Range | - |
| Connector Pitch | 0.8mm |
| Cable Length - Imperial | 1ft |
Other details
| Brand | JST (JAPAN SOLDERLESS TERMINALS) |
| Part Number | 04SUR-04SUR-32W300 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
