Description

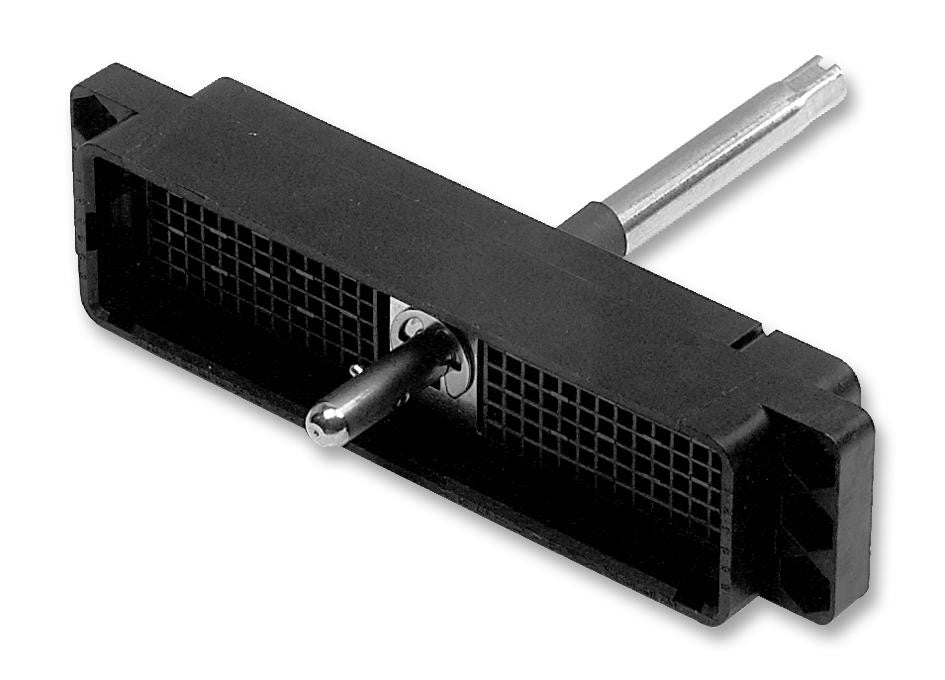

The DL296P is a 96-way Plug with gold flash copper alloy contacts, the single hand actuation and a black glass-filled thermoplastic insulator. The DL series ZIF connector can be mated and unmated in less than 2second and accepts 42 to 18AWG wire range.
- 5000MR Insulation resistance
- -55 to +105°C Operating temperature range
- UL94V-1 Flammability rating
Applications
Industrial, Medical, Commercial, Computers & Computer Peripherals
Product details
| Gender | Plug |
| No. of Positions | 96Ways |
| Product Range | DL Series |
| For Use With | Plug (Bump) Crimp Contacts |
| Pitch Spacing | - |
Other details
| Brand | ITT CANNON |
| Part Number | DL296P |
| Quantity | Each |
| Technical Data Sheet EN |  |
