Description
Product Overview

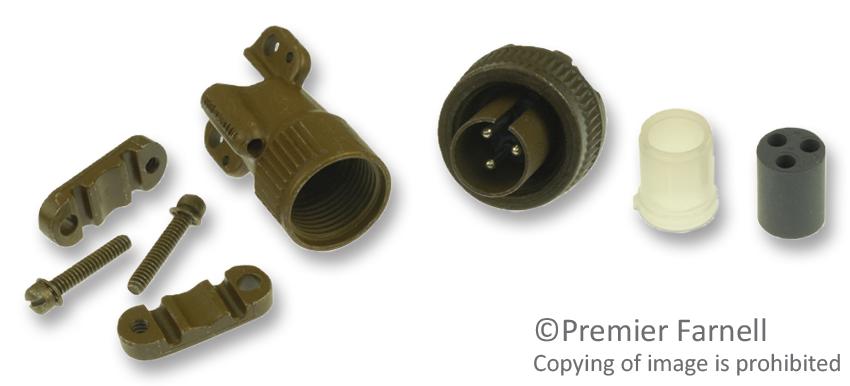

The MS3106E10SL-3P is a 3-contact Circular Connector with hard silver-plated copper alloy contacts and olive drab chromate coating over cadmium plated aluminum alloy shell. The MIL-C-5015 series 045269-0004 cable mount straight plug features solder termination, endbell style with cable clamp and neoprene insulator and grommet. It has an O-ring under the coupling nut.
- 22A Contact rating
- 6m? Contact resistance
- <gt/>1000M? Insulation resistance
- 1600Vrms Test voltage
- IP65 According to DIN 40 050 safety provisions
- 35N Contact retention
Applications
Aerospace, Defence, Military
Product details
Other details
| Brand | ITT CANNON |
| Part Number | MS3106E10SL-3P |
| Quantity | Each |
| Technical Data Sheet EN |  |
