Description
Waves LV1 Classic Overview
From Manufacturer

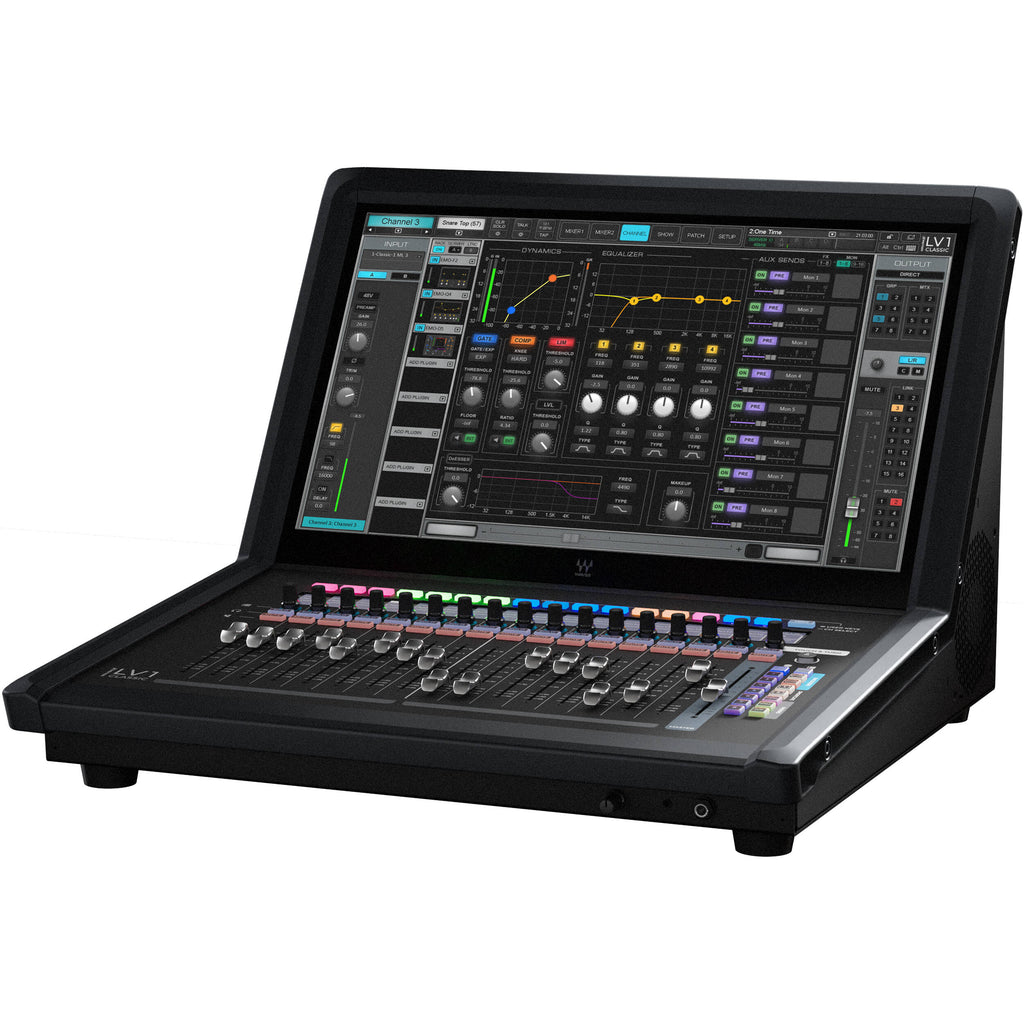

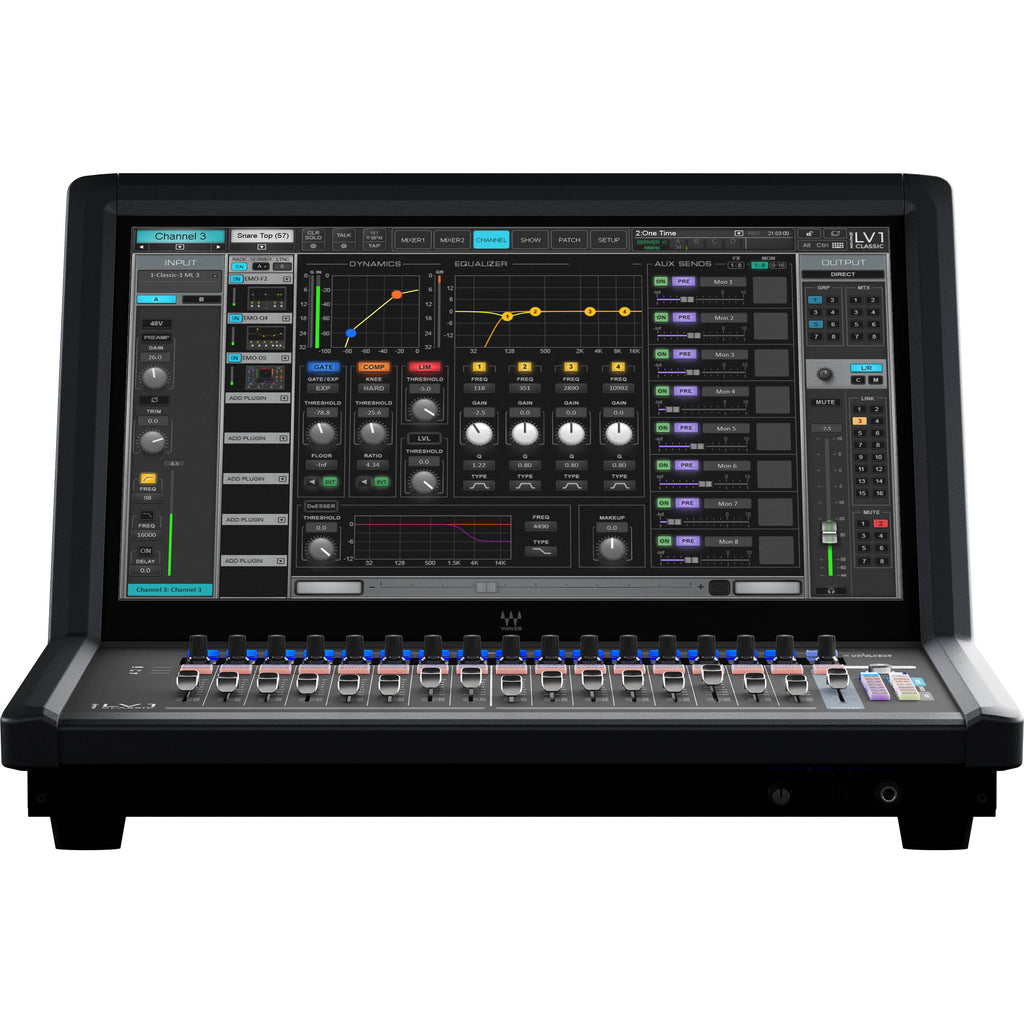

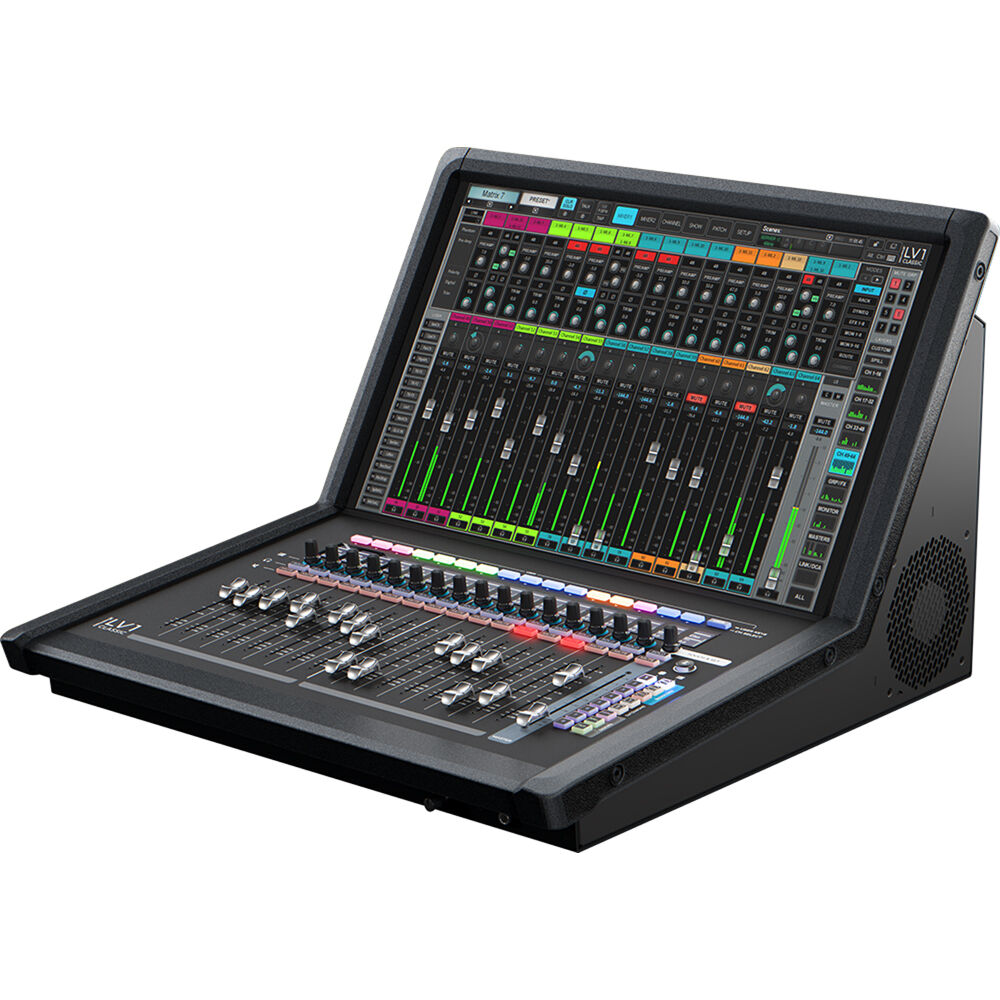

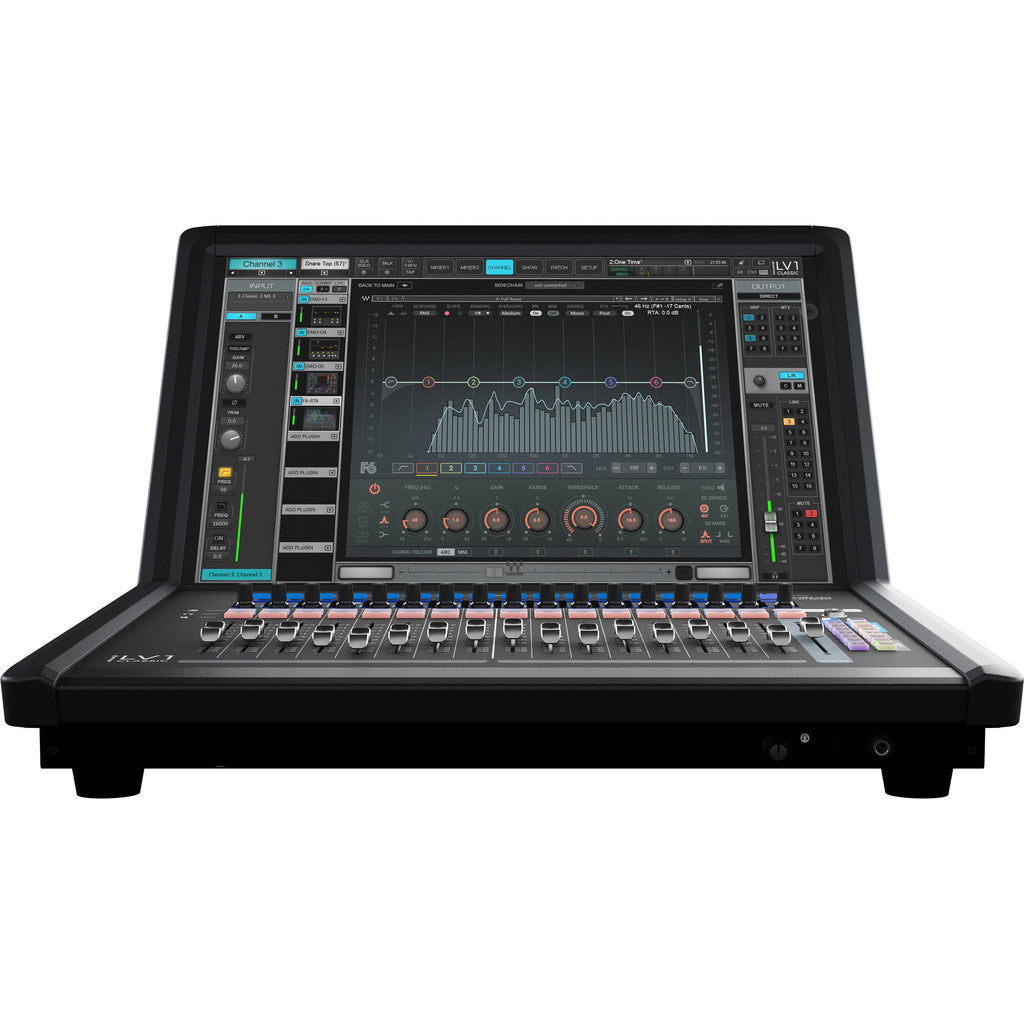

eMotion LV1 Classic - The New Live Mixing Console by Waves
eMotion LV1 Classic - First Look with Ken 'Pooch' Van Druten
LV1 Classic - Console Test Drive with John Buitrago (Karol G)
Building upon the proven quality LV1 mixer engine, the Waves eMotion LV1 Classic is the first fully integrated hardware mixer that delivers the preferred console and workflow of live sound engineers worldwide. The LV1 Classic packs the pristine-sounding sound engine into an ergonomic enclosure with a quick-access 21.5" multitouch screen and a powerful tactile control surface with 16+1 100mm Alps faders.
The mixer is capable of mixing up to 64 stereo channels with 44 stereo buses. Its double-precision 32-bit float mix engine works with sample rates from 44.1 to 96 kHz. The rear panel includes 16 Waves Signature preamps and 12 analog line outputs + AES3 I/O for added flexibility. The system is scalable and can be expanded with more I/O, DSP, Dante, MADI, and additional physical fader banks and an external touchscreen.
Note: The LV1 requires a dedicated Ethernet cable from the host computer to the Wi-Fi router to use mobile apps on the same Wi-Fi network. Do NOT run the mobile apps network over the SoundGrid network. If the host computer does not have a second Ethernet port, use a USB-to-Ethernet (or other) adaptor.
Industry-Leading Sound
The LV1 Mix Engine: Pristine Sound Fidelity
- Double Precision 32-bit floating-point digital mix engine
- Unmatched clarity and headroom
- Proprietary mix engine design leverages Waves? Tech Grammy-winning expertise in digital signal processing
Powered by Waves Signature Preamps
- 16 onboard Waves Signature Preamps
- Original Waves design with full discrete analog circuits
- Lightning-fast transient response, incredibly low noise floor, maximum clarity and headroom
- Choose between pure transparent preamp sound and rich harmonic enhancement per input
Intuitive Control, User-Friendly UI
- Large 21.5? multitouch screen for quick and intuitive control
- 16+1 all-new 100mm Alps faders
- Smart software/hardware design ensures quick access to essential mixer functions and user-defined actions
- Two independent software mixer windows allow greater versatility in what you can view and control at any given time
- Detailed customization of Mixer and Channel views and channel functions
- Run any processor directly on any channel or bus
- Instant visual feedback including integrated LCD metering per channel
Deep Onboard Processing
- Built-in processing with Waves? industry-proven processors
- Processing handled by powerful built-in Waves DSP engine
- All processors available for use on all input channels + all other mix channels, via 8-slot processing rack per channel
- Plug-ins included with the console:
- Real-time Vocal Pitch Correction: Waves Tune Real-Time
- Dynamic EQ: Waves F6 Dynamic EQ
- EQ and Filters: Waves eMo Q4, eMo F2, GEQ 30-band EQ
- Dynamics: Waves eMo D5, Renaissance Compressor
- Feedback Elimination: Waves X-FDBK
- Mic Bleed Suppression: Waves PSE
- Analog Saturation: Waves Magma Tube Channel Strip
- Effects: Waves H-Delay, R-Verb, TrueVerb, Doubler
- Low End Control: Renaissance Bass
- Amp Simulation & Effects: GTR3
Powerful Processing Upgrades
Advanced Plug-Ins for Every Need
- Waves processors are staples in both studio production and live sound: Countless major shows and Grammy-winning recordings have been mixed with Waves. Easily upgrade to a vast catalog of over 160 live-optimized plug-ins, unmatched in both quality and diversity.
- Waves? live-optimized plug-ins are conveniently bundled in 3 powerful upgrade packages: Live (55 plug-ins), Live Plus (90+ plug-ins), and Pro Show (over 160 plug-ins).
Immersive In-Ear Monitoring at the Ready
- Bring clarity, openness, and comfort to in-ear monitors: The eMo IEM plug-in is a software-only upgrade to LV1 consoles, turning your LV1 monitor outputs to immersive at the click of a button.
- No external hardware is required?simply set any of the LV1?s monitor outputs to IEM, and your performers will receive monitor sound in their in-ears, via the Waves MyMon remote control app for LV1.
Dugan Auto-Mixing
- Automatic real-time gain control for up to 64 mics, with UI fully integrated into the console.
Easy Scalability
eMotion LV1 Classic is built for easy expansion into systems of all sizes?from small systems with a single console with IO and DSP expansions, to mega systems with multiple consoles at different mix positions.
Effortlessly add:
- More I/O with Waves IONIC 24 and IONIC 16 stage boxes
- More DSP: Add up to 3 additional SoundGrid servers (+4 more for back-up)
- Dante and MADI expansions available
- External touchscreen
- More physical fader banks
Easily network multiple LV1 Classic consoles with easy I/O sharing and real-time gain tracking
Premium Stagebox Expansion
- IONIC 24 and IONIC 16 Stageboxes: Powered by Waves Signature preamps
- Waves IONIC stageboxes boast the same pristine sound as LV1 Classic itself, with maximum headroom and exquisite dynamics, same to the original-design Waves Signature Preamps
Ready for Houses of Worship
Intuitive at all skill levels
- Emotion LV1 Classic?s UI is designed to be intuitive for everyone?from seasoned live sound engineers to church volunteers. The mixer?s software and hardware architecture is designed to let any personnel in charge of sound to quickly find and control what they need.
Tools to tackle every challenge
- Mixing top-grade sound can be challenging, with issues ranging from off-pitch vocalists, to multiple open mics, to sometimes-challenging acoustics. Waves processors for live vocal pitch correction, mic bleed, feedback elimination, dynamic EQ, and more are show-savers in challenging house-of-worship environments.
Easily grow as your needs expand
- LV1 classic-centered systems are easy to scale up as a church?s needs grow?including the ability to easily add I/O, expand processing, and network multiple consoles in an expanding system.
Technical support 7 days a week
- LV1 classic makes quick remote support possible with a built-in team viewer. Waves tech support offers instant support 7 days a week.
Training in partnership with MxU
- Waves have partnered with Jeff Sandstrom and MxU, the leaders in house-of-worship audio education, to provide in-depth LV1 Classic training.
Overview
- 64 mono/stereo input channels
- 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
- Double-precision 32-bit floating point mix engine (44.1 to 96 kHz)
- Latency as low as 0.8 ms
- 21.5? multitouch screen with 1000 nits of brightness
- 16+1 motorized 100mm Alps faders
- 16+1 precision encoders, with mini displays, including per-channel LCD metering, and Select, Mute, and Solo keys
- 16 layers with utility keys and tempo pad
- 16+2 customizable keys
- 16 Waves Signature Preamps with mic/line inputs
- 12 line outputs, 2 AES3 outputs, AES3 SRC input
- Built-in SoundGrid server (Extreme Server-grade) handles processing
- Add more IOs: Up to 14 devices including Analog, AES3, Dante, MADI
- Add up to 3 processing servers and 4 backup servers
- 4 SoundGrid switch ports: 2 etherCON + 2 RJ45
- High-power H/P output with ?? jack + minijack
- HDMI / 8 USB connectors / remote network
- 12V XLR4 lamp option
- Dual power supply for redundancy
- 8-slot rack hosts 8 plug-ins per input channel + all mix channels
- Custom options for mixing layout
- Intuitive control over each channel?s parameters
- Patch system-wide connections
- Custom colors per channel
- Unicode multilanguage support
- Up to 1000 scenes with Recall Safe and Scope Filters
- 8 Mute groups and 16 Link DCAs with Spill function
- Digital preamp control with local V-Gain tracking for sharing
- Multiple outputs per channel with delay alignment controls
- Record 16 tracks locally to USB / 128 tracks to remote computers
- Stereo playback from USB
- Remote control apps for mobile and tablet, for both FOH and stage
UPC: 702781703919
Items Included
- Waves eMotion LV1 Classic 64-Channel / 44 Bus Live Mixing Console
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
Waves LV1 Classic Specs
Key Specs
| Max I/O Capacity |
64x Input / 44x Output (with Optional Hardware)
|
| Number of Analog Input Channels |
16 (16 Mono / 0 Stereo)
|
| Number of Mic Preamps |
16
|
| Number of Analog Output Channels |
12
|
| Faders & Level Adjustment |
17x 3.9" / 100 mm Motorized Channel Fader(Touch Sensitive)
|
| Built-In Effects |
Stereo Delay
Stereo Reverb Stereo Vocal Effect Stereo Amp Simulator |
| Analog Inputs |
16x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input
|
| Analog Outputs |
12x XLR 3-Pin Balanced Line Output
|
| Digital I/O |
1x XLR AES3 Input
2x XLR AES3 Output 2x RJ45 Ethernet Input/Output (Wi-Fi Router) 2x etherCON Ethernet Input/Output (Control, I/O) |
| USB I/O |
4x USB-A (Audio Playback, External Memory, Host Connection, Multitrack Record)
|
| Wireless |
No
|
| Rack Mountable |
No
|
Mixer
| Max I/O Capacity |
64x Input / 44x Output (with Optional Hardware)
|
| Number of Analog Input Channels |
16 (16 Mono / 0 Stereo)
|
| Number of Mic Preamps |
16
|
| Number of Analog Output Channels |
12
|
| Mix Routing |
8x Subgroup
24x Aux Send 8x Matrix 3x Main LRC |
| Groups |
8x VCA Group
|
| Presets |
Yes
|
| Display |
21.5" LCD Touchscreen (Backlit, Daylight-Viewable)
|
| Faders & Level Adjustment |
17x 3.9" / 100 mm Motorized Channel Fader(Touch Sensitive)
|
Signal Processing
| Gain/Trim Range |
Combo XLR-1/4" Line/Mic:
-3 dB to +60 dB (in 1 dB Steps) |
| Dynamic Processing |
Input Channels, Buses, Master, Mono Channels, Stereo Channels:
Compressor, Multi-Band Compressor, Limiter, Soft Limiter, Gate |
| EQ |
Input Channels, Output Buses, Outputs, Subgroups, FX Returns, USB:
4-Band EQ/Parametric/Semi-Parametric/Shelving/Notch/Peak/Tone Cut (Mono Channels) 4-Band EQ/Graphic/Parametric/Semi-Parametric/Shelving/Notch/Peak/Tone Cut (Stereo Channels) 30-Band Graphic (Mono Channels) 30-Band Graphic (Stereo Channels) |
| Graphic EQ |
30-Band
|
| Filters |
Input Channels, Outputs, Master, FX Returns, Buses, USB, Mono Channels, Stereo Channels:
Low-Pass High-Pass Notch |
| Solo/Mute |
Solo, Solo-in-Place/AFL, Mute per Input Channel, Bus, FX Bus, Master
|
| Built-In Effects |
Stereo Delay
Stereo Reverb Stereo Vocal Effect Stereo Amp Simulator |
| Audio Delay |
Yes
|
| Automatic Mic Mixing |
No
|
Digital Audio
| Sample Rates |
Up to 96 kHz
|
| Bit Depth |
Up to 32-Bit
|
Performance
| Frequency Response |
Line Output:
10 Hz to 40 kHz +0.1/-1 dB (at 96 kHz) 20 Hz to 20 kHz ?0.1 dB (at 48 kHz) Headphone Output: 10 Hz to 40 kHz +0.1/-1 dB (at 96 kHz) 20 Hz to 20 kHz +0.1/-0.1 dB (at 48 kHz) Mic/Line Input to Main Output: 20 Hz to 20 kHz ?0.1/18 dB 10 Hz to 40 kHz ?1/18 dB |
| Analog Dynamic Range |
Input:
> 110 dB at Unity Gain |
| I/O Impedance |
Line/Mic Input:
2 Kilohms (XLR, Switchable) 7 Kilohms (XLR, Switchable) 14.6 Kilohms (TRS) Line Output: 150 Ohms Headphone Output: 20 Ohms |
| Signal Generator |
Yes
|
Connectivity
| Analog Inputs |
16x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input
|
| Analog Outputs |
12x XLR 3-Pin Balanced Line Output
|
| Phantom Power |
+48 V
|
| Digital I/O |
1x XLR AES3 Input
2x XLR AES3 Output 2x RJ45 Ethernet Input/Output (Wi-Fi Router) 2x etherCON Ethernet Input/Output (Control, I/O) |
| MIDI I/O |
No
|
| USB I/O |
4x USB-A (Audio Playback, External Memory, Host Connection, Multitrack Record)
|
| USB I/O Capacity |
16x Input / 2x Output
|
| Other I/O |
2x etherCON/RJ45 Expansion In/Out (Bi-Directional)
|
| Expansion Ports |
No
|
| Wireless |
