Description
Vivotek CC9160-H(DJ) Overview

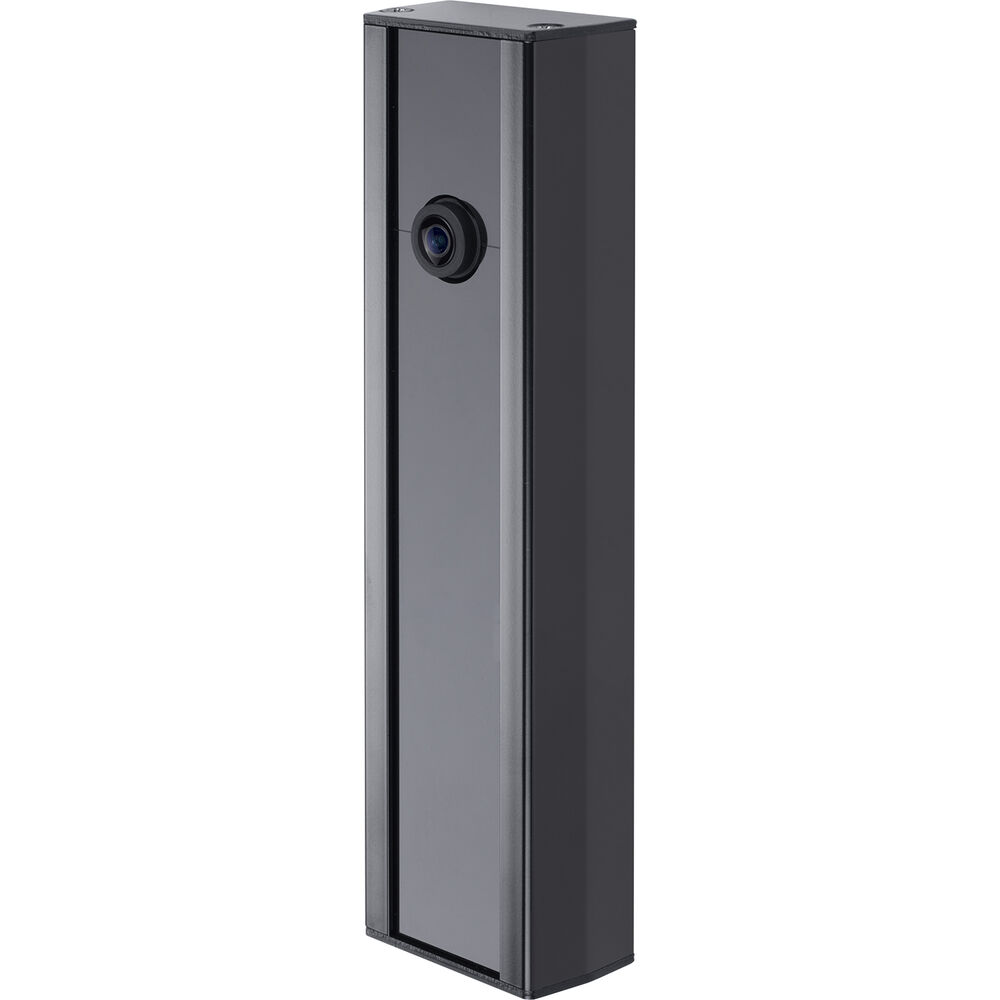

Securely monitor an indoor space with the C-Series CC9160-H(DJ) 2MP Compact Panoramic Network Camera from Vivotek. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 1080p resolution video at 30 fps. The camera's 1.66mm fixed lens delivers a 180? horizontal angle of view. An onboard card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
Additional Details
- Multimedia SoC CPU
- Smart Stream III optimizes bandwidth efficiency
- ePTZ with 48x digital zoom
- WDR Pro
- Motion detection and camera tampering detection
- Digital I/O
- System power and status LED indicators
- Live viewing for up to 10 clients
- Compatible with Microsoft Windows 10, 8, and 7, macOS 10.12 (Chrome only), Chrome 58 or above, Internet Explorer 10/11, and VLC 1.1.11 or above
- Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
Items Included
- Vivotek C-Series CC9160-H(DJ) 2MP Indoor Compact Panoramic Network Camera
- Screw Pack
- Limited 5-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Vivotek CC9160-H(DJ) Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
1.66mm
|
| Field of View |
Horizontal: 180?
Vertical: 180? Diagonal: 180? |
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| IR Cut Filter |
No
|
| Day/Night |
No
|
| DORI Coverage |
With 1.66mm Lens:
Detect: At 100.9' / 30.8 m Observe: At 40.1' / 12.2 m Recognize: At 17.1' / 5.2 m Identify: At 8.5' / 2.6 m |
Exposure Control
| Shutter Speed |
1/32000 to 1/5 Second
|
| Signal-to-Noise Ratio |
66 dB
|
| Minimum Illumination |
0.03 Lux
|
Lens
| Focal Length |
1.66mm
|
| Max Digital Zoom |
48x
|
| Field of View |
Horizontal: 180?
Vertical: 180? Diagonal: 180? |
| Maximum Aperture |
f/1.95
|
Video
| Supported Protocols |
Video Streaming Protocol
ARP/Bonjour/CIFS/SMB/DDNS/DHCP/DNS/FTP/HTTP/ICMP/IGMP/IPv4/v6/NTP/ONVIF Profile G/ONVIF Profile S/ONVIF Profile T/PPPoE/QoS Layer 3 DiffServ/RTCP/RTP/RTSP/SFTP/SMTP/SNMP v1/v2c/v3 (MIB-II)/SSL/TLS/TCP/UDP/UPnP |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
1920 x 1080 up to 30.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, User Access Log
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| Built-In Microphone |
No
|
| Memory |
512 MB RAM / 256 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Camera Sabotage/Tampering, Motion Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
5 W
|
Environmental
| Operating Conditions |
14 to 113?F / -10 to 45?C up to 90% Humidity
|
| Startup Temperature |
32 to 113?F / 0 to 45?C
|
General
| Certifications |
BSMI, CB, CE, EN, FCC, ICES, IEC/EN, RCM, UKCA, UL, VCCI
|
| OS Compatibility |
Windows 7 to 10
|
| Dimensions (W x H x D) |
2 x 7.2 x 1.1" / 50 x 184 x 28 mm
|
| Weight |
7.0 oz / 199 g (Body Only)
|
Packaging Info
| Package Weight |
0.98 lb
|
| Box Dimensions (LxWxH) |
8.6 x 4.4 x 4.2"
|
