Description

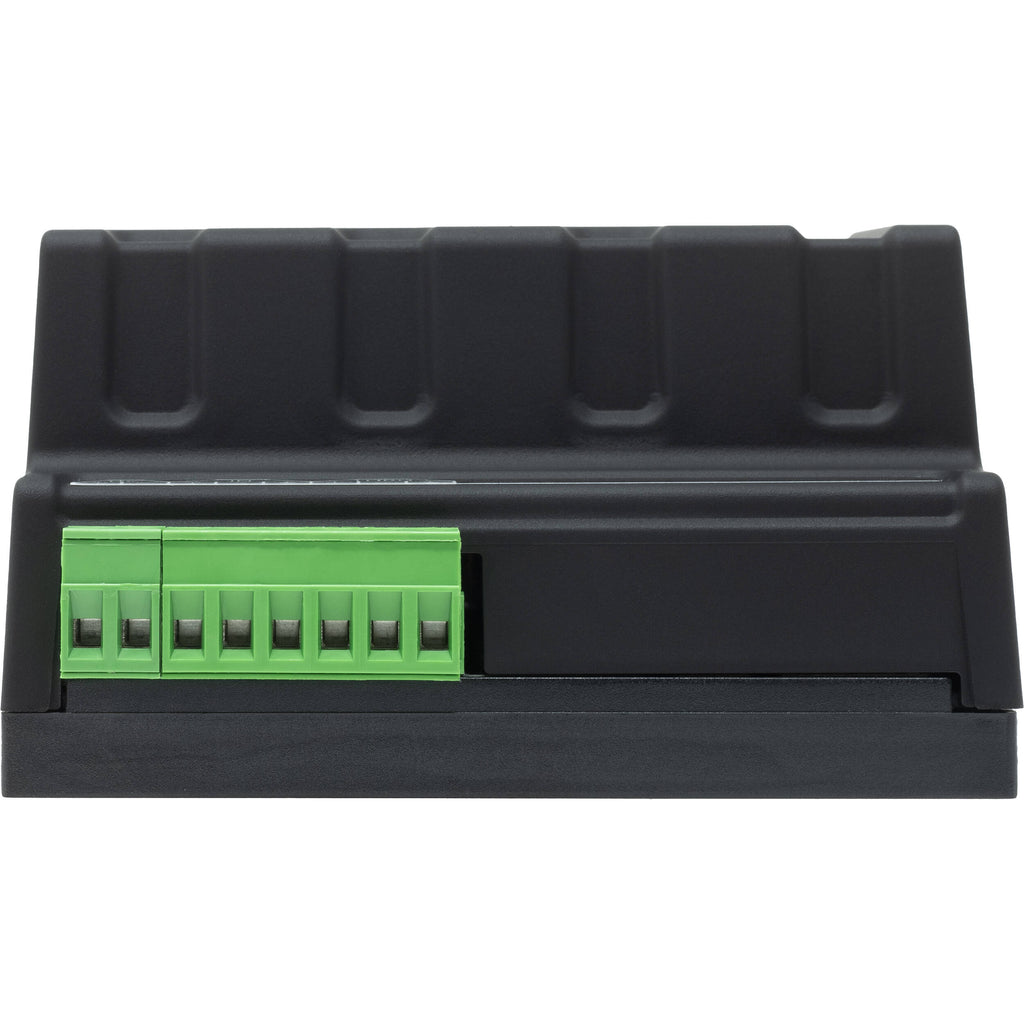

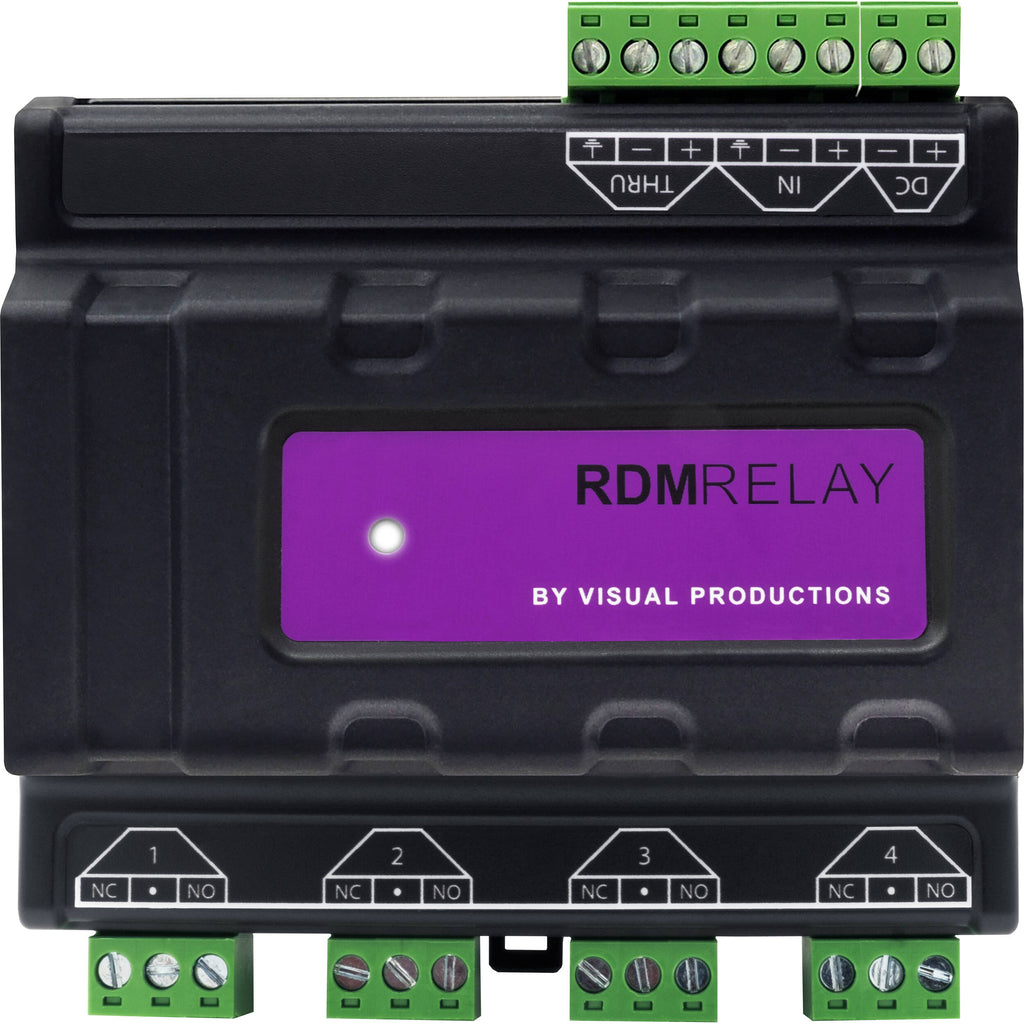

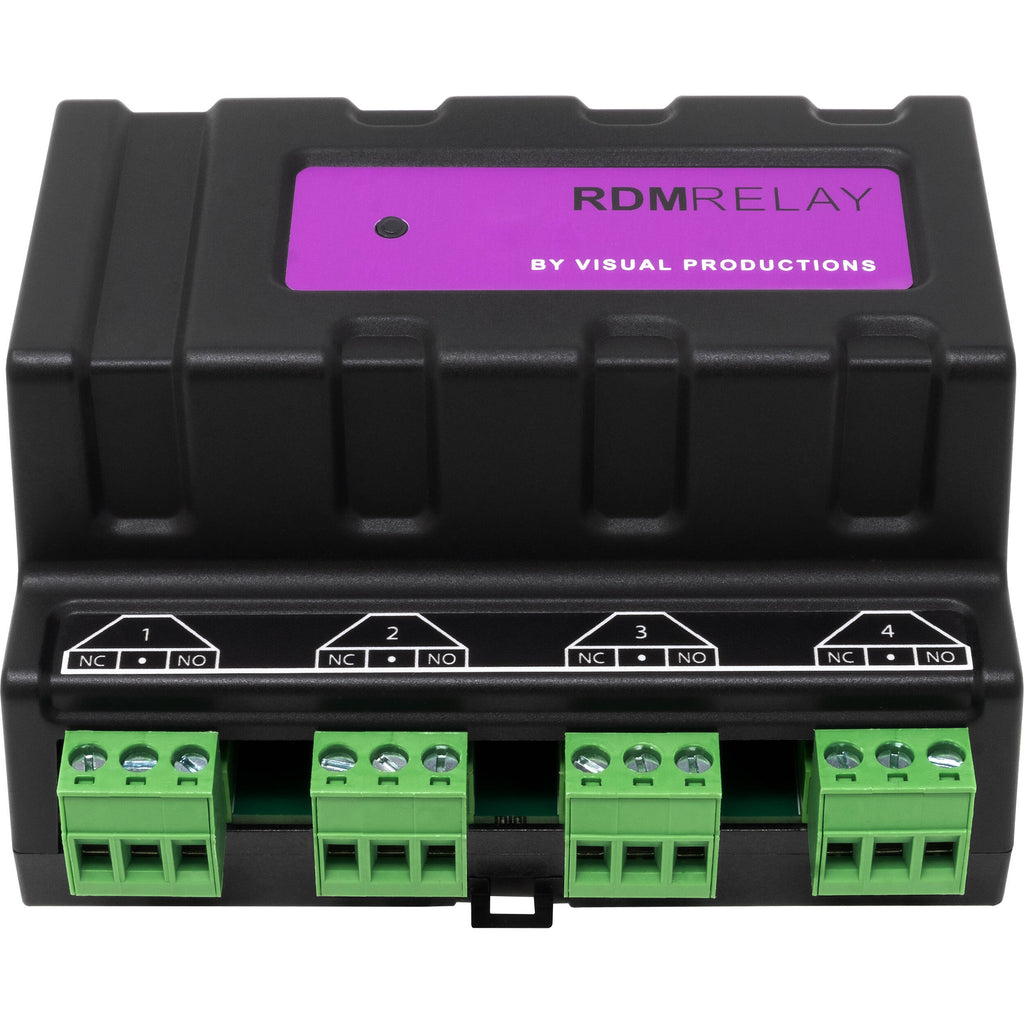

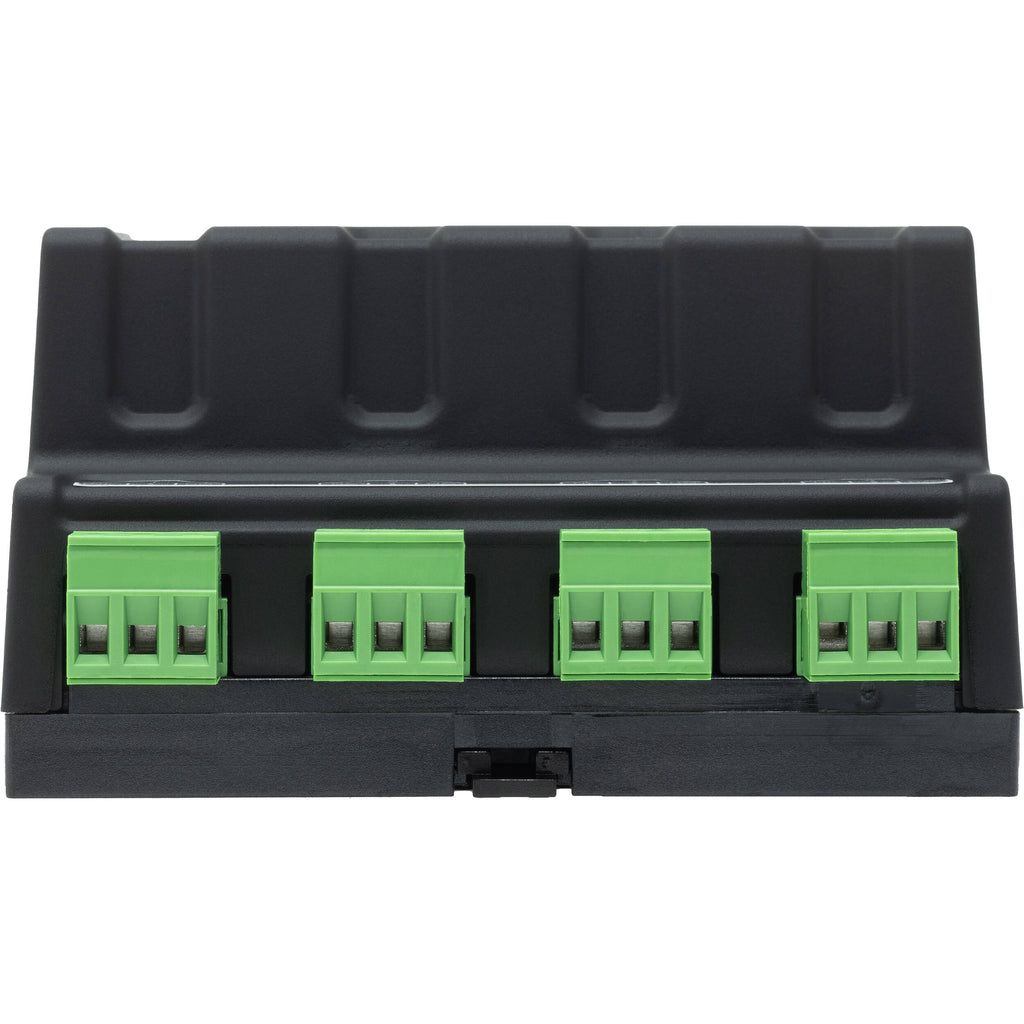

Visual Productions RDM 4-Channel Relay Overview
The RdmRelay DIN Rail DMX/RDM 4-Channel Relay from Visual Productions is a powerful tool in any lighting installation. The device can be set by Remote Device Management, allowing the start address to be set via any RDM commissioning tool. Controllable via DMX and RDM, the RdmRelay is equipped with four heavy-duty relays that can switch 110/230V equipment up to 16A per relay. This is ideal for controlling non-DMX equipment or switching off a lighting installation. The device enables you to remotely switch DC or AC powered loads on and off at your convenience. It uses four DMX channels of your choice to switch four individual relays, each with both a normally open and a normally closed connection, providing a wide range of extra options, light-related or otherwise, for your installation.
Items Included
- Visual Productions RdmRelay DIN Rail DMX/RDM 4-Channel Relay
- 4 x Three-Pin Terminal Block
- Limited 5-Year Manufacturer Warranty
Additional Resources
Visual Productions RDM 4-Channel Relay Specs
| Inputs/Outputs |
1x Terminal 2-Pin (Power) Input
1x Terminal 6-Pin (DMX) Input/Throughput 4x Terminal 3-Pin (Power and Data) Output |
| Channels |
4 (DMX)
|
| Power Source |
AC Adapter
|
| Protocol |
DMX512, RDM
|
| Inputs/Outputs |
1x Terminal 2-Pin (Power) Input
1x Terminal 6-Pin (DMX) Input/Throughput 4x Terminal 3-Pin (Power and Data) Output |
| Channels |
4 (DMX)
|
| Dimming |
No
|
| Cooling System |
No
|
| Power Source |
AC Adapter
|
| Input Power |
9 to 24 VDC
|
| Protocol |
DMX512, RDM
|
| Operating Conditions |
-4 to 122?F / -20 to 50?C at 10 to 80% Humidity
|
| Certifications |
CE, FCC, RoHS, UKCA
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 4.1 x 2.3" / 10.4 x 10.4 x 5.8 cm
|
| Package Weight |
0.82 lb
|
| Box Dimensions (LxWxH) |
5.3 x 4.5 x 4.1"
|
