Description

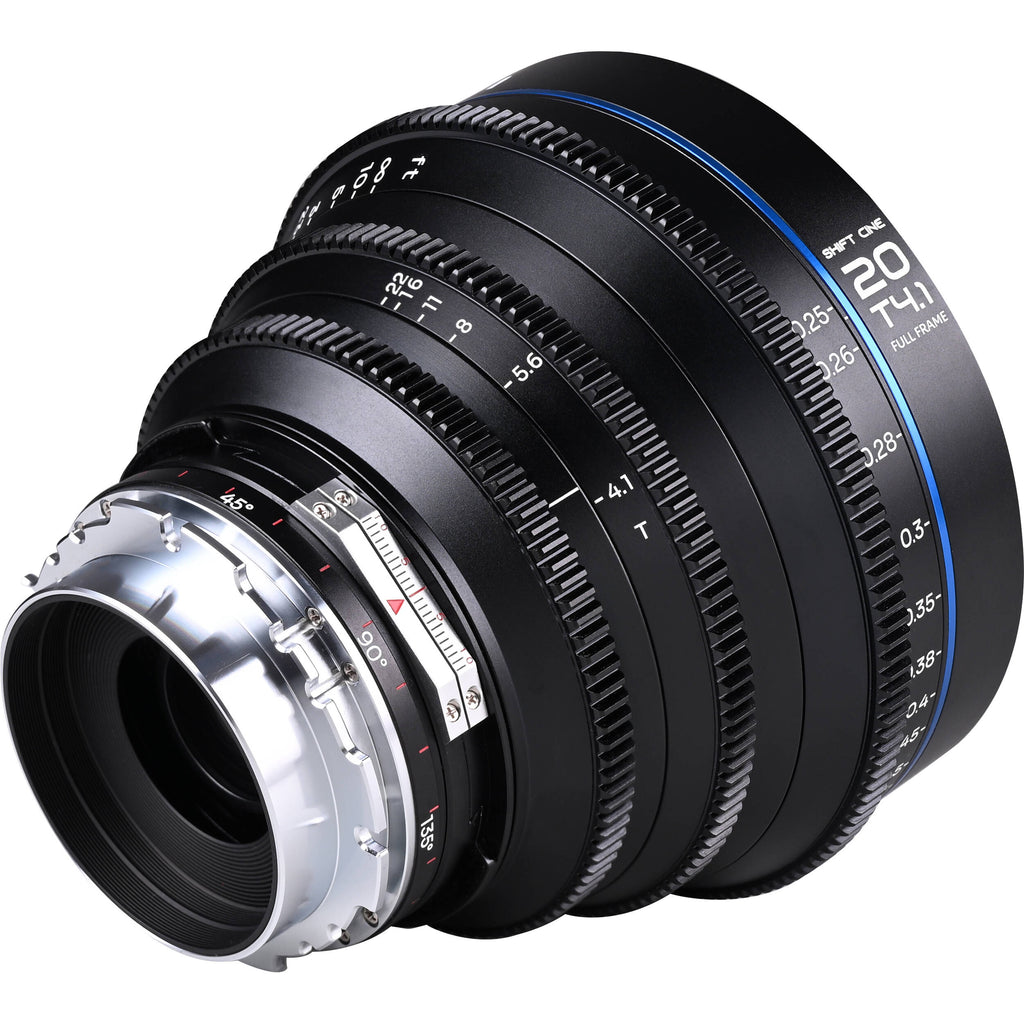

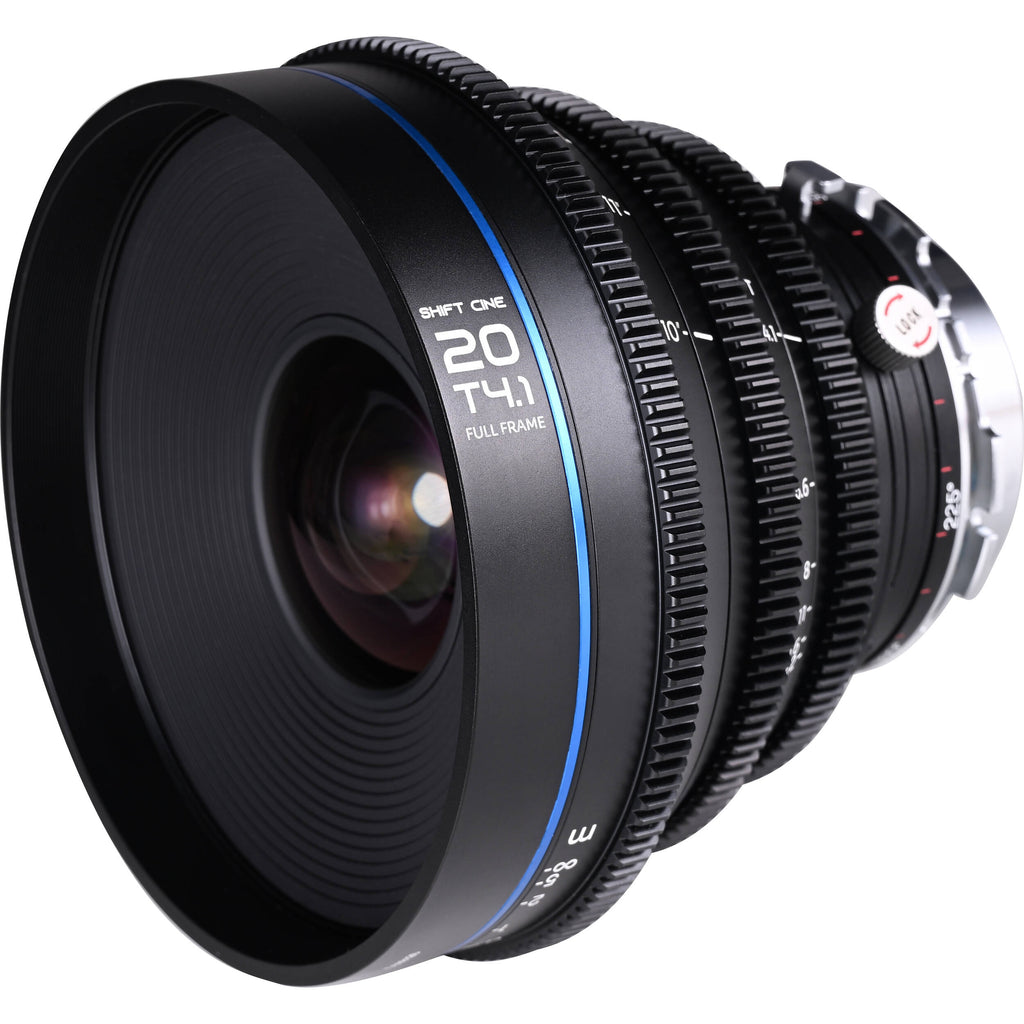

Venus Optics Laowa 20mm T4.1 Zero-D Shift Cin... Overview
Capture wide-angle shots with the Laowa 20mm T4.1 Zero-D Shift Cine Lens from Venus Optics. The 20mm lens can be used with ARRI PL mount cameras sporting full-frame or VisaVision image sensors thanks to its 65.2mm image circle, making it compatible with the RED V-RAPTOR 8K VV, the ARRI ALEXA, and the Blackmagic URSA cine cameras. The lens features a ±11mm shift capability on VistaVision sensors, which helps cinematographers correct converging lines and maintain straight architecture/interiors.
The lens construction consists of 16 elements in 11 groups, a 14-blade aperture, and an aperture range of T4.1 to T22. Its compact focal length and 117° shifted FOV ensure you don't miss any of the action. A Zero-D design consisting of low-distortion optics helps create precise framing. Close-focusing capabilities allow you to zero in on objects 9.9" away with ease. The lenses in the series feature interchangeable lens mounts and include a shim set for calibration. Transport it all with the included hard case.
- Covers full-frame and VistaVision image sensors
- 117° shifted FOV, 94.4° regular FOV
- 9.8" minimum focus distance
- ±11mm shift on VistaVision cameras, ±9mm shift on full-frame cameras
- 16 elements in 11 groups, 14-blade aperture
- Interchangeable mount design

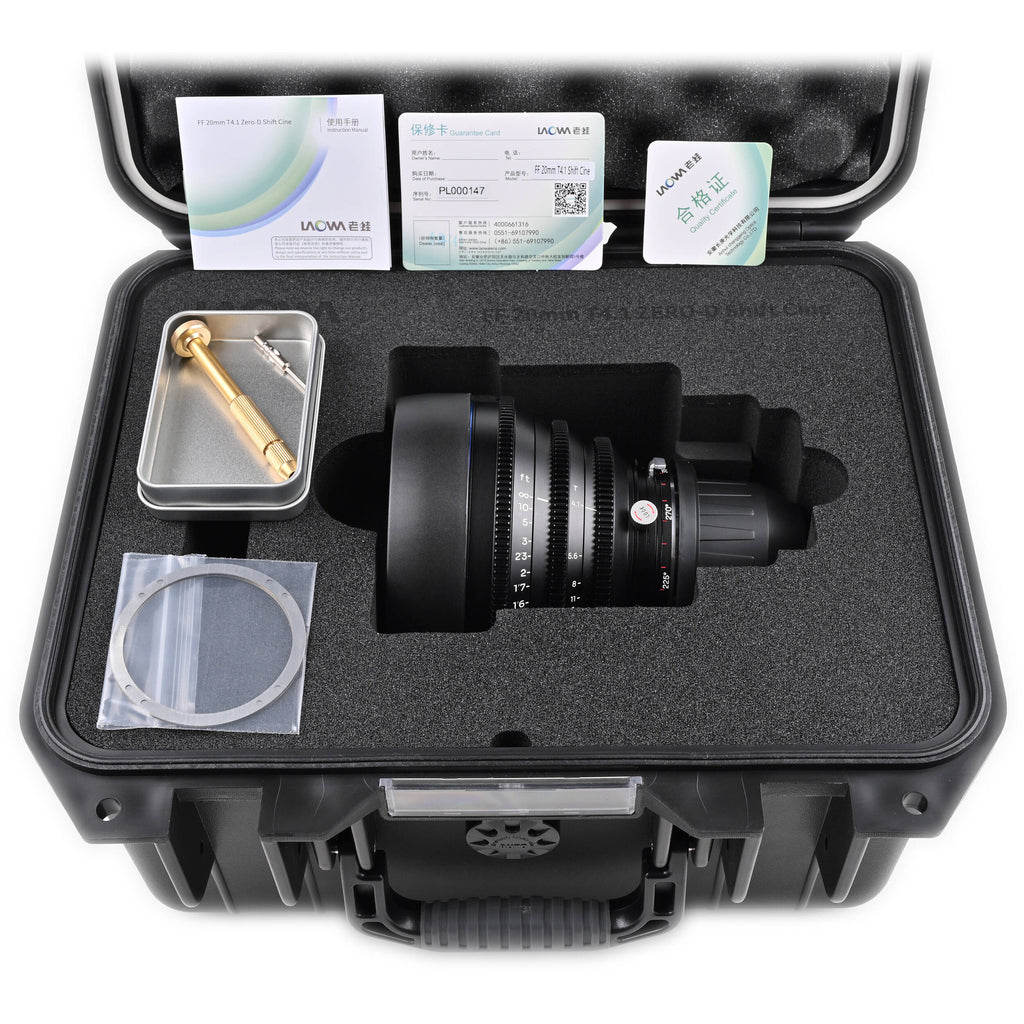

Items Included
- Venus Optics Laowa 20mm T4.1 Zero-D Shift Cine Lens (ARRI PL)
- Shim Set
- Screwdriver
- Hard Case
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Venus Optics Laowa 20mm T4.1 Zero-D Shift Cin... Specs
| Focal Length |
20mm
|
| Maximum Aperture |
T4.1
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full-Frame
VistaVision |
| Filter Thread |
114 mm
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Maximum Aperture |
T4.1
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
|
| Interchangeable Mount |
Yes
|
| Lens Format Coverage |
Full-Frame
VistaVision |
| Image Circle |
65.2 mm
|
| Angle of View |
Full Frame
Horizontal: 117° Horizontal: 94.4° |
| Focus Scales |
Metric, Imperial
|
| Optical Design |
16 Elements in 11 Groups
|
| Filter Thread |
114 mm
|
| Minimum Focus Distance |
9.8" / 25 cm
|
| Aperture/Iris Blades |
14
|
| Image Stabilization |
No
|
| Lens Mounting |
No
|
| Gear Standard |
MOD
|
| Gear Rotation |
Not Specified by Manufacturer
|
| Electronic Communication |
No
|
| Diameter |
4.5" / 114 mm
|
| Length |
3.9" / 100 mm
|
| Weight |
2.58 lb / 1.17 kg
|
| Package Weight |
9.465 lb
|
| Box Dimensions (LxWxH) |
14.3 x 11.8 x 9.1"
|
