Description

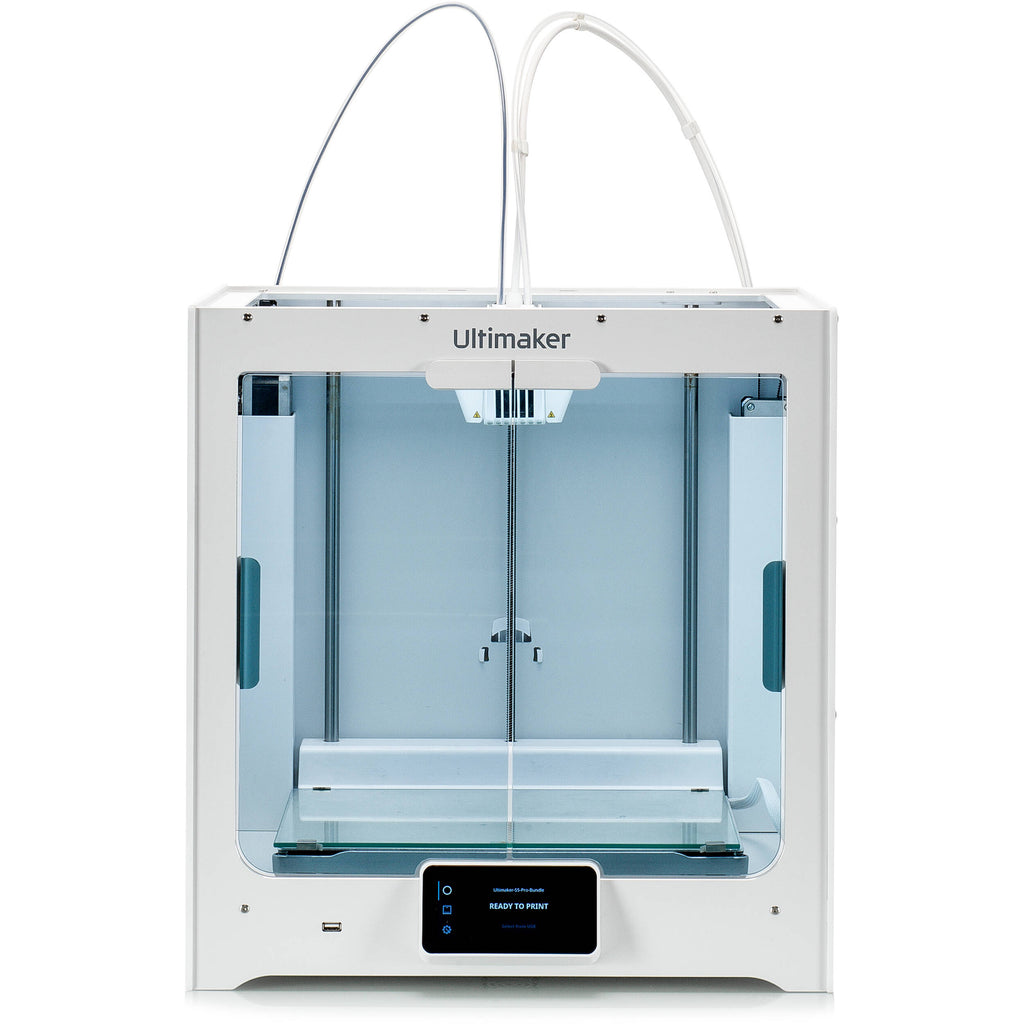

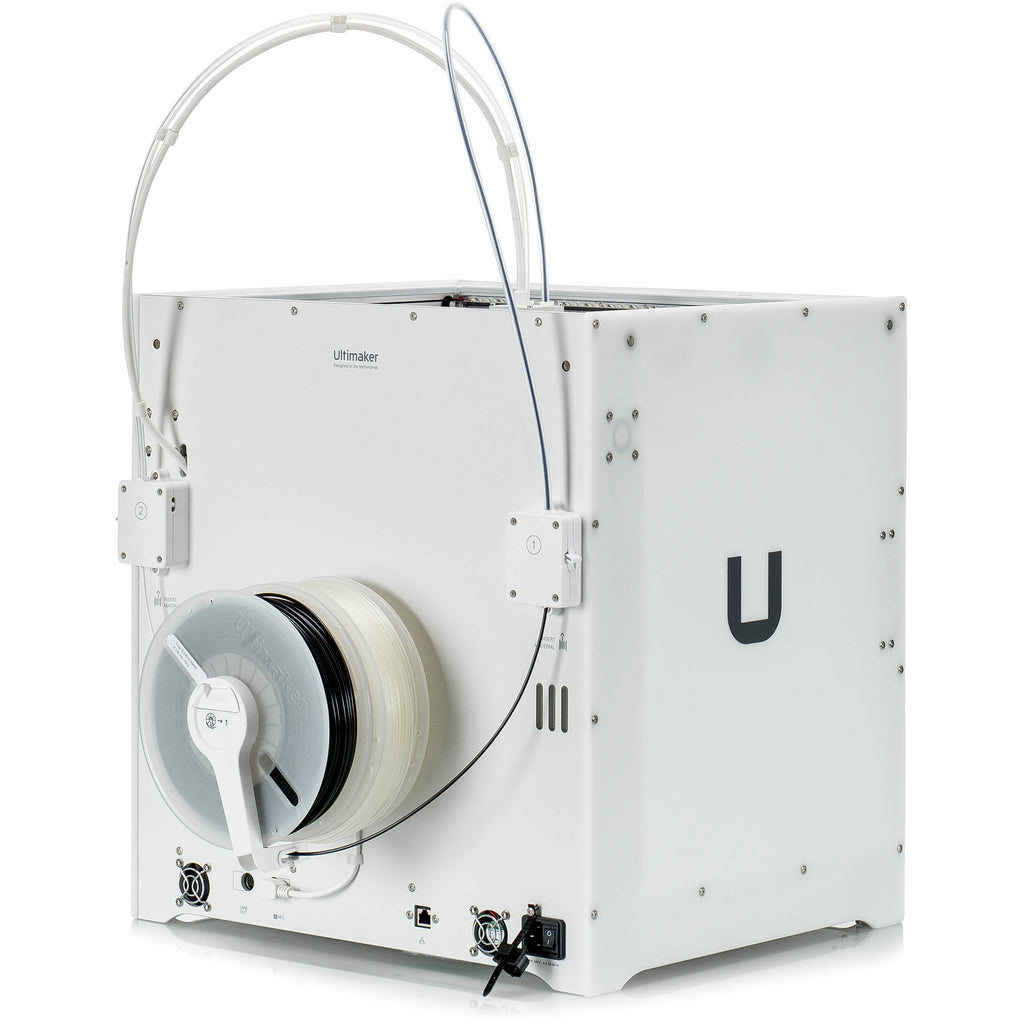

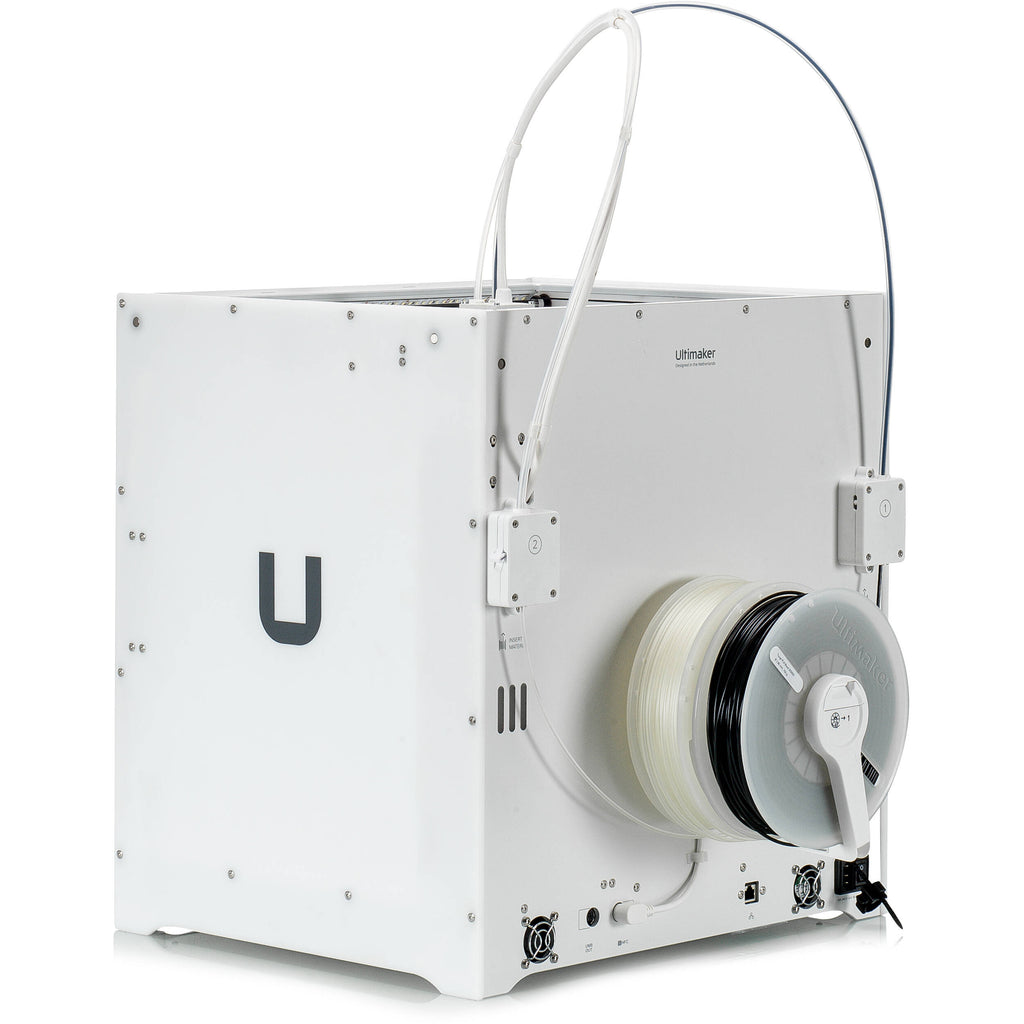

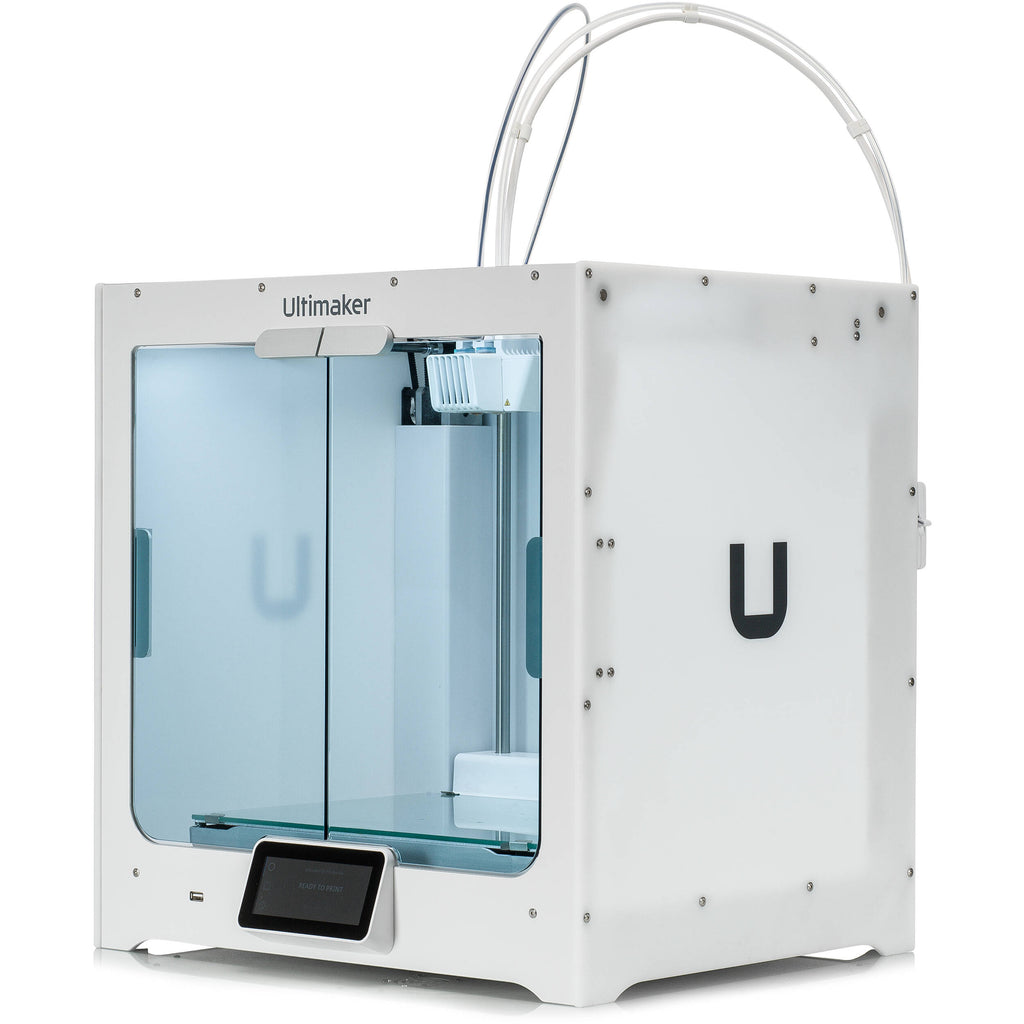

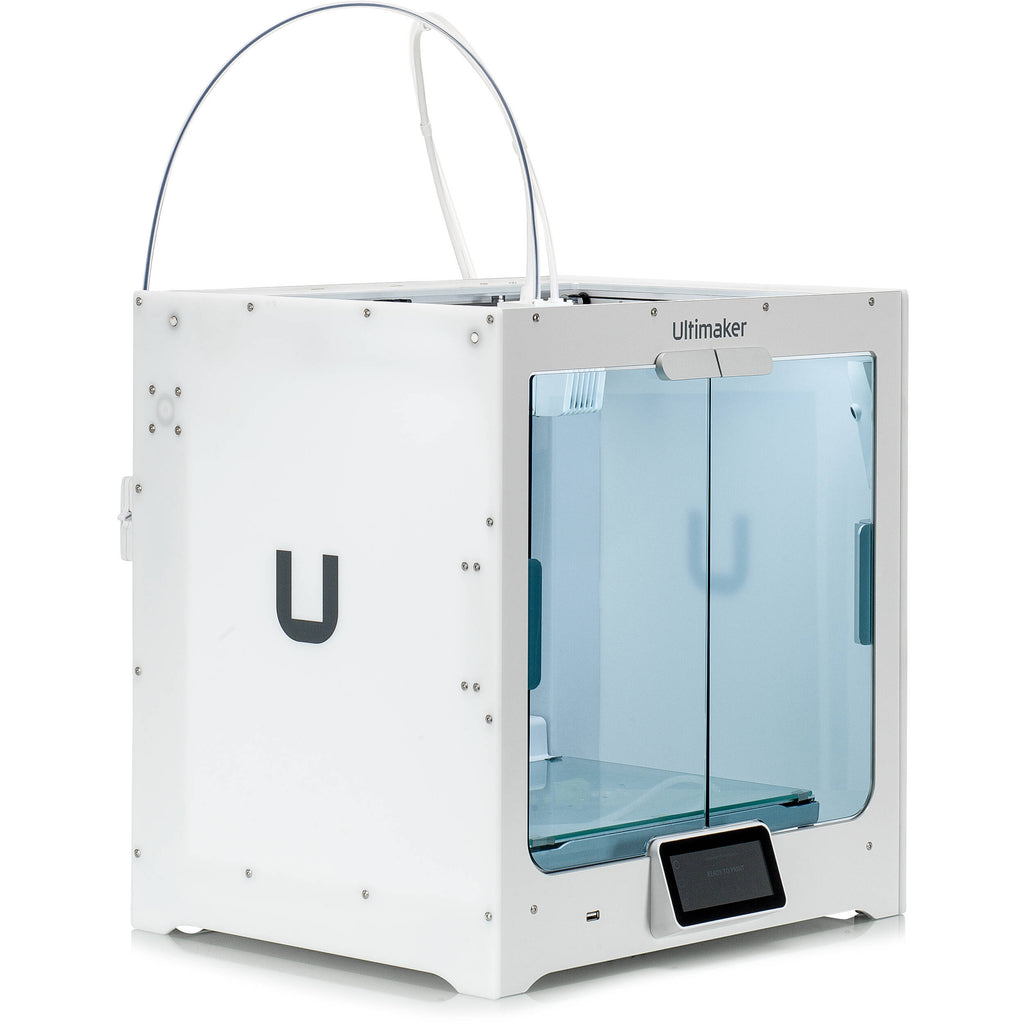

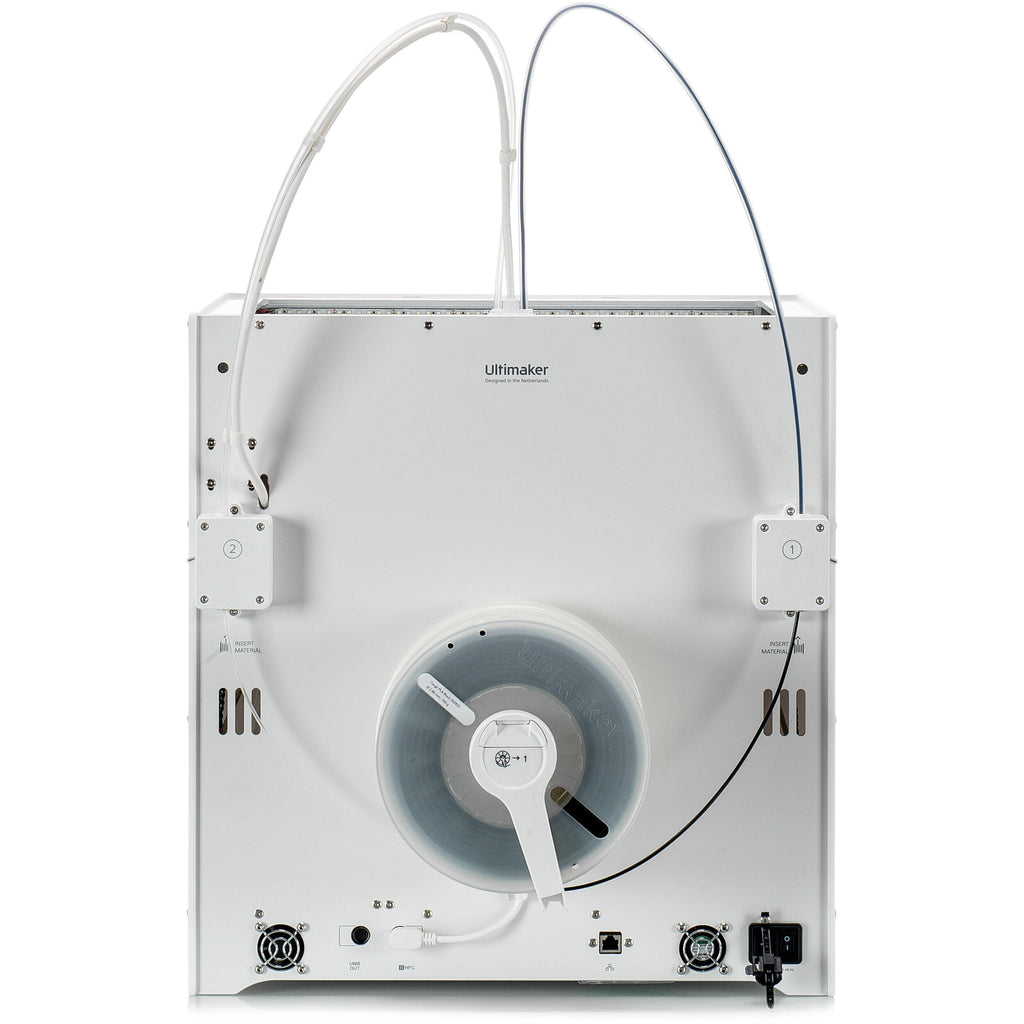

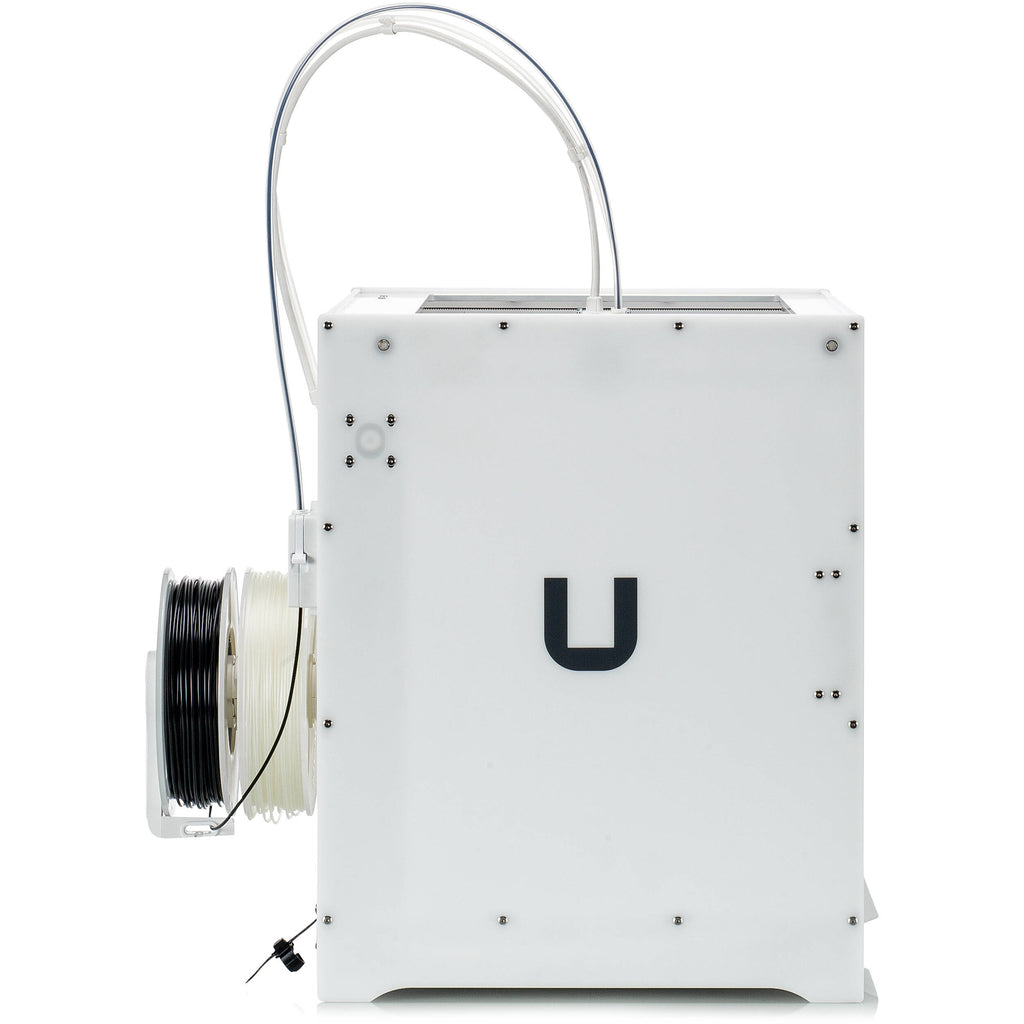

UltiMaker S5 Overview
The S5 3D Printer from UltiMaker is an industrial-grade 3D printer. It features direct dual extrusion, onboard print process reporting, and numerous innovations that ensure predictability with minimal variance. Its insulated build chamber and automated material handling system maintain filament quality, while the temperature-controlled design guarantees consistent output even for the most complex and challenging designs.
The S5 makes it easy to click and print with an unrivaled range of materials so your 3D printing applications can meet the demands of the real world. Choose from advanced engineering polymers, glass or carbon fiber composites, recycled filaments, and stainless steel.
Unlock many potential 3D printing applications. These 280+ materials have been tested for thousands of hours by their manufacturers and users in the field.
UPC: 810036961110
Items Included
- UltiMaker S5 3D Printer
- Glass Build Plate
- Print Core AA 0.4mm
- Print Core BB 0.4mm
- NFC Spool Holder
- NFC-Enabled Reel Holder Assembly
- Tough PLA (750g)
- PVA (750g)
- Glue Stick
- Hex Screwdriver (2mm)
- Oil & Grease
- USB Stick
- Ethernet Cable
- Power Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
UltiMaker S5 Specs
Key Specs
| Print Technology |
Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM)
|
| Build Volume |
13 x 11.8 x 9.4" / 33.0 x 30 x 23.9 cm
|
| Layer Resolution |
XY Axis: 150 to 60 micron / 0.15 to 0.06 mm
|
| Filament Compatibility |
2.85 mm Diameter
|
| Build Plate Features |
Auto Leveling, Heated
|
| Supported 3D File Types |
.3mf, .gcode, .obj, .stl, .x3d
|
Printer
| Print Technology |
Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM)
|
| Build Volume |
13 x 11.8 x 9.4" / 33.0 x 30 x 23.9 cm
|
| Number of Extruders |
2
|
| Layer Resolution |
XY Axis: 150 to 60 micron / 0.15 to 0.06 mm
|
| Supported Extruder Nozzle Diameter |
0.25 mm
0.4 mm 0.6 mm 0.8 mm |
| Extruder Nozzle Temperature |
356 to 536°F / 180 to 280°C
|
| Positioning Precision |
X Axis: 6.9 micron / 0.0069 mm
Y Axis: 6.9 micron / 0.0069 mm Y Axis: 2.5 micron / 0.0025 mm |
| Filament Compatibility |
2.85 mm Diameter
|
Build Area
| Build Area Type |
Enclosed
|
| Build Plate Features |
Auto Leveling, Heated
|
| Build Plate Temperature |
68 to 140°F / 20 to 60°C
|
| Build Plate Composition |
Glass
|
| 3D Scanner |
No
|
| Monitoring Camera |
Yes
|
Connectivity
| System Connection |
1x RJ45
1x Unspecified USB |
| Wireless |
Wi-Fi
*Built-In |
| Media/Memory Card Slot |
No
|
Software
| OS Compatibility |
Windows / macOS / Linux
|
| Supported 3D File Types |
.3mf, .gcode, .obj, .stl, .x3d
|
General
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Operating Conditions |
59 to 90°F / 15 to 32°C
|
| Storage Conditions |
32 to 90°F / 0 to 32°C
|
| Dimensions (W x H x D) |
19.5 x 30.7 x 23" / 49.5 x 78 x 58.4 cm
|
| Weight |
64.2 lb / 29.1 kg
|
Packaging Info
| Package Weight |
63 lb
|
| Box Dimensions (LxWxH) |
26 x 25 x 23.25"
|
