Description
Ubiquiti Networks USP-PDU-HD Overview

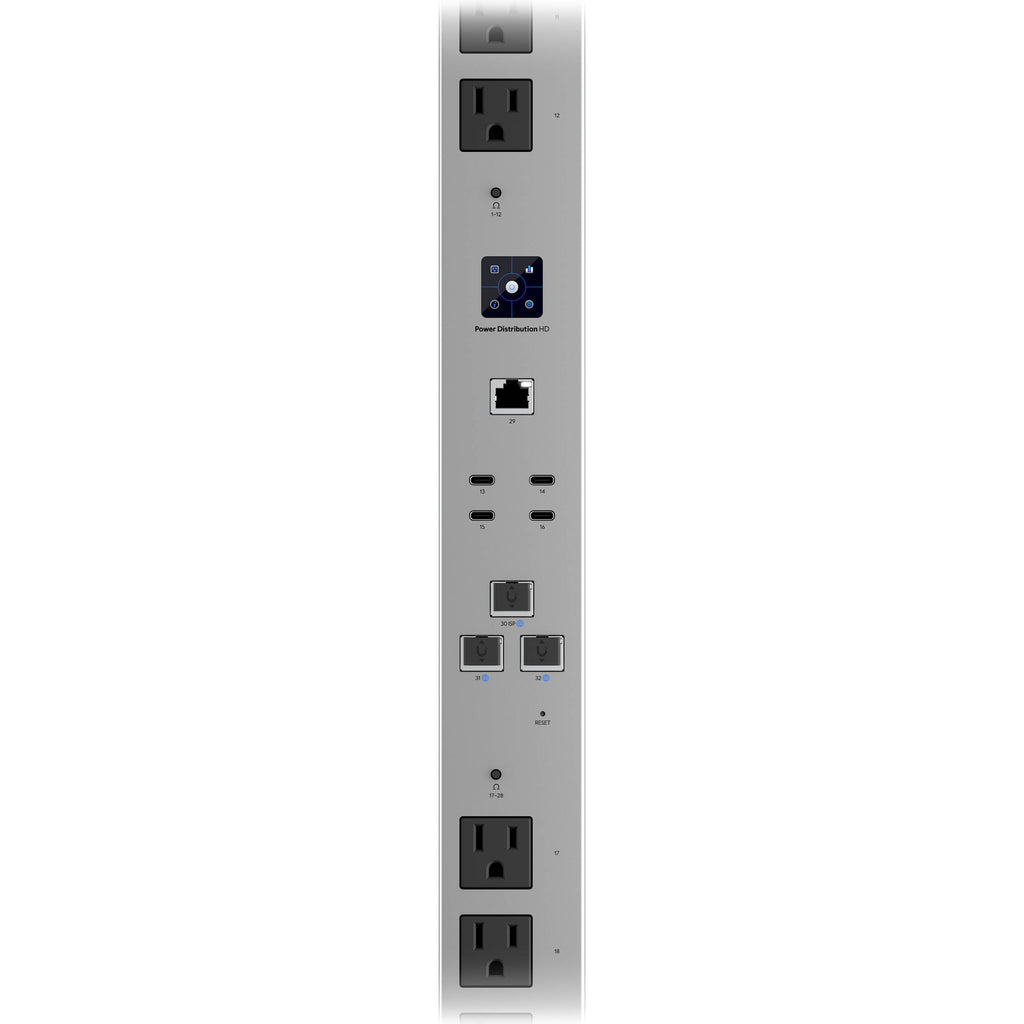

Featuring 24 front-facing 3-prong power outlets and four 5V, 2A USB-C ports, the Power Distribution Hi-Density from Ubiquiti Networks is designed to support a max load of 3750W while mounted vertically onto a 36 RU or taller rack. Three Gigabit Ethernet ports alongside one 100MbE RJ45 port offering network redundancy, you can remotely manage each connection.
The system is designed to automatically restart devices such as ISP modems and routers lose connection, or you can manually restart your equipment as needed. You can also check your system with the convenient 1.3" touchscreen located on the front panel. The built-in circuit breaker helps to protect your equipment. A rackmount kit is included.

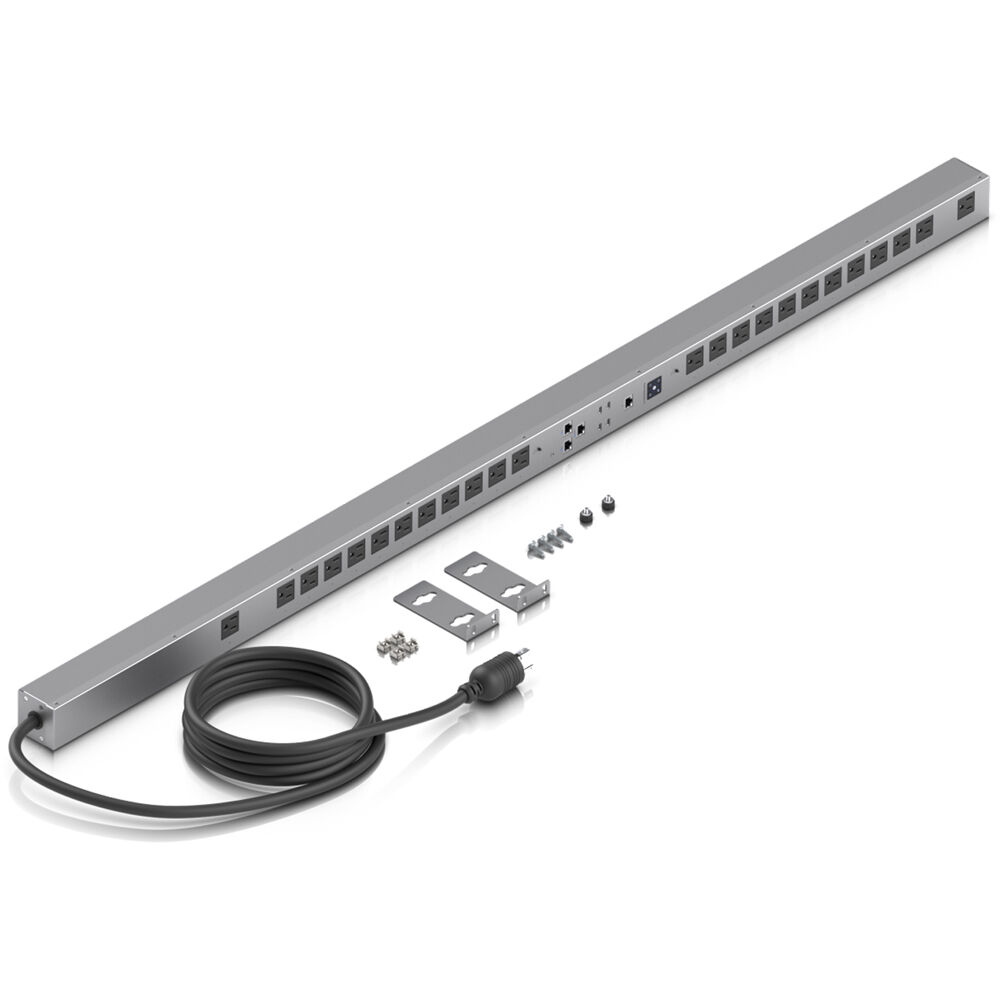

Items Included
- Ubiquiti Networks Power Distribution Hi-Density
- Rackmount Kit
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Ubiquiti Networks USP-PDU-HD Specs
| Metering |
None
|
| Battery Backup |
No
|
| Outlets |
24x NEMA 5-15R
|
| Additional I/O |
4x RJ45
4x USB-C |
| Surge Protection |
No
|
| Type |
Distributor
|
| Amp Rating |
15 A
|
| Number of Circuits |
Not Specified by Manufacturer
|
| Metering |
None
|
| Battery Backup |
No
|
| Integrated Lamps |
None
|
| Outlets |
24x NEMA 5-15R
|
| Wall Plug Type |
NEMA L5-30P (Straight)
|
| AC Power I/O |
Hardwired
|
| Lamp I/O |
No
|
| Additional I/O |
4x RJ45
4x USB-C |
| Wireless |
No
|
| Mobile App Compatible |
No
|
| AC Input Power |
100 to 125 VAC, 50 / 60 Hz (30 A)
|
| Output Voltage |
125 VAC
|
| Output Current |
15 A (per Circuit)
30 A (Maximum) |
| Load Capacity |
3750 W
|
| Sequencing Delay |
No
|
| USB Output |
5 V, 2 A
|
| Protection Types & Modes |
Manual Reset
|
| Circuit Breaker |
Yes
|
| Undervoltage Protection |
No
|
| Overvoltage Protection |
No
|
| Surge Protection |
No
|
| EMI/RFI Noise Filtration |
No
|
| Rackmount Size |
36 RU (with Non-Included Hardware)
|
| Cable Length |
9.8' / 3 m
|
| Certifications |
FCC, IC
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
| Material of Construction |
Steel
|
| Cable Management |
No
|
| Dimensions |
58.5 x 2.2 x 2.2" / 1485 x 56 x 55 mm
|
| Weight |
13.9 lb / 6.3 kg
|
| Package Weight |
24.7 lb
|
| Box Dimensions (LxWxH) |
42.5 x 8.75 x 7"
|
