Description
Speco Technologies O4BXLP1M Overview

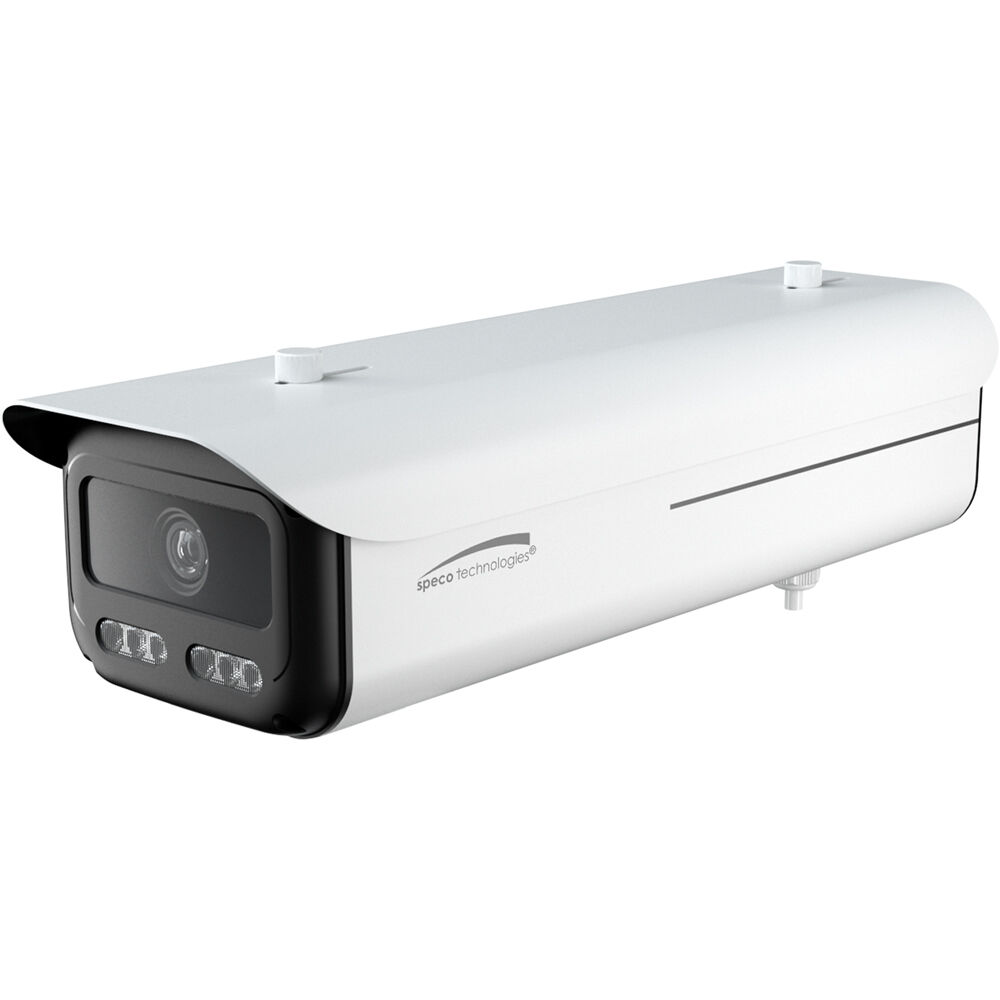

The O4BXLP1M 4MP Outdoor License Plate Recognition Box Camera from Speco Technologies is a weatherproof outdoor license plate camera that is specifically designed to capture license plates on vehicles moving at high speeds up to 75 mph from up to 98' away. When using the built-in white LED light, this camera captures plates up to 330' away in low light. This camera is powered via PoE++ and it features security measures, an 8 to 32mm zoom lens, multiple alarm triggers, and analytics.
Additional Details

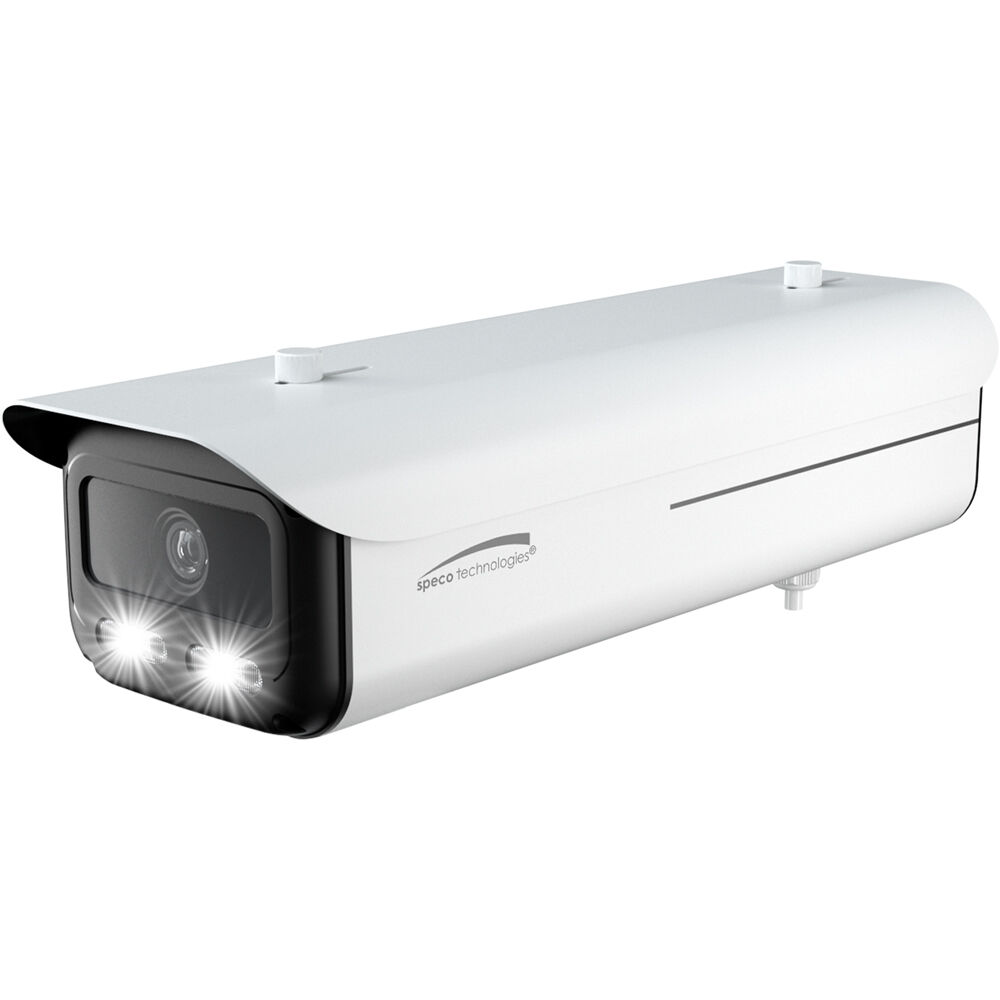

- Captures plates in low light with white LED up to 330' (depending on scene reflection)
- Captures license plates traveling up to 75mph (in ideal conditions)
- Captures up to 4MP 2560 x 1520p30 (60 fps in high frame-rate mode)
- Recommended capture distance (22 to 98 ft.)
- Built-in standard PoE++ (IEEE 802.3bt)
- MicroSD card slot up to 256GB (card not included)
- Two-way audio support
- 2-channel alarm inputs/outputs
- Compliant with ONVIF Profiles G/S/T
- IP67 weather resistance
- Search and Match captured plates with built-in database of up to 10,000 plates or with optional Speco Blue Recorder
Analytics
- License plate recognition
- Travel direction
- Vehicle metadata
- Video tampering detection
Alarm Triggers
- Motion detection
- Analytics
- Video tampering detection
- SD card error
- IP address conflict
- Sensor alarm
- Cable disconnection
Image Settings
- Region of interest
- Saturation
- Brightness
- Chroma
- Contrast
- Noise reduction
- Corridor mode
- Video masking
Security
- Watermark
- IP address filtering
- Video mask
- Heartbeat
- Password protection
- Non-photosensitive switch
- Image distortion correction
- Maximum 10 simultaneous users (depending on bandwidth)
UPC: 030519044325
Items Included
- Speco Technologies O4BXLP1M 4MP Outdoor License Plate Recognition Box Camera
- Install CD
- Limited 5-Year Manufacturer Warranty
Additional Resources
Speco Technologies O4BXLP1M Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
8 to 32mm
|
| Field of View |
Horizontal: 41 to 15.5?
Vertical: 23 to 9.5? Diagonal: 46.5 to 18? |
| Output Formats |
Ethernet:
2560 x 1520p at 30/60 fps |
| Video I/O |
1x RJ45 LAN Input/Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x Block 2-Pin (24VDC) Input
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel (2560 x 1520)
|
| Day/Night |
Yes
|
Exposure Control
| Shutter Speed |
1/100000 to 1 Second in Video Mode
|
Lens
| Focal Length |
8 to 32mm
|
| Field of View |
Horizontal: 41 to 15.5?
Vertical: 23 to 9.5? Diagonal: 46.5 to 18? |
Video
| Output Formats |
Ethernet:
2560 x 1520p at 30/60 fps |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
1920 x 1080p up to 30.00 fps 1920 x 1080p up to 60.00 fps 1280 x 720 up to 30.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
Control
| Supported Control Protocols |
IP
|
Networking
| Security |
Centralized Certificate Management, HTTPS, IEEE 802.1X
|
| Supported Protocols |
DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC
|
| Video I/O |
1x RJ45 LAN Input/Output
|
| Audio I/O |
1x Block Microphone Input
1x Block Line Output |
| Other I/O |
1x 20-Pin (Camera Interface, RS-232, RS-485)
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
System Integration
| Analytics |
License Plate Recognition
|
| Built-In Installation Aids |
Autofocus, Remote Focus, Remote Zoom
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Notification, Alarm
|
| Alarm I/O |
2 / 2
|
Power
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x Block 2-Pin (24VDC) Input
|
| Power Consumption |
PoE: 24 VDC 21.5 W
|
Environmental
| Operating Conditions |
-40 to 140?F / -40 to 60?C at 0 to 95% Humidity
|
| Environmental Resistance |
Weather-Resistant (IP67)
|
General
| Materials |
Aluminum, Plastic
|
| Certifications |
FCC
|
| Illumination |
2x White LED
|
| OS Compatibility |
Computer: macOS / Windows
Mobile: Android/iOS |
| Dimensions (W x H x D) |
16.9 x 5.43 x 4.25" / 429.3 x 137.92 x 107.95 mm
|
| Weight |
5.51 lb / 2.50 kg (Body Only)
|
Packaging Info
| Package Weight |
7.915 lb
|
| Box Dimensions (LxWxH) |
19.7 x 8.4 x 8.3"
|
