Description

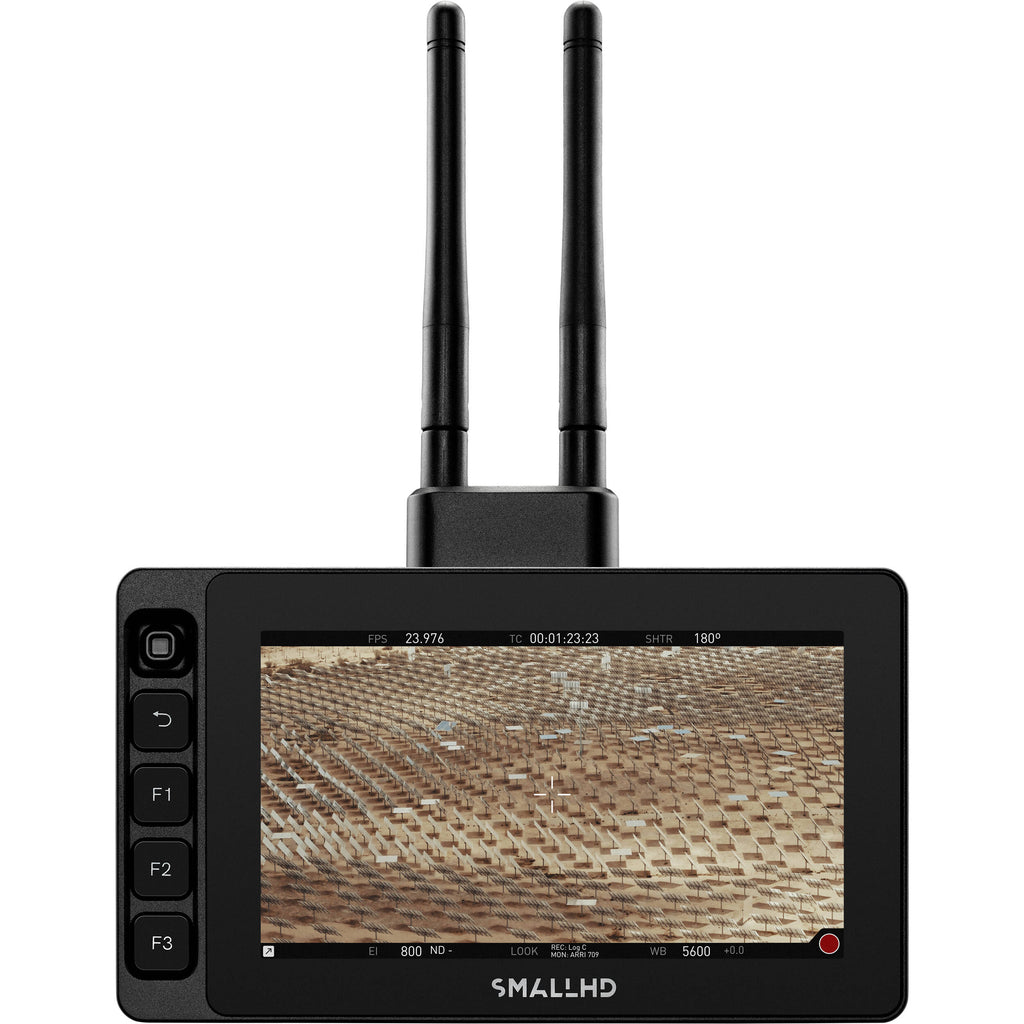

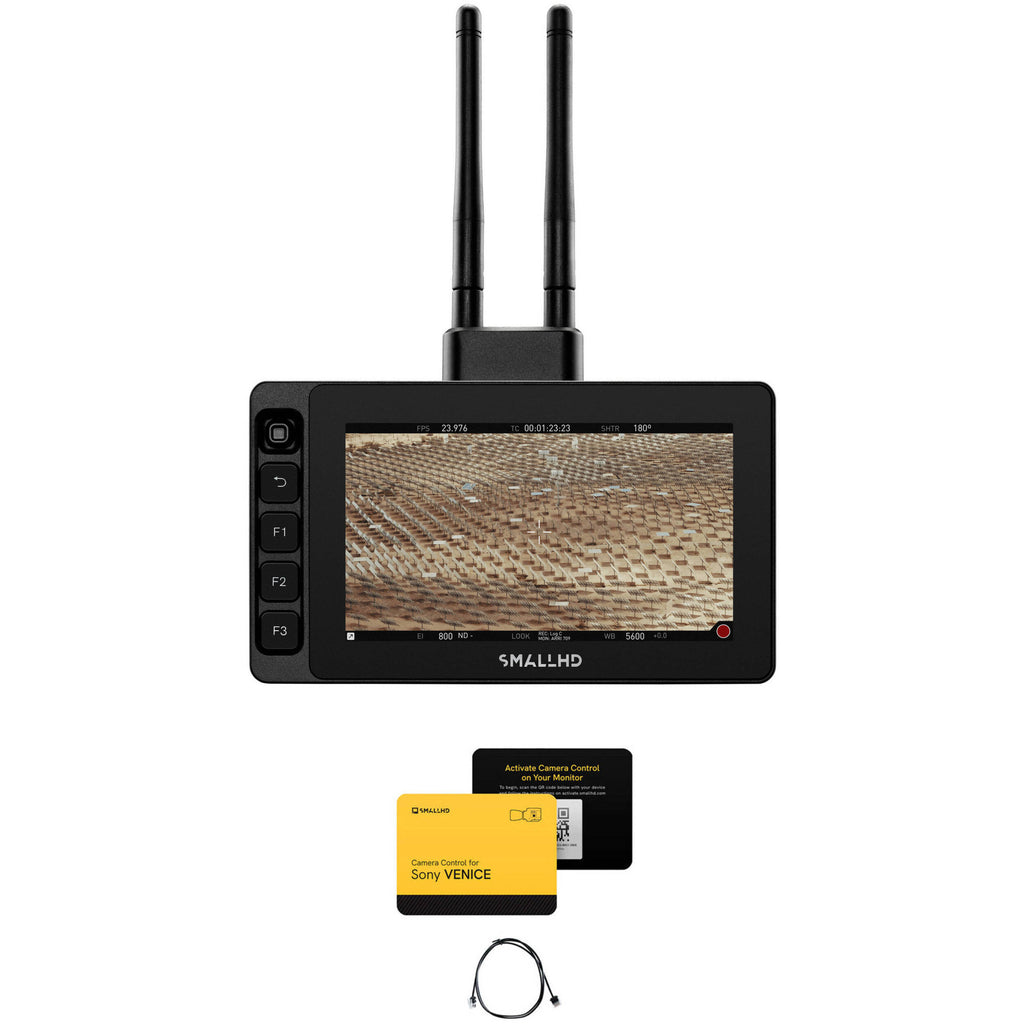

Use the compact SmallHD ULTRA 5 Bolt 6 TX 750 Monitor with Control Kit for Sony VENICE put together by to provide professional monitoring and remote control for your Sony VENICE camera with a sharp 5" display suitable for indoor or outdoor use. The kit includes the ULTRA 5 TX 750 monitor, the Teradek Bolt 6 Monitor Module 750 TX, and the Sony VENICE camera control kit that includes software and an Ethernet control cable.
The indoor/outdoor 5" monitor provides 3000 cd/m? brightness, and the Bolt 6 mounts onto the back and provides wireless video transmission up to 750' away. The VENICE control software loads onto the monitor and allows you to control Sony camera functions protocol such as run/stop, ND filters, fps, status, color temperature, LUT configuration, playback, shutter, timecode, media status, battery status, and menu control, all via the ULTRA 5 touchscreen.
Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m? display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.
The built-in transmitter module provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with a dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels

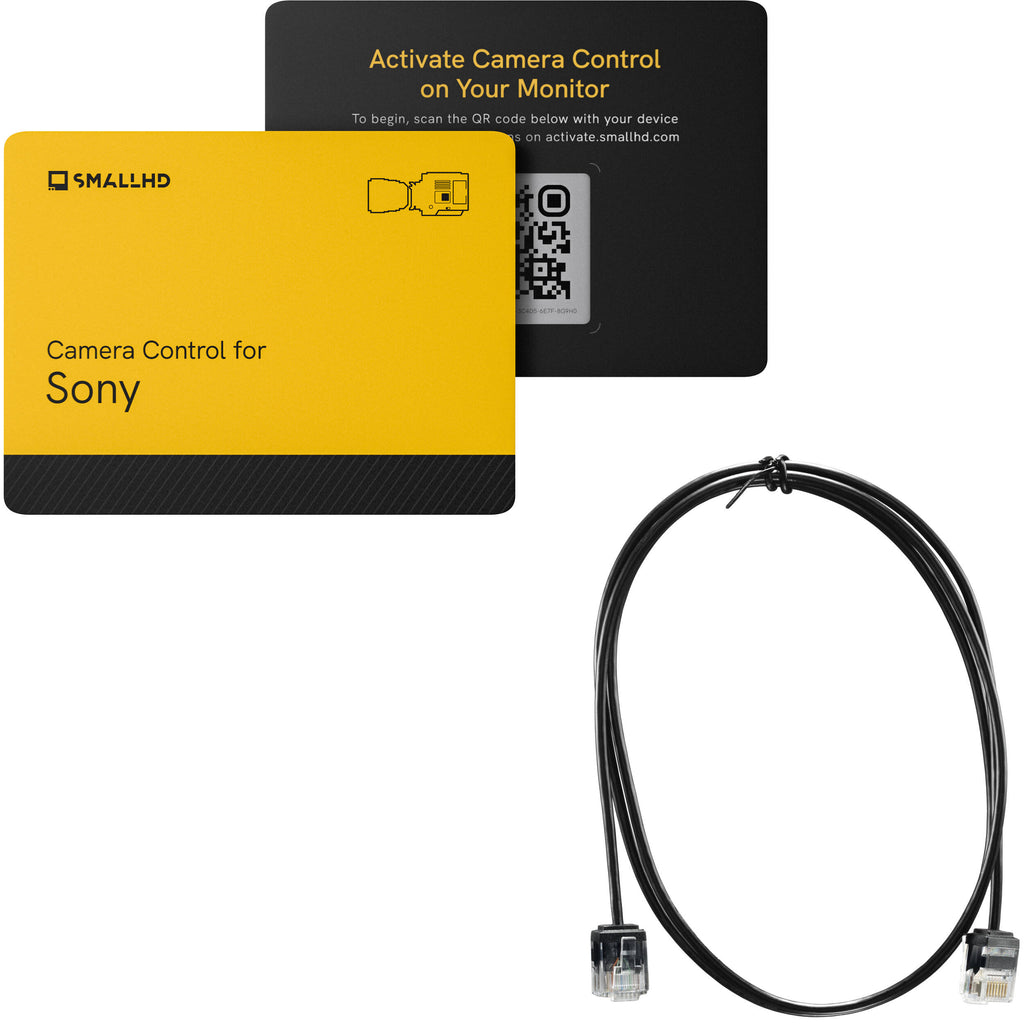

Control your Sony BURANO, FX6, VENICE, or VENICE 2 camera functions with your Ultra 5, Ultra 7, Ultra 10, or Cine 7 monitor using this Camera Control Kit from SmallHD. This kit includes a software license and an Ethernet camera control cable. The software provides control over your camera functions and settings when using the latest version of firmware on your monitor.
This software and cable connection allows you to access and control various camera functions that are available, such as run/stop, color and exposure controls, status, color temperature, white balance, playback, shutter speed, clip playback, battery status, and more, all via the Ultra 5, Ultra 7, Ultra 10, or Cine 7 touchscreen display.
Sony BURANO, FX6, VENICE, and VENICE 2
Items Included
- SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Camera Control Kit for Sony BURANO, FX6, VENICE 1 & 2 (Ultra 5, 7, 10, Cine 7)
- Camera Control Software License
- Ethernet Patch Cable
- Limited 1-Year Manufacturer Warranty (on Cable)
Additional Resources
No additional resources available
SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Battery |
Interchangeable Mount (No Plate Included)
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
|
| Other I/O |
1x LEMO 5-Pin Output
1x RJ45 Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Input Power |
10 to 34 VDC at 2.1 A
|
| Battery |
Interchangeable Mount (No Plate Included)
|
| Tripod/Accessory Mounting |
6x 1/4"-20 Female
|
| Environmental Resistance |
No
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm
|
| Weight |
1.2 lb / 558.00 g
|
| Package Weight |
2.08 lb
|
| Box Dimensions (LxWxH) |
10.1 x 7.3 x 2.4"
|
