Description

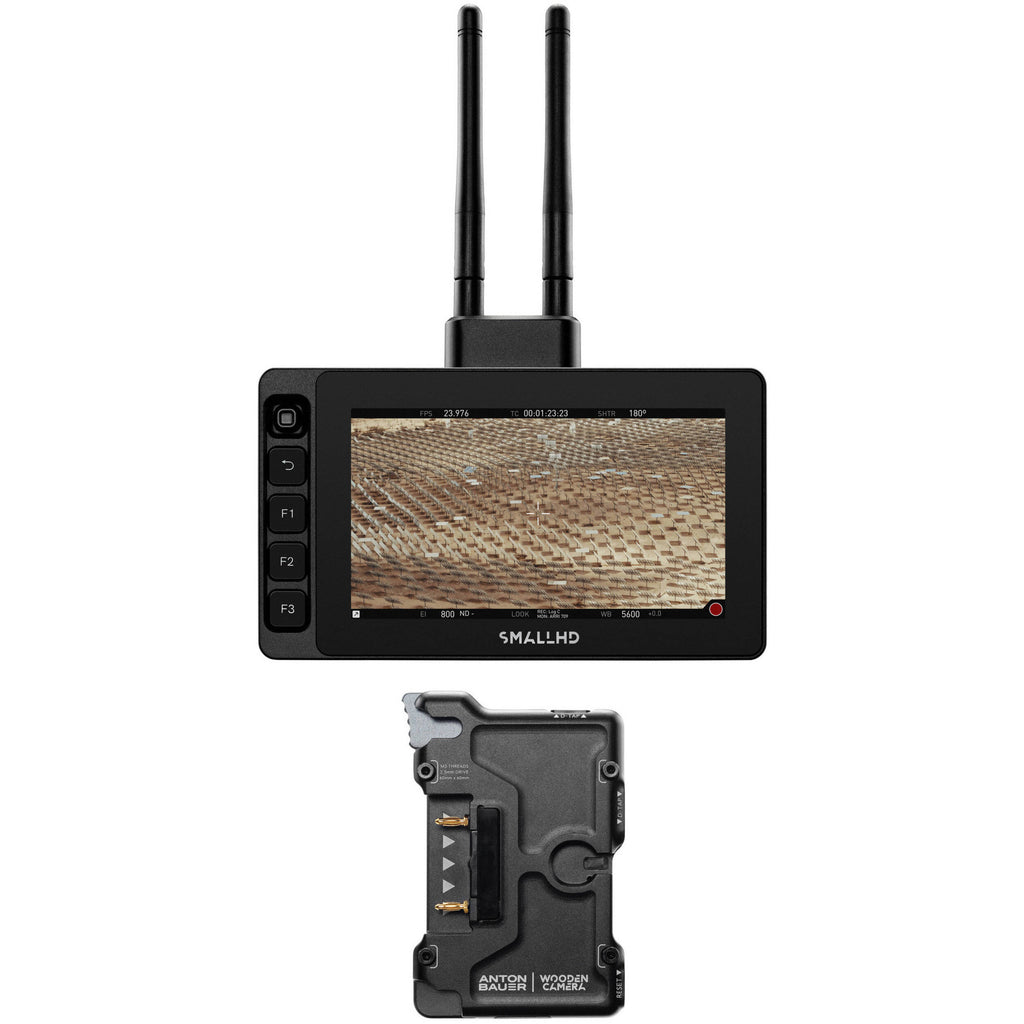

This SmallHD ULTRA 5 Bolt 6 TX 750 Monitor and Battery Plate Kit from provides you with a 5" ultra-bright touchscreen monitor, transmission module, and a V-mount micro battery plate that mounts directly onto the back of it. The Bolt 6 750 TX monitor module transmits up to 4K video from your camera to your monitor via 6 GHz wireless. Power the 1920 x 1080 monitor with a Gold mount battery as well as additional accessories via the integrated D-Tap ports.

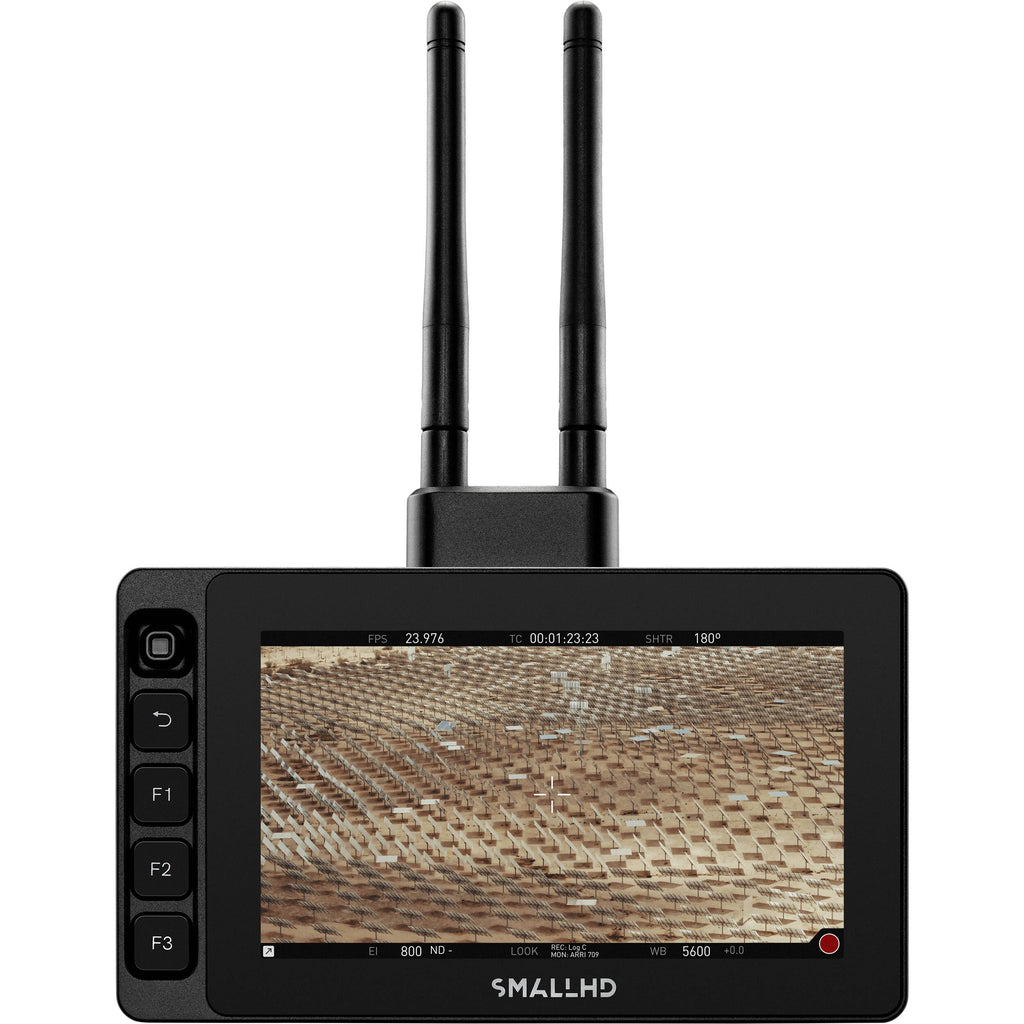

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m? display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.
The built-in transmitter module provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with a dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels

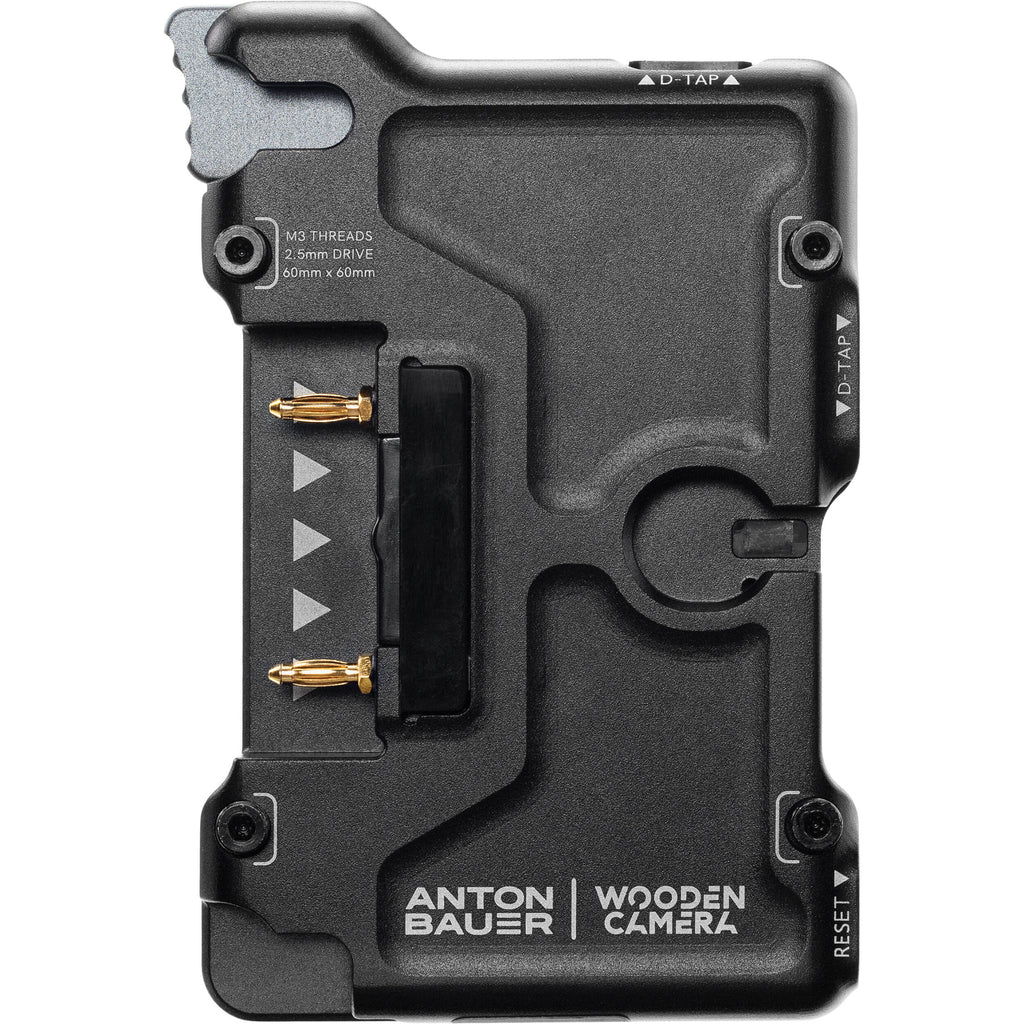

Power your Ultra series monitor using a Gold mount battery with this Micro Battery Plate from SmallHD. The battery plate mounts directly onto your monitor using included captive mounting screws, and it provides power to the monitor from a separately available standard or micro-sized Gold mount battery.
The battery plate also features two D-Tap outputs that provide 11 to 17 VDC of power for additional accessories. The ports have a 5.8V digital E-fuse that is resettable, providing current protection that will shut the ports down if they are overloaded, without affecting the monitor power.
Items Included
- SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Micro Battery Plate for Ultra Series Monitor (Gold Mount)
- Mounting Screw Set
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Battery |
Interchangeable Mount (No Plate Included)
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
|
| Other I/O |
1x LEMO 5-Pin Output
1x RJ45 Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i 576i |
| Input Power |
10 to 34 VDC at 2.1 A
|
| Battery |
Interchangeable Mount (No Plate Included)
|
| Tripod/Accessory Mounting |
6x 1/4"-20 Female
|
| Environmental Resistance |
No
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm
|
| Weight |
1.2 lb / 558.00 g
|
| Package Weight |
2.08 lb
|
| Box Dimensions (LxWxH) |
10.1 x 7.3 x 2.4"
|
