| IMPORTANT NOTE: Due to the supplier's unavailability, Orders placed today will be processed on 8th April 2026. The delivery of this product will be 9-15 days after 8th April 2026. Please ignore the estimated delivery date below. | |
| ₹ 435780.0 includes GST and import duties. | |
| B2B customers can avail ₹ 66456.45 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

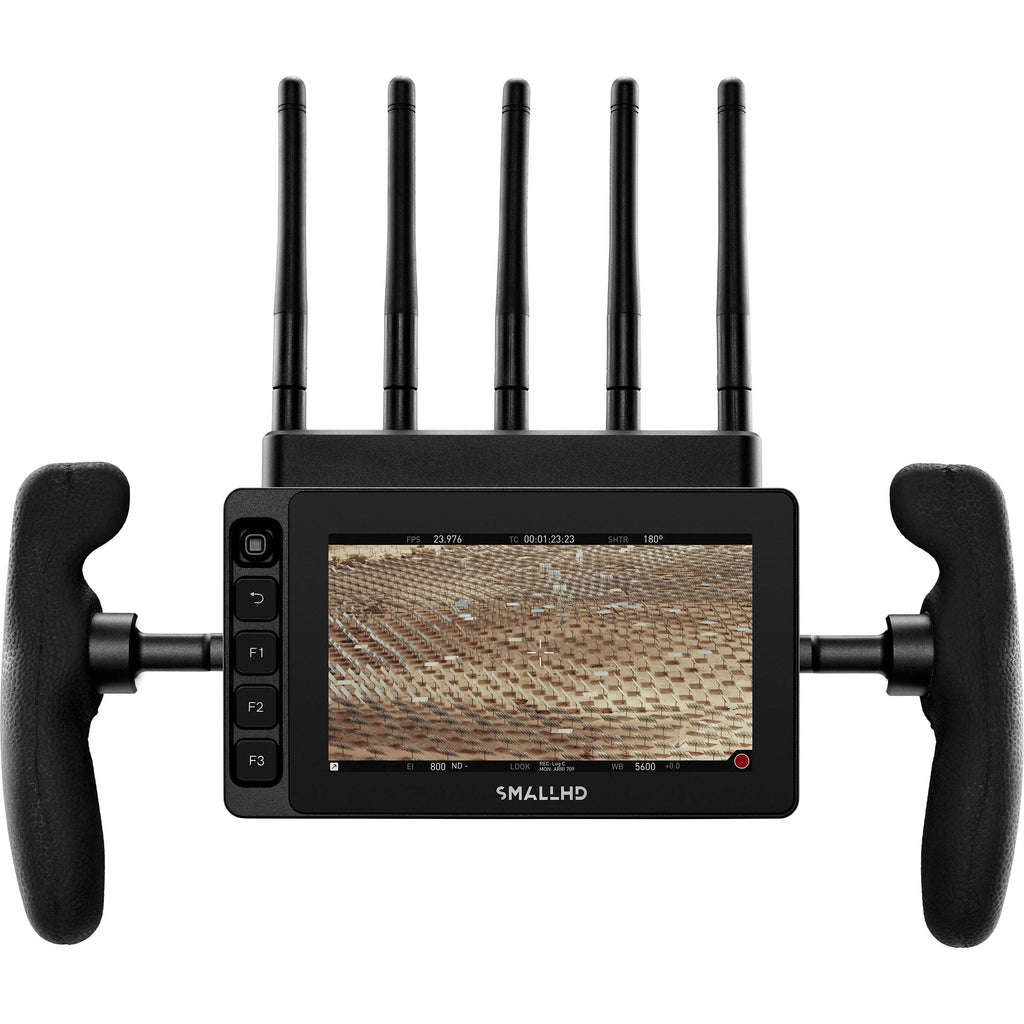

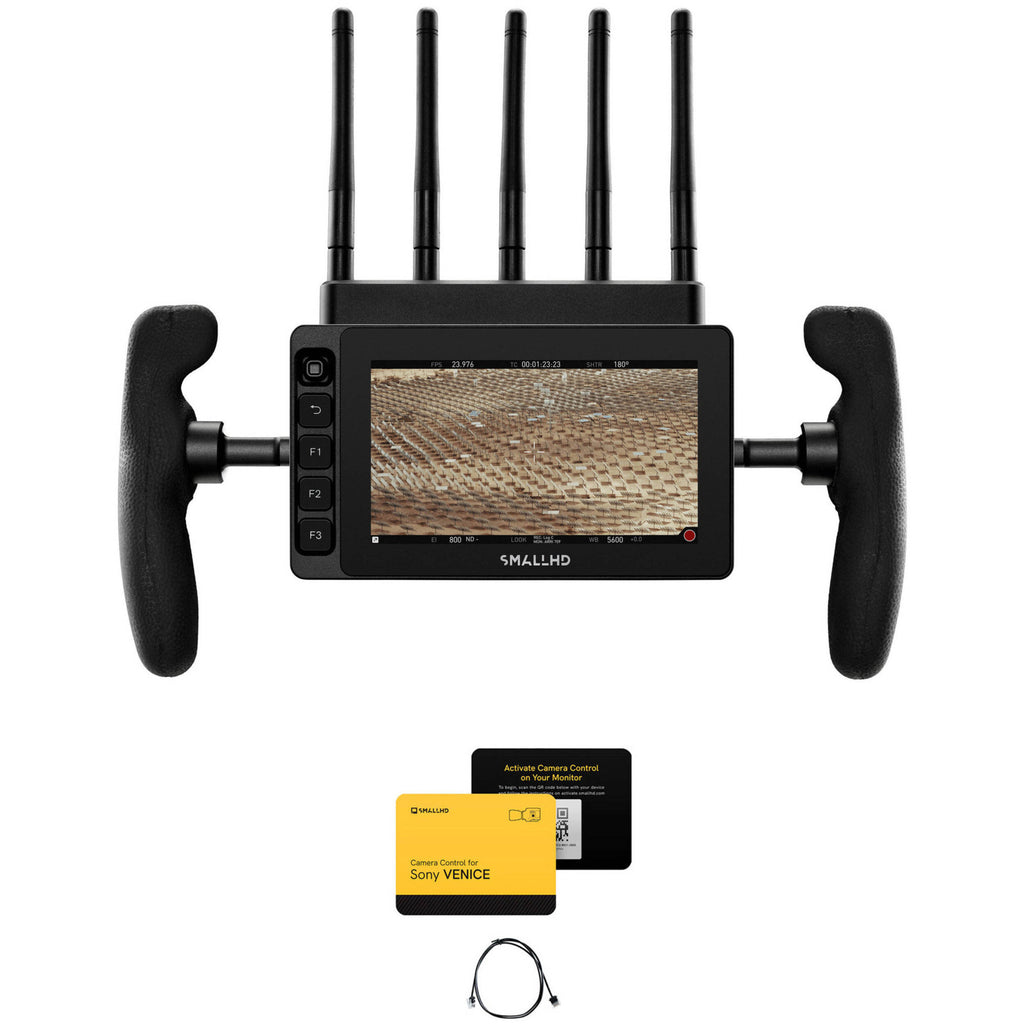

Use the compact SmallHD ULTRA 5 Bolt 6 RX 750 Monitor with Control Kit for Sony VENICE put together by to provide professional monitoring and remote control for your Sony VENICE camera with a sharp 5" display suitable for indoor or outdoor use. The kit includes the ULTRA 5 RX 750 monitor, the Teradek Bolt 6 Monitor Module 750 RX, a V-mount battery plate, and the Sony VENICE camera control kit that includes software and an Ethernet control cable.
The indoor/outdoor 5" monitor provides 3000 cd/m? brightness, and the Bolt 6 RX mounts onto the back and provides wireless video reception from up to 750' away. The VENICE control software loads onto the monitor and allows you to control Sony camera functions protocol such as run/stop, ND filters, fps, status, color temperature, LUT configuration, playback, shutter, timecode, media status, battery status, and menu control, all via the ULTRA 5 touchscreen.
Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m? display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.
The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, features a 5-pin USB port for optional RED camera control, and has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels
- Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to receive over the 6 GHz band.
- The module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
- This module includes a plate to power the receiver using a professional Gold mount battery
- Cross-compatible with all Bolt 4K and 4K LT 5G series transmitters
- Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
- Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI port
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Smaller and lighter chassis design than other Bolt receivers
- AES-256 encryption and RSA 1024 key pairing support
- Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration

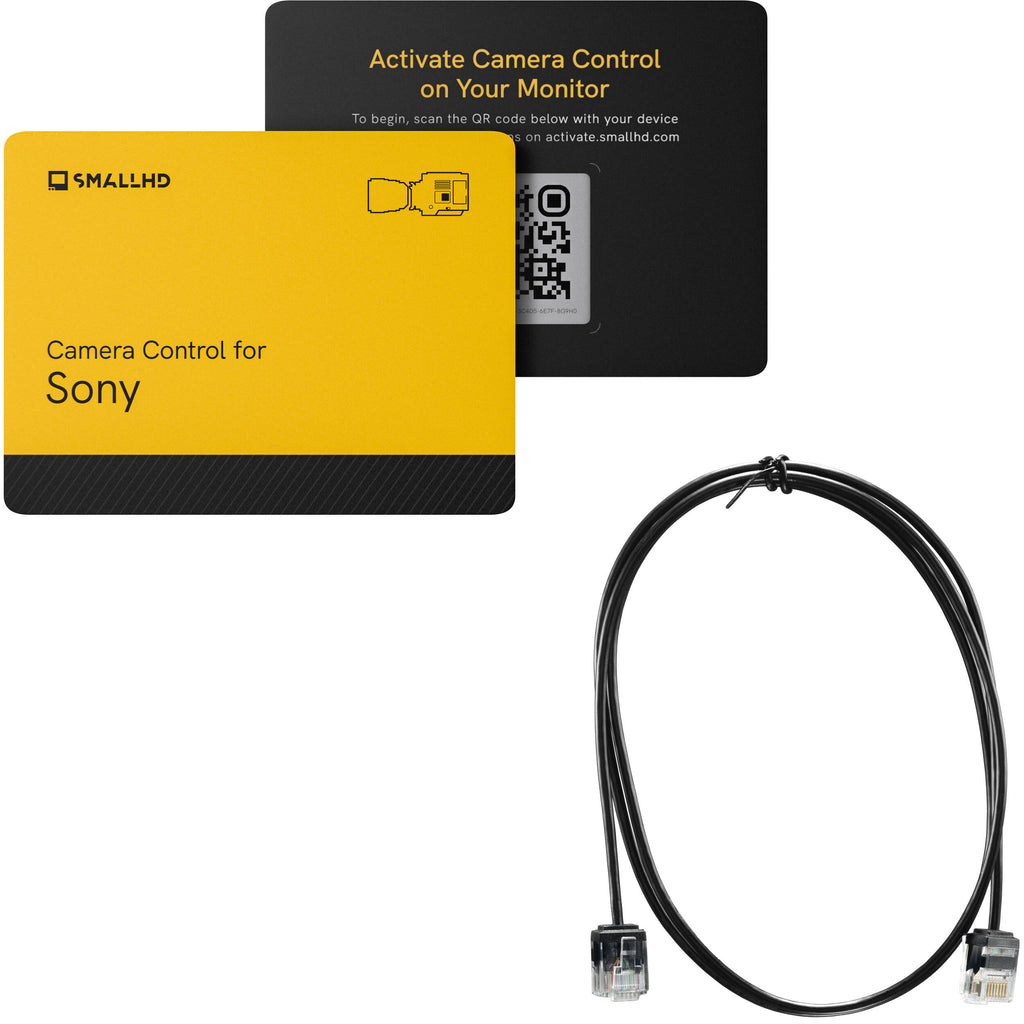

Control your Sony BURANO, FX6, VENICE, or VENICE 2 camera functions with your Ultra 5, Ultra 7, Ultra 10, or Cine 7 monitor using this Camera Control Kit from SmallHD. This kit includes a software license and an Ethernet camera control cable. The software provides control over your camera functions and settings when using the latest version of firmware on your monitor.
This software and cable connection allows you to access and control various camera functions that are available, such as run/stop, color and exposure controls, status, color temperature, white balance, playback, shutter speed, clip playback, battery status, and more, all via the Ultra 5, Ultra 7, Ultra 10, or Cine 7 touchscreen display.
Sony BURANO, FX6, VENICE, and VENICE 2
Items Included
- SmallHD ULTRA 5 Bright Touchscreen Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- Limited 1-Year Manufacturer Warranty
- Teradek Bolt 6 RX 750 Monitor Module for Smart 7 Series (V-Mount)
- V-Mount Battery Plate
- 5 x Antenna
- HDMI Adapter
- Limited 1-Year Manufacturer Warranty
- SmallHD Camera Control Kit for Sony BURANO, FX6, VENICE 1 & 2 (Ultra 5, 7, 10, Cine 7)
- Camera Control Software License
- Ethernet Patch Cable
- Limited 1-Year Manufacturer Warranty (on Cable)
Additional Resources
No additional resources available
SmallHD ULTRA 5 Bright Touchscreen Monitor
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Battery |
No
|
| Panel Type |
LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
|
| Other I/O |
1x LEMO 5-Pin Output
1x RJ45 Output |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 427064.4 |
| 3-5 | ₹ 422706.6 |
| 5-10 | ₹ 413991.0 |
| 10+ | ₹ 405275.4 |
Bulk discount will be automatically applied during checkout based on quantity.
