Description
Sharp PN-ME862 Overview

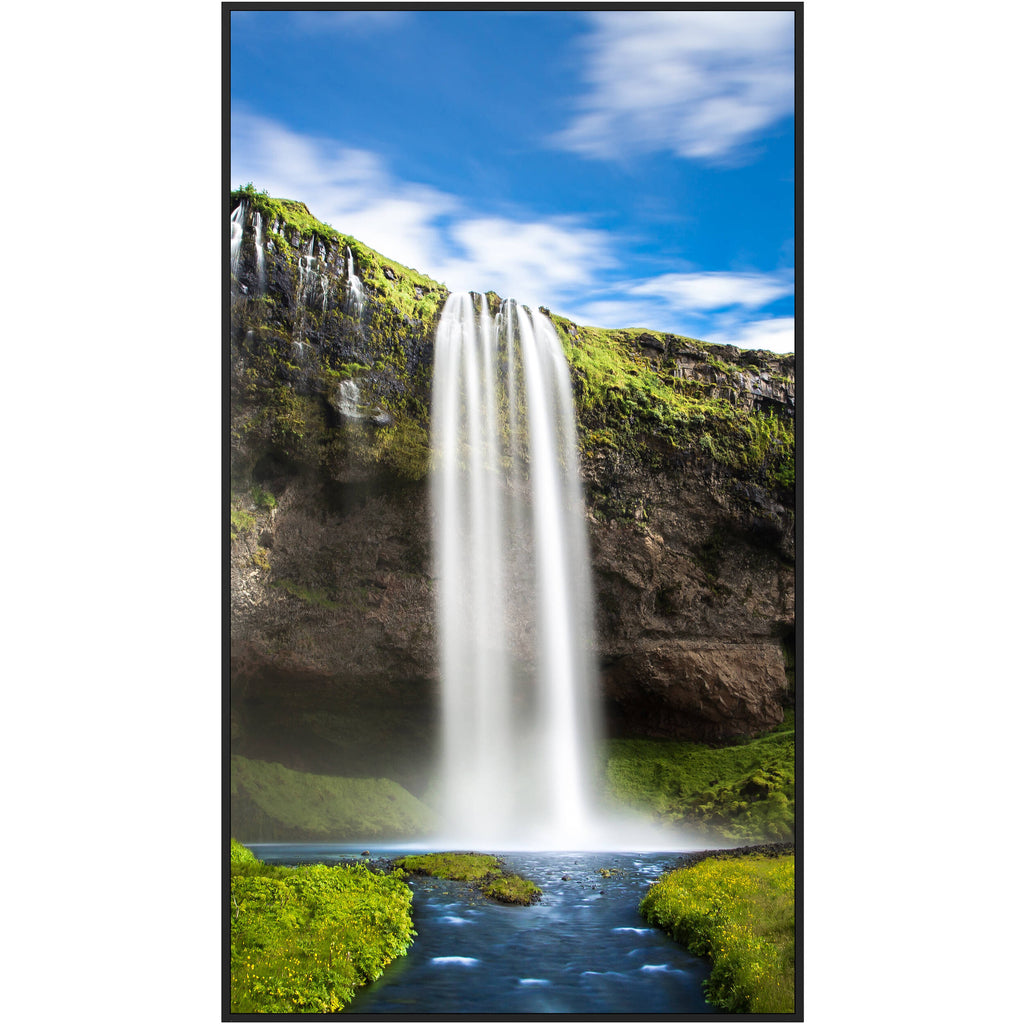

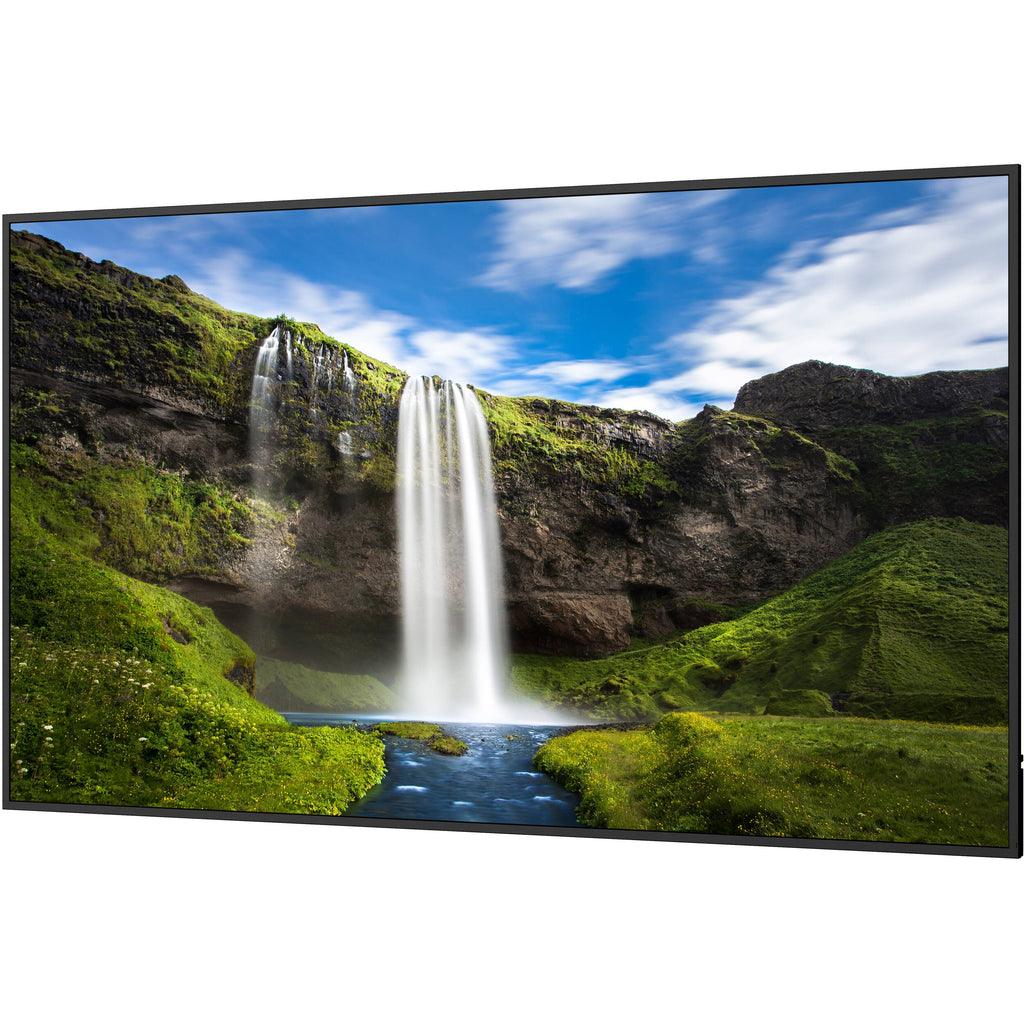

Display engaging and reliable signage using the NEC PN-ME862 86" UHD 4K HDR Commercial Monitor. This 450-nit bright display comes equipped with an integrated media player and Android OS for user-friendly content playback and control.
The PN-ME862 supports portrait and landscape installation with 18/7 runtime capability, which is ideal for commercial, corporate, and educational applications. Content can be loaded and controlled over the network or via HDMI and USB inputs. Bi-directional RS-232 and LAN control allow for easy integration with many major systems, including Crestron and Cisco. Additionally, NaviSet Administrator 2 free software is included to manage all of your Sharp/NEC devices.
Powerful System-on-Chip Design to Fit Your Signage Needs
The Sharp/NEC ME Series of displays are focused on bringing high-powered, integrated, and easy-to-use media playback to the user while maintaining the proven reliability and quality of the previous products. The ME series provides a reliable mainstream display to fit all of your digital signage needs. The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage, but since these products are powered by Android 13, they also allow the ability to install separate Android apps if a third-party application is needed.
UHD 4K HDR Visual Quality
By supporting native 3840 x 2160 resolution with full HDR compatibility, imagery and messaging will be more vivid and lifelike than with Full HD. These high-haze panels scatter incidental light that would otherwise take away from the messaging shown on the display. This allows your message to be clear and visible in areas where ambient light would usually take away from what really matters most: your content.
Full Commercial Build
A full metal chassis allows for the ruggedness needed for true commercial environments while integrated carrying handles reduce the likelihood of damage during installation. On top of that, an integrated temperature sensor allows you to monitor internal temperatures in real time. The newly designed mechanical build is focused on maintaining reliability while reducing the overall weight of each model up to 33% compared to predecessor models. Additionally, these products have an even bezel design along all four sides meaning that the focus will always be on the content on the screen when in either portrait or landscape orientation.
Home Screen Launcher
The MultiSync PN-ME862 boots up into a home screen that gives you visual access to apps, key settings, and input changes right from the start. Integrated web browser functionality can be used for internet access and streaming, and File Explorer can be used for navigating through internal or external storage drives. The integrated Media Player gives you access to load files to internal storage or play via USB, while content can be scheduled and playlists can be built dependent on when your display is running and what content needs to be shown.
Input Detect Functionality and Failover
This feature allows for the user to prioritize up to three inputs so that if a primary source goes down, the display will automatically switch to whatever input has been prioritized next. The first detect option also allows for the display to automatically turn onto any source that plugs into it, allowing the display to wake on any synced signal.
Center IR Receiver
An IR receiver is located behind the panel allowing protective overlays or touch to be integrated over the top without needing to worry about how to extend IR for control. An IR input is also available for custom installations.
Control Protocol Support
The new Sharp/NEC MultiSync PN-ME862 contains protocol support for both NEC and Sharp legacy products. This means that if you have to replace either an NEC or Sharp product from a previous install, these units can be seamlessly flipped into an existing infrastructure. On top of this, these units support other various protocols dependent on the needs of the application.
NaViSet Administrator 2
NaViSet Administrator 2 is included in all Sharp and NEC MultiSync ME series models. This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of Sharp and NEC display devices and Windows computers. It is ideal for multi-device installations over arrays as it allows for task management, reporting, and on-demand control options. Control your entire Sharp and NEC ecosystem through this free optional asset management software.
Additional Details
- Landscape or Portrait Installation
- Bi-directional LAN and RS232 control
- Display wall calibrator compatible
- HDR support (PQ, HLG, HDR10)
- Power USB ports (5V/3A x1, 5V/2A x2, 5V/0.5A x1)
- TileMatrix capability
- Integrated temperature sensor
- Integrated USB media player
- Full input detect functionality
UPC: 074000704060
Items Included
- Sharp PN-ME862 86" UHD 4K HDR Commercial Monitor
- Power Cord (9.8')
- HDMI Cable (9.8')
- Wireless Remote Control with Batteries
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Sharp PN-ME862 Specs
Key Specs
| Display Size |
85.6"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Touchscreen |
No
|
| USB I/O |
1x USB-C (Unspecified Version) with DP Alt Mode [Audio/Video/Touchscreen Control]
3x USB-A 3.0 / 3.1/3.2 Gen 1 [Audio/Photo/Video] 1x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C (Unspecified Version) [Charging/Control] |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Built-In Speakers |
Yes: 2x 10 W
|
Display
| Display Size |
85.6"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
Yes: HDR10/Hybrid Log Gamma
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| Viewing Angle (H x V) |
178 x 178?
|
| Finish |
Anti-Glare
|
Surface
| Touchscreen |
No
|
Video
| TV Tuner |
No
|
Connectivity
| A/V Inputs |
3x HDMI 2.0
|
| A/V Outputs |
1x 1/8" / 3.5 mm (Analog Audio)
1x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes
|
| USB I/O |
1x USB-C (Unspecified Version) with DP Alt Mode [Audio/Video/Touchscreen Control]
3x USB-A 3.0 / 3.1/3.2 Gen 1 [Audio/Photo/Video] 1x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C (Unspecified Version) [Charging/Control] |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| NFC |
No
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| OPS/Expansion Slots |
No
|
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes: 2x 10 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Yes: Android 13
|
| CPU |
Quad-Core: Up to 1.5 GHz Cortex A55
|
| Storage |
32 GB
|
| RAM |
4 GB
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Operational: 162.0 W
Maximum: 405.0 W Network Standby: 2.0 W Standby: < 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 10 to 80% Humidity
|
| Certifications |
CEC, ENERGY STAR 8.0
|
| VESA Mounting-Hole Pattern |
800 x 600 mm
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Lock Slot |
No
|
| Bezel Thickness |
15.9 mm (Bottom/Right/Top/Left)
|
| Duty Cycle |
18 Hours / 7 Days
|
| Dimensions |
76 x 53.4 x 2.7" / 1930.4 x 1356.4 x 68.6 mm
|
| Weight |
92.6 lb / 42 kg
|
Packaging Info
| Package Weight |
133 lb
|
| Box Dimensions (LxWxH) |
82 x 48 x 9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
