RED DIGITAL CINEMA V-RAPTOR XL X Overview

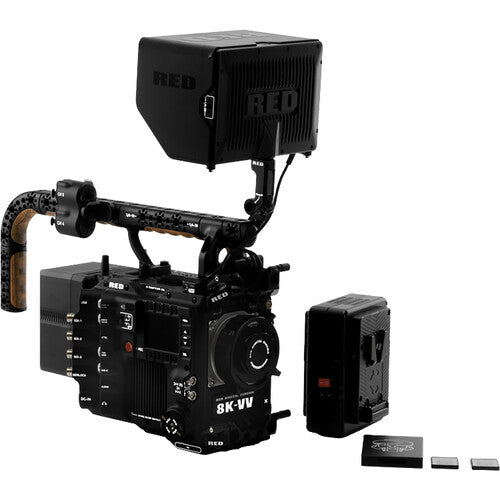

RED DIGITAL CINEMA V-RAPTOR XL [X] 8K VV Camera (V-Mount)
Providing the latest advancements in digital cinema, the
V-RAPTOR XL [X] 8K VV Camera pairs the strengths of the
RED DIGITAL CINEMA V-RAPTOR line with the advanced global shutter of the KOMODO camera. This powerful, all-purpose camera incorporates the 8K resolution, crisp global shutter, optimal low-light performance, and high frame rate functions in a production-ready, all-in-one XL camera body with a V-mount battery system.
- With the V-RAPTOR XL [X] 8K VV, RED has introduced its Global Vision suite of tools that uses the global shutter sensor to offer even greater flexibility and ease of use throughout your production process.
- These tools include Extended Highlights for increasing detail, producing finer HDR finishes or softer, more subtle highlight roll-offs when using SDR.
The Phantom Track function streamlines any virtual production workflow using GhostFrame or frame remapping, capturing distinct R3D clips for each subframe slice in addition to enabling monitoring of either slice live on set over each SDI output. This enables your director and talent to work with the aid of a green screen background while the VF/X team can simultaneously view the frame without having to view or lock in that background. Phantom Track can also be used when applying dedicated ad overlays during a live broadcast.
Advanced, Intelligent Focus
In-camera processing and on-sensor, enhanced phase-detection autofocus plus all-new face detection enable the V-RAPTOR XL [X] to offer versatility and confidence to all levels of filmmakers.
The 17+ stops of dynamic range in standard modes and up to 20+ with Extended Highlights enable the V-RAPTOR XL [X] to deliver both smooth highlight roll-off and uncompromising low-light performance.
Unmatched frame-rate performance enables V-RAPTOR XL [X] users to leverage creative elements like time-lapse or speed ramping or to extract ultrasharp still photos. Frame rate options include 8K, 7K, 6K, 4K, and 2K selections.
The integrated side display provides intuitive, and easily navigable, comprehensive control, including in-camera format selections, customized buttons, and more.
Dual-Voltage Battery Support
An integrated V-mount battery plate with multiple auxiliary power outputs supports both high-voltage 26V batteries and standard 12V batteries.
Motorized clear and 2 to 7-stop ND filters with 1/4, 1/3, and 1-stop increments provide precision exposure control.
Multiple 12 and 24V outputs provide auxiliary power for accessories and peripherals, all in a centralized location.
Viewing Options Include RED Touch 7.0"
Compatibility with the DSMC3 RED Touch 7.0" LCD and front-facing 3G-SDI and 2-pin, 12V power ports support any operator's viewing preferences.
SDI Output Plus Wireless Control
- The V-RAPTOR XL [X] 8K VV offers wireless timecode, genlock, and camera control.
- Four SDI outputs support onboard monitors and your DIT cart.
Virtual Production/Advanced Connectivity
The V-RAPTOR XL [X] 8K VV uses a DSMC3 platform to offer advanced connectivity solutions like remote control, remote monitoring, in-camera Frame.io integrations, AWS (Amazon Web Services) direct upload, RED Connect for live 8K R3D video over IP or live 4K via SMPTE ST 2110, and more. These enhanced features put the V-RAPTOR xl [X] at the forefront of technology used for virtual production.
Live Streaming and Control Pro App
Connect the V-RAPTOR XL [X] using fiber cable and the RED CONNECT module to live stream 8K full-resolution, cinematic video over an IP network. Use the RED Control Pro iOS/Android app and the all-new RED CONNECT technology to unlock the V-RAPTOR [X]'s capabilities.
All-New Audio Architecture
Newly engineered audio hardware provides cleaner, clearer audio when using external microphones with the V-RAPTOR XL [X]. Audio updates include improved in-camera preamps, making run-and-gun, single-system setups easier.
The V-RAPTOR XL [X] features an all-new, three-stage cooling system with dedicated fans cooling the camera components and the auxiliary power components separately while a thermoelectric heat exchanger maintains a precise sensor temperature. This advanced cooling enables quieter operation, less black shading, and a more robust performance no matter the environment.
Designed with water and dust-resistant materials in critical areas of its body, the V-RAPTOR XL [X] is suitable for a wide variety of environments. However, it is not waterproof and should be handled as you would any high-end electronics.
RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card
Certified for RED V-RAPTOR and KOMODO-X camera systems, the
2TB PRO CFexpress 2.0 Type B Memory Card from
RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate capture. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 2TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 1785 MB/s.
Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
Note:
This RED PRO CFexpress card is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
- RED V-RAPTOR 8K VV cinema camera
- RED KOMODO-X cinema camera
- RED CFexpress card reader
- 2TB capacity
- Max read/write speed: 1785 MB/s
- CFexpress 2.0 Type B
- Produces a stable stream
- For photos, HD videos, and raw 4K to 12K resolutions
- Y2 processor designed for raw video and photo content
- Adaptive Power Management helps preserve battery life and card endurance
- Host power loss protection
- Sticker-free design prevents media slot jams
- Mean Time Between Failures of up to 2.4 million hours
- Temperature sensor, TRIM, ECC, EMS protection, built-in cache, and SMART
- With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.
- Advanced thermal management helps protect the card, camera, and stored content.
AV Pro Line Offers Quality and Performance
- The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high-definition, lossless (drop-fee) video recording and smooth data processing.
- The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections, such as shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.
Free Professional Data Recovery Service
Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.

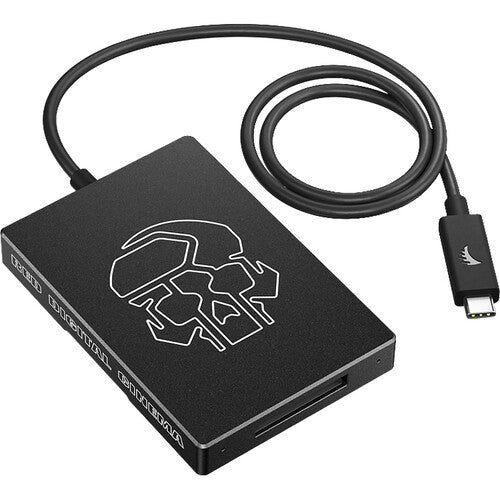

RED DIGITAL CINEMA CFexpress Card Reader
The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.
RED PRO 660GB CFexpress card

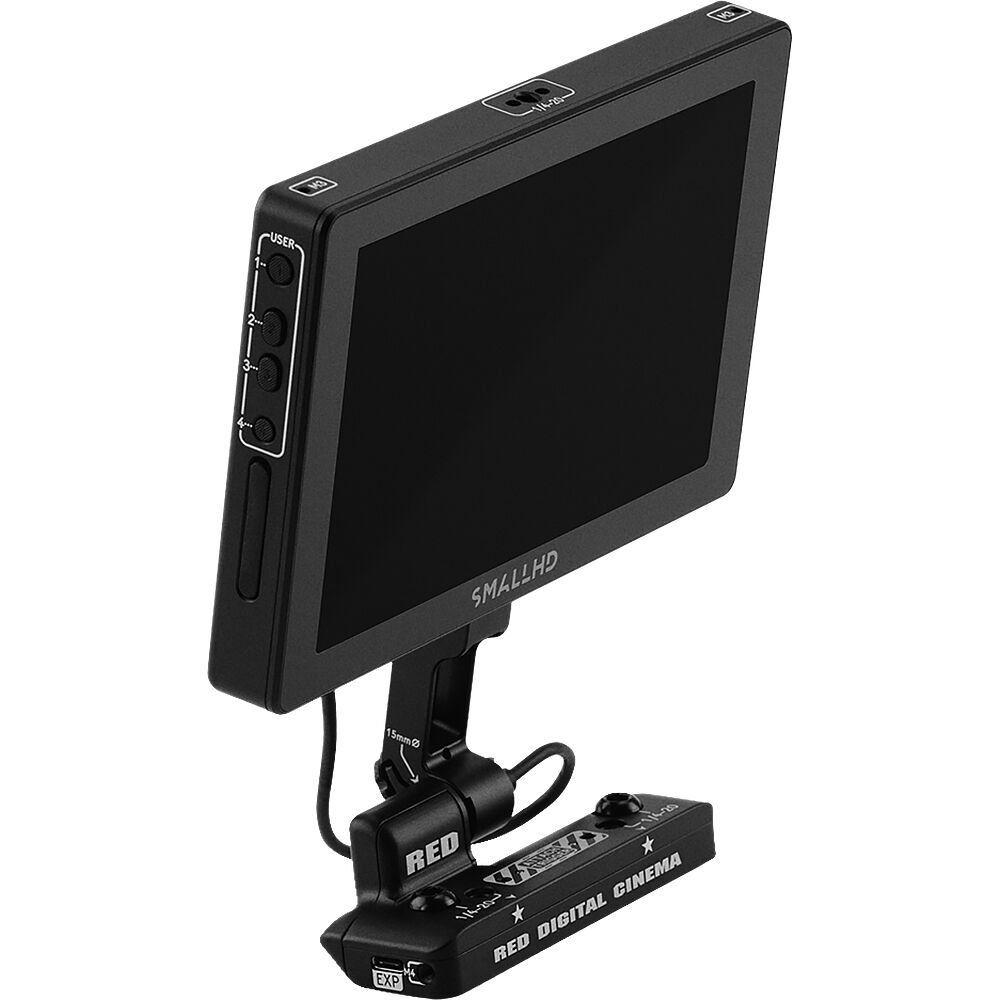

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge
Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.
This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness.
A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.
A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.
Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.
Mounts directly onto the BRAIN using the Pogo mount.
USB-C connector is used for video, data, and power.
RED DIGITAL CINEMA V-RAPTOR XL Riser Plate (15mm & 19mm Studio)
The V-RAPTOR XL Riser Plate from RED DIGITAL CINEMA enables you to raise a separately available 15 or 19mm studio baseplate to the correct optical height for mounting lenses and accessories. This riser plate also provides several 1/4"-20 and 3/8"-16 mounting threads.
RED DIGITAL CINEMA V-RAPTOR XL Top Handle with Extensions
Create a lightweight or extended handle using the V-RAPTOR XL Top Handle with Extensions from RED DIGITAL CINEMA. This modular handle includes 1, 3, and 5" extensions, an elbow unit, and a 15mm monitor mount. It features a start/stop button, multiple 3/8"-16 and 1/4"-20 threads, and wooden inlays.
ript>
Note:
The V-RAPTOR XL Top Handle is not compatible with DSMC, DSMC2, RED V-RANGER, or KOMODO camera systems.
Customizable design with 1, 3, and 5" extensions plus an elbow unit and a 15mm monitor mount
A start/stop button enables you to trigger recording on your V-RAPTOR XL
RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.
Note:
The DSMC3 RED 5-pin to dual XLR 3-pin adapter is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
RED DIGITAL CINEMA Top 15mm LWS Rod Support Bracket for V-RAPTOR XL
This Top 15mm LWS Rod Support Bracket from RED DIGITAL CINEMA attaches securely to the top of your RED V-RAPTOR XL camera, enabling you to mount 15mm LWS compatible accessories like lens motors or viewfinder brackets.
- RED V-RAPTOR XL
- 15mm LWS rod-mounted accessories
RED DIGITAL CINEMA Bottom 15mm LWS Rod Support Bracket for V-RAPTOR XL
The Bottom 15mm LWS Rod Support Bracket from RED DIGITAL CINEMA mounts securely on the bottom of your RED V-RAPTOR XL camera or the optional riser plate. Use this bracket with separately available rods to mount 15mm LWS compatible accessories like a lens motor or matte box.
- RED V-RAPTOR XL camera
- RED V-RAPTOR XL riser plate
- 15mm LWS rod-mounted accessories
RED DIGITAL CINEMA DSMC3 RMI Cable (18")
Provide power and video to your RED Touch 7" monitor from your camera with the RED DIGITAL CINEMA DSMC3 RMI Cable. Its 18" length allows you more mounting opportunities than using the 10" cable that comes with the RED Touch LCD. This proprietary RMI (RED Monitor Interface) cable is only for RED DSMC3 products. Please note that although the cable bears a resemblance to a standard USB-C cable, it isn't one, and RED warns against using a USB-C cable in its place, as damage can occur to your camera and/or touchscreen.
RED DIGITAL CINEMA Hood for DSMC3 RED Touch 7" LCD
Use the Hood for DSMC3 RED Touch 7" LCD from RED DIGITAL CINEMA to reduce or eliminate glare on the monitor's screen, improving your viewing while outdoors or in bright light. This folding hood mounts quickly on the DSMC3 RED Touch 7" using two captive M3 screws.
DSMC3 RED Touch 7" LCD only
Items Included
- RED DIGITAL CINEMA V-RAPTOR XL [X] 8K
