Pyle Pro PDWMU112 Overview
The Pyle Pro PDWMU112 is a wireless UHF microphone system that includes both a headset microphone and a lavalier microphone, allowing the user to choose the most appropriate mic for the application and plug it into the included bodypack transmitter. The system features a plug-in receiver and is ready for a wide variety of applications including performances, conferences, meetings, lectures, and presentations, allowing talent to roam freely without being encumbered by wires at a distance up to 160' away from the receiver

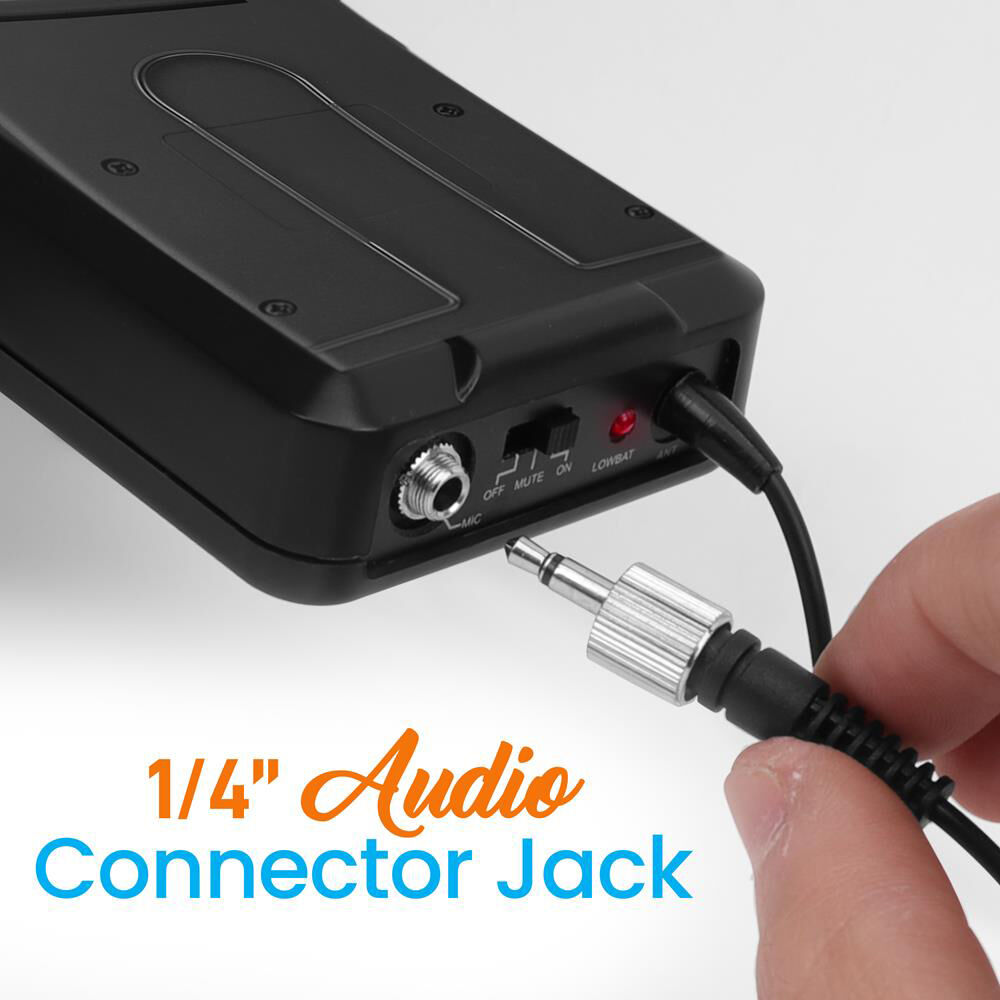

Connect the receiver to a compatible speaker or device using its 1/4" TS plug connector. The components are paired at the factory and will automatically sync together on the same UHF frequency to create a wireless operating channel, making the system very easy to use. The transmitter is powered by AA batteries while the receiver is powered from its USB port using the included cable.
- For home, classroom, office, business, and performance applications
- Lightweight and portable bodypack transmitter with both lavalier mic and headset mic to choose from
- Transmitter powered via AA batteries
- Integrated antenna for extended wireless range
- Plug-and-play operation
- Audio receiver sports 1/4" plug output to connect to wide range of gear including speakers, amplifiers, stereos, audio processors, DJ mixers, and more
- Receiver powered via USB

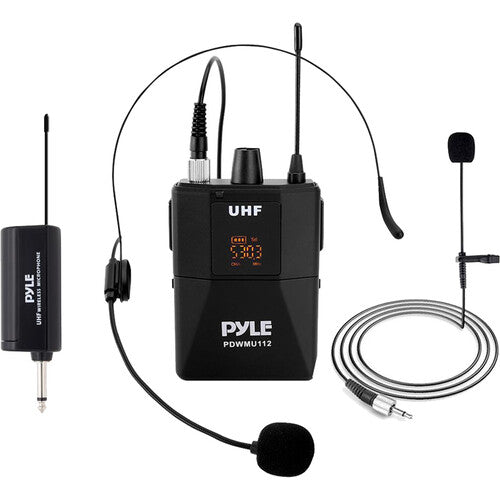

In the Box
- Pyle Pro PDWMU112 Wireless UHF Microphone System with Lavalier Mic, Headset Mic & Plug-In Receiver
- Receiver

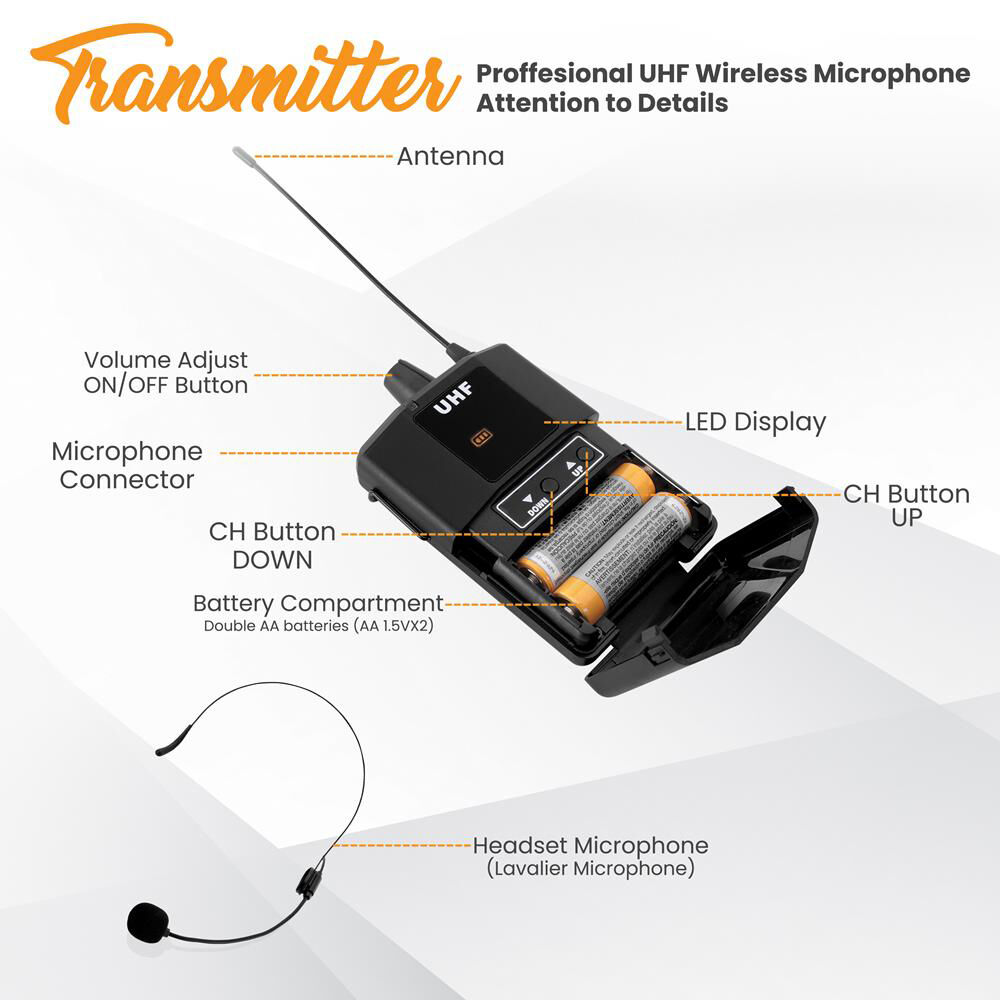

- Bodypack Transmitter
- Lavalier Microphone
- Headset Microphone
- USB Power Cable
Pyle Pro PDWMU112 Specs
System
| Wireless Technology |
Analog UHF |
| Number of RF Channel Frequencies |
8 |
| Included Transmitters |
1 x Bodypack |
| Diversity |
Non-Diversity |
| RF Channel Scanning |
Auto-Scan |
| Max Operating Range |
160' / 48.8 m |
| Max Transmitters per Band |
1 |
| Built-In Recorder |
No |
| Dynamic Range |
>100 dB |
| Encryption |
None |
| Deviation |
±40 kHz |
| Modulation |
FM |
| SNR |
>105 dB |
| THD |
<1 % |
Receiver
| Receiver Type |
Plug-In / Portable |
| Antenna |
1 x Flexible Whip, Fixed |
| Number of Audio Channels |
1 |
| Audio I/O |
1 x 1/4" TS Male Unbalanced Output |
| Network I/O |
None |
| Word Clock I/O |
None |
| USB/Lightning Connectivity |
None |
| Standalone Audio Interface Capable |
No |
| Power Requirements |
Bus Power (USB) |
| AC/DC Power Adapter |
12 to 15 VDC (Not Included) |
| AC Input Power |
120 to 220 VAC, 50 / 60 Hz |
| Display & Indicators |
1 x LED (Power)
1 x LED (Sync) |
| Dimensions |
5.3 x 6.8 x 1.7" / 13.5 x 17.3 x 4.3 cm |
Transmitter
| Transmitter Type |
Bodypack |
| RF Output Power |
Not Specified by Manufacturer |
| Audio I/O |
1 x 1/8" / 3.5 mm TS Female Unbalanced Input |
| Muting |
Off/On Switch |
| Auto-Level Control |
No |
| Sync Method |
Proprietary |
| Power Requirements |
Battery |
| Battery Type |
2 x AA (Included) |
| Display & Indicators |
1 x LED (Channel, Power, Sync) |
Microphone
| Microphone Type |
Headset |
| Sound Field |
Mono |
| Outputs |
1 x 1/8" / 3.5 mm TS Male Unbalanced |
Microphone 2
| Microphone Type |
Lavalier |
| Color |
Black |
| Sound Field |
Mono |
| Outputs |
1 x 1/8" / 3.5 mm TS Male Unbalanced |
Packaging Info
| Package Weight |
0.82 lb |
| Box Dimensions (LxWxH) |
11.7 x 5.6 x 2.4" |
