Description
PTZOptics Studio SE Hive-Linked Camera 20x Overview
Studio Camera with Hive-Linked Connectivity
Get remote camera control and future-proof connectivity for your content creation with the
Studio SE Hive-Linked Camera from
PTZOptics. This compact camera features a 20x optical zoom and native NDI HX3, 3G-SDI, HDMI, USB-C, and IP outputs. Its Hive Studio link provides an instant connection to PTZOptic's easy online platform.
Designed for Content Creation
The Studio SE is a convenient content creation and livestreaming solution that uses a 1/2.8" CMOS sensor to support up to 1080p60 video capture. It features a 12x optical zoom, 60.7 to 3.5? field of view, front-tally light, built-in microphone, and line input and output.
Multiple Output Options Including NDI HX3
- Simultaneously outputs:
- HDMI or SDI + IP + RTMP + NDI
- HDMI or SDI + USB
- HDMI or SDI + IP + USB
- The Studio SE camera comes native with NDI HX3, so no additional license is needed to access your camera over the network.
Control Options
The Studio SE offers flexible control via the included IR remote, a web UI, PTZ control app, USB port, PTZOptics joysticks, camera management platform, and Hive Studio.
Power Methods
Power the Studio SE camera using the included AC adapter or using PoE with a separate network switch.
UPC: 840170500975
Items Included
- PTZOptics Studio SE Hive-Linked Camera with 20x Optical Zoom (Gray)
- 12V, 2A International Power Supply
- Lens Cap
- USB-A to USB-C Cable
- IR Remote
- 2 x AAA Battery
- Limited 5-Year Manufacturer Warranty
Additional Resources
PTZOptics Studio SE Hive-Linked Camera 20x Specs
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.4 Megapixel
|
Recording
| Video Output |
HDMI
3840 x 2160p at 59.94/60.00/25/50/29.97/30.00 fps 1920 x 1080p at 59.94/60.00/25/50/29.97/30.00 fps 1920 x 1080i at 59.94/60.00/50 fps 1280 x 720p at 59.94/60.00 fps SDI/BNC 1920 x 1080p at 59.94/60.00/25/50/29.97/30.00 fps 1280 x 720p at 59.94/60.00/50 fps |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/30 Second
|
| Minimum Illumination |
0.5 Lux
|
| Focal Length |
4.7 to 94mm
|
| Aperture Range |
f/1.8 to 2.68
|
Interface

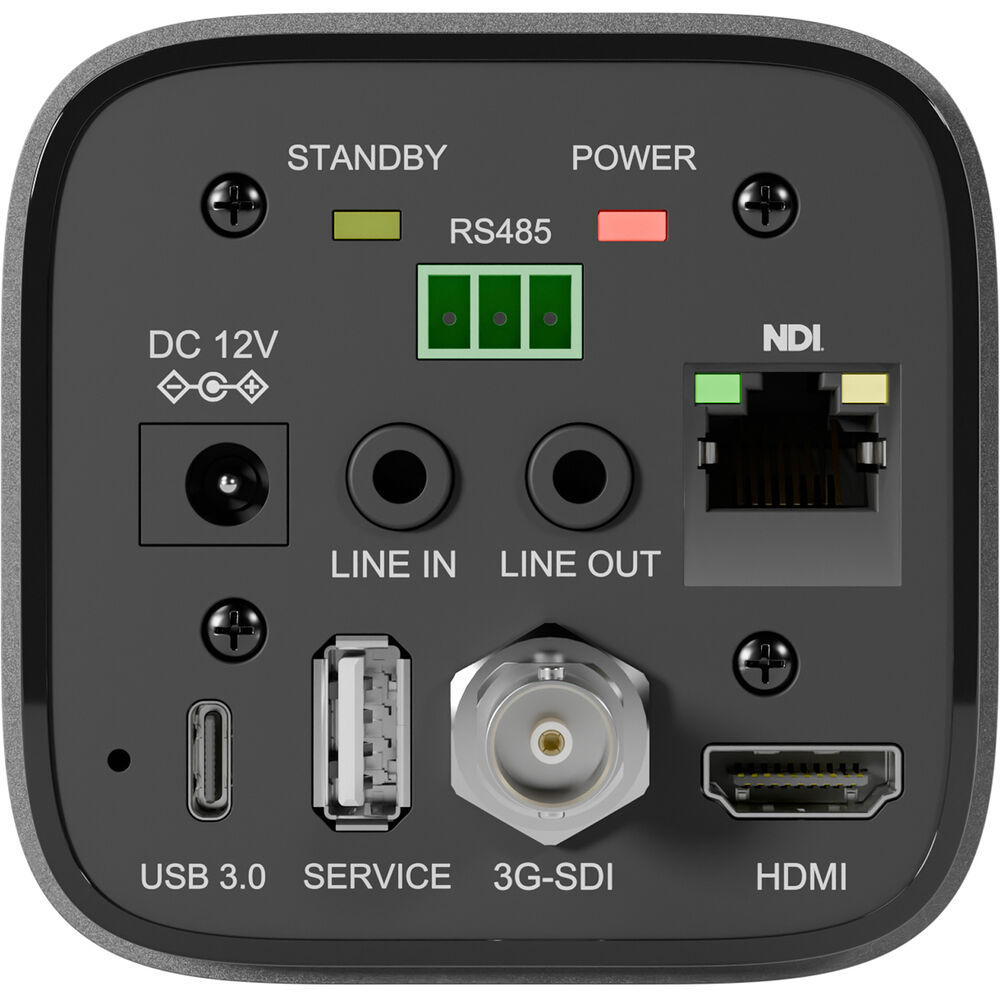

| Video I/O |
1x RJ45 (NDI) Output
1x HDMI Output 1x BNC (3G-SDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Power I/O |
1x Barrel
1x RJ45 |
| Other I/O |
1x USB-C Output
1x USB-A Input |
| Adapter / Cable |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Supported Protocols |
Video Streaming Protocol
NDI|HX3/RTSP/UDP/HTTP/TCP/RTMP Camera Control Protocol ONVIF |
| Mobile App Compatible |
No
|
Power
| Voltage |
12.0 VDC
|
| Power Consumption |
18 W
|
Environmental
| Operating Conditions |
14 to 104?F / -10 to 40?C at 10 to 80% Humidity
|
General
| Accessory Mounting |
1 x Cold Shoe Mount
1 x 1/4"-20 Female |
| Dimensions |
5.7 x 3.1 x 3" / 145 x 78.5 x 76 mm
|
| Weight |
22.6 oz / 640 g
|
