Description

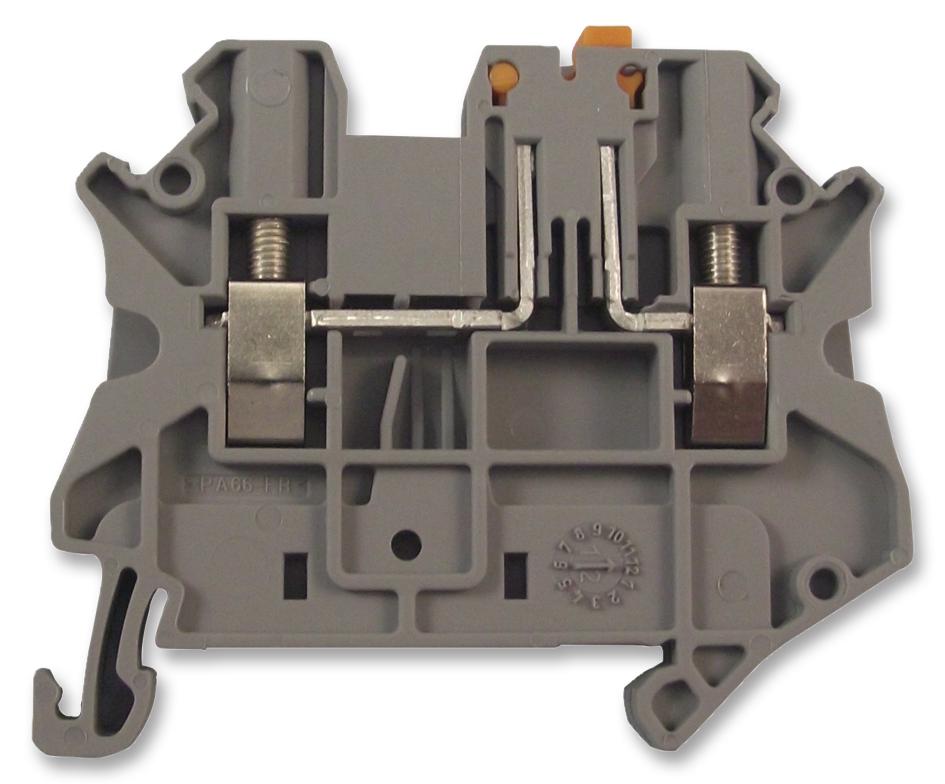

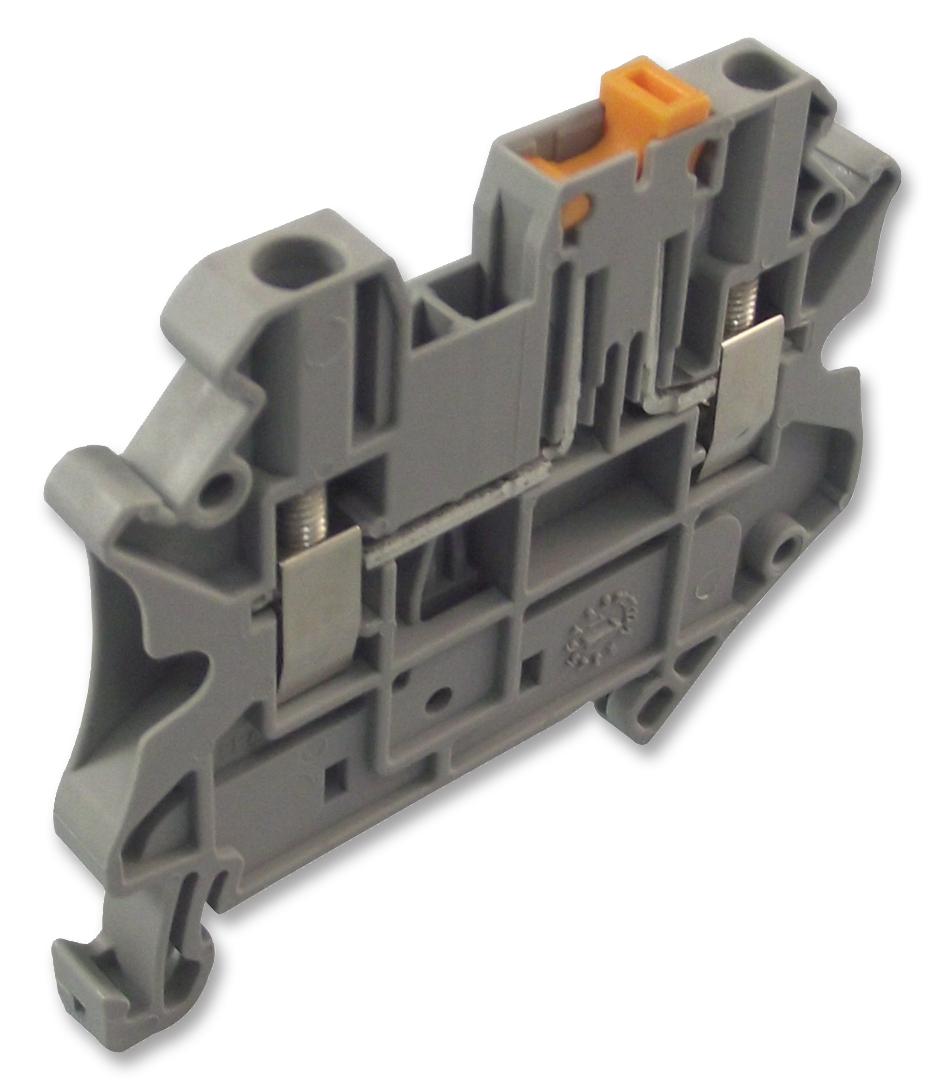

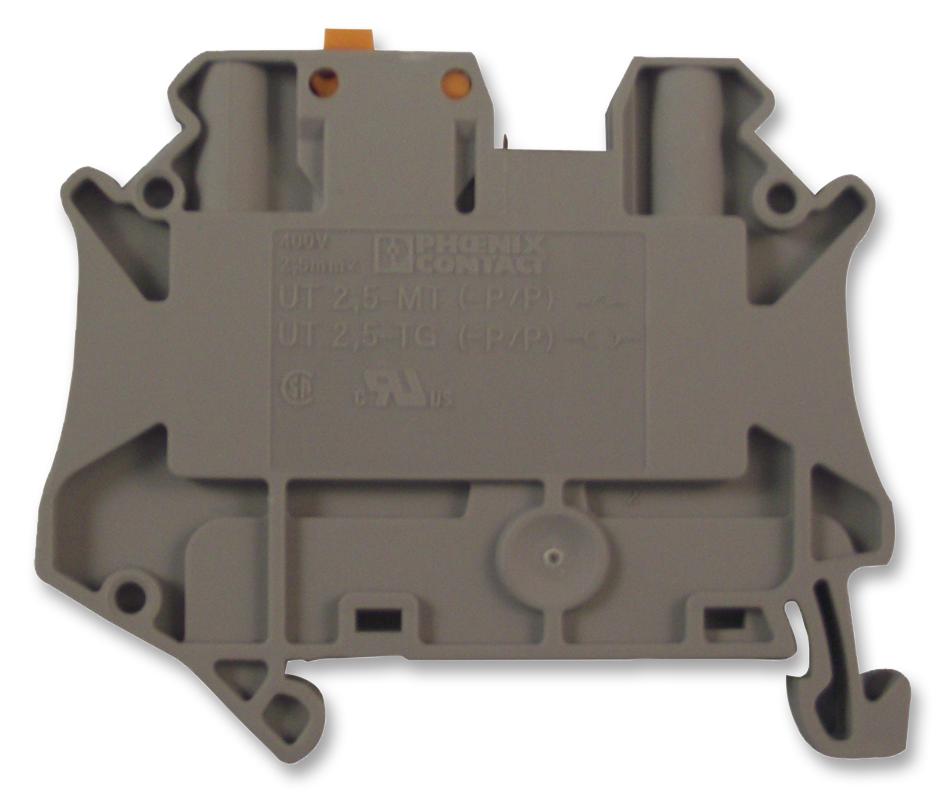

The 3046362 is a 2-position 1-level grey Knife Disconnect Terminal Block with a polyamide insulator, the M3 screw connection and the NS 35/7,5, NS 35/15 mounting. This UT 2,5-MT terminal block has convenient separation of circuits using lever-type disconnect knife, isolating plug or rotary contact. It has clear identification of the disconnect point with colour marking. Individual assembly with disconnect element, fuse plug, component plug and feed-through connector. It accepts 26 to 12AWG wire range.
- Double bridge shaft enables individual potential distribution and supply
- Half-sine shock form
- 9mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial, Automation & Process Control
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 12AWG |
| Conductor Area CSA: 4mm² |
| Wire Connection Method: Screw |
| Rated Current: 20A |
| Rated Voltage: 400V |
| No. of Levels: 1 |
| Product Range: UT |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3046362 |
| Quantity | Each |
| Technical Data Sheet EN |  |
