Description
OSEE MEGA 15S Overview
High-Bright Production Monitor
The
OSEE 15.4" Ultra-Bright HDR Field Production Monitor is a bright 1500 cd/m? 1920 x 1200 display packed with built-in monitoring tools. Whether you prefer to use histograms, waveforms, false colors, or zebras, the OSEE field monitor has the right tool to help you nail the optimal exposure.
Customizable Viewing
- This monitor also supports anamorphic de-squeeze and custom frame guides for anamorphic shooters, and it can store up to 10 custom 3D LUTs.
- Packaged with a carry case with a sun hood, C-stand mount, and Gold mount battery plate, the Osee production monitor is ready to go in just about any production environment.

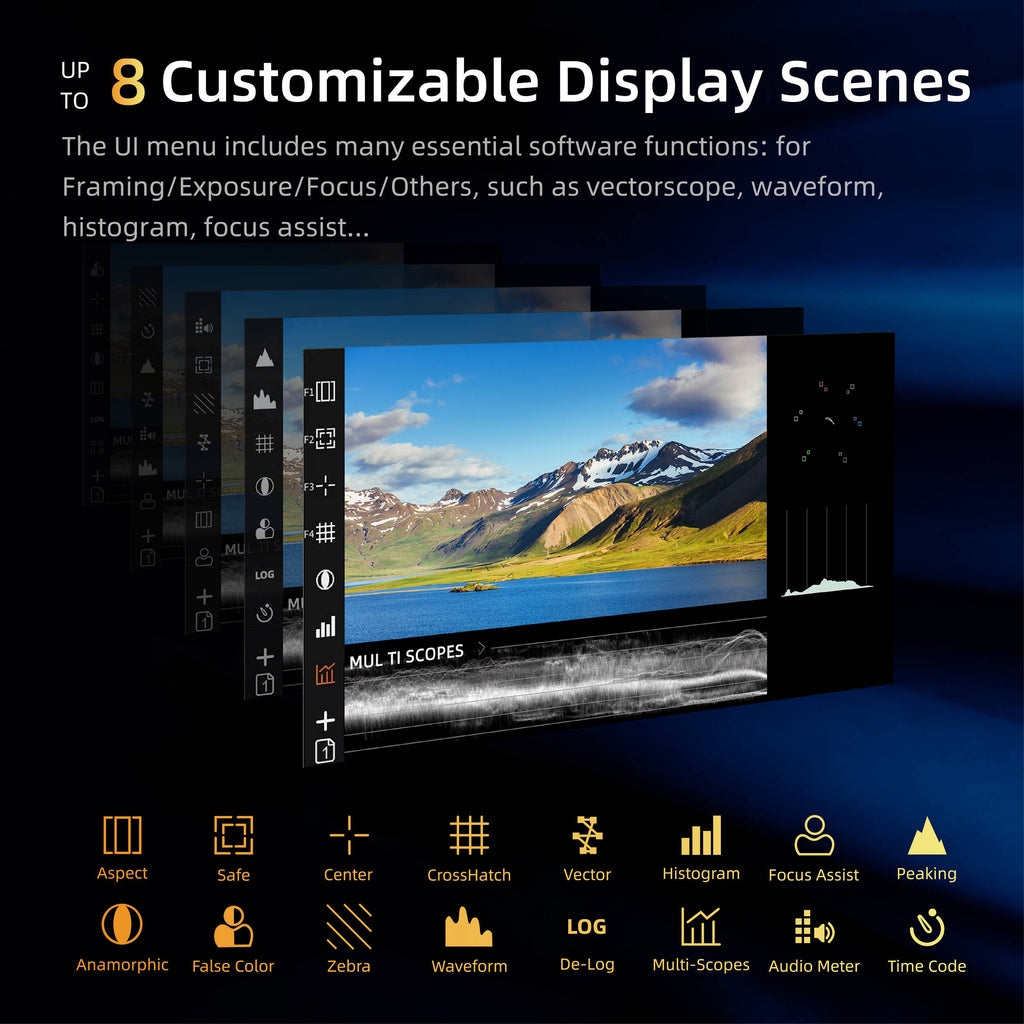

- Save up to eight customizable scene presets.
Multiple Video Inputs and Outputs
- One HDMI input
- Two 3G-SDI inputs
- Two 3G-SDI loop outputs
Exposure Tools
- False color
- Zebra
- Histogram
- Vectorscope
- Waveform
Self Calibrating
- Self-calibration technology ensures that you get the most accurate display colors.
- This monitor uses the Rec. 709 color gamut.
- The AR coating reduces reflections while maintaining maximum contrast in daylight.
Framing Tools
- Anamorphic de-squeeze
- Custom aspect ratios
- Safe area marker
- Center/crosshatch markers
Focus Tools
- Focus assist
- Peaking
Power Options
- 4-pin XLR, 11-17 VDC input (power cable not included)
- Gold mount battery plate
Camera Log
The monitor supports up to 10 custom user 3D LUTs via the USB-A port, as well as multiple Log standards:
- Standard Log: 2.2, 2.4, HLG, PQ
- ARRI Log C
- BMD Film, 4K Film, 4.6K Film
- Canon CLog, CLog2, CLog3
- Fuji F-Log
- Nikon N-Log
- Panasonic V-Log
- RED Log3G12, Lgo3 G10, REDLogfilm
- Sony S-Log, S-Log 2, S-Log 3
- DCI 2.6
Miscellaneous Tools
- DeLog
- Multi-scope display
- Display rotate
- Audio meter (only SDI)
- Timecode (only SDI)
Items Included
- OSEE 15.4" Ultra-Bright HDR Field Production Monitor (Gold Mount, No Power Cable)
- Soft Carry Case with Sun Hood
- C-Stand Adapter
- Gold Mount Battery Plate
- D-Tap to XLR Cable
- Cheese Plate
- Limited 1-Year Manufacturer Warranty
Additional Resources
OSEE MEGA 15S Specs
Key Specs
| Display Size |
15.4" / 39.1 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
No
|
| HDR Support |
Yes
|
| Video I/O |
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Output 1x HDMI 1.4 Input |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI (10-Bit)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 HDMI (10-Bit) DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 50/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery |
1x Gold Mount on Fixed Plate
|
| Power Consumption |
22 W
|
Display
| Panel Type |
LCD
|
| Display Size |
15.4" / 39.1 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 178?
Vertical: 178? |
| Touchscreen |
No
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Contrast Ratio |
1650:1
|
| Color Support |
16.7 Million Colors
|
| HDR Support |
Yes
|
| Color Gamut |
100% Rec. 709
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform, Zebra
|
Inputs/Outputs
| Video I/O |
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Output 1x HDMI 1.4 Input |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Line Input
1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker |
Mono
|
| Power I/O |
1x IEC Input
1x XLR 4-Pin Input |
| Other I/O |
1x USB-A
1x USB-C (Calibration) |
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
SDI (10-Bit)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 HDMI (10-Bit) DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 50/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Power
| Input Power |
11 to 17 VDC at 3 A
100 to 240 VAC, 50 / 60 Hz |
| Battery |
1x Gold Mount on Fixed Plate
|
| Power Consumption |
22 W
|
Mounting
| VESA Mounting-Hole Pattern |
100 x 100 mm
|
| Tripod/Accessory Mounting |
Bottom
24x Anti-Twist 1/4"-20 Female 4x Anti-Twist 3/8"-16 Female Left/Right 12x Anti-Twist 1/4"-20 Female 2x Anti-Twist 3/8"-16 Female Back 1x 5/8" Receiver |
General
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 122?F / 0 to 50?C
|
| Dimensions |
14.5 x 10.4 x 2.1" / 368.9 x 264.9 x 54.5 mm
|
| Weight |
8.4 lb / 3.8 kg
|
Packaging Info
| Package Weight |
16.25 lb
|
