Description
Network Technologies ST-C5USBV-300 Overview

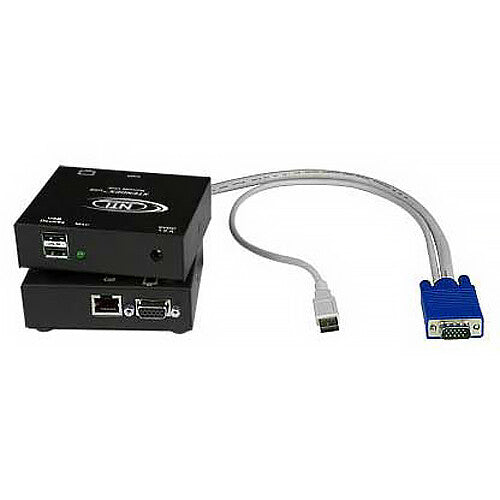

Extend your KVM reach and VGA display up to 300' with the XTENDEX VGA/USB KVM Extender Kit via Cat Cable from Network Technologies. The transmitter and remote kit features local keyboard, monitor, and mouse connectivity at the transmitter unit end, and keyboard, monitor, and mouse connectivity at the remote unit. The two devices are connected via Cat cable with support for Cat 5/5e/6/6a.
Additional Details
- Supports local and remote access
- Compatible with all video resolutions up to WUXGA (dependent upon Cat 5e or 6a extension length)
- Supports resolutions up to 1920 x 1440
- Local access is not available on units supporting two remote users
- High-quality, rugged steel construction with durable powder-coat finish
- Supports most USB keyboards and mice, including some wireless models
- Keyboard and mouse are hot-pluggable
- Keep-alive keyboard/mouse emulation for flawless operation
- Supports Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and macOS 9/10
- Built-in surge protection
- Allows users to back-rack broadcast-quality servers without impact to post-production operations
Items Included
- Network Technologies XTENDEX VGA/USB KVM Extender Kit via Cat Cable (300')
- Transmitter Unit
- Remote Unit
- Limited 2-Year Manufacturer Warranty
Additional Resources
Network Technologies ST-C5USBV-300 Specs
| Inputs/Outputs |
Receiver:
2x USB-A 2.0 Female 1x DE-15/DB-15 (VGA) 1x RJ45 Female Input Transmitter: 2x USB-A 2.0 Female 1x DE-15/DB-15 (VGA) 1x RJ45 Female Output |
| OS Compatibility |
Windows / macOS
|
| Maximum Transmission Distance |
300' / 91.4 m
|
| Supported Resolutions |
1920 x 1440 @ 60 Hz
1600 x 1200 @ 60 Hz 1280 x 1024 @ 60 Hz 1024 x 768 @ 60 Hz |
| Transmission Method |
CAT5/CAT5e/CAT6 Cable
|
| Input Power |
9 VDC at 1.0 A
120 to 240 VAC, 50 / 60 Hz |
| Operating Conditions |
32 to 100?F / 0 to 38?C at 17 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 17 to 90% Humidity
|
| Certifications |
CE, RoHS
|
| Material of Construction |
Steel
|
| Dimensions |
3.5 x 3.1 x 1.2" / 8.9 x 7.9 x 3.0 cm
|
