Description

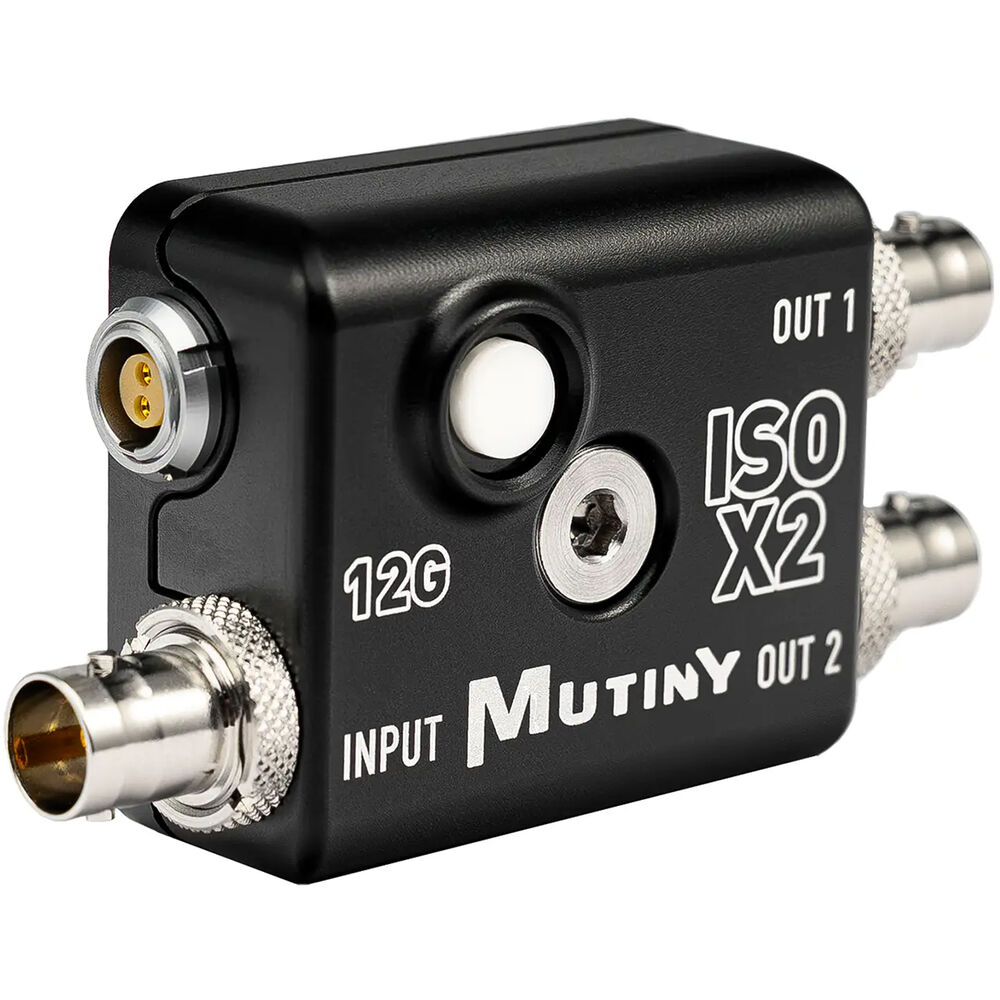

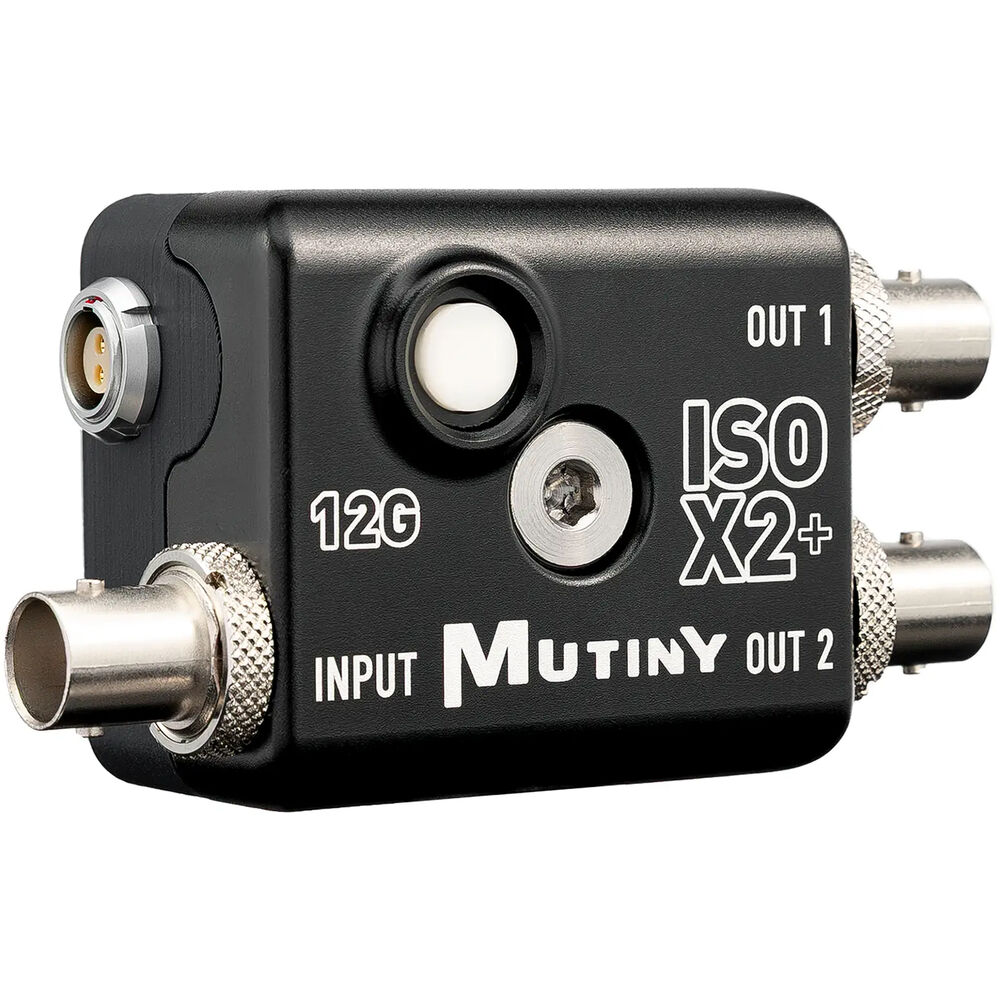

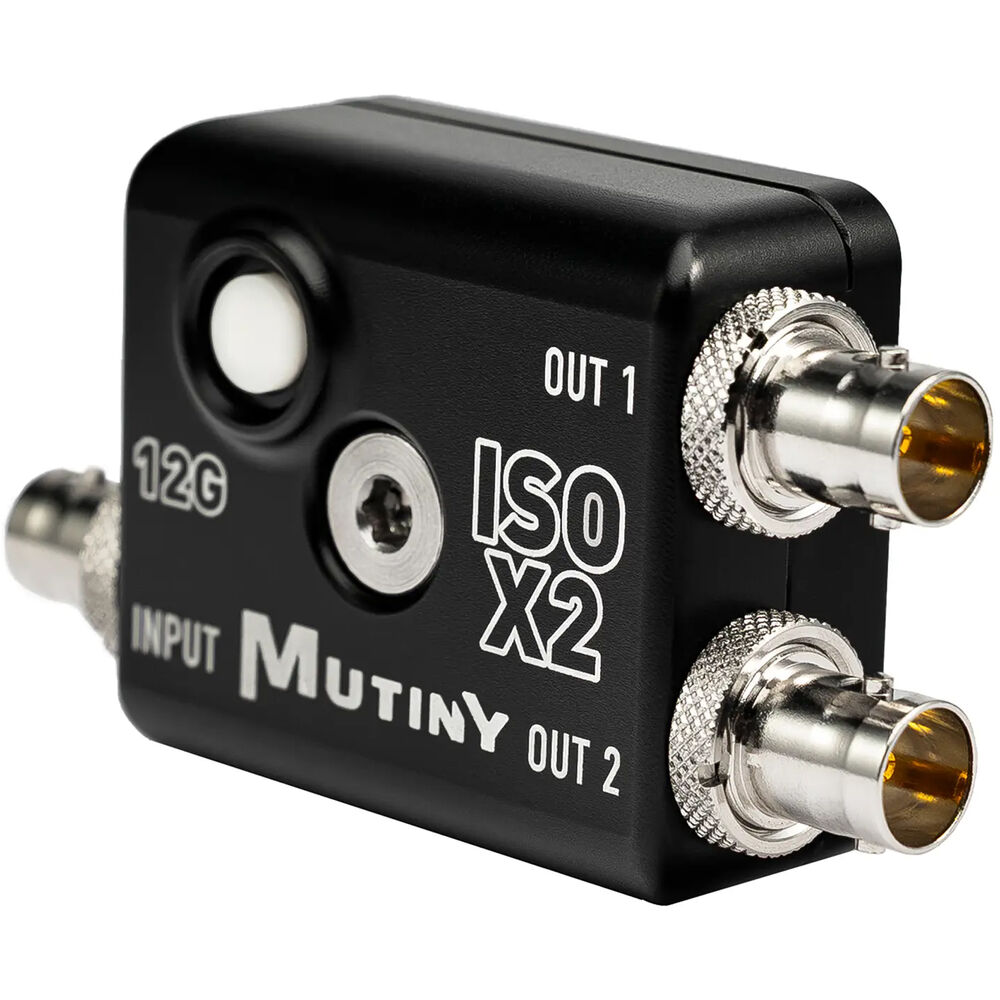

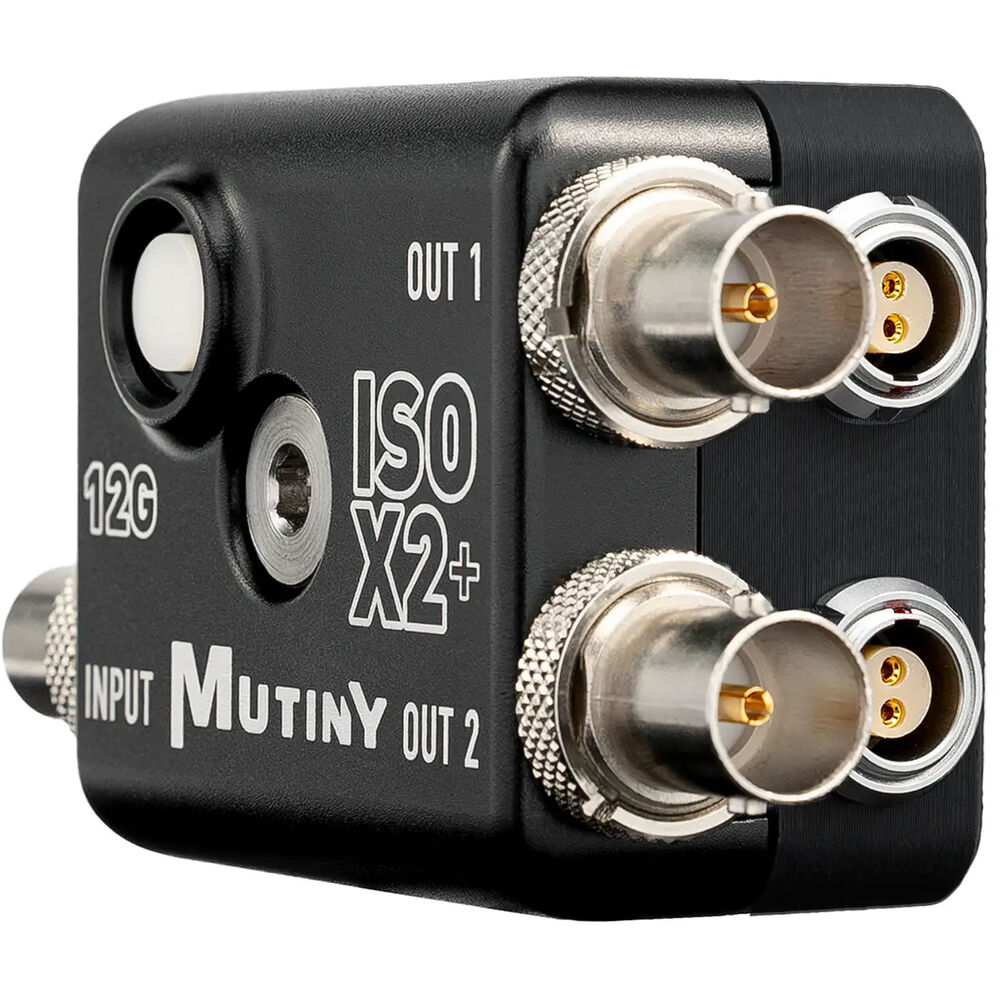

MUTINY ISOX2+SAFE Overview
Deliver up to DCI 4K 12G-SDI video signals from one source to two displays using the ISO X2+ 12G-SDI 1:2 Video Distribution Amplifier with Isolator from MUTINY. The amplifier features one 12G-SDI input that delivers video signals to up to two displays using its two 12G-SDI output ports. A built-in isolator and reclocking on both outputs make for a cleaner signal over longer distances, with DCI 4K 12G-SDI video capable of being transmitted up to 246' via Belden 1694A cable. The X2+ version of the amplifier adds two 2-pin LEMO power outputs to the device, allowing you to power video transmitters and monitors.
An onboard switch toggles between signal (SIG) and isolation (ISO) modes to allow you to swap your camera battery without needing to remove the ISO X2+ from your configuration. ESD protection and a logic switch with electronic switching capabilities offer two levels of protection on the unit. The ISO X2+ can secure to your camera using its captive 1/4"-20 screw with a removable ARRI locating pin or the included 3/8"-16 adapter. A 2-pin LEMO power input powers the isolator function of the unit using the included SafeTap cable.
RED KOMODO, KOMODO-X, V-RAPTOR S35/VV/XL
Sony VENICE, VENICE 2, FX6, FX9, FX7
ARRI ALEXA 35
Canon C300 Mark II, C500 Mark II
Items Included
- MUTINY ISO X2+ 12G-SDI 1:2 Video and Power Distribution Amplifier with Isolator and SafeTap Cable
- 3/8"-16 Mount Adapter
- ARRI Locating Pin
- SafeTap Power Cable (10")
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MUTINY ISOX2+SAFE Specs
| Inputs |
1 x BNC (12G-SDI)
|
| Embedded Audio |
No
|
| Outputs |
2x BNC (12G-SDI)
|
| Video Format |
SDI
4096 x 2160 3840 x 2160 |
| Inputs |
1 x BNC (12G-SDI)
|
| Embedded Audio |
No
|
| Outputs |
2x BNC (12G-SDI)
|
| Video Standard Compliance |
SMPTE 259M/292M/424M
|
| Reclocking |
Yes
|
| HDR Support |
No
|
| HDCP Support |
No
|
| EDID Support |
No
|
| Audio Decoding |
No
|
| Max Transmission Distance |
DCI 4K:
246.1' / 75 m |
| Video Format |
SDI
4096 x 2160 3840 x 2160 |
| Return Loss |
-8 dB (Input)
-6 dB (Output) |
| Power I/O |
3x LEMO 2-Pin (5 to 35 VDC) Input/Output
|
| ESD Protection |
Yes
|
| Package Weight |
0.39 lb
|
| Box Dimensions (LxWxH) |
5.75 x 3.85 x 1.65"
|
