Description

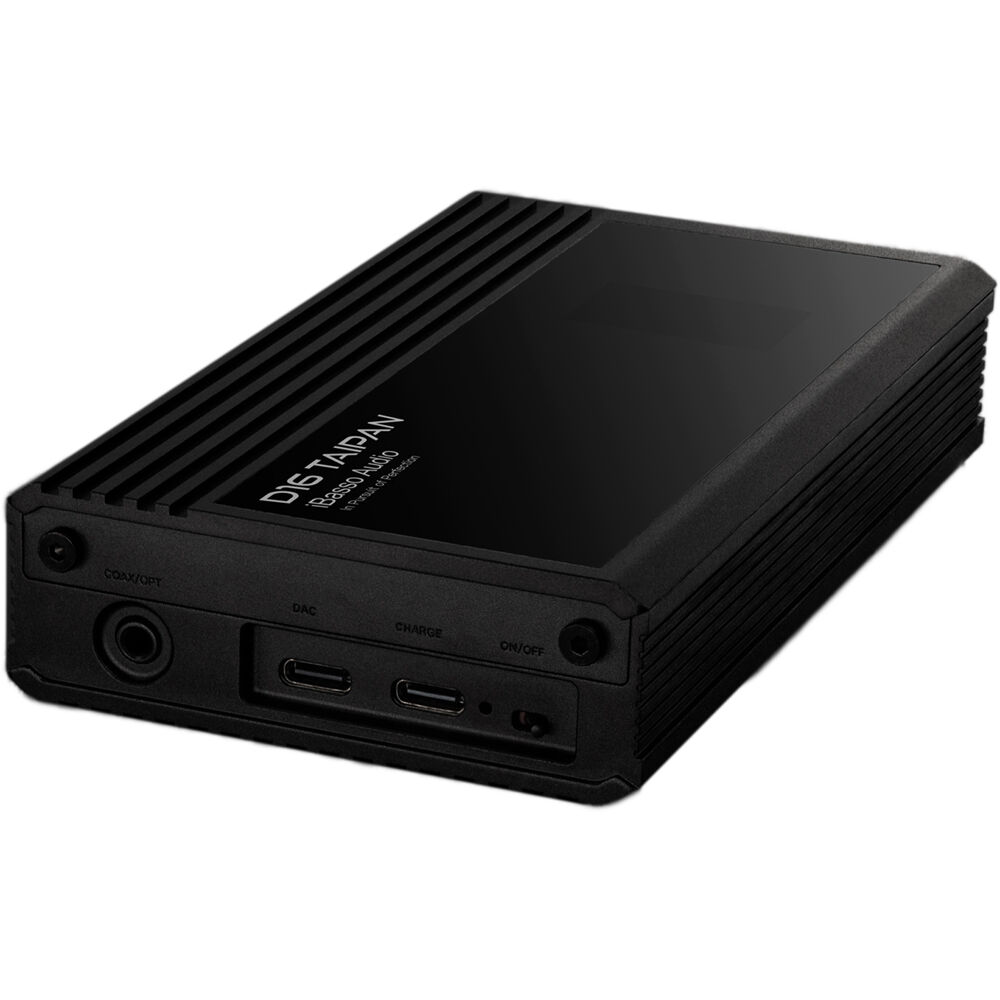

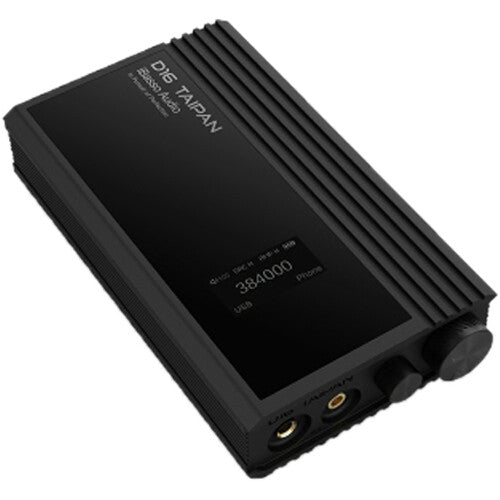

iBasso D16 Taipan Overview
The
iBasso D16 Taipan is a high-fidelity portable DAC/amp that embodies audio excellence. At its core lies iBasso's in-house-developed FPGA?Master2.0, employing 16 sets of cascaded 8E PWM-DACs, culminating in a total of 128 discrete PWM-DACs for unparalleled 1-bit D/A conversion. This remarkable engineering achieves a measured THD+N superior to 0.0001%, top-ranking performance for a portable discrete DAC. The D16's amplifier section mirrors the acclaimed DX320MAX, employing a high-quality Class-A transistor amplifier for pristine audio reproduction.
Equipped with both 3.5mm single-ended and 4.4mm balanced headphone (PO) and line (LO) outputs, the D16 Taipan offers versatility for various headphone and power-amp connections. Its amplification delivers up to 1125mW at 32 ohms, ensuring the capability to drive a wide range of headphones, earphones, and speakers.
FPGA-Master2.0
The FPGA?Master2.0 represents three years of iBasso's algorithmic advancements, driving the D16's exceptional performance. This advanced FPGA meticulously reorganizes and recodes signals, generating precise PWM signals for subsequent PWM-DACs. It features a sophisticated noise shaper that significantly reduces the noise floor, crucial for maximizing dynamic range.
Global clock regeneration, powered by dual Accusilicon femtosecond oscillators with an ultralow phase noise of -158 dBc/Hz (at 1 kHz), ensures exceptional jitter control. Picosecond-level precise delay control aligns signals perfectly, compensating for board wiring delays.
Furthermore, the FPGA?Master2.0 enables 128 independent PWM-DACs to operate in FIR mode, combining to deliver L+, L-, R+, R- outputs with meticulous delay and alignment compensation.
Discrete PWM DAC
After the FPGA generates the PWM signal, it arrives at the discrete PWM-DAC for decoding, employing 16 sets of an BE PWM-DAC cascade?with 4 sets per L+, L-, R+, R-, for 32 PWM-DACs (more than 6.4 times than with a standard DAC).
Hardware Analog FIR Filter
Harnessing the picosecond-level precision of FPGA?Master2.0, the D16 implements a Hardware Analog FIR Filter. Each channel utilizes 32 PWM-DACs in delay parallel mode, functioning as a hardware analog FIR filter. By averaging the differences between these multiple DACs, distortion is minimized, resulting in enhanced sound detail and depth.
Class-A Discrete Amplifier
The D16 features a Class-A discrete amplifier, inspired by the DX320MAX, delivering 1125 + 1125mW at 32 ohms. This powerful amplifier incorporates 20 low-VCEsat (BISS) dual transistors, providing an impressive output current capability of up to 2A.
Cutting Edge Components
- 128pcs low-temperature drift 0.1% high-precision 25ppm thin film resistors
- 24-position, 4-section stepped attenuator with a channel tolerance of less than +/-0.1 dB
- Dual Accusilicon ultralow-phase-noise femtosecond oscillators (-158 dBc/Hz at 1 kHz)
- Professional audio DSP chip (192 dB dynamic range, -174 dB THD+N)
- Ultralow-noise analog power supply (0.6pV noise)
- 1.3" OLED display
Items Included
- iBasso D16 Taipan Portable Hi-Res DAC/Amp
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
iBasso D16 Taipan Specs
Key Specs
| Form Factor |
Inline Adapter
|
| Converter Type |
D/A Converter
|
| Number of Channels |
1
|
| Analog Audio I/O |
1x 1/8" / 3.5 mm TRS Input
1x 1/8" / 3.5 mm TRS Aux Input 1x 1/8" / 3.5 mm TRS Line Output 1x 1/8" / 3.5 mm TRS Headphone Output 1x 4.4 mm TRRRS Balanced Headphone Output 1x 4.4 mm TRRRS Headphone Output |
| Digital Audio I/O |
No
|
General
| Form Factor |
Inline Adapter
|
| Converter Type |
D/A Converter
|
| Number of Channels |
1
|
Connectivity
| Analog Audio I/O |
1x 1/8" / 3.5 mm TRS Input
1x 1/8" / 3.5 mm TRS Aux Input 1x 1/8" / 3.5 mm TRS Line Output 1x 1/8" / 3.5 mm TRS Headphone Output 1x 4.4 mm TRRRS Balanced Headphone Output 1x 4.4 mm TRRRS Headphone Output |
| Digital Audio I/O |
No
|
| Host Connection |
1x USB-C
|
| USB (Non-Host) |
1x USB-C (Device Charging)
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
15 Hz to 40 kHz
|
| Maximum Output Level |
1/8" / 3.5 mm Headphone Outputs:
3.4 Vrms 4.4 mm Balanced Headphone Outputs: Vrms |
| THD+N |
1/8" / 3.5 mm Headphone Outputs:
0.00012% 4.4 mm Balanced Headphone Outputs: |
Power
| Power Requirements |
Built-In Rechargeable Battery
|
| Battery Type |
1x Built-In Rechargeable
|
| Approximate Battery Life |
9 Hours
|
Physical
| Dimensions |
5.5 x 3.2 x 1.1" / 139 x 82 x 28 mm
|
| Weight |
11.0 oz / 312.0 g
|
Packaging Info
| Package Weight |
2.07 lb
|
| Box Dimensions (LxWxH) |
9.1 x 7.1 x 2.7"
|
