Hanwha Vision QNV-C8013R Overview

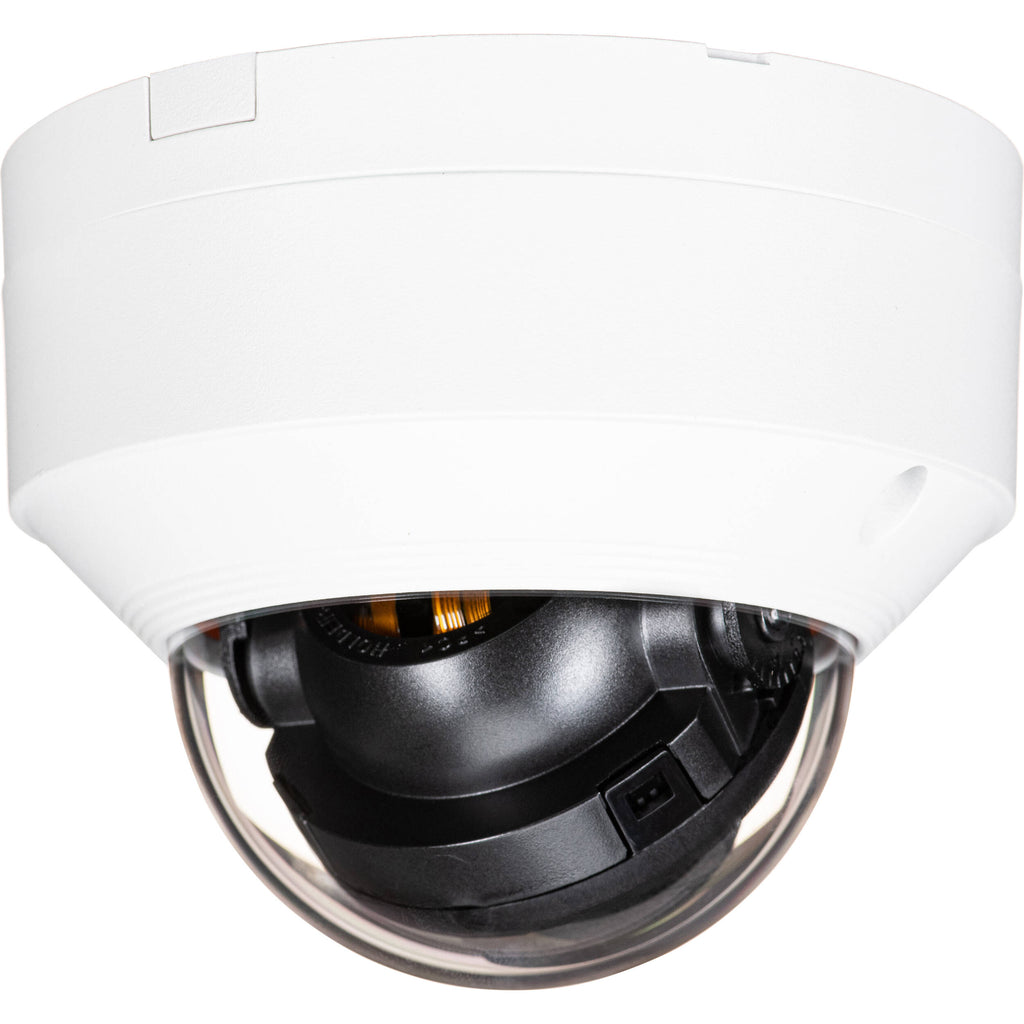

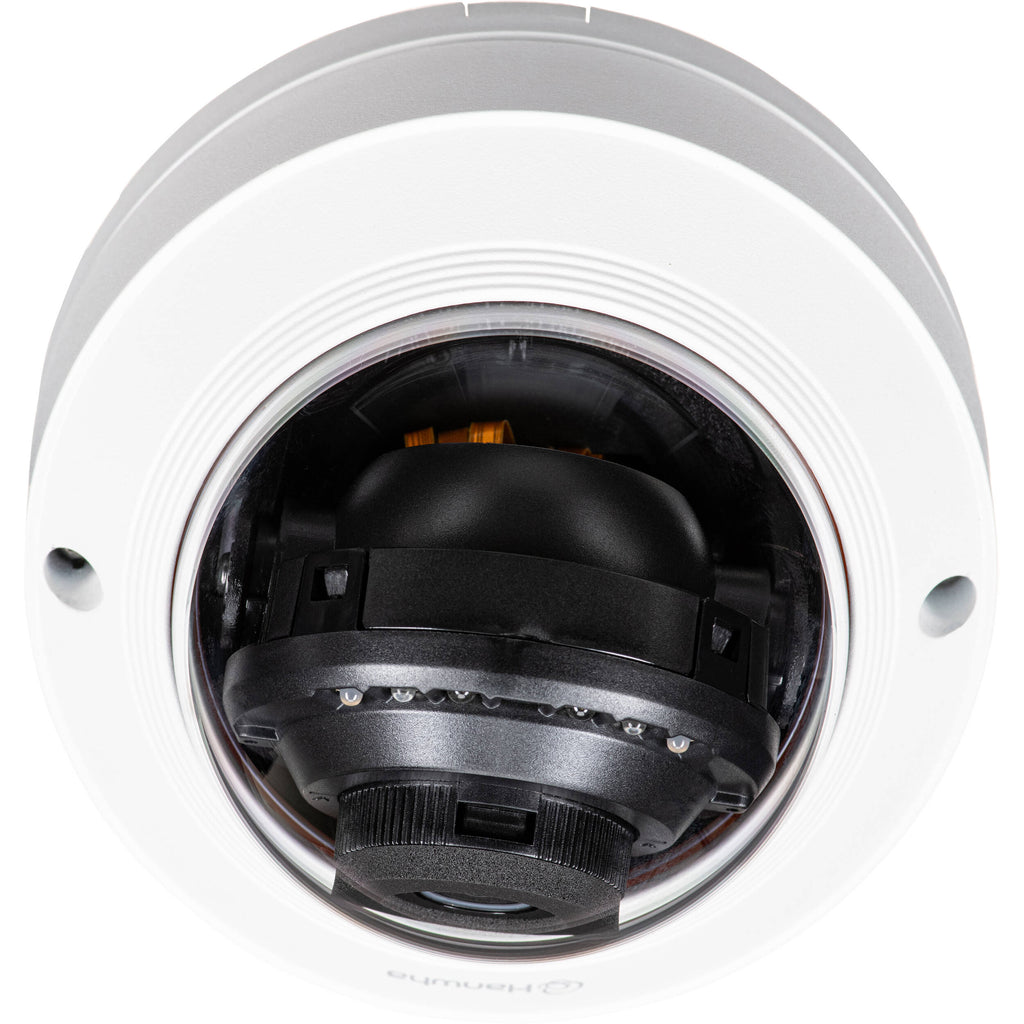

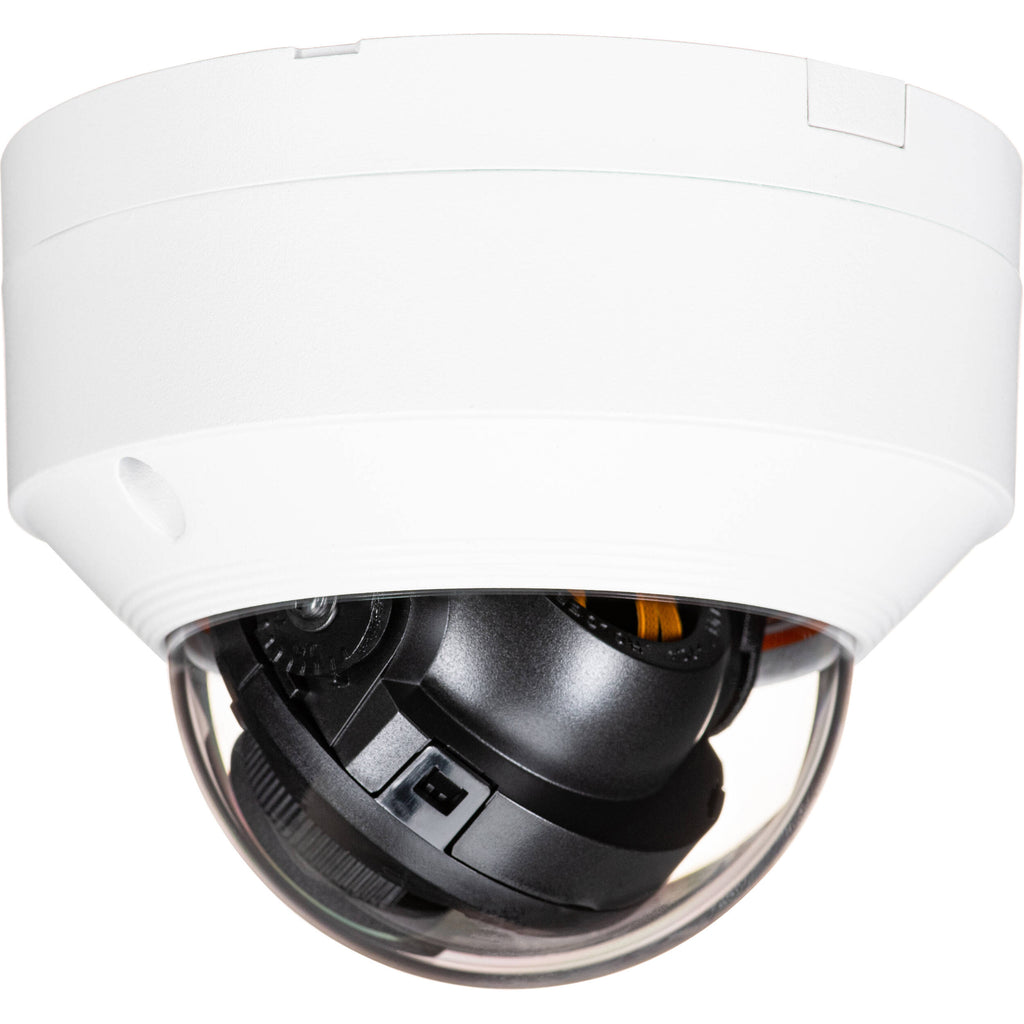

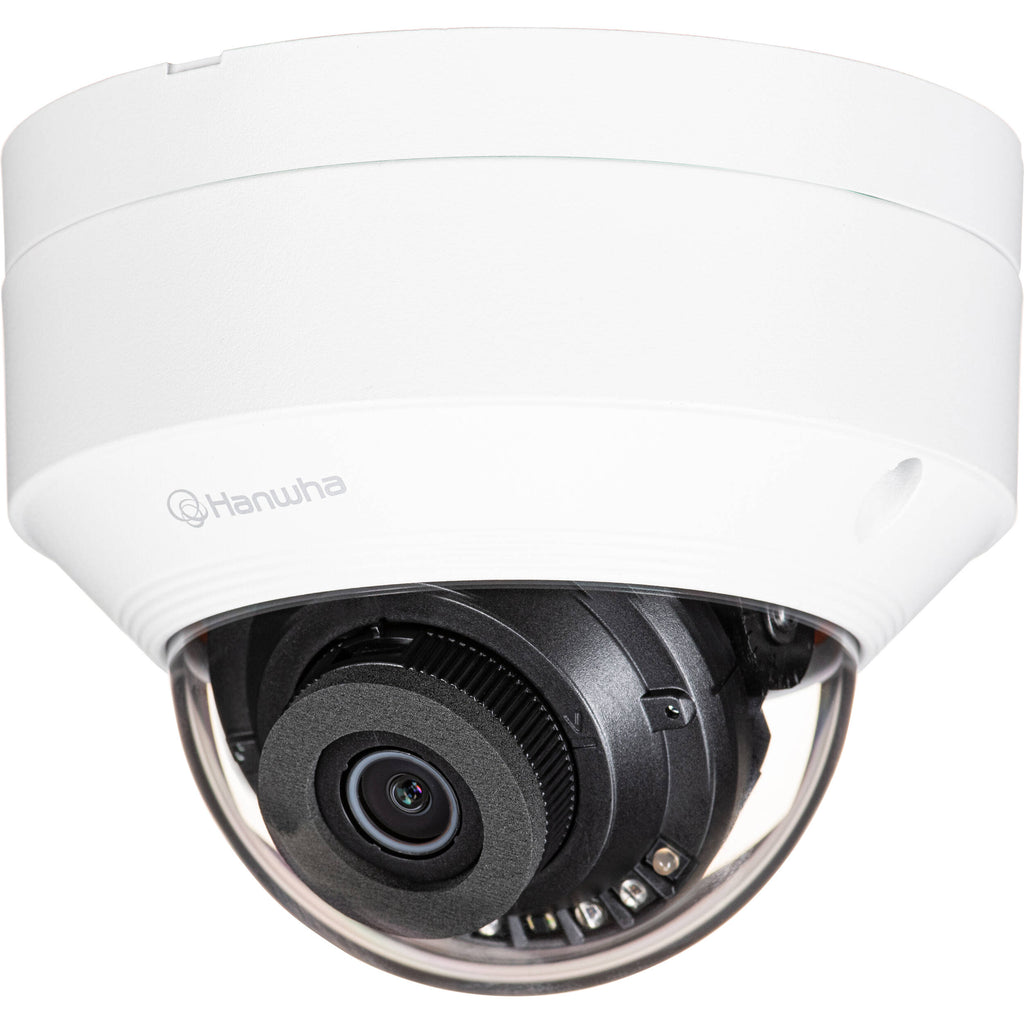

Securely monitor your surroundings with the QNV-C8013R 5MP Outdoor Network Dome Camera from Hanwha Vision. This unit uses a 1/2.8" CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 92' of illumination in low-light conditions. The camera's 3mm fixed lens delivers a 100? horizontal angle of view. An onboard card slot supports microSD/SDHC/SDXC cards up to 256GB (available separately). Two-way audio is possible thanks to an audio input and output. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-certified camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure for safe outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- WiseStream III support
- Unicast and multicast streaming (up to 20 users in unicast mode)
- CBR and VBR
- 1.64' minimum object distance
- Digital noise reduction (WiseNR II and SSNR V)
- Analytics include motion detection, object detection, virtual line crossing/direction, virtual area (loitering, intrusion, enter/exit), defocus detection, tampering, virtual area (appear/disappear), people counting, vehicle counting, queue management, and heatmap
- Object classification type for a person and vehicle type (car, bus, truck, motorcycle, bicycle)
- Flip, mirror, and hallway view (90/270?) video rotation
- Additional features include gain control, BLC, 120 dB WDR, SSDR, white balance, lens distortion correction, and privacy masking
Items Included
- Hanwha Vision QNV-C8013R 5MP Outdoor Network Dome Camera
- Mounting Hardware
Additional Resources
Hanwha Vision QNV-C8013R Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
3mm
|
| Field of View |
Horizontal: 100?
Vertical: 73? Diagonal: 129? |
| Video I/O |
1x Micro-USB Input
|
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45
|
Imaging
| Lens Mount |
M12
|
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 3mm Lens:
Detect: At 142.7' / 43.5 m Observe: At 57.4' / 17.5 m Recognize: At 28.5' / 8.7 m Identify: At 14.1' / 4.3 m |
Exposure Control
| Shutter Speed |
1/25000 to 1/5 Second
|
| Minimum Illumination |
0.05 Lux (Color)
0.005 Lux (Black and White) |
Lens
| Focal Length |
3mm
|
| Field of View |
Horizontal: 100?
Vertical: 73? Diagonal: 129? |
| Maximum Aperture |
f/1.6
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2592 x 1944 up to 30.00 fps |
| Multi-View Streaming |
Yes: 5 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 355?
Vertical: -30 to 75? Rotation: 0 to 355? |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
|
| Supported Protocols |
ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, MQTT, NTP, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
|
| Video I/O |
1x Micro-USB Input
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, G.711, G.726
|
| Built-In Microphone |
No
|
| Memory |
2 GB RAM / 1000 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Camera Sabotage/Tampering, Defocus Detection, Entering/Exiting, Heat Mapping, Intrusion Detection, Loitering, Motion Detection (8-Zones), Object Detection, People Counting, People Detection, Queue Management, Vehicle Detection, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 4 to 8.1 W
|
Environmental
| Operating Conditions |
-22 to 131?F / -30 to 55?C at 0 to 100% Humidity
|
| Storage Conditions |
-58 to 140?F / -50 to 60?C at 0 to 95% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Startup Temperature |
-22?F / -30?C
|
General
| Materials |
Aluminum
|
| Certifications |
CAN/CSA, CE, EAC, EN, FCC, ICES, IEC/EN, NDAA, RCM, UKCA, UL, VCCI
|
| Illumination |
850 nm IR LEDs up to 98.4' / 30 m
|
| Supported Languages |
Czech
Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese Turkish |
| Dimensions (W x H x D) |
4.7 x 3.8 x 4.7" / 120 x 97.5 x 120 mm
|
| Weight |
1.3 lb / 579 g (Body Only)
|
Packaging Info
| Package Weight |
1.815 lb
|
| Box Dimensions (LxWxH) |
7.5 x 6.8 x 6.6"
|
