Description
Grace Design M908 Overview
The m908 from Grace Design is a powerful and flexible digital audio converter and reference monitor controller engineered to deliver impeccable clarity and detail for professional multichannel immersive audio applications. The system is capable of handling a wide variety of formats ranging from mono up to SONY 360RA and Dolby Atmos 22.2 system and includes an intuitive remote controller.
Built to handle a wide range of broadcast, gaming, and film applications, the self-contained, plug-and-play system provides a full complement of monitoring features including cue channels, a built-in talkback mic, and mono, mute, and dim controls. Scaled up from the m905 to handle more channels, the m908 consists of a mainframe unit that serves as the connection hub, a remote control unit, and a power supply with dual-redundant universal input power modules.
An Artix-7 FPGA (Field Programmable Gate Array) is responsible for the digital conversions, with a 1 GHz 32-bit floating-point DSP handling audio signal processing. The Linux-based operating system and user interface run on an ARM-Cortex A-15 processor. The system clock uses Grace's 4th generation s-Lock PLL technology to provide incredibly low jitter PLL that provides exceptional sample clocking accuracy.
Features at a Glance
- 24-channel AES3 digital I/O / 16-channel analog outputs
- 16-channel ADAT Lightpipe in / USB 24-channel inputs
- AES3, S/PDIF, and TOSLINK stereo inputs
- Optional Dante or DigiLink module for an additional 32 channels of I/O
- Optional 8 channel ADC module for 8- or 16-channel analog inputs
- 4th generation s-Lock pll clocking system for vanishingly low jitter
- High-resolution volume control
- Complete bass management capability
- 12 bands of parametric room correction EQ on every channel / variable numbers of bands per channel totaling up to 85
- 64-bit fixed-point filters for room correction and bass management
- Channel level and delay calibration
- Comprehensive downmix control
- Built-in real time SPL meter
- Powerful and intuitive remote control unit for access to all system controls and calibration
- Dual redundant external power supply
- Reference quality headphone amplifier with crossfeed
- Flexible talkback system with built-in mic on remote control and mic input for external talkback mics
- Up to 8 stereo CUE paths
- 4 General Purpose Input and Output pins for interfacing to external systems
In the Box
- Grace Design m908 2.1 to 22.2 Multichannel Reference Monitor Controller with Remote Control (Black)
- Power Supply Unit
- AC Power Cable
- 8' DC Power Cable
- 25' DB15 Remote Cable
- 6' USB 2.0 Cable
- 2 x Spare Fuses
- 4 x Adhesive-Backed Rubber Feet (0.12" Thick)
- 4 x Adhesive-Backed Rubber Feet (0.23" Thick)
- 4 x Rack Screws
- Limited 5-Year Warranty
Grace Design M908 Specs
| Analog Inputs | 1 x Balanced 3-Pin XLR Talkback Microphone Input 2 x Balanced 3-Pin XLR Line Inputs (Stereo Pair) 2 x Unbalanced RCA Line Inputs (Stereo Pair) |

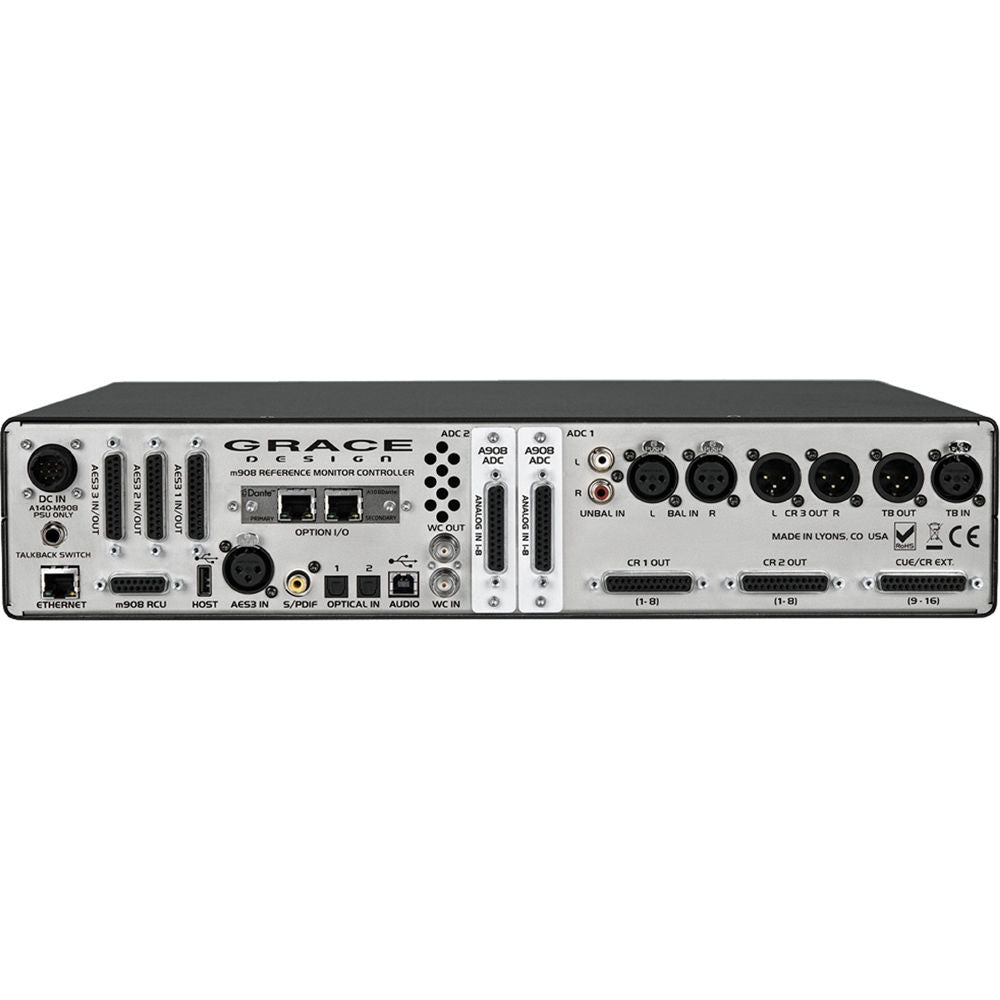

| Analog Outputs | 1 x Balanced 3-Pin XLR Talkback Output 2 x Balanced 3-Pin XLR Monitor Outputs 2 x Balanced DB25 8-Channel Monitor Outputs 1 x Balanced DB25 8-Channel Cue/Monitor Outputs 2 x 1/4" Headphone Outputs (One on RCU) |
| Digital Inputs | 1 x 3-Pin XLR AES3 Input 1 x Coaxial S/PDIF Input 2 x TOSLINK ADAT Optical Inputs 3 x DB25 AES3 Inputs (AES3 Outputs on Same Connectors) |
| Digital Outputs | 3 x DB25 AES3 Outputs (AES3 Inputs on Same Connectors) |
| Word Clock I/O | 1 x BNC Input 1 x BNC Output |
| USB | 1 x USB Type-B Audio Input 1 x USB Type-A Host Port |
| Ethernet | 1 x RJ45 |
| Remote Connection | 1 x DB15 RCU (Remote Control Unit) Connection 1 x 1/4" Talkback Switch Input |
| Controls and Indicators | 480 x 272 QVGA Display LED Dimmable Back Light with Adjustable Dim Levels and Dim Timer |
| Sample Rate | 192 kHz / 24-Bit |
| Power Requirement | 100 to 240 VAC via A140 Power Supply Unit |
| Power Consumption | 90 to 250 VAC, 50 to 60 Hz, 50 W Max |
| Country of Manufacture | United States of America |
| Dimensions (W x H x D) | ACU: 19 x 3.5 x 10.9" / 483 x 89 x 277 mm RCU: 10.5 x 2.5 x 5.1" / 267 x 64 x 130 mm PSU: 8.5 x 1.7 x 8.2" / 216 x 43 x 208 mm |
| Weight | ACU: 6.8 lb / 3.2 kg RCU: 2.2 lb / 1 kg PSU: 2.6 lb / 1.2 kg |
