| ₹ 42540.0 includes GST and import duties. | |
| B2B customers can avail ₹ 6487.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
FeelWorld WT1H Overview
Wireless Video Transmission with Intercom Function
The

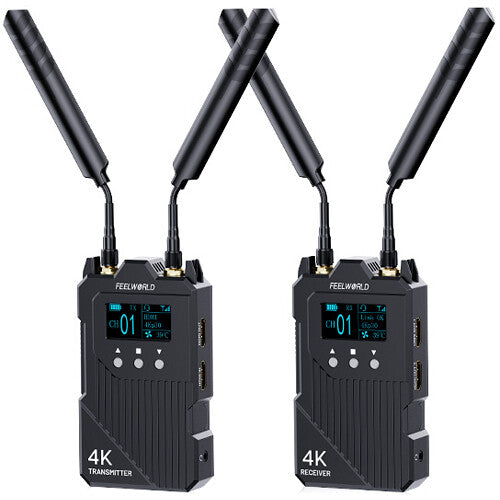

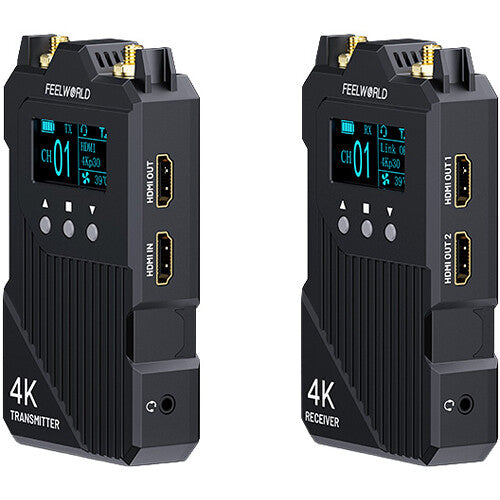

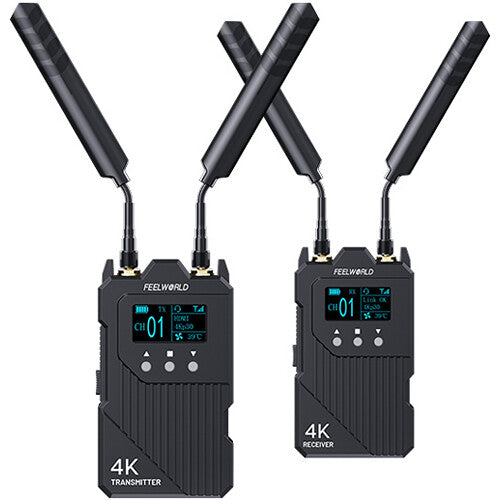

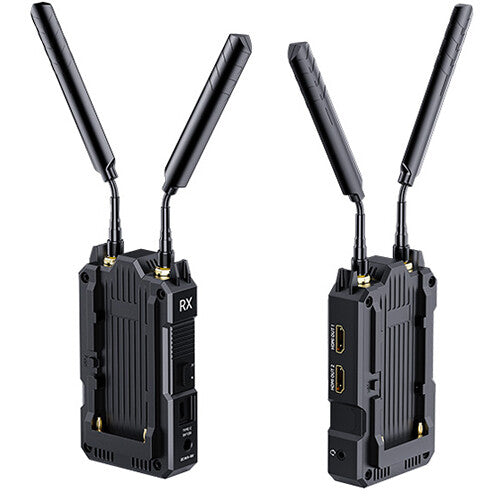

WT1H 1000' HDMI Wireless Video Transmission System from
FeelWorld features easy preset grouping and pairing, an adapter for Ethernet streaming, and an integrated intercom for communication between on-set users. The system supports up to UHD 4K30 or 1080p60 HDMI transmission up to 1000' with a low latency of 0.08 seconds.
Pair Transmitter with up to Four Receivers

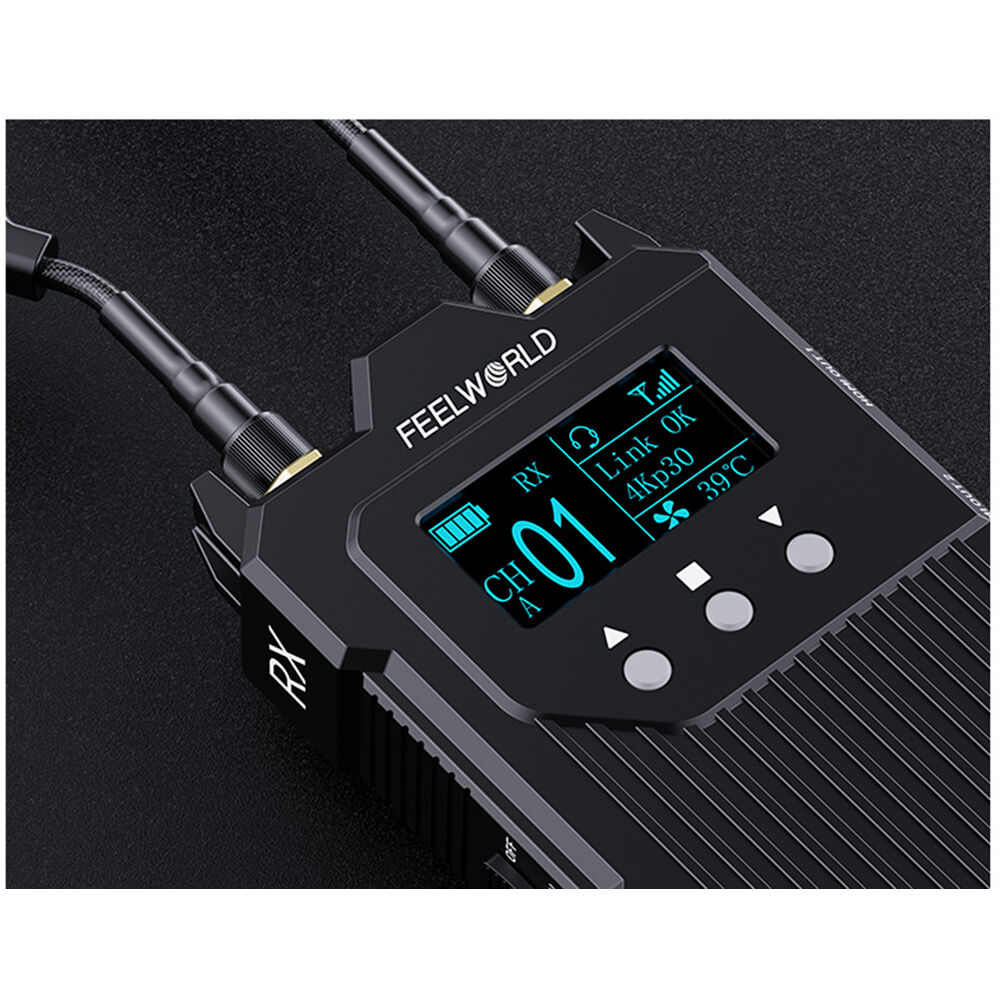

This system lets you link up to four receivers to the transmitter for simultaneous transmission, and the transmitter can be switched to function as a receiver. The OLED screen on both the transmitter and receiver displays link status, signal strength, video format, battery level, temperature, fan status, and intercom mode.
Android and iOS App
The WT1H system also supports remote monitoring and recording using the FeelWorld Wireless 2 app, downloadable for iOS or Android.
Smart Channel Scan
The WT1H provides 13 channels with a smart channel scan function that automatically scans your environment to find the available channels and avoid the channels that are already occupied.
Ethernet Streaming
The included USB-C to Ethernet adapter lets you live stream video from the receiver directly using your laptop or PC and OBS (Open Broadcaster Software) or VLC media player.
Additional Details
- A built-in fan on each unit ensures proper cooling during operation.
- The fans operate automatically or can be switched off in silent mode.
- The transmitter and receiver each have an L-series battery plate.
- Each also has both a USB-C charging port and a 6-16 VDC barrel power input.
- Both units have a bottom 1/4"-20 mounting thread.
Items Included
- FeelWorld WT1H 1000' HDMI Wireless Video Transmission System with Intercom
- Transmitter
- Receiver
- 5 x Antenna
- Cold Shoe Adapter
- USB-C to Ethernet Adapter
- USB-C to USB-A Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
FeelWorld WT1H Specs
Key Specs
| Video I/O |
Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x HDMI (Unspecified Signal) Output Receiver: 2x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI
|
| Latency |
0.08 sec
|
| Video Format |
HDMI
UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 60 480p: 60 |
| Battery |
Transmitter/Receiver: 1x L-Series Mount on Fixed Plate
|
| Power Consumption |
Transmitter: 5.5 W
Receiver: 6 W |
Inputs/Outputs
| Antenna I/O |
Transmitter: 2x RP-SMA Male
Receiver: 2x RP-SMA Male |
| Video I/O |
Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x HDMI (Unspecified Signal) Output Receiver: 2x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
Transmitter/Receiver: 1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
Transmitter/Receiver: 1x Barrel Input
|
| Other I/O |
Transmitter/Receiver: 1x USB-C
|
Wireless
| Wireless Range |
1000' / 304.8 m
|
| # of Channels |
13
|
| Channel Bandwidth |
40 MHz, 20 MHz
|
| Frequency Range |
5.1 to 5.9 GHz
|
| Latency |
0.08 sec
|
| RF Power |
22 dBm
|
| RF Sensitivity |
-87 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Cellular Support |
No
|
Format Support
| Video Format |
HDMI
UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 60 480p: 60 |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support |
No
|
Power
| Input Power |
6 to 16 VDC
|
| Battery |
Transmitter/Receiver: 1x L-Series Mount on Fixed Plate
|
| Power Consumption |
Transmitter: 5.5 W
Receiver: 6 W |
Mounting
| Tripod/Accessory Mounting |
Transmitter/Receiver, Bottom
1x 1/4"-20 Female |
General
| Status Display |
On Transmitter & Receiver
|
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 72?F / 0 to 40?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Dimensions |
Transmitter/Receiver: 4.7 x 3 x 1.2" / 118.6 x 77.1 x 30 mm (Excluding Antenna)
|
| Weight |
Transmitter/Receiver: 4.9 oz / 138.8 g, Excluding Antenna
|
Packaging Info
| Package Weight |
1.565 lb
|
| Box Dimensions (LxWxH) |
10.4 x 6.7 x 2.1"
|
