Description
From Manufacturer
The F7 Plus Monitor with NP-750 Battery and Carry Case from FeelWorld is a kit that includes the F7 Plus touchscreen monitor, an L-series/NP-750 battery, a shoe mount, a mini-HDMI cable, and a carry case. Monitor features include 1920 x 1200 resolution, 1200:1 contrast ratio, built-in image tools, HDMI input and output, and DC output to power a camera or accessory.
Monitor up to UHD 4K video with the F7 Plus 7" Touchscreen HDMI Field Monitor from Feelworld. Compact in design, this 7" display fits on top of your camera or handheld rig to provide crisp video monitoring with a 1920 x 1200 resolution. It features HDMI input and output that supports up to DCI/UHD 4K resolutions.

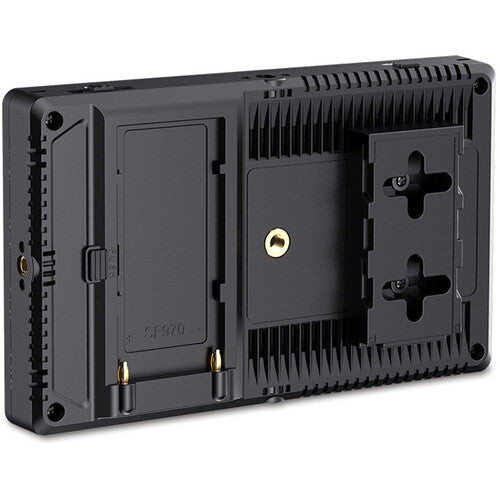

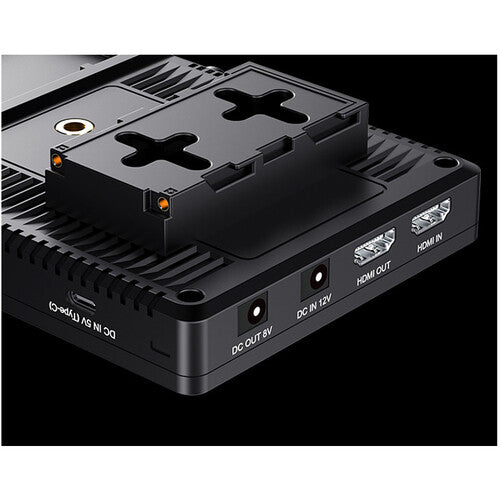

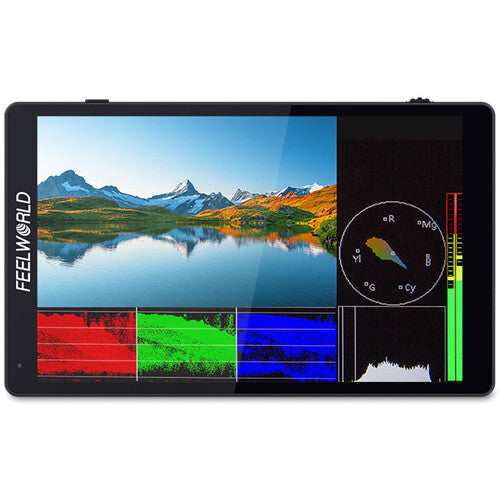

The monitor features an L-series battery plate on the back, and it can also be powered via USB-C or DC barrel inputs. There is also a DC barrel output to power your camera or accessories, and a mounting block on the back makes it easy to connect a wireless receiver to the back. There are numerous built-in image tools to ensure accuracy, such as vectorscope, histogram, and RGB parade.
- 7" touchscreen display
- 1920 x 1200 resolution
- HDMI 2.0 input and output up to DCI/UHD 4K resolutions
- HDR support
- 3.5mm headphone jack
- 5V USB-C and 12V 2.1mm barrel power inputs
- 8V 2.1mm barrel power output
- Rear L-series battery plate
- Accessory installation block on the back
- Support for 11 languages
- 1/4"-20 mounting thread
- SD card slot for loading 3D LUTs
- Histogram
- Vectorscope
- Waveform
- Audio level meters
- Focus peaking
- False color
- Overscan/underscan
- Anamorphic de-squeeze
- Image flip
- Nine grid
- Image freeze
- 1:1 pixel mapping
- Frame markers
- Focus assist
- Check field
- Exposure/zebra
Power any video camera, LED light, or monitor that uses Sony L-series/NP-F-type batteries with this NP-750 Battery with USB-C Charging from FeelWorld. The L-Series battery features a 4400mAh capacity and provides a 7.4V output charge. It can be charged using the included USB cable and an optional USB power source, which will take approximately 4.5 hours to full. It can also charge using a standard L-series/NP-F charger.
4 hours with the FeelWorld F6 Plus
3.6 hours with the FeelWorld F7 Pro
1.8 hours with the FeelWorld LUT7
Items Included
- FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
- Mini HDMI to HDMI Cable
- Shoe Mount
- HDMI Plug Lock
- L-Series Battery Plate
- Limited 1-Year Manufacturer Warranty
- FeelWorld NP-750 Battery with USB-C Charging (4400mAh, L-Series)
- USB-C Charging Cable
- Limited 1-Year Manufacturer Warranty
- AMC7 Carry Case
Additional Resources
FeelWorld F7 Plus 7" Touchscreen HDMI Field Monitor
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output |
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]
|
| Video Format |
HDMI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
15 W
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 160? (80/80)
Vertical: 160? (80/80) |
| Touchscreen |
Yes
|
| Maximum Brightness |
1200 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Color Gamut |
100% Rec. 709
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel 5.5 mm (12 VDC) Input
1x USB-C (5 VDC / 2 A) Input 1x Barrel 5.5 mm (8 VDC) Output |
| Other I/O |
No
|
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
| Input Power |
7 to 24 VDC
|
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
15 W
|
| Tripod/Accessory Mounting |
Top/Bottom/Right
1x Anti-Twist 1/4"-20 Female |
| Operating Conditions |
-4 to 122?F / -20 to 50?C
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C
|
| Dimensions |
7.3 x 4.6 x 0.8" / 186 x 117 x 21 mm
|
| Weight |
20.9 lb / 9.5 kg
|
| Package Weight |
1.85 lb
|
| Box Dimensions (LxWxH) |
9 x 7 x 3.2"
|
