Description
Eliminator Lighting Elecktron Bar FX Overview

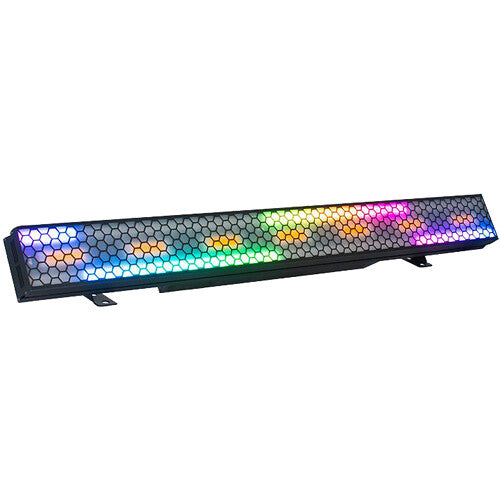

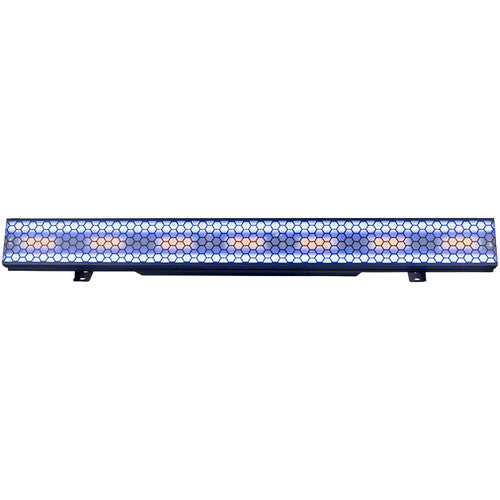

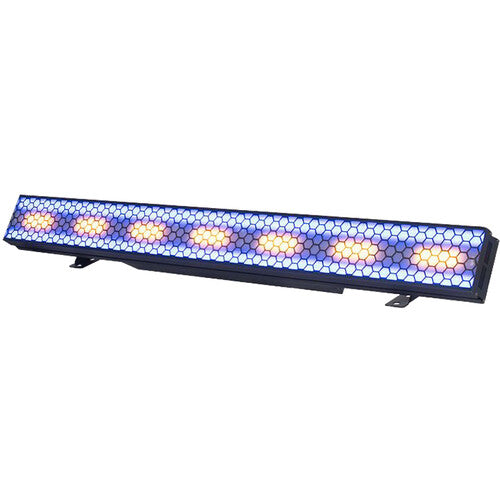

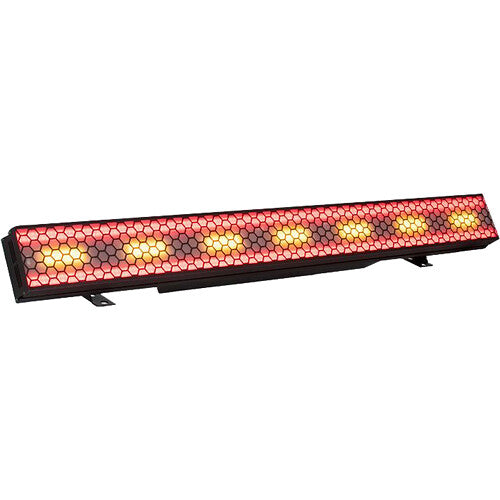

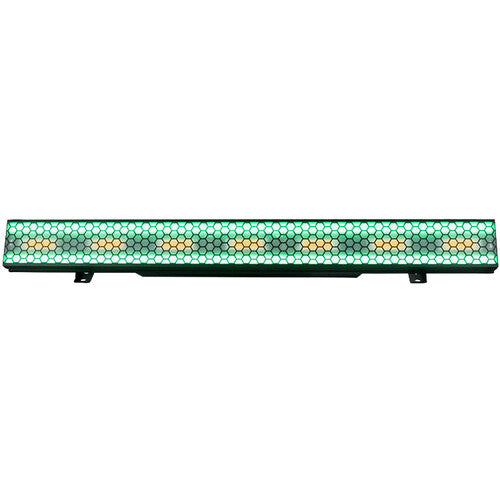

Designed to bring vibrant colors and exciting illumination to your next event, the Eliminator Lighting Elektron Bar FX is a blinder/strobe that combines power and versatility. The fixture utilizes seven 40W amber LEDs (1800K) for brilliant blinder effects and 528 RGB SMD LEDs for vibrant color chases. With multiple DMX channel modes and various control options, this fixture empowers you to create dynamic lighting designs for any venue or mobile production.
At a Glance
- 7 x amber LED zones
- 66 x RGB LED zones
- 60 x built-in programs with speed control
- 2 x mounting brackets
Control
- Control Protocols: DMX512, Primary/Secondary, and Sound Active
- Dim Modes: 6 presets (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- Dim Curves: 4 presets (Linear, Square Law, Inv Square Law, and S Curve)
- 0-100% smooth dimming
- Shutter: 0-20 strobe flashes per second
- Refresh Rate: 900 Hz to 25 kHz
- With wired digital communication network
- Display: digital (with 4 buttons)
- DMX Channel Modes: 7, 12, or 20
UPC: 810087374297
Items Included
- Eliminator Lighting Elektron Bar FX RGBA Strobe / Blinder
- Power Cord
- Mounting Bracket
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Eliminator Lighting Elecktron Bar FX Specs
Key Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
7x Color LED - 40 W
528x Color LED - 0.5 W |
| Colors |
Amber
|
| Pixel Configuration |
73x Zone
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC: 300 W
|
| Mounting |
Mounting Bracket
|
Light
| Fixture Type |
Linear/Bar Light
|
| Light Source |
7x Color LED - 40 W
528x Color LED - 0.5 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber
|
| Pixel Configuration |
73x Zone
|
| Color Temperature |
1800K
|
| Shutter / Strobe |
Electronic
|
| Zoom Adjustment |
No
|
| Dimming |
0 to 100%
|
Performance
| Operating Modes |
DMX, Primary/Secondary, Sound-Active
|
| Gobos |
No
|
| Refresh Rate |
900 Hz to 25 kHz
|
Control
| Control Protocols |
DMX512, RDM
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Input |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON |
| Fuse |
T 5 A 250 V
|
| Power / Current Consumption |
120 VAC: 300 W
|
| Power Linking |
7 Units at 120 VAC
14 Units at 230 VAC |
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, cETLus
|
| Dimensions |
39.5 x 4.75 x 4" / 100.3 x 12.06 x 10.2 cm
|
| Weight |
10.7 lb / 4.9 kg
|
Packaging Info
| Package Weight |
14.6 lb
|
| Box Dimensions (LxWxH) |
41.25 x 7.25 x 6.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
