Description
Kit Contains:
DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (0? Direct View, ARRI PL)
Innovative Probe Zoom
Offering a 100 to 73? field of view, the ARRI PL-mount
X-Tract 0? 18-28mm T8 FF Probe Zoom Macro Lens from
DZOFilm brings innovative close-up capture to your productions. This compact probe lens measures just 16.3" in length and has a front outside diameter of less than 1.2", making it ideal for tight setups. It features a relatively fast T8 maximum aperture, a 2.1:1 maximum magnification, and a 0.24" minimum focusing distance. This straight version offers a direct view; 90? and 360? periscope lens versions are available separately.
Wide 18-28mm Zoom
- This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.
- The wide 100 to 73? field of view supports flexible capture.
Macro/Close Capture in Narrow Spaces
- Craft creative macro shots using a maximum magnification ratio of 2.1:1.
- The extremely close minimum focusing distance of around 0.24" lets you get super tight coverage of your subject.
- The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.
Low-Distortion, High-Resolution Optics
- The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.
- Advanced coatings help minimize flaring and reflections.
- Incorporates seven HRI (high-refractive-index) lens elements, producing more natural color.
- ?2% distortion control across the zoom range.
T8 Maximum Aperture
- The relatively fast T8 maximum aperture is maintained throughout the zoom range.
- Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.
Waterproof, Cine-Style Design
- Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.
- A lightweight yet rear-heavy design helps reduce vibrations while shooting.
- The focus barrel offers a wide 300? rotation for precise focus pulls.
- Waterproof and dustproof, this probe lens is also scratch and fog resistant.
UPC: 842463103368

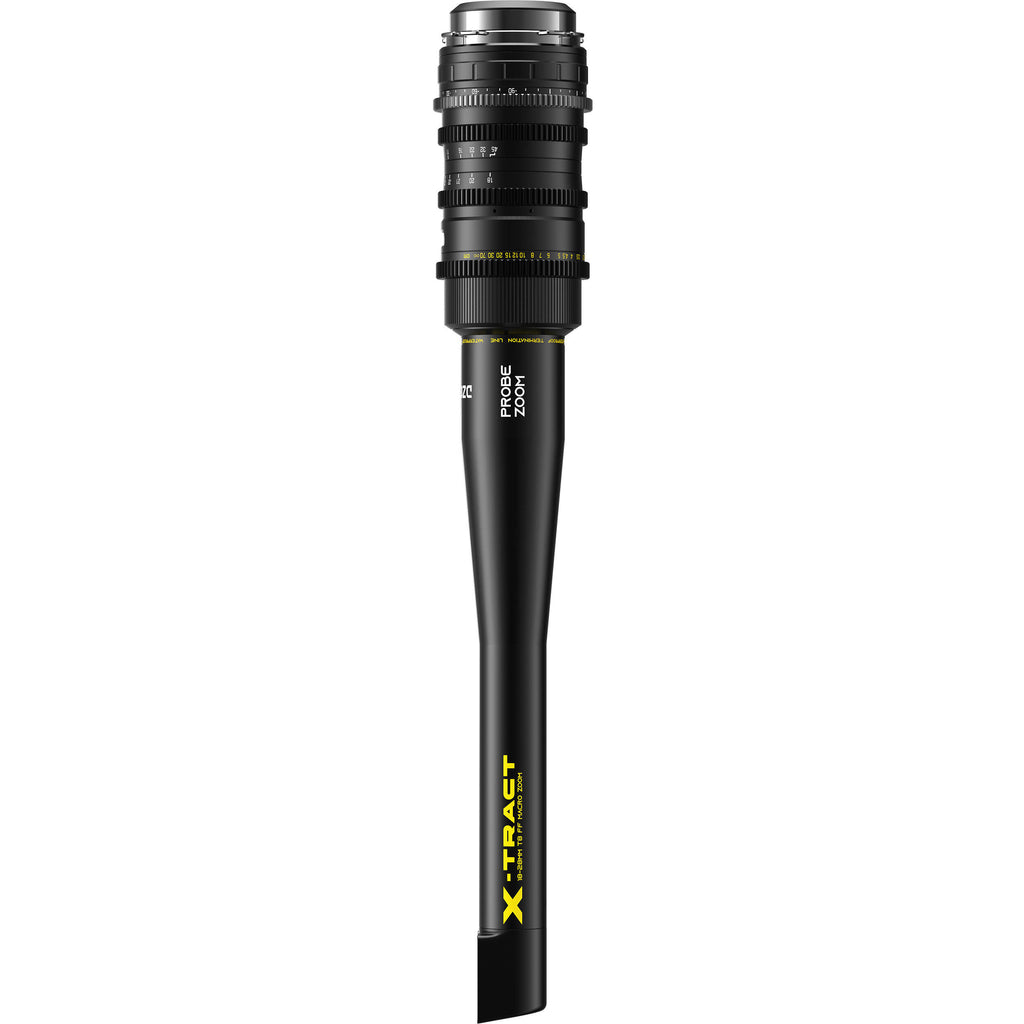

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (90?, ARRI PL)
Innovative 90? Probe Zoom Macro Lens
Offering a 100 to 73? field of view, the ARRI PL-mount, 90?
X-Tract 18-28mm T8 FF Probe Zoom Macro Lens from
DZOFilm brings innovative close-up capture to your productions. This compact probe lens measures just 16.3" in length and has a front diameter of less than 1.2", making it ideal for tight setups. It features a relatively fast T8 maximum aperture, a 2.1:1 maximum magnification, and a 0.24" minimum focusing distance. This 90? version offers a right-angle view; 0? direct view and 360? periscope lens versions are available separately.
Wide 18-28mm Zoom
- This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.
- The wide 100 to 73? field of view supports flexible capture.
Rotating 90? View
- This 90? probe features a right-angle design that provides creative positioning.
- A rotating ring enables even greater flexibility.
Macro/Close Capture in Narrow Spaces
- Craft creative macro shots using a maximum magnification ratio of 2.1:1.
- The extremely close minimum focusing distance of around 0.24" lets you get super tight coverage of your subject.
- The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.
Low-Distortion, High-Resolution Optics
- The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.
- Advanced coatings help minimize flaring and reflections.
- Incorporates seven HRI (high-refractive-index) lens elements, producing more natural color.
- ?2% distortion control across the zoom range.
T8 Maximum Aperture
- The relatively fast T8 maximum aperture is maintained throughout the zoom range.
- Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.
Waterproof, Cine-Style Design
- Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.
- A lightweight yet rear-heavy design helps reduce vibrations while shooting.
- The focus barrel offers a wide 300? rotation for precise focus pulls.
- Waterproof and dustproof, this probe lens is also scratch and fog resistant.
UPC: 842463103542
Items Included
- DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (0? Direct View, ARRI PL)
- Front Cap
- Rear Cap
- Y-Bracket Support
- Bolt Driver
- Shim Set
- Hard Case with Foam Inlay
- 3 x Support Ring
- Limited 1-Year Manufacturer Warranty
- DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (90?, ARRI PL)
- 90? Tube
- Front Cap
- Rear Cap
- Y-Bracket Support
- Bolt Driver
- Shim Set
- Hard Case with Foam Inlay
- 3 x Support Ring
- Limited 1-Year Manufacturer Warranty
- 0? Tube
- 90? Tube
- 15mm Follow Focus Rod with Brackets
- Front Cap
- Rear Cap
- Large O-Ring Quick Release Clamp (1.8")
- 2 x Small O-Ring Quick Release Clamp (1.2")
- 2 x Shim Set
- 2 x UV Filter
- Hard Case with Foam Inlay
Additional Resources
Kit Contains:

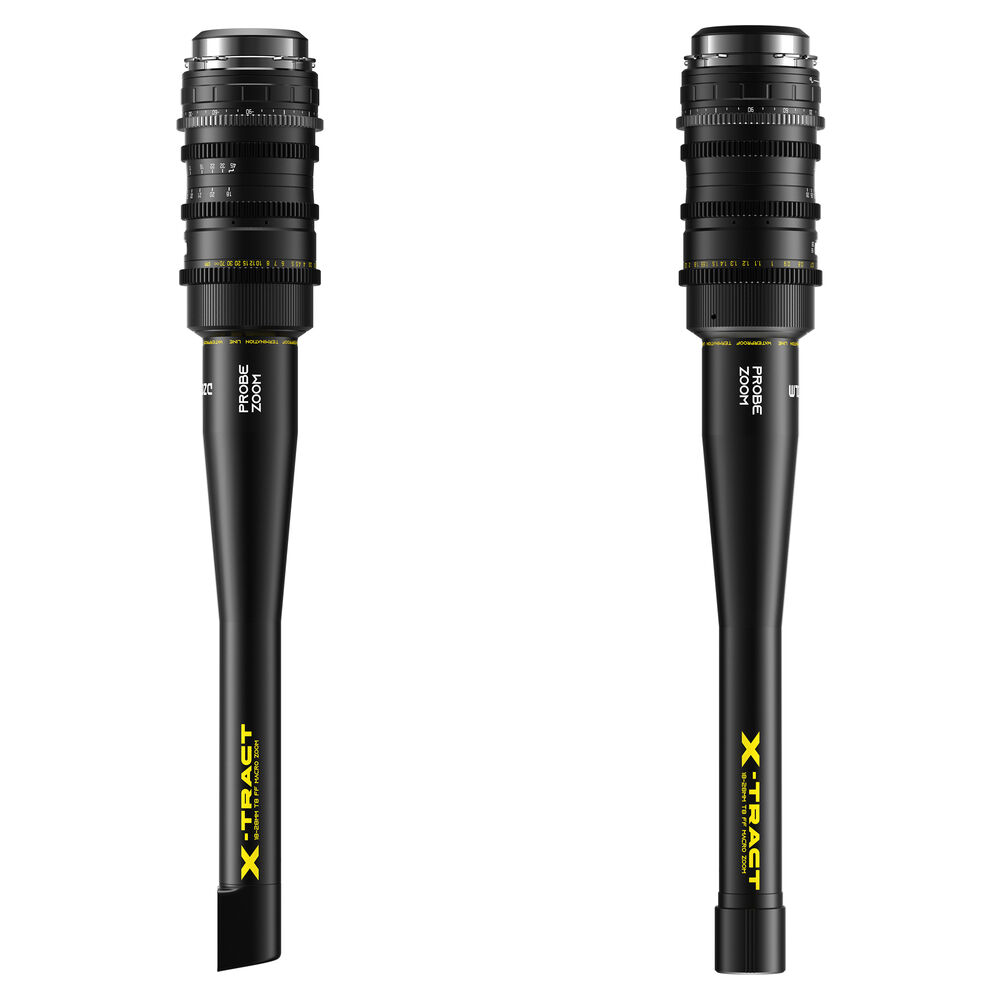

![DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (0? Direct View, ARRI PL)]()
![DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (90?, ARRI PL)]()

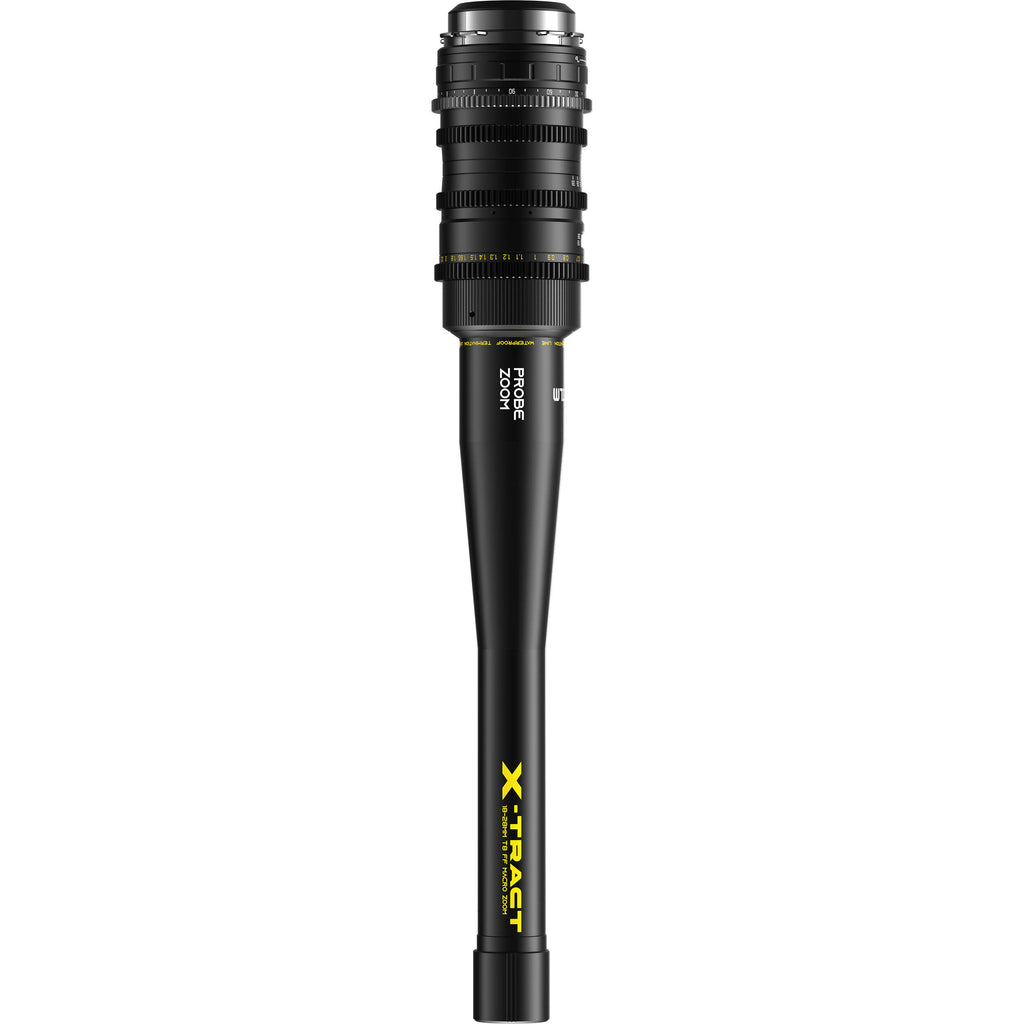

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (0? Direct View, ARRI PL)
Key Specs
| Focal Length |
18 to 28mm
|
| Maximum Aperture |
T8
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full-Frame
|
| Filter Thread |
No
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Maximum Aperture |
T8
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full-Frame
|
| Angle of View |
Full Frame
Horizontal: 100 to 73? |
| Focus Scales |
Metric
|
| Filter Thread |
No
|
| Zoom Ratio |
1.56x
|
| Minimum Focus Distance |
From Front of Lens: 0.2" / 6 mm
|
| Magnification |
2.1:1 Macro Reproduction Ratio
0.26x Magnification |
| Image Stabilization |
No
|
| Lens Mounting |
1x 1/4"-20 (via Included Support Foot)
3x 3/8"-16 (via Included Support Foot) |
| Gear Standard |
0.8 MOD
|
| Gear Rotation |
Focus: 300?
|
| Electronic Communication |
No
|
| Diameter |
Front: 1.2" / 29.6 mm
|
| Length |
16.3" / 415 mm
|
| Weight |
2.4 lb / 1.09 kg
|
Packaging Info
| Package Weight |
10.485 lb
|
| Box Dimensions (LxWxH) |
24.1 x 14 x 6.6"
|
