Description
Digipas Technologies DWL3500XY-BLUETOOTH + PC... Overview

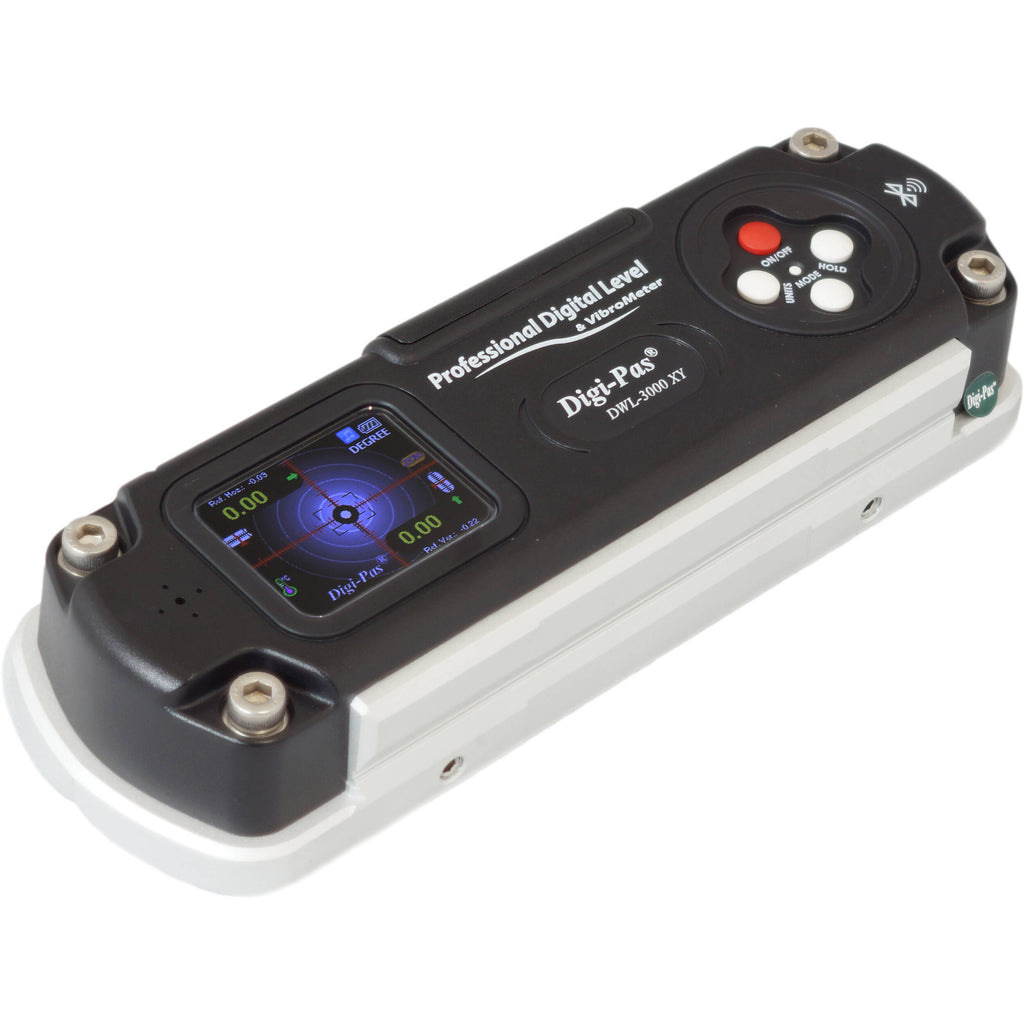

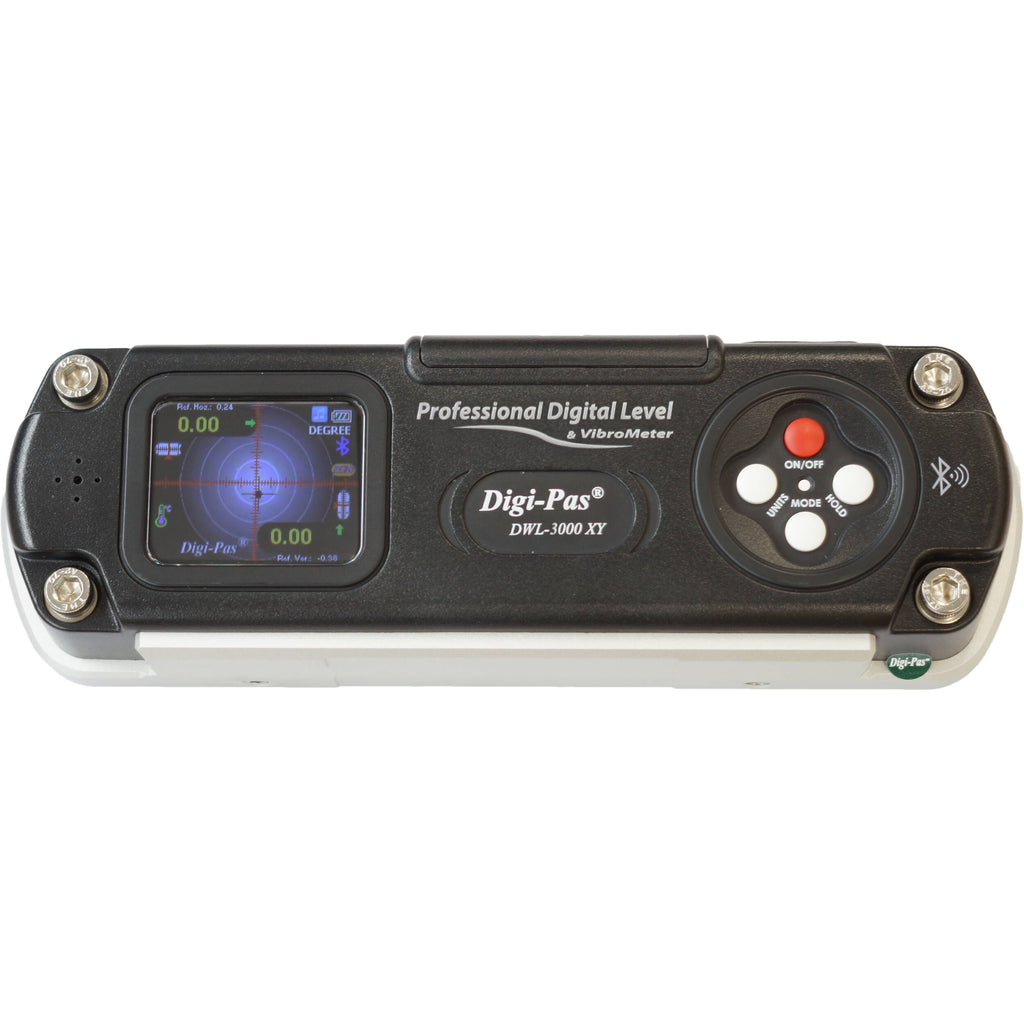

This 2-Axis High-Precision Digital Machinist Level from Digipas Technologies is embedded with advanced MEMS sensor technology, so professionals and trade specialists can achieve high accuracy and simultaneous display of angular and vibration measurements. It has a built-in vibrometer, Bluetooth wireless connectivity, and is capable of remote real-time data acquisition, logging, and analysis when in sync with a Mac/Windows computer or iOS/Android mobile device. It is effective when used for installation, setting up, and maintenance of high-precision CNC machines or test and measuring equipment.
Additional Details
- 2-axis color graphic display of angular and vibration measurements
- Real-time digital and analog display for data logging and analysis
- Single-axis measurement range: 0.00 to ? 20.00?
- Dual-axis measurement range: 0.00 to ? 10.00?
- Vibrometer for real-time vibration measurement
- Wireless Bluetooth low-energy connection at up to approximately 984'
- Professional PC Sync software USB connection to device for remote data logging
Software Features
- User-friendly, plug-and-play USB connection for angle and vibration remote measurement, data acquisition, logging, and analysis in computer
- Bluetooth connectivity for wireless remote data acquisition, monitoring, and logging
- Digi-Pas mobile app for Android tablets and smartphones
Accreditations
- Instrument accuracy is verified by accredited third-party calibration and test service providers in the USA, Japan, UK, and Germany and is traceable to NIST, JIS, UKAS, and DIN under ILAC and A2LA.
Items Included
- Digipas Technologies 2-Axis High Precision Digital Machinist Level
- USB Cable (9.8')
- 4 x AAA Battery
- 3 x M5 Domed Screw
- Limited 2-Year Manufacturer Warranty
Additional Resources
Digipas Technologies DWL3500XY-BLUETOOTH + PC... Specs
General
| Compatibility |
Not Specified by Manufacturer
|
Display
| Panel Type |
TFT LCD
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|
Inputs/Outputs
| USB I/O |
1 x Mini-USB Female Input/Output
|
| Media/Memory Card Slot |
Yes
|
| Internal Storage |
Yes
|
Wireless
| Wireless |
Bluetooth
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Digi-Pas |
| Global Positioning (GPS, GLONASS, etc.) |
Yes
|
Power
| Power Source |
Battery, USB
|
| Battery Type |
4x AAA
|
Physical
| Material of Construction |
PC ABS, Cast Iron
|
| Certifications |
CE, FCC, RoHS, UL
|
| Operating Conditions |
14 to 122?F / -10 to 50?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Cable Length |
9.8' / 3 m
|
| Dimensions |
7.4 x 2.4 x 1.5" / 188 x 62 x 37 mm
|
| Weight |
2.4 lb / 1100 g
|
Packaging Info
| Package Weight |
5.21 lb
|
| Box Dimensions (LxWxH) |
10.3 x 8 x 4.3"
|
