Description
Desview OL7S Overview
Touchscreen On-Camera Monitor
The ultrathin
OL7S 7" OLED High-Bright Touchscreen HDMI/3G-SDI On-Camera Monitor from
Desview provides clear viewing with 1200 cd/m? brightness, 100,000:1 contrast ratio, 10-bit color, and assignable shortcut keys. Features include 3G-SDI and HDMI 2.0 input and output, customizable LUTs, and support for up to DCI 4K60 HDMI video.
Ultrabright OLED Monitor
- The OL7S's OLED screen features faster pixel response times, producing smoother, lag-free movement in high-speed scenes.
- 1200 cd/m? brightness enables clear, vivid viewing, even outdoors.
Custom Shortcut Keys
- Customizable shortcut keys let you quickly access your most frequently used functions.

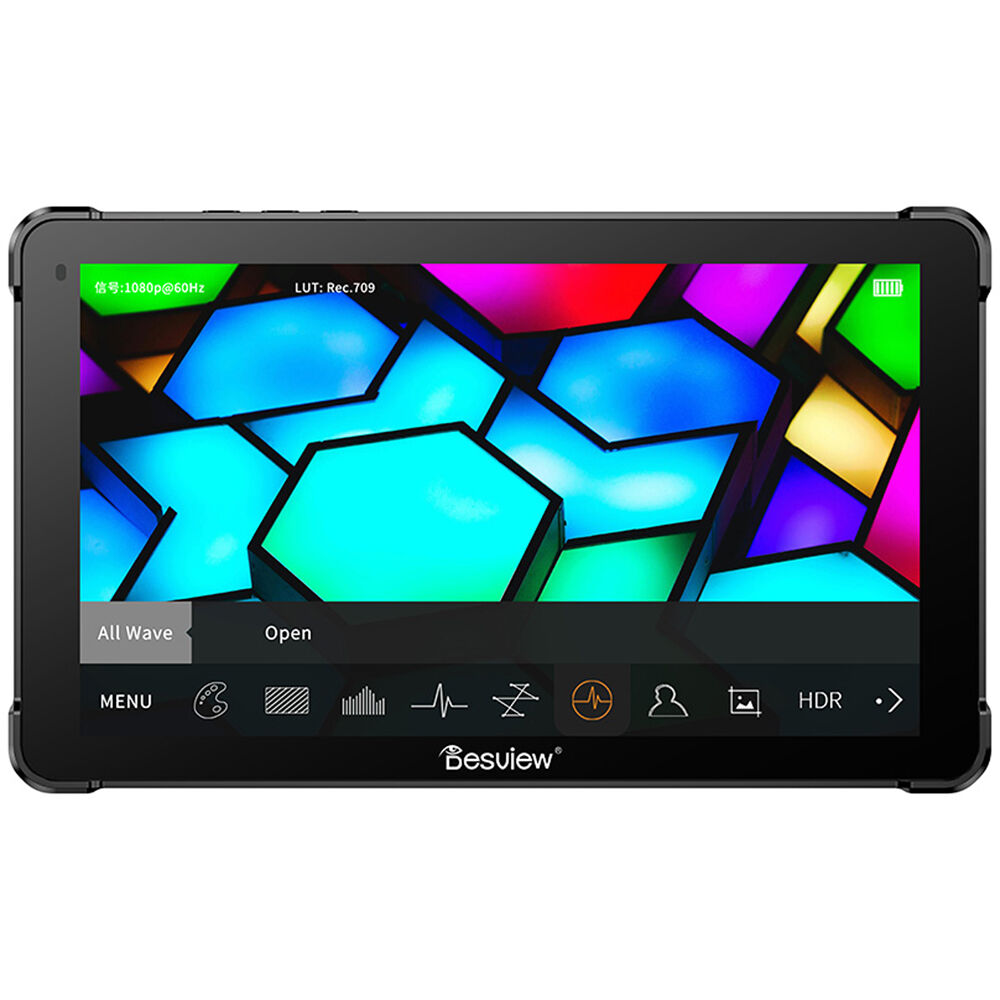

- Comprehensive image assist functions include waveform, vectorscope, audio meters, HDR, aspect ratio, histogram, color temperature, peak focus, false color, distortion, zebra, freeze frame, and more.
High-Resolution Display
The upgraded display supports up to 4K60 input and loop output for accurately viewing HDR imagery with high frame rates.
Professional Interfaces

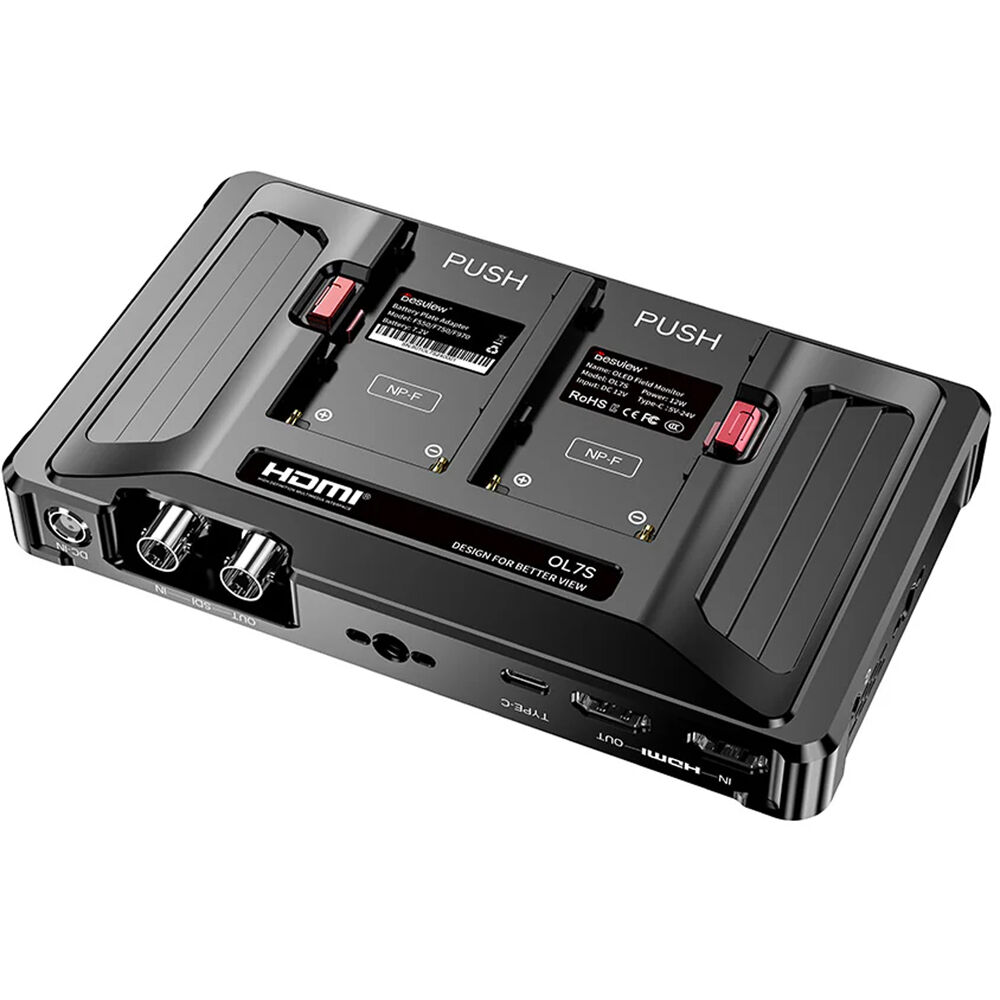

The monitor features 3G-SDI and HDMI inputs and outputs, 3.5mm headphone output, USB-C PD power, and DC barrel input.
Ultrathin Body
The OL7S 7" OLED monitor is housed in an ultrathin aluminum alloy housing that features advanced heat dissipation.
Power Options

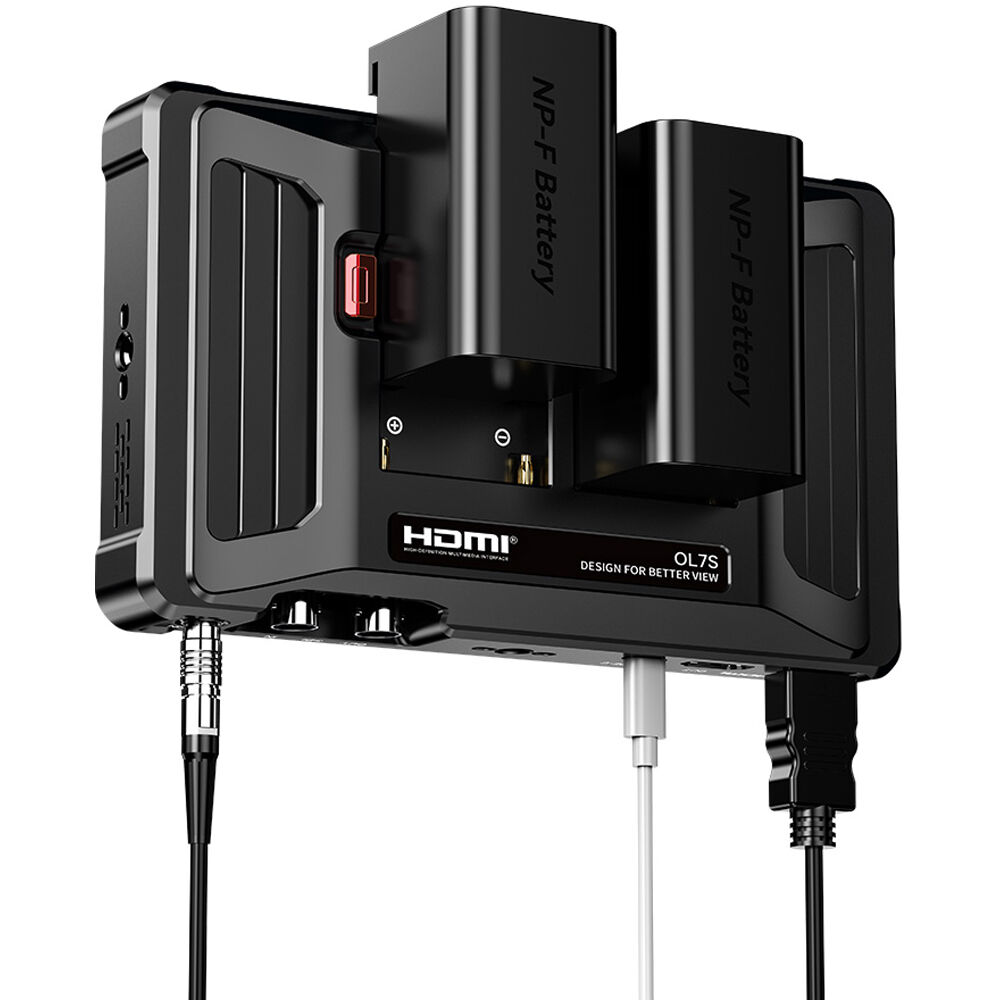

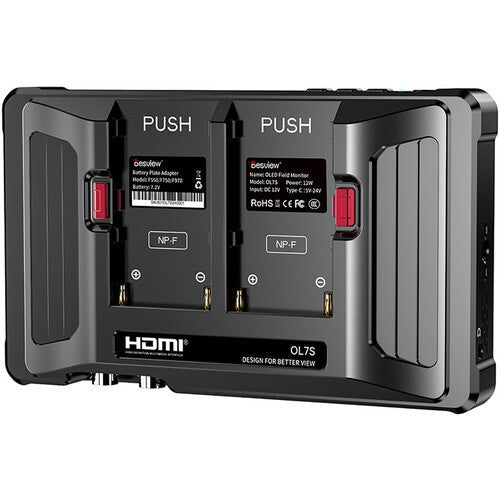

The dual L-series battery plate supports hot-swap power using two Sony L-series/NP-F batteries. You can also power the monitor using the USB-C PD or DC barrel power inputs.
Items Included
- Desview OL7S 7" OLED High-Bright Touchscreen HDMI/3G-SDI On-Camera Monitor
- Storage Case
- Shoe Mount
- USB Drive
- HDMI Cable
- Micro-HDMI Cable
- D-Tap to 2-Pin LEMO Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
Desview OL7S Specs
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
Yes
|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 60 SDI 1080p: 60 |
| Battery |
2x L-Series Mount on Fixed Plate
|
Display
| Panel Type |
OLED
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160?
Vertical: 160? |
| Touchscreen |
Yes
|
| Maximum Brightness |
1200 nits / cd/m2
|
| Contrast Ratio |
Near Infinite (Black Pixels Emit No Light)
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
Yes
|
| Color Gamut |
99.8% DCI-P3
93.6% Rec. 2020 |
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Waveform, Zebra
|
Inputs/Outputs
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x LEMO 2-Pin (26 VDC) Input
1x USB-C (21 VDC) Input |
| Other I/O |
No
|
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 60 SDI 1080p: 60 |
Power
| Input Power |
7 to 26 VDC
|
| Battery |
2x L-Series Mount on Fixed Plate
|
Mounting
| Tripod/Accessory Mounting |
Bottom/Left/Right
Anti-Twist 1/4"-20 Female |
General
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 122?F / 0 to 50?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.1 x 4.3 x 1.2" / 181 x 108 x 30 mm
|
| Weight |
1.1 lb / 520.00 g
|
Packaging Info
| Package Weight |
2.68 lb
|
| Box Dimensions (LxWxH) |
9.7 x 7.2 x 3.4"
|
