Description
Crestron UC-MM30-NC Overview
Set up a conference room for Microsoft Teams Rooms conferencing with the Flex Tabletop Small Room Conference System from Crestron. This hardware plus software solution is designed to enhance a small conference room with everything you need to run Microsoft Teams Rooms software with a single- or double-display setup.
The solution includes a tabletop conferencing device with a 7" touchscreen with a Teams Rooms UI, a bracket assembly with a mini PC running Windows 11 IoT with Microsoft Teams Rooms preinstalled, a PoE+ injector, as well as HDMI, USB, and Ethernet cables and adapters. Also included is a wall-mount kit for Crestron cameras. It can all be controlled via the XiO Cloud service with a separately available subscription.
Native Microsoft Teams Rooms
Designed to enhance the Crestron Flex system, the system features Windows 11 IoT and Microsoft Teams Rooms conferencing software preinstalled that enables audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface

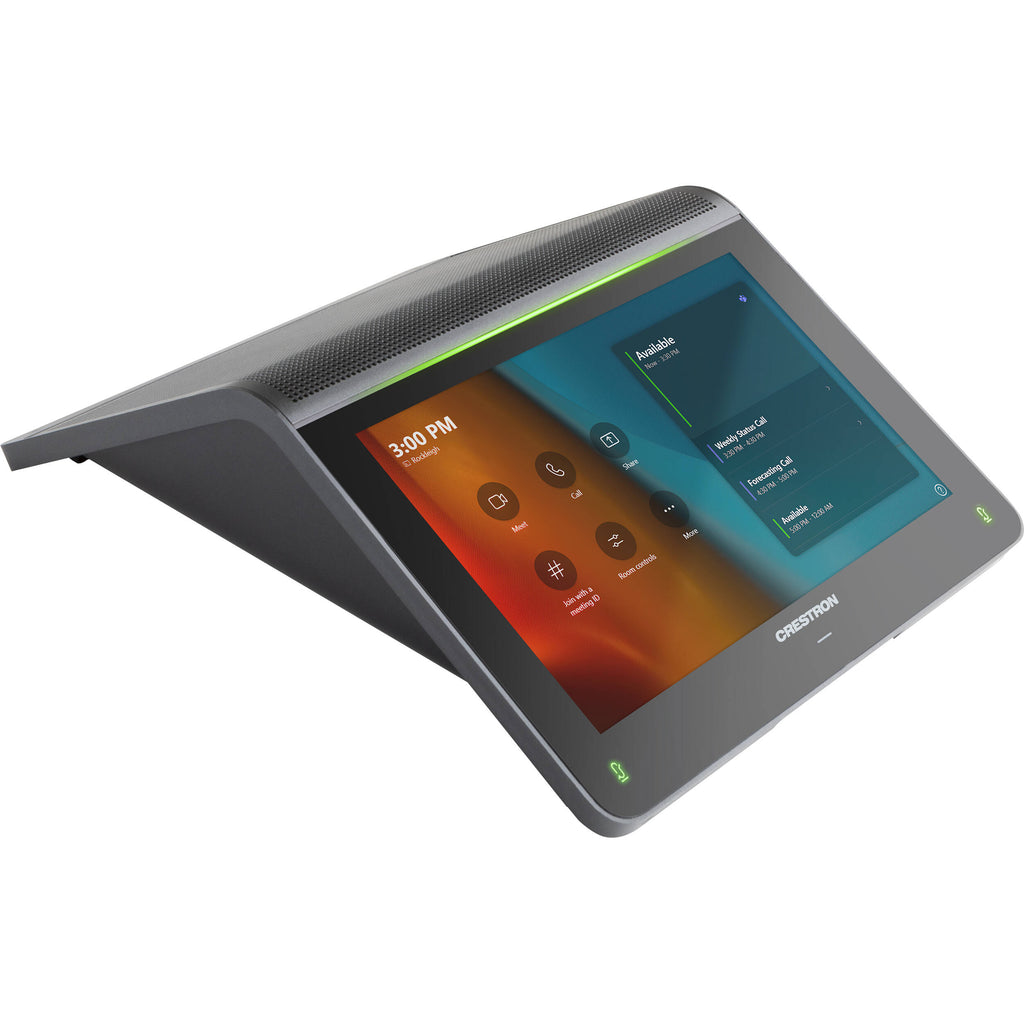

The included UC-2-T-V Crestron Flex Tabletop Conference device provides a powerful conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. Its large 7" HD color touchscreen provides easy control and a Teams UI, and its integrated AEC-enabled USB speakerphone provides full-duplex wideband audio performance. It can be powered via PoE+ using the included PoE+ injector on a compatible network.
Simplified Deployment
The included UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device or touchscreen to the UC Bracket Assembly.
High-Definition Video Conferencing
High-definition video conferencing is supported by using the following Crestron 1 Beyond cameras, including the IV-CAM-P12-B, IV-CAM-P12-W, IV-CAM-P20-B, IV-CAM-P20-W, IV-CAM-I12-B, IV-CAM-I20-B, and IV-CAM-I20-W models. Microsoft Teams Rooms software-certified third-party cameras are also compatible with the system.
Crestron Control System Integration
The UC-MM30-NC-T integrates with a Crestron control system to enable touchscreen control of room lighting, motorized window shades, climate control, AV, and other motorized devices.
Enterprise-Grade Security
This kit enhances the Crestron Flex system, which is equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility with enterprise-grade security.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud-based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. It allows for system alerts, network management, provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled by Windows software update.
Items Included
- Crestron Flex Tabletop Small Room Conference System for Microsoft Teams Rooms
- UC-2-T-V Touchscreen Conference Device (7")
- Cat 5e Cable (12')
- PoE+ Injector
- Mini PC with Teams Rooms Preinstalled
- Power Adapter (Mini PC)
- HDMI to USB 3.0 Converter
- USB to Ethernet Adapter
- UC Bracket Assembly Mounting Hardware
- Crestron DisplayPort to HDMI Active Cable (6')
- Crestron Cat 5e Ethernet LAN Network Cable (7')
- High-Speed HDMI Cable (6')
- Crestron CBL-HD-20 20' High-Speed HDMI Cable
- USB-A to Micro-USB Cable (5.9')
- USB-A Male to Female Extension Cable (15')
- USB-C 3.0 to USB-A Cable (6')
- Crestron DigitalMedia CAT6a Ultra Patch Cable (20')
- Crestron UC-CAM-WMK Wall Mount Kit for Select Collaboration Cameras
- Limited 3-Year Manufacturer Warranty
Additional Resources
Crestron UC-MM30-NC Specs
Touchscreen Information
| Display |
7" / 178 mm Capacitive Multitouch TFT LCD
|
| Resolution |
1280 x 800
|
| Connectors |
1 x RJ45, 10/100 Mb/s Ethernet/PoE+
1 x USB-B 2.0, Host |
| PoE |
IEEE 802.3at Compliant
|
| Sensors |
Occupancy
|
| Speaker |
1 x 7 W, 83 dBA at 1 m
|
| Frequency Response |
100 Hz to 20 kHz
|
| Microphones |
360? Quad Mic Array
|
| Pickup Range |
10' / 3 m
|
| Software |
Microsoft Teams Rooms UI
|
| Dimensions |
9.61 x 7.17 x 3.02" / 224 x 182 x 77 mm
|
| Weight |
2.1 lb / 960 g
|
PC Specifications
| CPU |
Intel Core Processor
|
| Operating System |
Windows 11 IoT Edition OS, Microsoft Teams Rooms Preinstalled
|
| Connectors |
1 x RJ45, Gigabit Ethernet
1 x USB 3.0 1 x HDMI Input 1 x HDMI Output |
| Output Resolution |
Up to 1080p
|
| Mounting |
100, 200, and 300 mm VESA Patterns
|
| Material of Construction |
Metal (Bracket)
|
| Power |
100?240 VAC, 50/60 Hz
|
| Dimensions |
15 x 14.5 x 1.87" / 381 x 368 x 48 mm
|
| Weight |
7.7 lb / 3.5 kg
|
