Description
Crestron UC-MX50-NC Overview
Set up a conference room for Microsoft Teams Rooms conferencing with the Flex Advanced Tabletop Medium Room Conference System from Crestron. This hardware plus software solution is designed to enhance a medium-sized conference room with everything you need to run Microsoft Teams Rooms software with a single- or double-display setup. It also allows you to present using your own devices with its BYOD (Bring Your Own Device) setup.
The solution includes a tabletop conferencing device with the CCS-UC-1-X-T-V 7" touchscreen controller with a Teams Rooms UI, which allows you to use your own laptop and present using the Flex platform. Also included is a bracket assembly with a mini PC running Windows 11 IoT with Microsoft Teams Rooms preinstalled, a wall-mount kit for Crestron cameras, as well as HDMI, USB, and Ethernet cables and adapters. It can all be controlled via the XiO Cloud service with a separately available subscription.
Native Microsoft Teams Rooms
Designed to enhance the Crestron Flex system, it features preinstalled Windows 11 IoT and Microsoft Teams Rooms conferencing software, enabling audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface

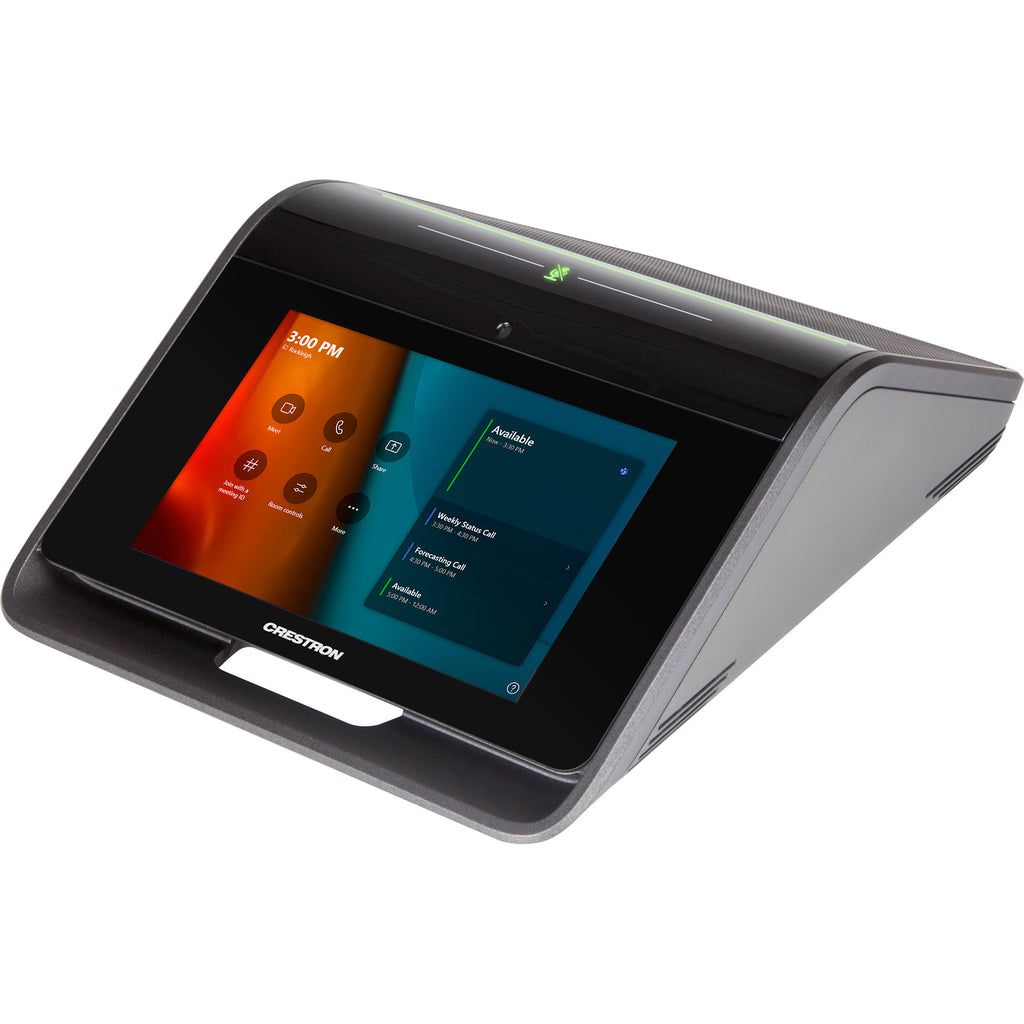

With a large 7" HD color touchscreen and an integrated AEC-enabled USB speakerphone with full-duplex wideband audio performance, the Crestron CCS-UC-1-X-T-V Flex Tabletop Conference device provides a powerful conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. The conference device also offers optional control of room lighting, shades, thermostats, and other equipment.
Bring Your Own Device (BYOD)
The CCS-UC-1-X-T-V tabletop device allows conference room visitors to connect their laptops to the Crestron Flex system to use their own UC conference platform. The system's built-in content ingest device switches to the connected laptop's UC platform and returns to the native platform when disconnected.
Crestron Control System Integration
The UC-MMX50-NC-T can integrate with a Crestron control system to enable touchscreen control of room lighting, motorized window shades, climate control, AV, and other amenities.
Simplified Deployment
The included UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device or touchscreen to the UC Bracket Assembly.
High-Definition Video Conferencing
High-definition video conferencing is supported by using the following Crestron 1 Beyond cameras, including the IV-CAM-P12-B, IV-CAM-P12-W, IV-CAM-P20-B, IV-CAM-P20-W, IV-CAM-I12-B, IV-CAM-I20-B, and IV-CAM-I20-W models. Microsoft Teams Rooms software-certified third-party cameras are also compatible with the system.
Enterprise-Grade Security
This kit enhances the Crestron Flex system, which is equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility with enterprise-grade security.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud-based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. It allows for system alerts, network management, provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled by Windows software update.
Items Included
- Crestron Flex Advanced Tabletop Medium Room Conference System for Microsoft Teams Rooms
- CCS-UC-1-X-T-V Touchscreen Conference Device (7")
- Cat 5e Cable (12')
- Crestron 24 VDC Desktop Power Pack
- Mini PC with Teams Rooms Preinstalled
- Power Adapter (Mini PC)
- HDMI over Cat 5 to USB 3.0 Converter
- USB to Ethernet Adapter
- UC Bracket Assembly Mounting Hardware
- Crestron DisplayPort to HDMI Active Cable (6')
- Crestron Cat 5e Ethernet LAN Network Cable (7')
- HDMI Cable (6')
- Thin HDMI Cable (6')
- USB-A to Micro-USB Cable (5.9')
- USB-C 3.0 to USB-A Cable (6')
- Crestron DigitalMedia CAT6a Ultra Patch Cable (20')
- Crestron UC-CAM-WMK Wall Mount Kit for Select Collaboration Cameras
- Limited 3-Year Manufacturer Warranty
Additional Resources
Crestron UC-MX50-NC Specs
Touchscreen Information
| Display |
7" / 178 mm Capacitive Multitouch TFT LCD
|
| Resolution |
1280 x 800
|
| Connectors |
1 x RJ45, 10/100 Mb/s Ethernet/PoE+
1 x USB-B 2.0, Host |
| Microphone Characteristics |
Acoustic Echo Cancellation
Automatic Mic Mixing Automatic Gain Control Dynamic Noise Reduction Full Duplex |
| Speaker |
1 x 11 W, 95 dBA at 1 m
|
| Frequency Response |
90 Hz to 22 kHz
|
| Microphones |
360? Quad Mic Array
|
| Pickup Range |
20' / 6 m
|
| Software |
Microsoft Teams Rooms UI
|
| Dimensions |
12.74 x 8.92 x 4.11" / 324 x 227 x 104 mm
|
| Weight |
5.5 lb / 2.5 kg
|
PC Specifications
| CPU |
Intel Core Processor
|
| Operating System |
Windows 11 IoT Edition OS, Microsoft Teams Rooms Preinstalled
|
| Connectors |
1 x RJ45, Gigabit Ethernet
1 x USB 3.0 1 x HDMI Input 1 x HDMI Output |
| Output Resolution |
Up to 1080p
|
| Mounting |
100, 200, and 300 mm VESA Patterns
|
| Material of Construction |
Metal (Bracket)
|
| Power |
100 to 240 VAC, 50/60 Hz
|
| Dimensions |
15 x 14.5 x 1.87" / 381 x 368 x 48 mm
|
| Weight |
8 lb / 3.7 kg
|
