Description
Core SWX JP-A-BMCC Overview

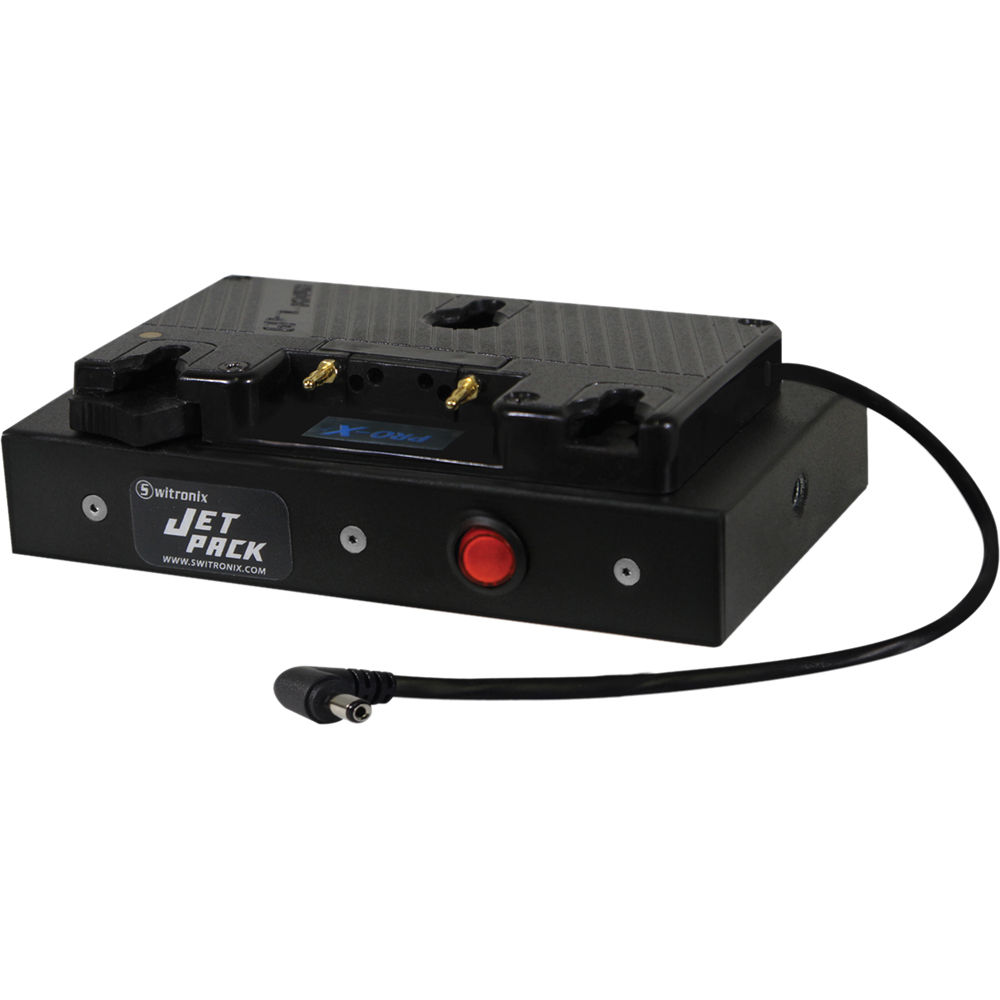

The Core SWX JetPack Gold Mount Power Adapter Plate for Blackmagic Camera connects to a Gold Mount battery and outputs power to up to six devices, including the camera via an 11 to 17V unregulated pin output. The other outputs are two D-Tap, three LEMO, and one USB. The D-Tap ports can power monitors, lights, and similar devices. Each LEMO connection has a different pin and voltage configuration?a 2-pin 5V, 3-pin 7.2V, and a 4-pin 12V. The USB port can be used for various USB devices.
The JetPack features three 1/4"-20 threads for attaching to cheese plates, and an M3 screw pattern for direct compatibility with Wooden Camera's Quick Back Plate. An optional JetPack cheese plate can be attached to additionally provide thirteen 1/4"-20 and ten 3/8"-16 threads.
Items Included
- Core SWX JetPack Gold Mount Power Adapter Plate for Blackmagic Camera
- Limited 1-Year Warranty
Additional Resources
No additional resources available
Core SWX JP-A-BMCC Specs
| Compatibility |
Blackmagic
|
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
Mounting Holes
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
No
|
| Indicator |
No
|
| Inputs/Outputs |
2x D-Tap/P-Tap Output
1x LEMO 2-Pin (5 VDC) Output 1x LEMO 3-Pin (7.2 VDC) Output 1x LEMO 4-Pin (12 VDC) Output |
| Plate Material |
Aluminum
|
| Dimensions |
6 x 3.5 x 1.9" / 15.2 x 8.9 x 4.8 cm
|
| Weight |
1.2 lb / 548 g
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
7.9 x 5.2 x 3.5"
|
