Description

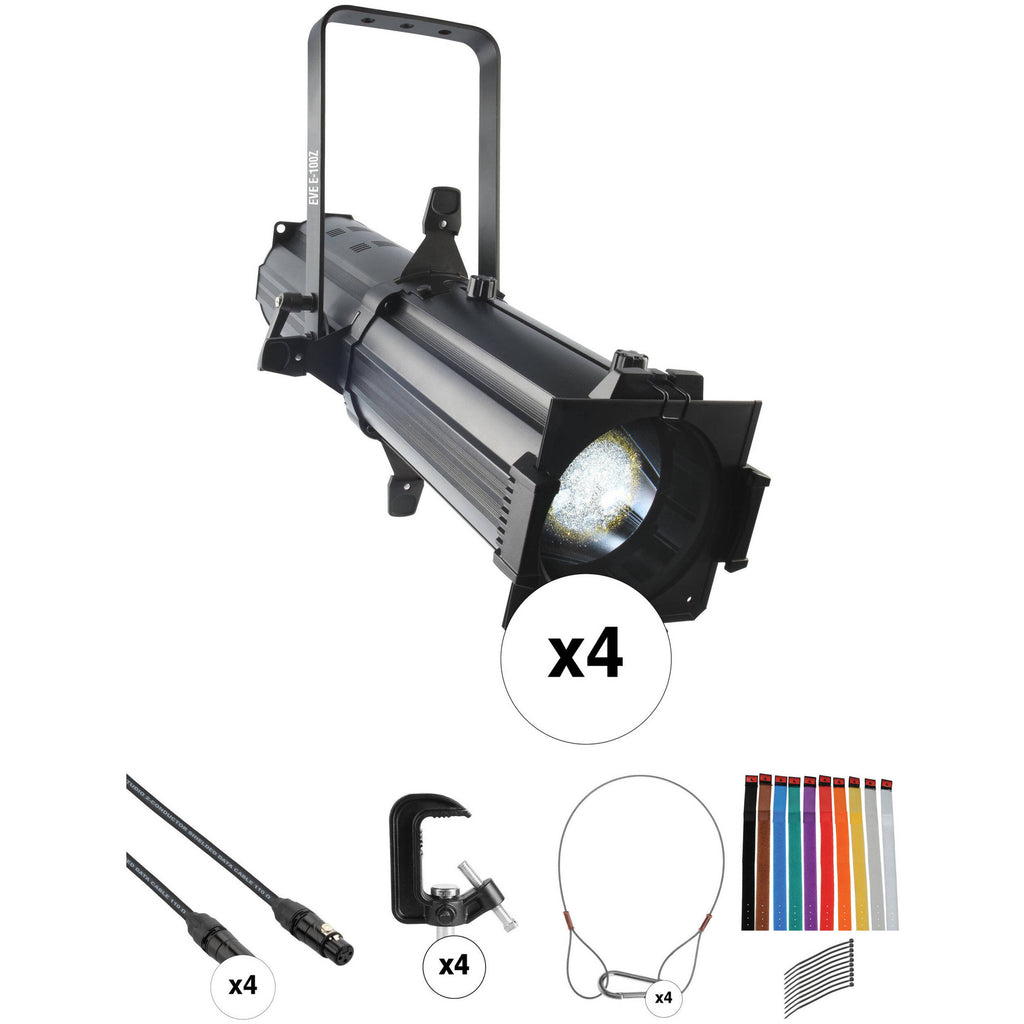

Outfit a small theater, add lighting to your house of worship production, or add to your existing lighting setup with this EVE E-100Z Ellipsoidal LED Spot Fixture 4-Light Kit with Accessories assembled by to provide four theatrical-style DMX controllable lighting units. The kit includes four ellipsoidal LED spot fixtures, four C-clamps for hanging the fixtures from a pipe grid, four 25' long DMX cables, four safety cables, and a 10-pack of cable wraps.

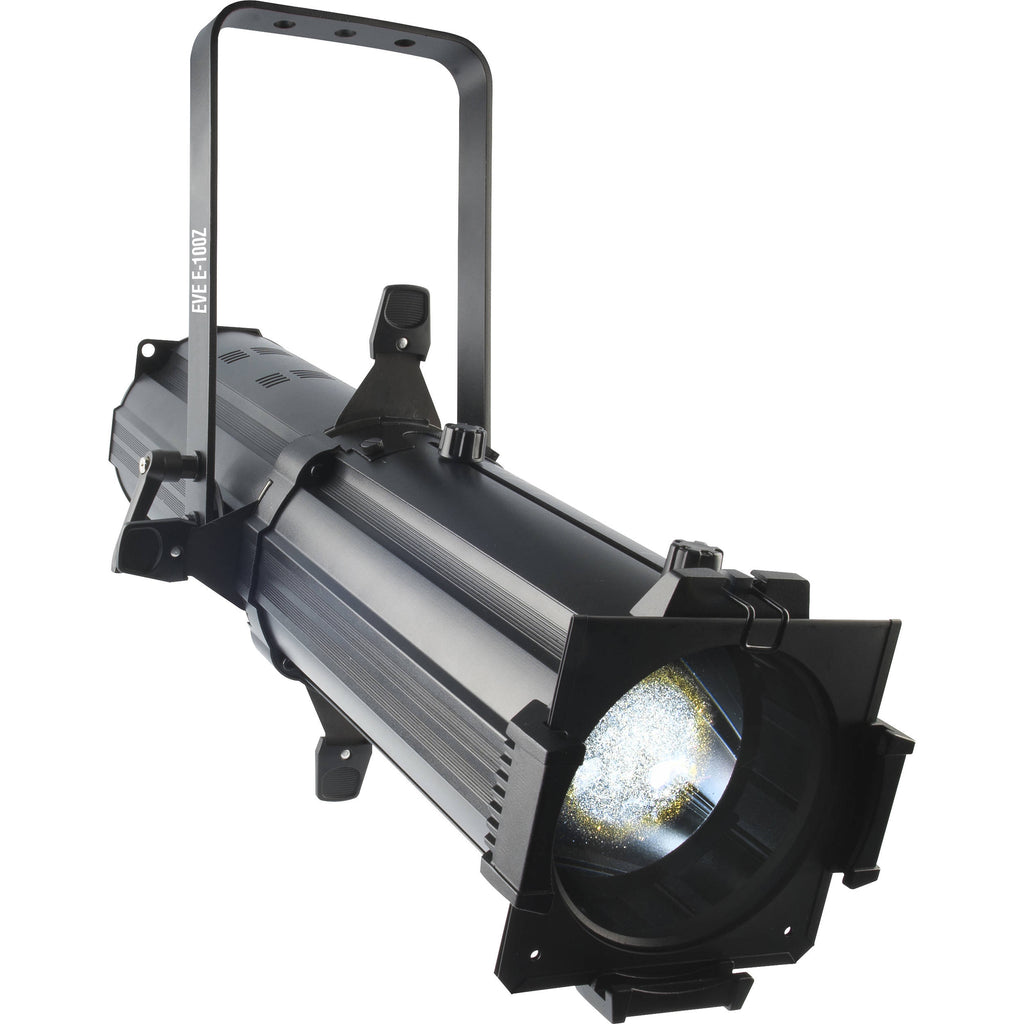

The EVE E-100Z is an ellipsoidal LED spot fixture with a built-in dimmer and DMX control. It is primarily designed for use in a theatrical lighting grid, but it can also be used in film and video productions. Dimming the fixture is controllable locally or via DMX choosing dimming with either 1 or 3 channels of control. Manual zoom and focus adjustment lets you tune your light's coverage, which can be further refined with the included framing shutters. A built-in LED info screen aids you in navigating the menu system.
The EVE E-100Z incorporates an internal gobo slot that accepts glass or metal gobos. This enables you to project a shape or image, and the zoom and focus knobs allow you to control the size and focus of the image. The included gel frame enables placing a gel or diffusion in front of the ellipsoidal. The neutral yoke features three pre-drilled holes that you can use to mount your choice of clamps or stand adapters. The integrated safety loop provides a secure point for a safety cable when hanging the fixture from a grid.
- Compact LED ellipsoidal outputs a hard-edged beam ideal for gobo projection
- Highlight areas by altering the projected beam with built-in framing shutters
- The warm white 100-watt LED bulb is rated for 50,000 hours
- Included removable power cord
- The fixture supports power pass-through allowing you to daisy chain 9 lights together on a 120-volt line (16 on a 230-volt line) and not have to run discrete power cords to each fixture

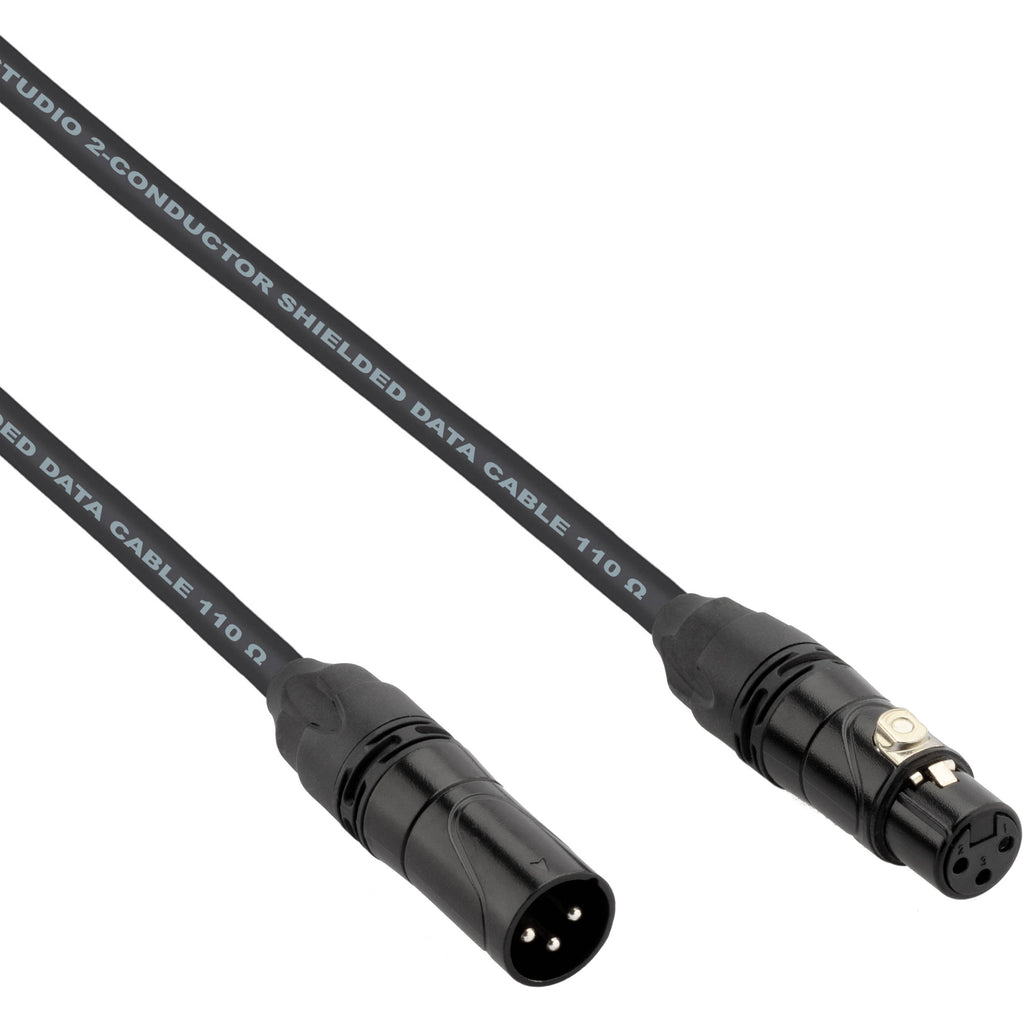

The 25' DMX33P-025-S Studio Series 3-Pin DMX Cable from Kopul is engineered for accurate and trouble-free DMX data transfer for stage, theater, live concerts, or DJ applications. The cable features nickel-plated 3-pin XLR connectors with chuck-style strain relief. The 24 AWG oxygen-free copper, spiral and foil shielding, and PE insulation result in a cable with professional conductivity and interference rejection. It assures a pure transfer of DMX and other digital signals. A PVC jacket provides durability while maintaining flexibility.

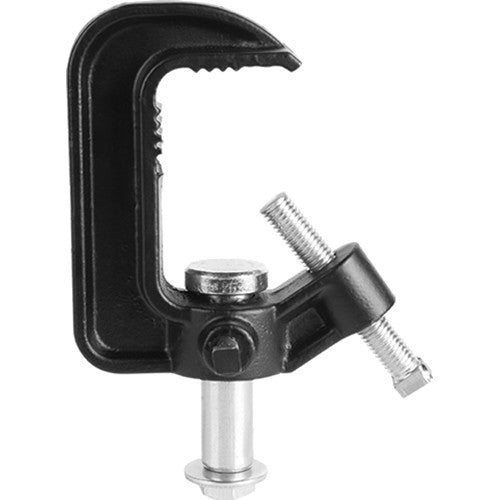

This CLP-05 Heavy-Duty C-Clamp fits most CHAUVET products. It is made of thick cast iron and has a 110 lb load capacity.

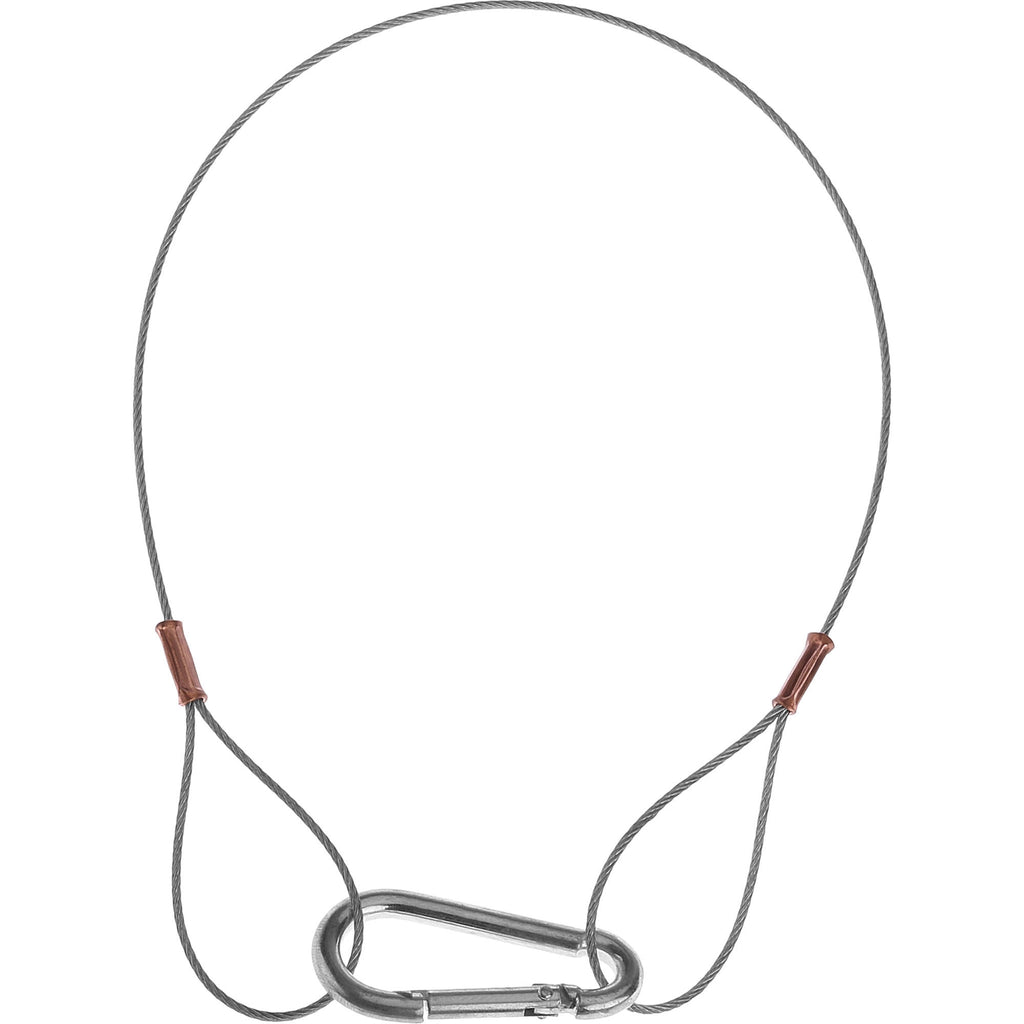

Made of braided stainless steel, this 18" x 1.5mm Impact Safety Cable provides extra security for lights mounted on overhead pipes, dropped ceilings and grids.

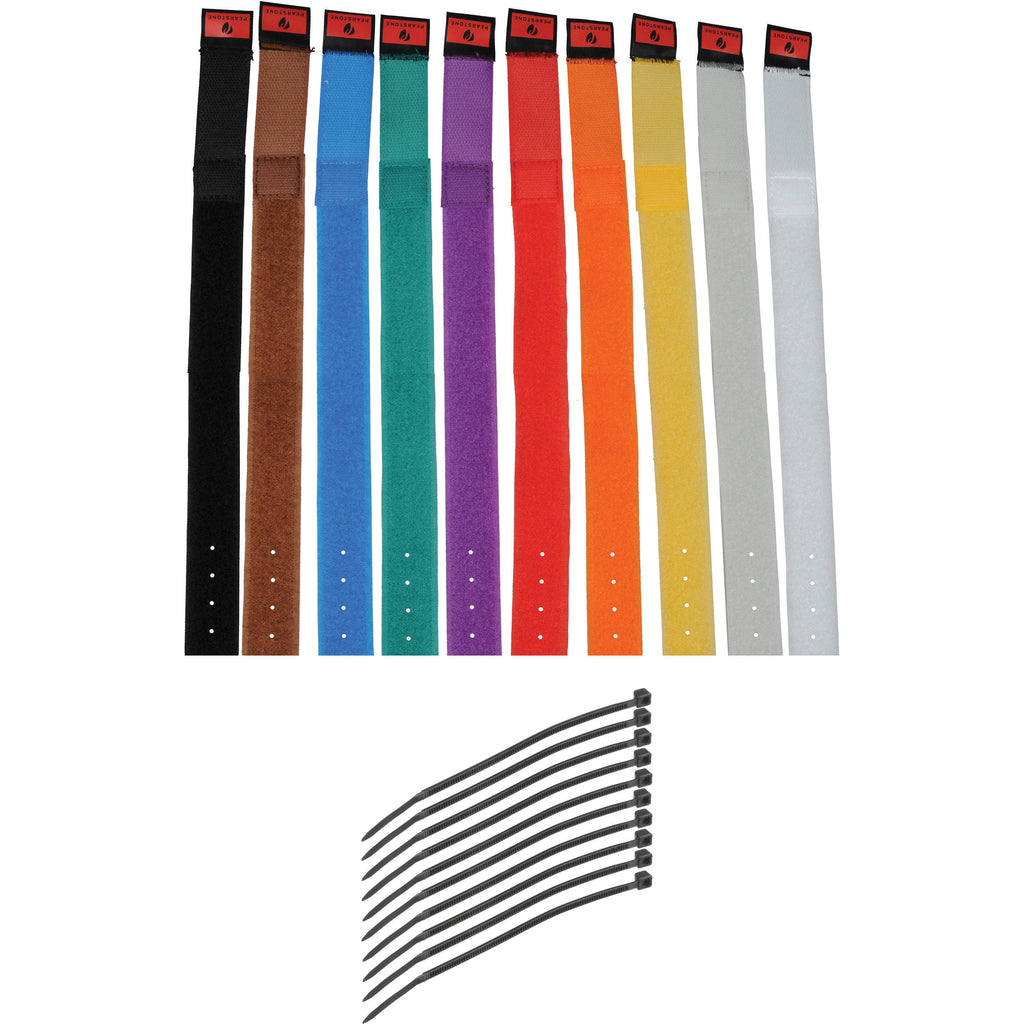

The multi-colored 10-pack of Pearstone 1 x 14" Touch Fastener Cable Straps provides a cost-effective way to bundle and organize cables. The straps are easy to use, featuring a loop-through slot and touch fastener attachment. One end permanently attaches to the cable with the use of the supplied plastic tie; the other end closes the loop with the use of a touch fastener tab.
- Position the strap around the first cable, fuzzy side out
- Thread provided plastic tie through the closest eyelet and pull tight
- Gather other cables to your first cable to make a tight bundle
- Wrap the strap around the bundle and fasten by pressing the strap onto itself
Items Included
- 4 x CHAUVET DJ EVE E-100Z Ellipsoidal LED Spot Fixture
- Gobo Holders for Glass and Steel Gobos
- Gel Frame
- 4 x Framing Shutters
- Removable Power Cord
- Limited 3-Year Manufacturer Warranty
- 4 x Kopul DMX33P-025-S Studio Series 3-Pin DMX Cable (25')
- Limited 2-Year Manufacturer Warranty
- 4 x CHAUVET DJ CLP-05 Heavy-Duty C-Clamp
- Limited 1-Year Manufacturer Warranty
- 4 x Impact Safety Cable (18")
- Limited 1-Year Manufacturer Warranty
- Pearstone 1 x 14" Touch Fastener Cable Straps (Multi-Colored, 10-Pack)
- Limited 1-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ EVE E-100Z Ellipsoidal LED Spot Fixture
| Light Source |
1 x 100 W LED (warm white)
|
| Life Expectancy |
50,000 hours
|
| Illuminance |
14?: 15,100 lux @ 6.6' / 2.0 m
30?: 3,800 lux @ 6.6' / 2.0 m |
| Gobos |
Gobo Size M
Outside Dimensions: 2.6" / 66 mm Image Area: 1.9" / 47 mm Thickness: 0.08" / 2 mm (max) |
| Zoom Angle |
14 to 30? (manual)
|
| Focus |
Manual
|
| Strobe Rate |
0 to 30 Hz
|
| Dimming |
Local and DMX dimming
|
| DMX Connectors |
Input: 1 x 3-pin XLR
Output: 1 x 3-pin XLR |
| Input Voltage |
100 to 240 VAC, 50/60 Hz (auto-ranging)
|
| Power Connectors |
Input: IEC
Output: Edison |
| Power Linking |
120 V: 9 units
230 V: 16 units |
| Power Consumption |
120 V (60 Hz): 106 W, 0.9 A
230 V (50 Hz): 103 W, 0.5 A |
| Approvals |
CE, MET
|
| Dimensions |
24 x 7.2 x 16.9" / 611 x 183 x 430 mm
|
| Weight |
12.6 lb / 5.7 kg
|
| Package Weight |
18.5 lb
|
| Box Dimensions (LxWxH) |
29.5 x 12 x 12"
|
