Description
Bosch NDM-7702-AL Overview

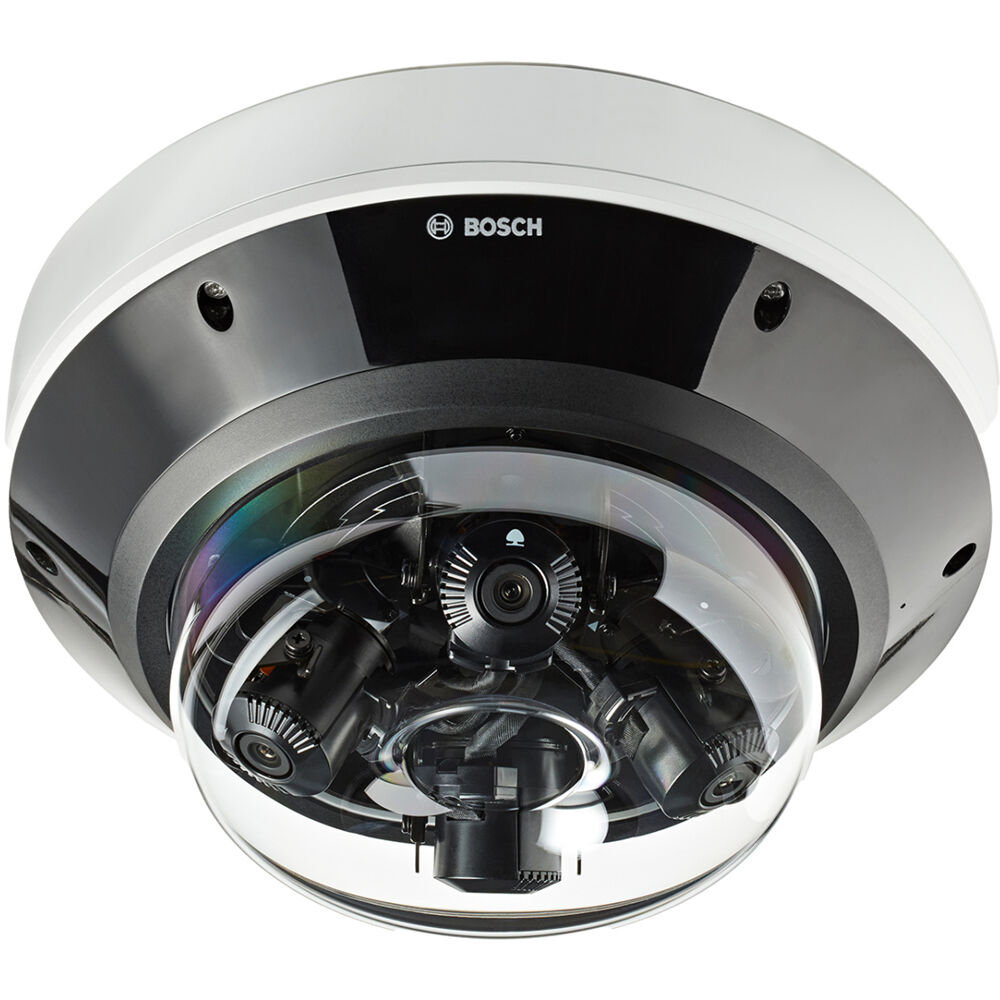

The Bosch FLEXIDOME multi 7000i IR 12MP Outdoor Dome Camera features four 3MP sensors, supporting Full HD resolutions at 30 fps via a single IP address. Get easy and flexible installation with four lenses, featuring motorized zoom and focus. Plus, High Dynamic Range (HDR) allows you to see every detail in both bright and dark areas of the scene. Use the built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data, and integrated surround IR illumination ensures visibility up to 98.4' in pitch dark scenes.
UPC: 800549981699
Items Included
- Bosch FLEXIDOME multi 7000i IR 12MP Outdoor Dome Camera
Additional Resources
No additional resources available
Bosch NDM-7702-AL Specs
Key Specs
| Image Sensor |
1/2.7"-Type CMOS
|
| Focal Length |
3.7 to 7.7mm
|
| Field of View |
Horizontal: 85.1 to 38.7?
|
| Pan/Tilt |
No
|
| Video I/O |
1x RJ45 LAN Output
|
| Built-In Microphone |
Mono
|
| Power I/O |
1x Barrel (24VAC) Input
|
Imaging
| Number of Lenses |
4
|
| Image Sensor |
1/2.7"-Type CMOS
|
| Sensor Resolution |
Effective: 3 Megapixel (2048 x 1536)
|
| Day/Night |
Yes
|
| DORI Coverage |
With mmIntegrated Lens:
Detect: 148 to 384' / 45.1 to 117.0 m With mmIntegrated Lens: Observe: 59 to 151' / 18.0 to 46.0 m With mmIntegrated Lens: Recognize: 31 to 75' / 9.4 to 22.9 m With mmIntegrated Lens: Identify: 13 to 39' / 4.0 to 11.9 m |
Exposure Control
| Shutter Speed |
1/15000 to 1/30 Seconds
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.091 Lux (Color)
0.012 Lux (Black and White) |
Lens
| Focal Length |
3.7 to 7.7mm
|
| Field of View |
Horizontal: 85.1 to 38.7?
|
| Maximum Aperture |
f/1.9
|
Control
| Pan/Tilt |
No
|
| Supported Control Protocols |
ONVIF
|
Networking
| Supported Protocols |
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC
|
| Video I/O |
1x RJ45 LAN Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Mono Line Output
1x 1/8" / 3.5 mm TS Mono Line Output |
| Other I/O |
1x USB-C (USB 2.0) Control
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, G.711, L16
|
| Built-In Microphone |
Mono
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE++ 802.3bt, PoE+ 802.3at
|
| Power I/O |
1x Barrel (24VAC) Input
|
Environmental
| Operating Conditions |
-58 to 131?F / -50 to 55?C at 5 to 93% Humidity
|
| Storage Conditions |
-40 to 158?F / -40 to 70?C up to98% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| Startup Temperature |
-4?F / -20?C
|
General
| Dimensions (W x H x D) |
10.8 x 5.4 x 10.8" / 274.3 x 137.2 x 274.3 mm
|
| Weight |
7.45 lb / 3.38 kg (Body Only)
|
