Description
Blue Sky International Sub 12D Overview
- 1Description
- 2Digital Inputs
- 3DIP Switches
- 4Burr-Brown Conversion
- 5Pure Digital Mode
- 6BOO Optimization Software

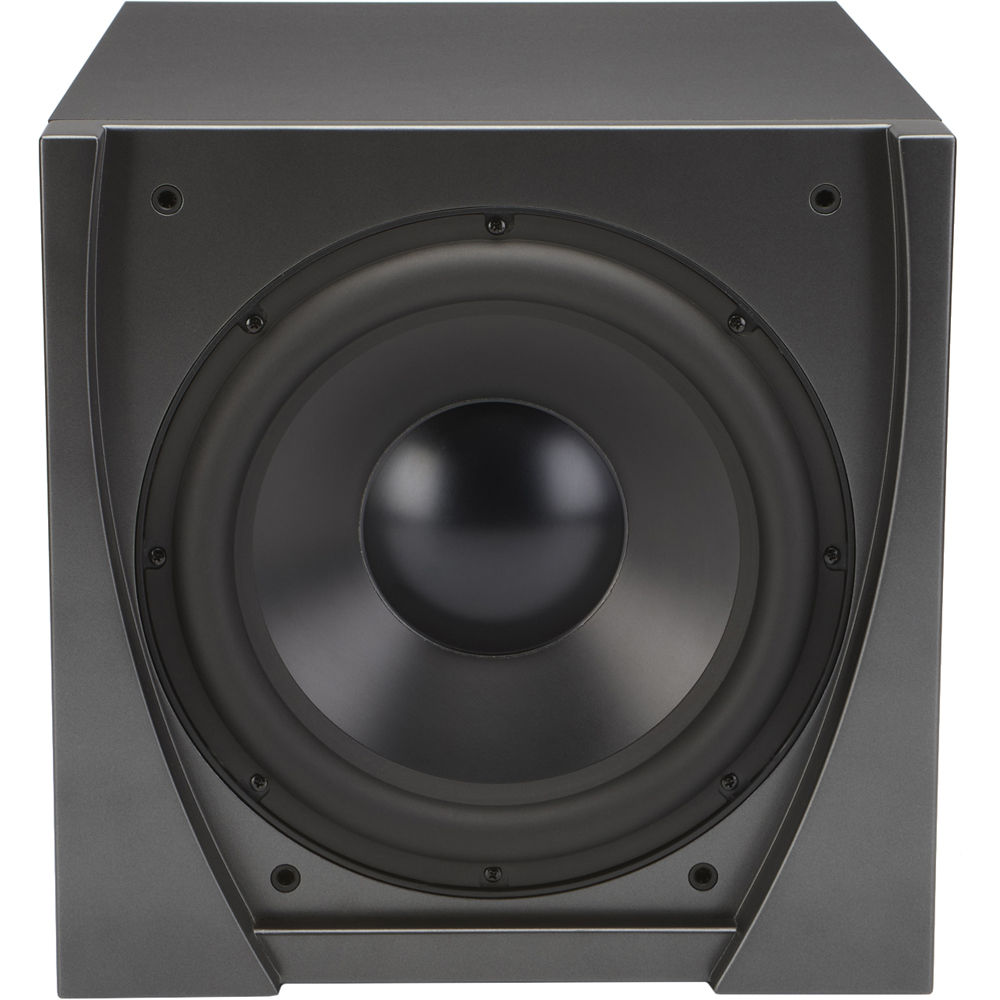

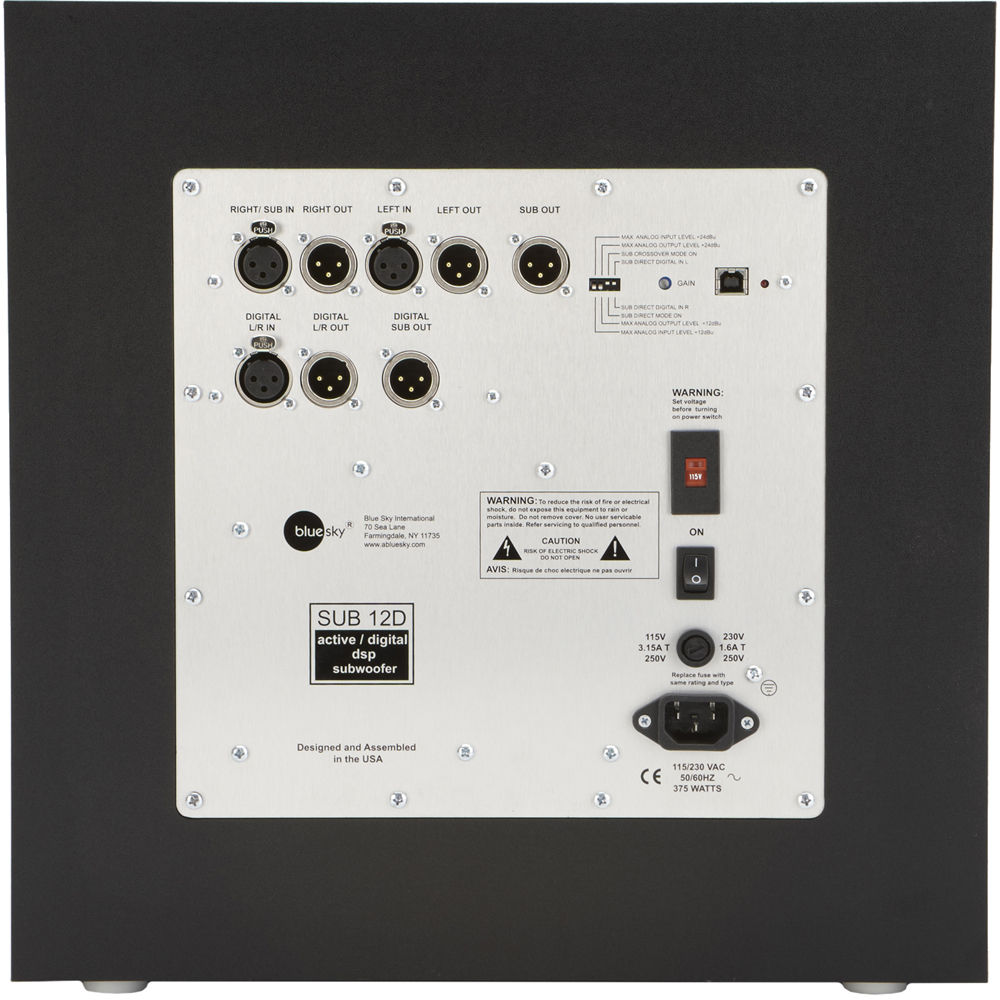

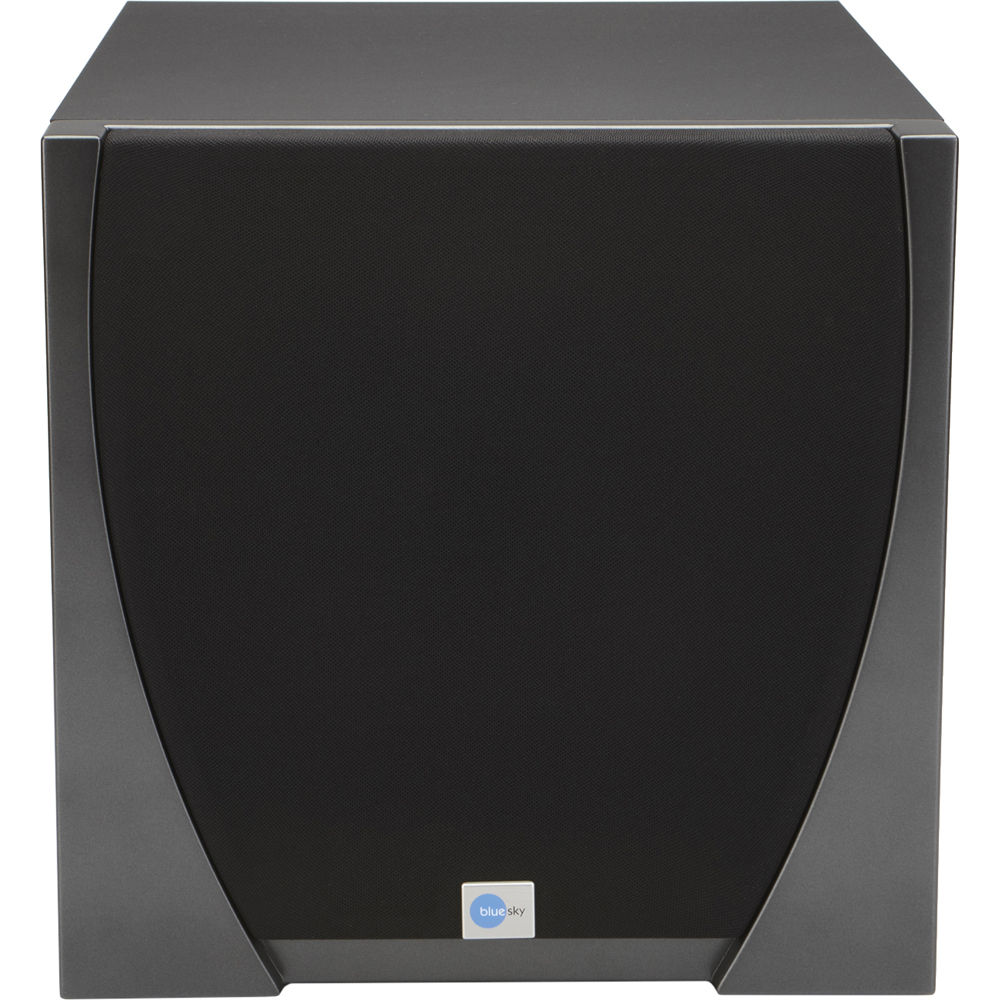

The Blue Sky International Star System One Sub 12D - 12" Digital Powered Subwoofer is designed for professional monitoring and personal listening applications. The unit features both XLR analog inputs and AES/EBU digital inputs with a switch that will automatically select the digital signal when both sources are connected. It also features analog and digital outputs for connecting to additional subwoofers. A bank of DIP switch allows you to select +24 dBu/+12 dBu max analog output, +24 dBu/+12 dBu max analog input, sub direct digital in L/R, and sub crossover mode on / sub direct mode on.
The subwoofer utilizes a 12" high excursion cast frame woofer with a ferrite motor powered by a 400W amplifier to deliver a frequency response of 25 to 200 Hz ±1.5 dB. For circuit design, it features FR4 6-layer circuit boards, Burr-Brown 24-bit 192 kHz A/D/A conversion, and a Cirrus Logic Digital receiver and sample rate converter. The subwoofer can also operate in "pure-digital" mode at either 48 or 96 kHz sample rate wherein the input from the AES/EBU digital receiver is routed directly to the subwoofer's DAC.
The devices includes a 2.1 Bass Mass Management system with variable crossover frequency adjustments, low pass filters, high pass filters, a 1/3 octave 31-band digital graphic equalizer, pink noise generator, selectable parametric equalizer, room correction, and an adjustable gain control. The DSP settings can be controlled using Blue Sky's BOO optimization software on a PC computer. The subwoofer is designed and assembled in the USA.
In the Box
- Blue Sky International Star System One Sub 12D - 12" Digital Powered Subwoofer
- Power Cord
- Limited 2-Year Manufacturer Warranty
- Description
- Digital Inputs
- DIP Switches
- Burr-Brown Conversion
- Pure Digital Mode
- BOO Optimization Software
Blue Sky International Sub 12D Specs
| Monitor Type & Configuration |
Active Subwoofer
|
| Enclosure |
Sealed, Shielded
|
| Total Power Output |
400 W
|
| Drivers |
LF: 1 x 12" / 30.48 cm Woofer
|
| Frequency Response |
25 Hz to 200 Hz ± 1.5 dB
|
| Protections and Limiting |
Fuse
|
| App-Based Signal Processing |
Graphic EQ
Variable Crossover Frequency High-Pass Filter Low-Pass Filter |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Audio I/O |
2 x XLR 3-Pin Balanced Input
3 x XLR 3-Pin Balanced Output 1 x Input 2 x Output |
| USB |
1 x USB-B
|
| AC Input Power |
115 to 230 VAC, 50/60 Hz
|
| Power Consumption |
375 W (Maximum)
|
| Enclosure Material |
MDF
|
| Dimensions (W x H x D) |
15 x 15.2 x 16.2" / 38.1 x 38.7 x 41.3 cm
|
| Weight |
50.0 lb / 22.7 kg
|
| Package Weight |
54.6 lb
|
| Box Dimensions (LxWxH) |
21.732 x 21.26 x 20.158"
|
