Description

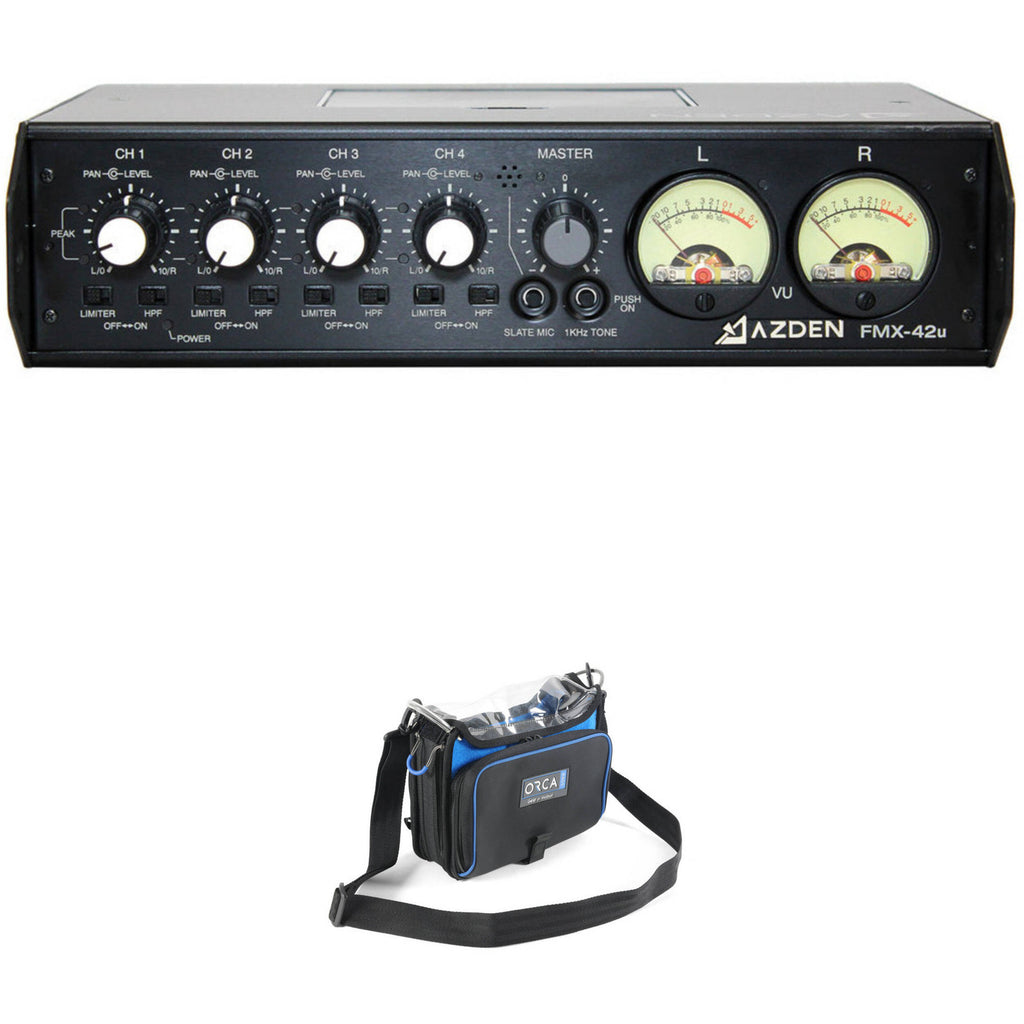

Audio professionals looking to capture audio in the field will appreciate this Kit, which combines the Azden FMX-42u 4-Channel Microphone Field Mixer with a sound bag to create a portable recording system.

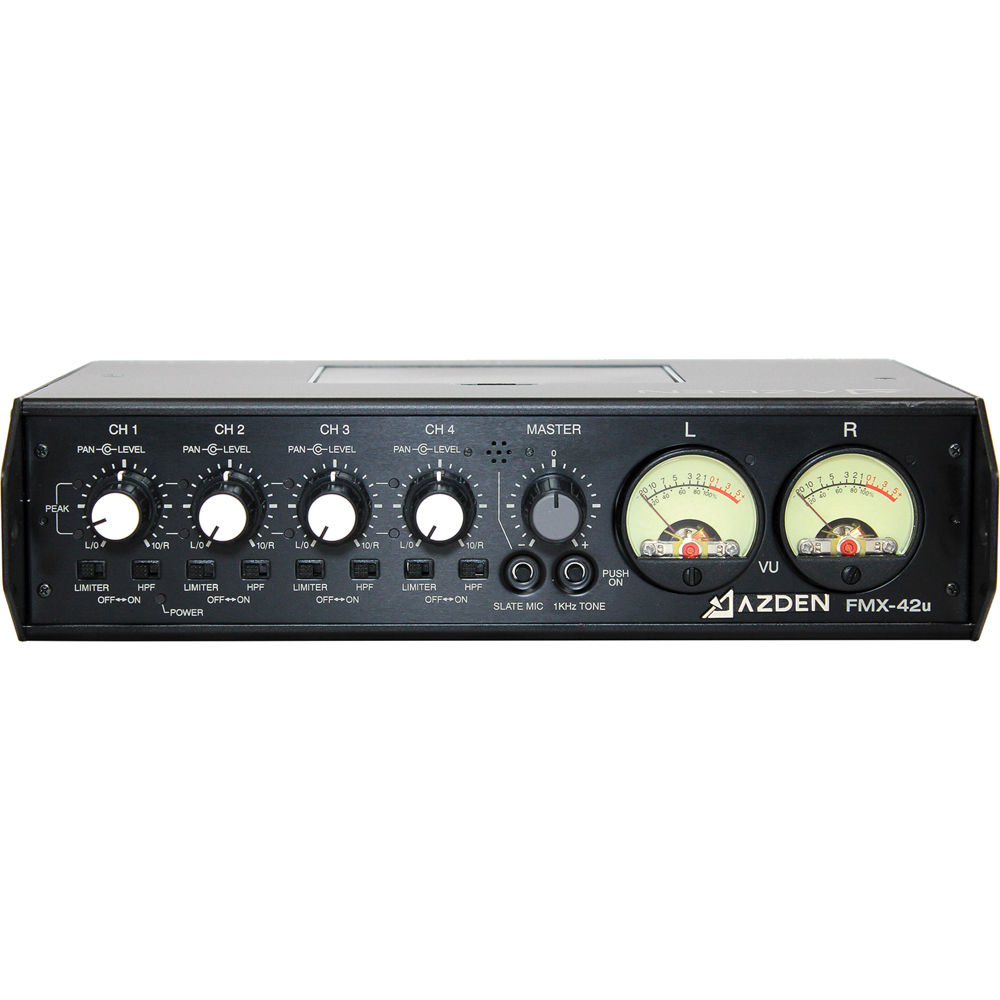

The Azden FMX-42u is a portable 4-channel audio mixer with built-in A/D conversion and audio output via mini-USB for connection to smartphones, tablets, and computers. It is designed for professional and semi-professional field audio capturing.
The FMX-42u also features 4 balanced 3-pin XLR microphone inputs with individually switched +48V phantom power. A pair of balanced XLR outputs provide line or mic level (switchable) signal to cameras, recorders, etc. Additional features include a switchable input limiter to reduce the possibility of overload distortion, Left/Center/Right pan switches on all input channels, and enhanced circuitry for improved signal-to-noise ratio. The FMX-42u can be powered either by 6 AA batteries or an optional 12 VDC external power supply. A ballistic nylon carrying case is included.
The FMX-42u is an affordable field mixing solution for event videos, ENG/EFP applications, documentaries, and more.
- On-board A/D converter and 2-channel mini-USB digital audio output
- Mini-USB output connects to computer, smartphone, or tablet
- Simultaneous use of both outputs allows the analog signal to be sent to the camera while a backup digital signal can be sent to a smartphone or tablet or computer via mini-USB
- 4 balanced XLR line/mic inputs and pan controls
- Switchable 48V phantom power and limiting
- Professional-quality VU meters
- 2 balanced XLR outputs (line/mic switchable)
- Stereo mini-jack output for DV cameras
- 6 x AA battery powered
- Optional A/C adapter (sold separately)

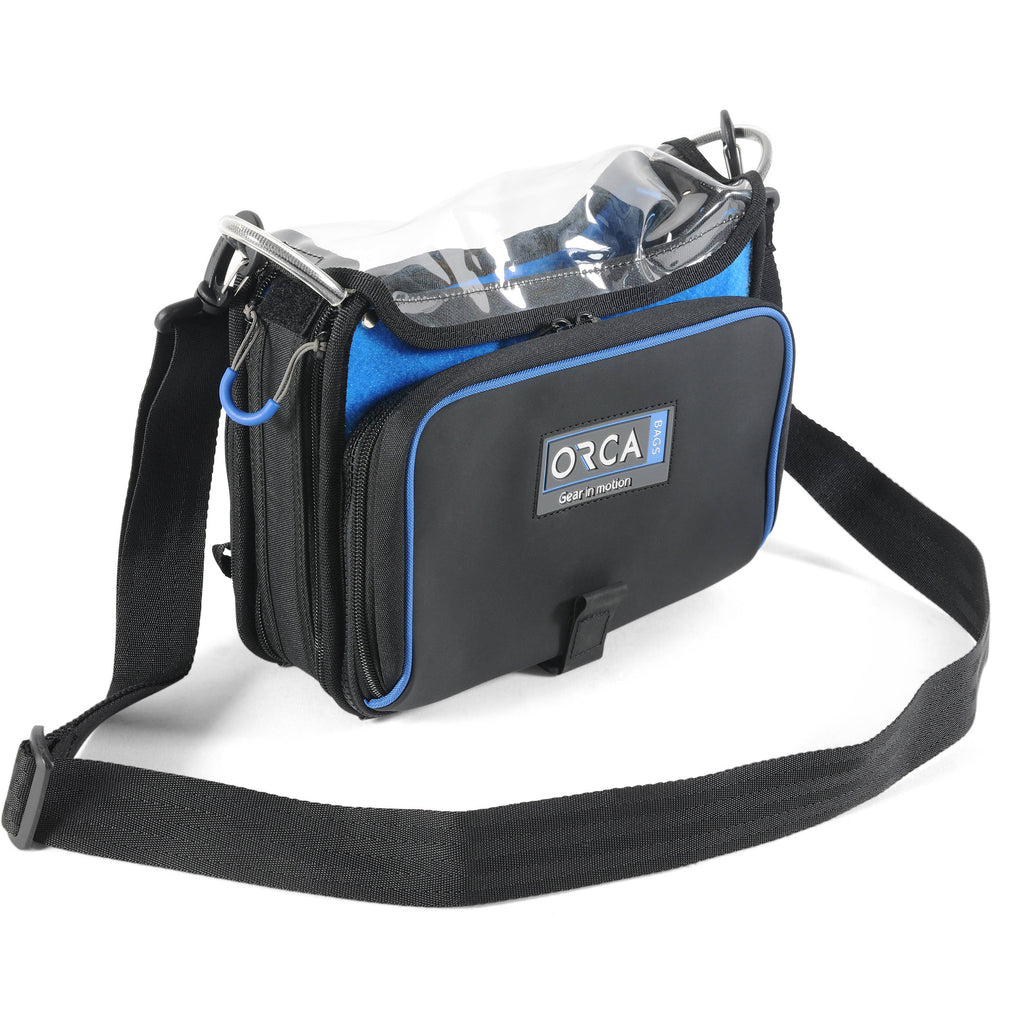

The OR-272 Sound Bag for Zoom F4 and F8N from ORCA is a basic, lightweight bag for recording jobs that don't require a lot of wireless systems or accessories. The bag has front and back pockets to hold a small battery or a few wireless receivers and comes with a shoulder strap. The OR-272 is built to accommodate the Zoom F4 or F8N recorder, and is equipped with a sturdy internal frame structure for maximum protection for your equipment while still accessible from all sides.
Items Included
- Azden FMX-42u 4-Channel Microphone Field Mixer with USB Digital Audio Output
- Nylon Carrying Case
- Limited 2-Year Manufacturer Warranty
- ORCA OR-272 Sound Bag for Zoom F4 and F8N
- Shoulder Strap
- Limited 2-Year Manufacturer Warranty
Not Included
-
Power SuppliesEssential
Additional Resources
No additional resources available
Azden FMX-42u 4-Channel Microphone Field Mixer with USB Digital Audio Output
| Balanced Input |
4 x XLR 3-pin female (CH 1, 2, 3 & 4)
|
| Level |
Line-
Standard: +4 dBu (electronically balanced) Maximum: > +26 dBu Impedance: 20 kOhms MIC HI- Standard: -38 dBu (electronically balanced) Maximum: +4 dBu Impedance: 2 kOhms MIC LO- Standard: -58 dBu (electronically balanced) Maximum: -15 dBu Impedance: 2 kOhms |
| High Pass Filter |
100 Hz - 6 dB/oct
|
| Input Level |
-20 to +19 dBu (unbalanced)
|
| Impedance |
11 kOhms
|
| Return Input |
No
|
| Balanced Output |
2 x XLR 3-pin male (output L & R)
|
| Unbalanced Outputs |
1/8" / 3.5 mm stereo mini-jack
|
| Monitor Output |
1/4" / 6.3 mm stereo jack
|
| Balanced Output Level |
LINE-
Standard: +4 dBu (electronically balanced, 5 kOhms load) Maximum: +20 dBu (electronically balanced, 5 kOhms load) Impedance: 600 ohms MIC- Standard: -36 dBu (electronically balanced, 5 kOhms load) Maximum: -20 dBu (electronically balanced, 5 kOhms load) Impedance: 600 ohms |
| Unbalanced Output Level |
Standard: -36 dBu (electronically balanced, 2 kOhms load)
Maximum: -20 dBu (electronically balanced, 2 kOhms load) Impedance: 120 ohms |
| Monitor Output |
Max Output: +1 dBu (32 Ohm load at 9 V), 16 - 100 Ohm load recommended
|
| Meters |
Standard Output Level: 0 VU (+4 dBu)
|
| Digital Output |
Connector: USB mini-B (female)
Interface Format: USB 2.0 full speed Audio Data Format: Isochronous data format Sampling Frequencies: 16 / 22.05 / 32 / 44.1 / 48 kHz compatible Bit Depth: 8 / 16-bit compatible Channels: 2 Device Name: USB AUDIO CODEC |
| Frequency Response |
Balanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB)
Monitor Output: 30 Hz - 30 kHz (+0/-2 dB) |
| Signal-to-Noise Ratio |
Balanced Output: -120 dBu (A weighted, input equivalent level)
|
| THD |
Balanced Output: < 0.005% @ 1 kHz (at LINE position +19 dBu output)
|
| Phantom Power |
48 V (?1.5 V)
|
| Sample Frequency |
1 kHz
|
| Battery Requirement |
6 x alkaline AA
|
| Current Drain |
Not Specified By Manufacturer
|
| External Power |
10.5 ~ 17 VDC @ 200 mA
|
| Dimensions |
9.0 x 6.5 x 2.3" / 220 x 160 x 56 mm (without protrusions)
|
| Weight |
2.9 lb / 1.3 kg (without batteries)
|
| Package Weight |
3.85 lb
|
| Box Dimensions (LxWxH) |
10.4 x 6.7 x 3.7"
|
