Description
Axis Communications Q1728 Overview

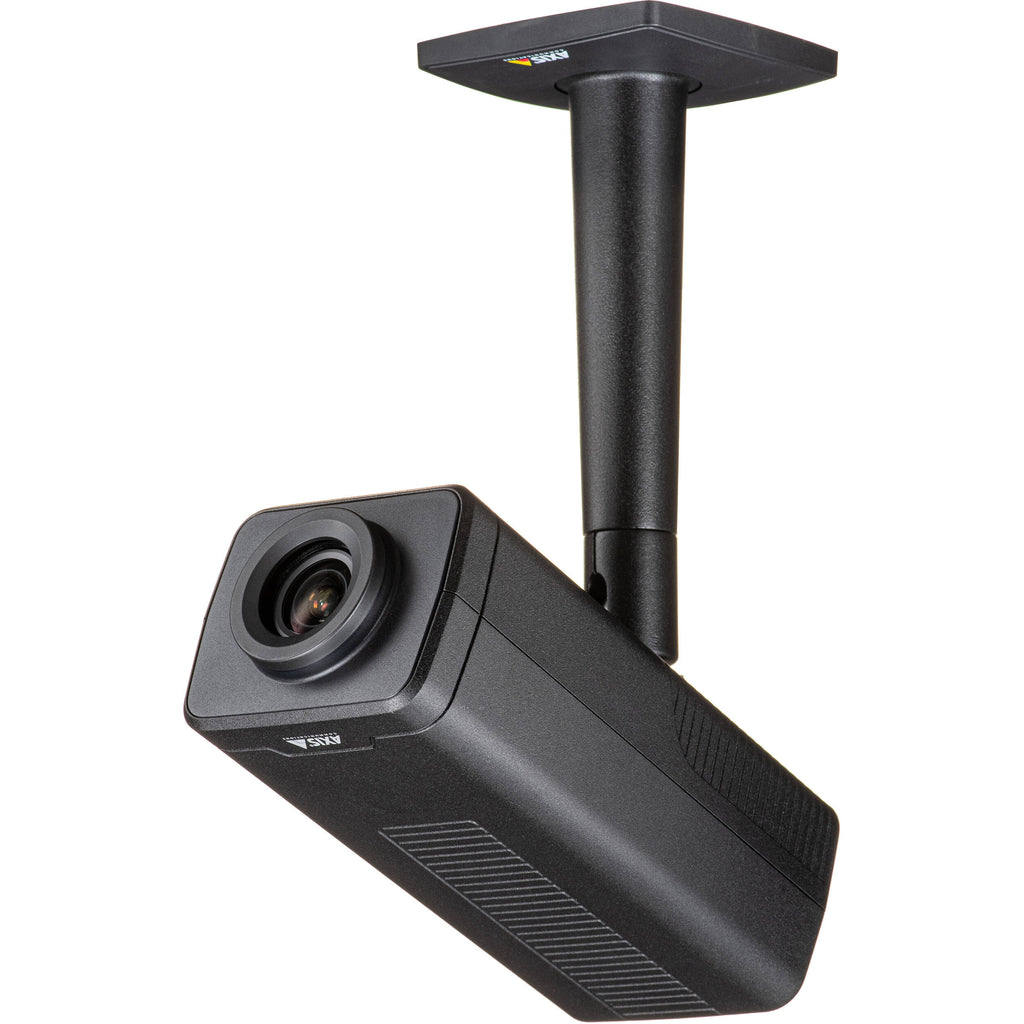

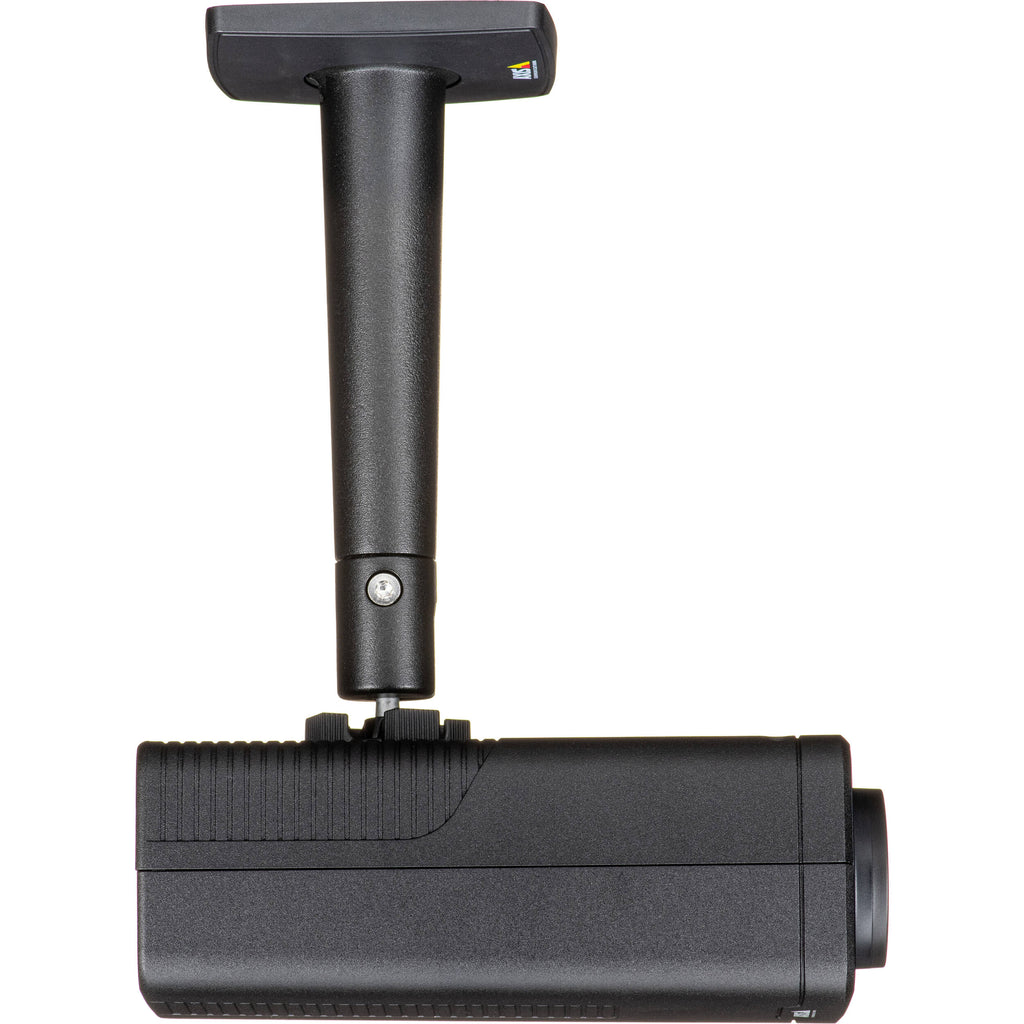

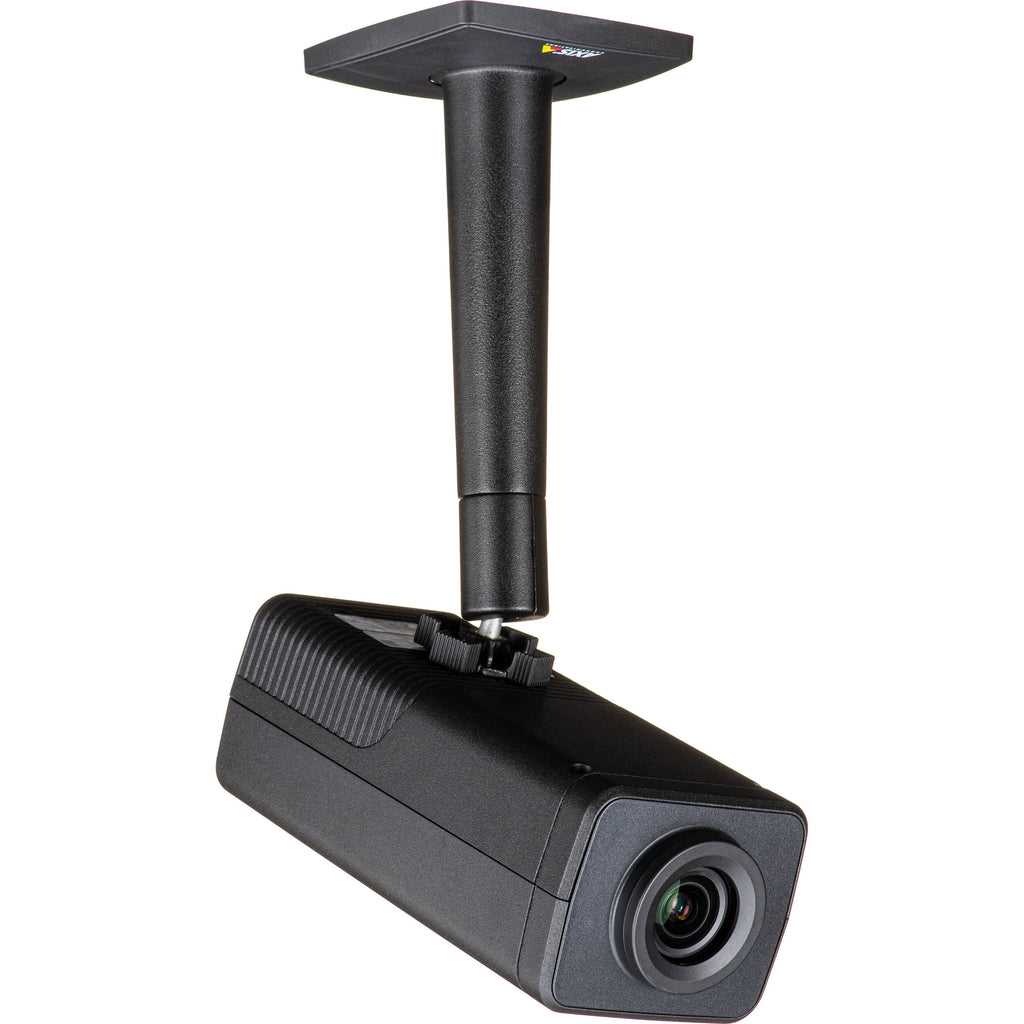

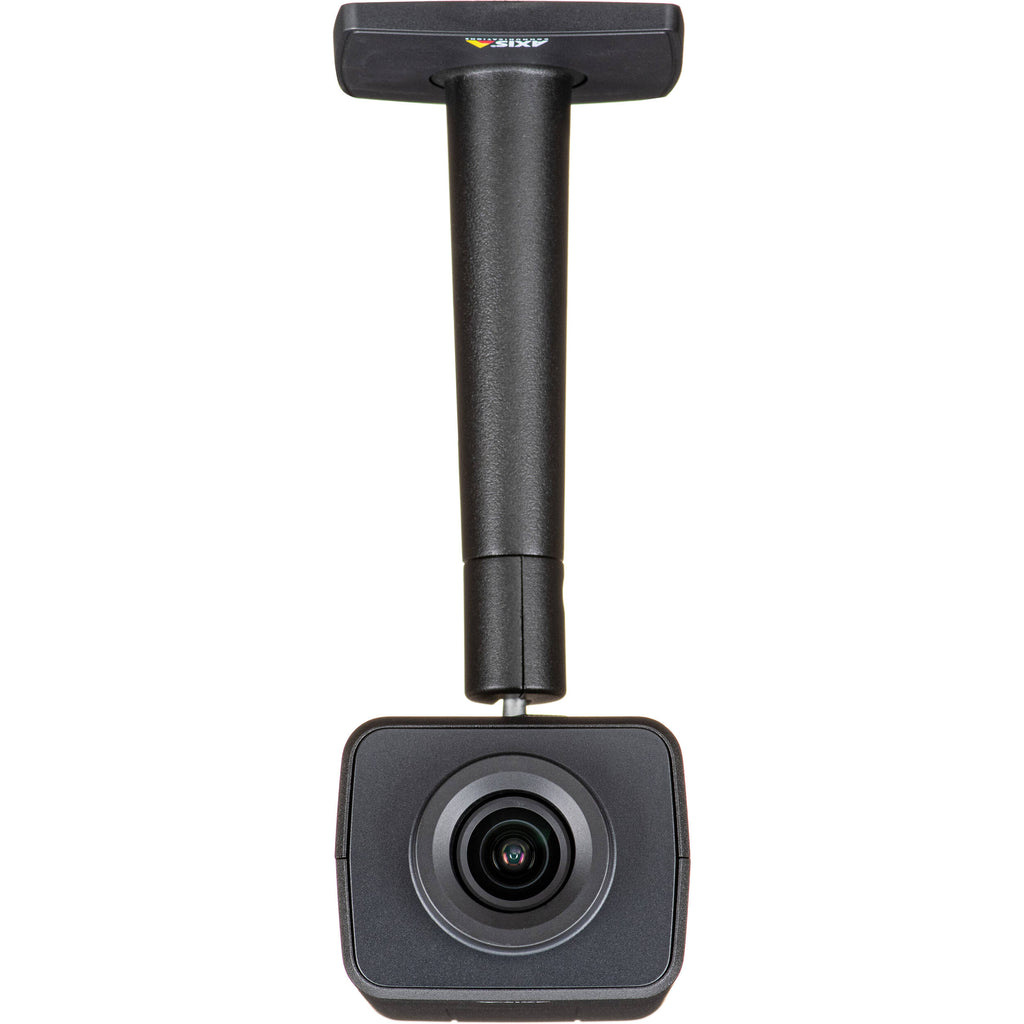

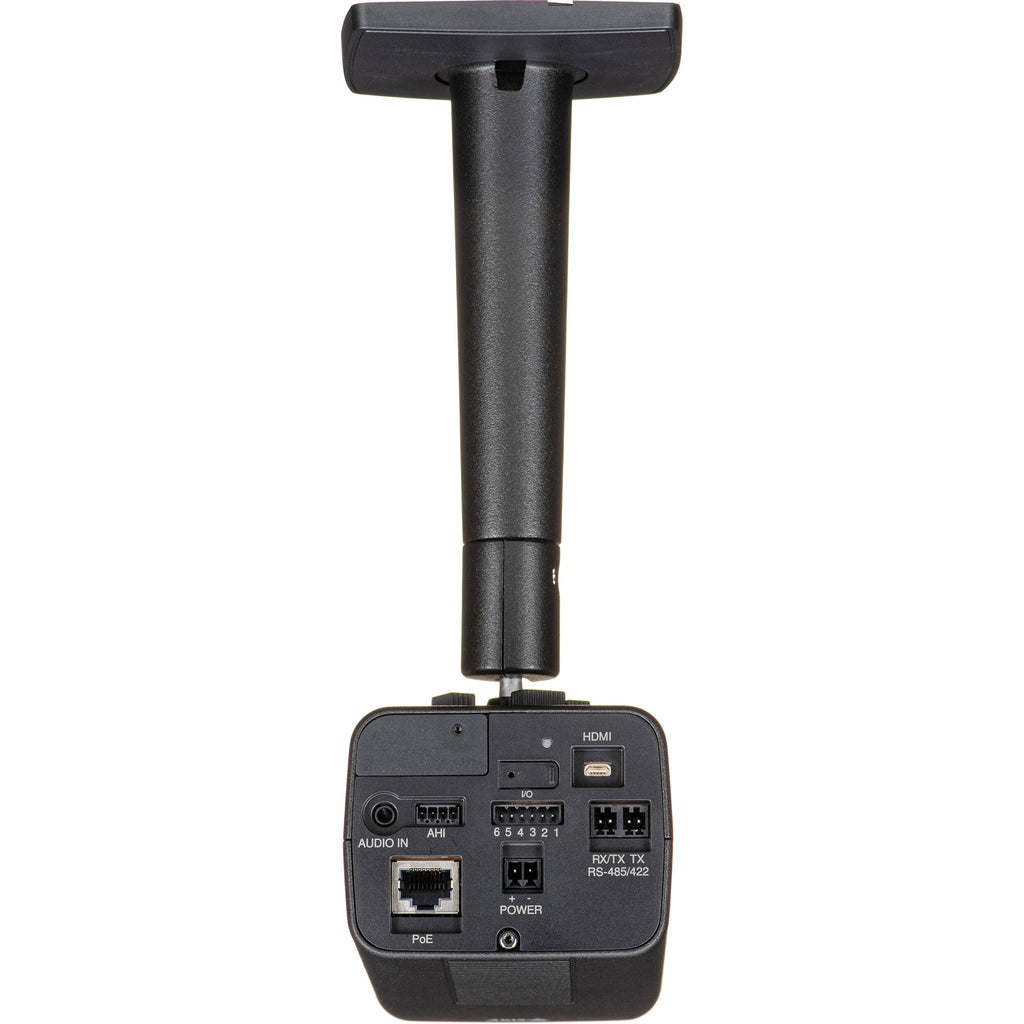

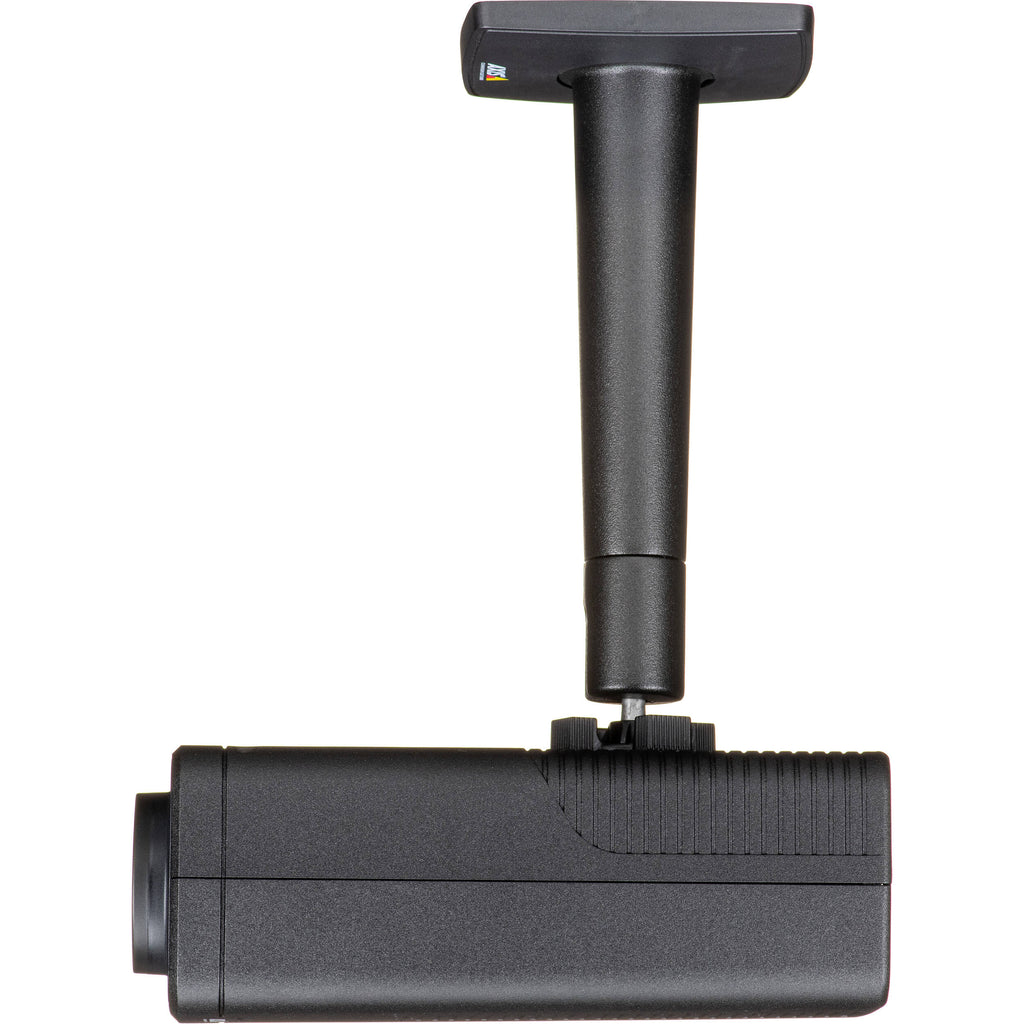

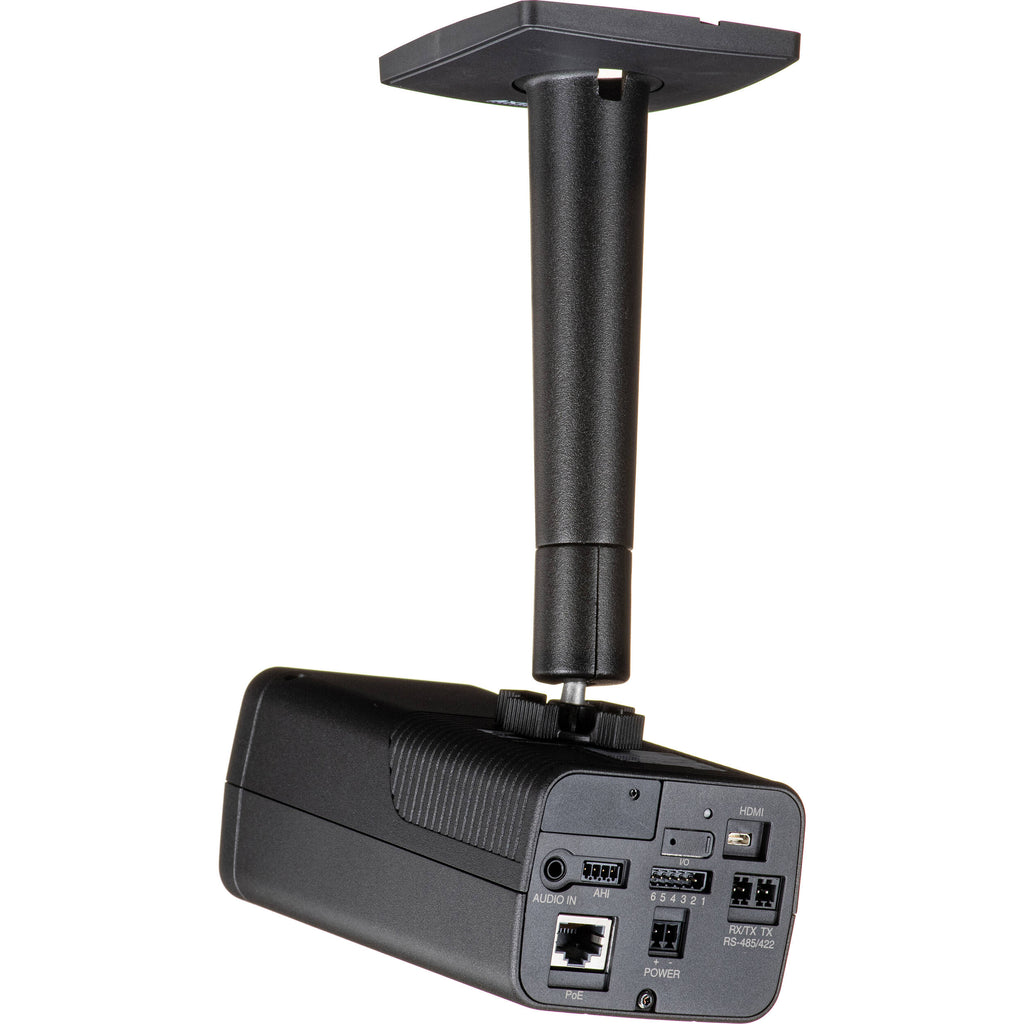

Intended for use with accessory housings and casings, the Q1728 4K Block Bullet Camera from Axis Communications uses a 1/1.2" progressive scan RGB CMOS sensor to capture 4K resolution video at 60 fps. It features a 5.9-13.3mm varifocal lens that delivers a 108 to 49? horizontal field of view. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Wide dynamic range (WDR) technology helps to enhance forensic details in challenging light conditions. Support for the AV1 codec optimizes your video for the internet. This camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices.
Lightfinder 2.0 technology for visibility in low-light conditions.
Forensic WDR reduces visible noise and artifacts to deliver video tuned for maximal forensic usability.
AV1 video encoding is optimized for video transmission over the internet and offers better compression efficiency compared to H.264 (AVC) and H.265 (HEVC).
Automatically removable IR cut filter for day and night functionality.
Axis Zipstream technology with AV1 and H.264/H.265 support lowers bandwidth and storage requirements.
Multiple individually configurable streams in AV1, H.265, H.264, and MJPEG.
Controllable frame rate and bandwidth (AV1/VBR/ABR/MBR H.264/H.265).
Deep-learning processing unit (DLPU).
Uploadable PTZ driver.
Image settings include saturation, contrast, brightness, sharpness, forensic WDR up to 120 dB depending on scene, white balance, day/night threshold, tone mapping, local contrast, EIS, exposure mode, exposure zones, defogging, compression, auto, 0, 90, 180, and 270? rotation, including corridor format, dynamic text and image overlays, polygon privacy mask, mirroring of images, and scene profiles (forensic, vivid, traffic overview).
Analytics include AXIS Object Analytics and AXIS Video Motion Detection, with support for AXIS Audio Spectrum Visualizer and third-party applications.
Security features include brute force delay protection, signed firmware, secure boot, protection of cryptographic keys with an FIPS 140-2 certified TPM 2.0 module, and Axis Edge Vault with Axis device ID.
Remote zoom and focus, pixel counter, and traffic camera installation assistant.
Two-way audio.
Gigabit Ethernet port.
HDMI output.
6-pin 2.5mm terminal block for four configurable inputs.
AXIS TQ1809-LE housing T92G support.
Support for microSD card encryption and recording to network-attached storage (NAS).
PVC and BFR/CFR free.
Items Included
- Axis Communications Q1728 4K Block Bullet Camera with 5.9-13.3mm Lens
- Stand
- Owner Authentication Key
- Terminal Block Connectors
- Allen Key
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications Q1728 Specs
Key Specs
| Image Sensor |
1/1.2"-Type CMOS
|
| Focal Length |
5.9 to 13.3mm
|
| Field of View |
Horizontal: 108 to 49?
Vertical: 58 to 27? |
| Pan/Tilt |
No
|
| Video I/O |
1x HDMI Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x DC
1x RJ45 |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.2"-Type CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 5.9 to 13.3mm Lens:
Detect: 277.5 to 583.5' / 84.6 to 177.9 m Observe: 110.2 to 231.6' / 33.6 to 70.6 m Recognize: 55.4 to 116.8' / 16.9 to 35.6 m Identify: 27.9 to 58.4' / to |
Exposure Control
| Shutter Speed |
1/66500 to 2 Seconds
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.05 Lux at f/1.6 Aperture (Color)
0.01 Lux at f/1.6 Aperture (Black and White) |
Lens
| Focal Length |
5.9 to 13.3mm
|
| Field of View |
Horizontal: 108 to 49?
Vertical: 58 to 27? |
| Maximum Aperture |
f/1.6 to 2.9
|
Video
| Supported Protocols |
Camera Control Protocol
IP Video Streaming Protocol API/FTP/Zero Configuration/Bonjour/ICMP/SMTP/SNMP v1/v2c/v3 (MIB-II)/LLDP/ONVIF Profile T/SFTP/SIP (SIPS)/HTTP/SOCKS/MQTT/SRTP/mDNS/CDP/SSL/TLS/DDNS/CIFS/SMB/SSH/NTP/IGMP/DNS/UDP/QoS Layer 3 DiffServ/syslog/DHCP/TCP/ONVIF Profile G/ONVIF Profile M/IPv4/v6/RTP/UPnP/USGv6/RTCP/RTSP/ONVIF Profile S |
| Max IP Streaming |
via RJ45
3840 x 2160 up to 60.00 fps |
| Multi-View Streaming |
Yes: 7 Streams
|
Control
| Pan/Tilt |
No
|
Networking
| Security |
Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Video I/O |
1x HDMI Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Input
1x 1/8" / 3.5 mm TRS Stereo Output |
| Other I/O |
1x RJ45
1x Block 6-Pin 2x DE-9/DB-9 (RS-485, Serial) |
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, ADPCM, G.711, G.726, LPCM, Opus
|
| Built-In Microphone |
No
|
| Memory |
2048 MB RAM / 1024 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Motion Detection, Object Detection, Scene Change Detection, Vehicle Speed
|
| Built-In Installation Aids |
License Plate Capture Assistant, Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoH 802.3at
|
| Power I/O |
1x DC
1x RJ45 |
| Power Consumption |
PoE: 7.5 to 12.95 W
Power Supply: 10 to 28 VDC 7 to 12.95 W |
Environmental
| Operating Conditions |
14 to 140?F / -10 to 60?C at 10 to 85% Humidity
|
| Storage Conditions |
-40 to 149?F / -40 to 65?C at 5 to 95% Humidity
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Materials |
Aluminum, Plastic
|
| Supported Languages |
English
French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Dimensions (W x H x D) |
9.5 x 7.1 x 3.1" / 241 x 180 x 80 mm
|
| Weight |
1.2 lb / 529 g (Body Only)
|
Packaging Info
| Package Weight |
2.47 lb
|
| Box Dimensions (LxWxH) |
9.9 x 9 x 3.9"
|
