Description
AVPro Edge ConferX Overview

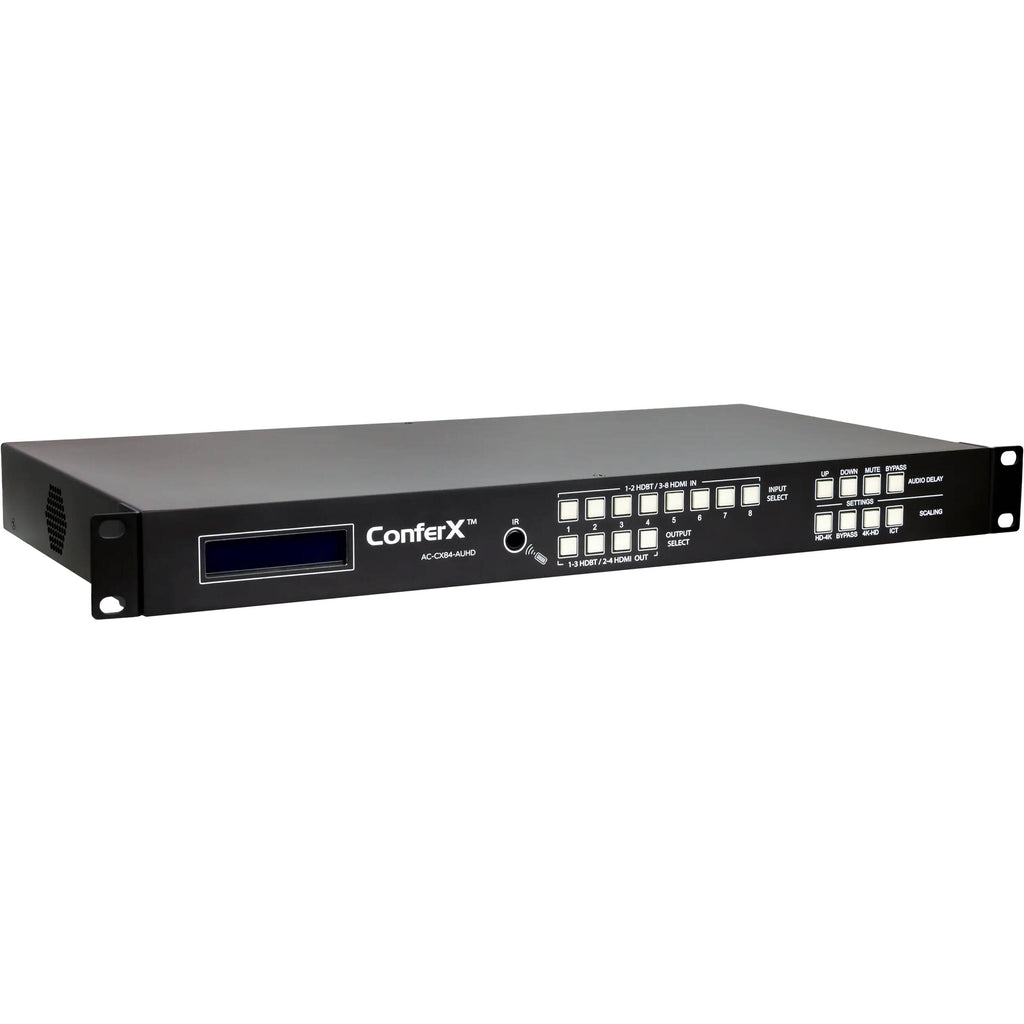

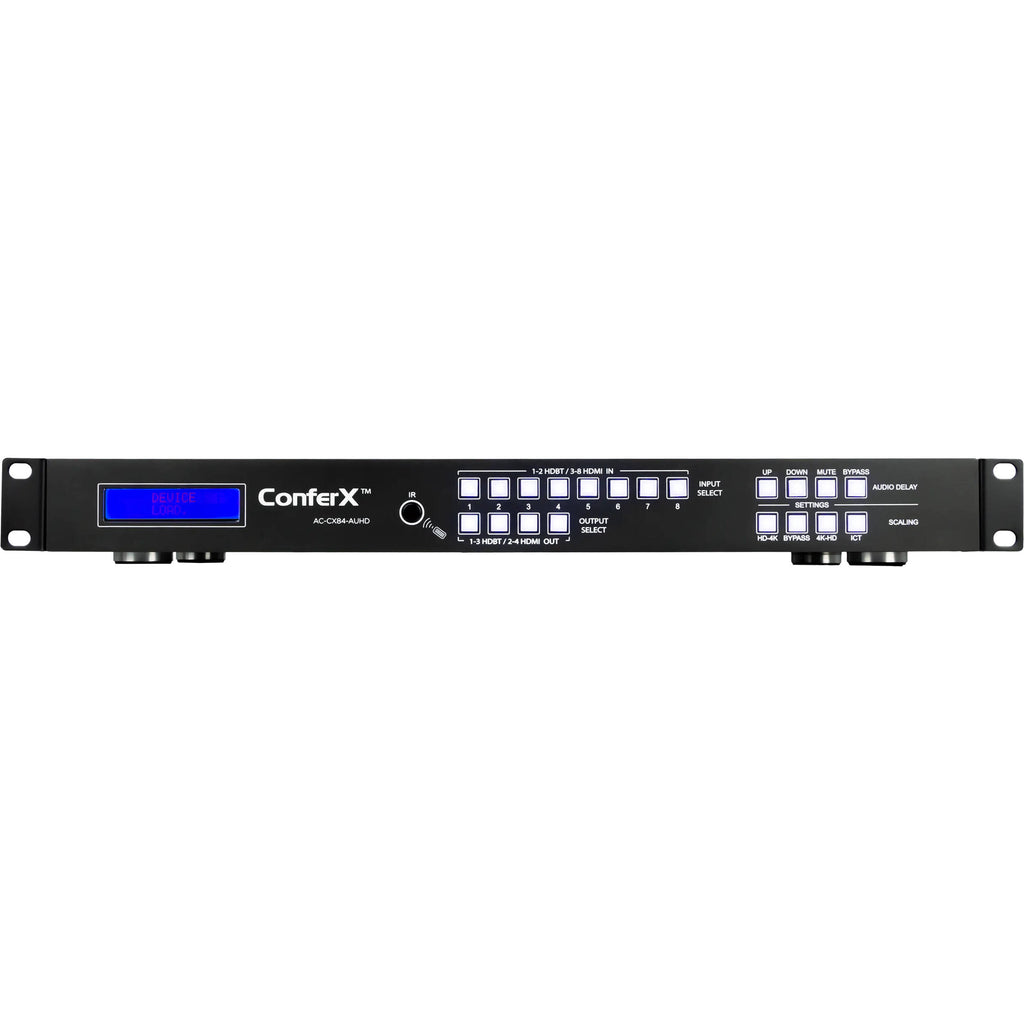

AVPro Edge offers the ConferX 8x4 4K HDMI Matrix Auto Switcher as an ideal audio-video distribution solution for professional and higher education settings. This device delivers stable video distribution at up to 4K60 resolution. The 8x4 switcher features multiple input and output options for both video and audio signals, and is compatible with AVPro Edge ConferX receivers and transmitters (available separately).
I/O and Control Features

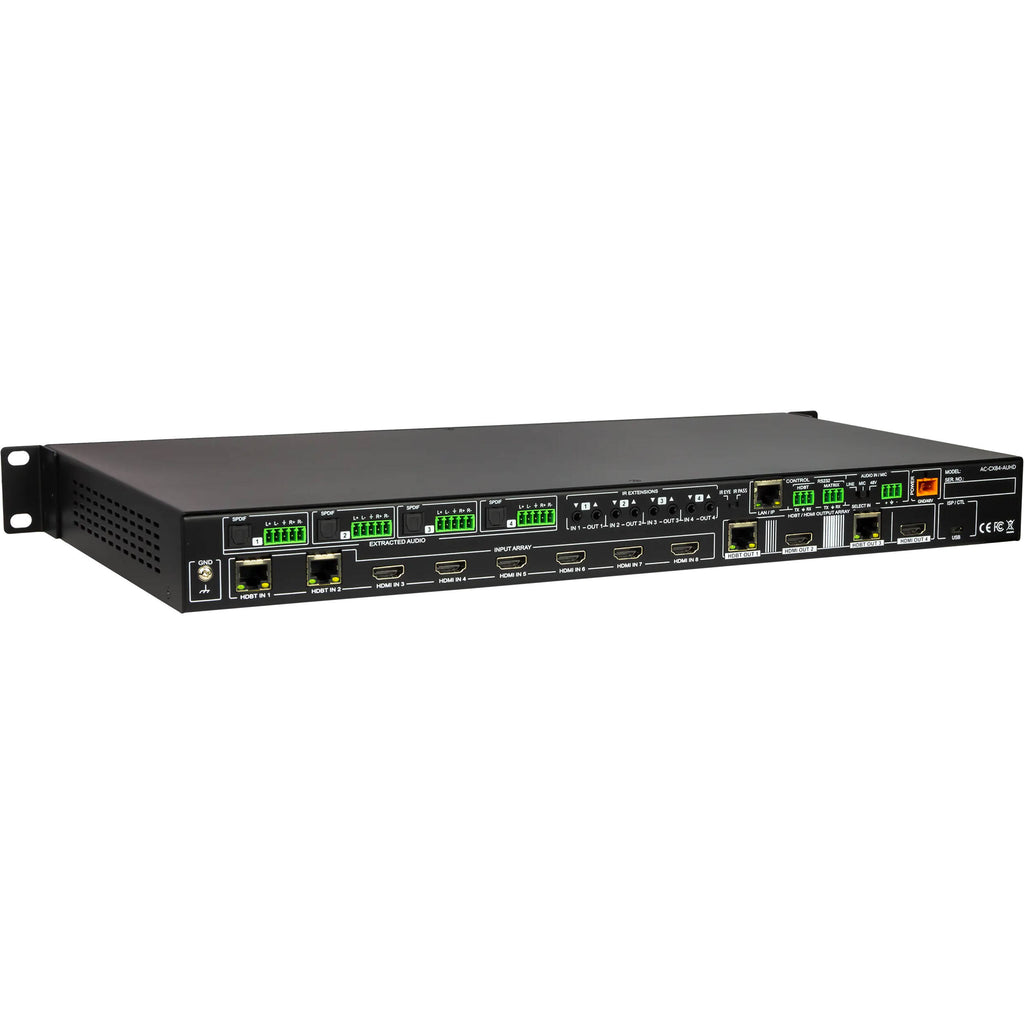

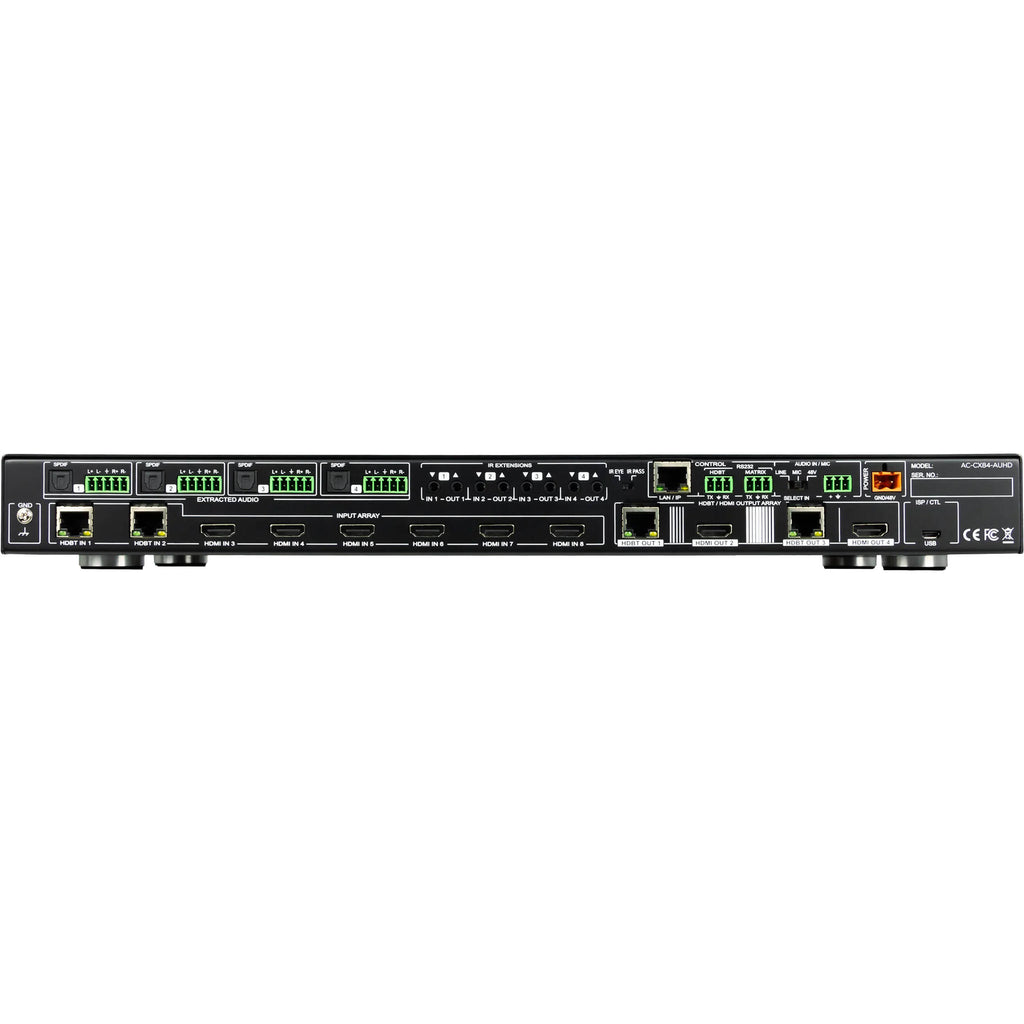

This video distribution platform accepts up to ten video input signals. Eight HDMI ports are available for direct input of video signals with resolutions up to 4K60. Additionally, two RJ45 ports accept HDBaseT input when paired with select AVPro Edge transmitters (available separately). These devices provide support for video input over Mini DisplayPort, VGA, and USB-C. Two HDMI and two HDBT output connections support multiview with up to four images displayed simultaneously. While embedded audio can be received via HDMI, the device includes four SPDIF optical and 5-pin block connections for dedicated audio input. An additional 3-pin block connection receives audio signals from lectern microphones and other presentation devices.
End user experience is simplified by the ConferX 8x4 switcher's interconnectivity with other ConferX modules available from AVPro Edge. Configuring output signals is made easy by Quick Switch, an intelligent software tool that adjusts signal speeds to ensure remote and local connections switch simultaneously. This is particularly useful for temporary sources, such as personal laptops brought by presenters. The switcher comes with an IR remote for speedy operation of the device from short distances while other control methods may be utilized via a LAN, RS232, or Micro-USB connection for use with the AVPro Edge Web UI or an external control system.
Compatible AVPro Edge Devices
- AC-CXWP-HDMO-T
- AC-CXWP-MDP-T
- AC-CXWP-VGA-T
- AC-CX100-RAMP
- AC-EX70-444-RNE
- AX-EX100-UHD-R3
- AX-EX70-SC2-R
UPC: 850001710947
In the Box
- AVPro Edge ConferX 8x4 4K HDMI Matrix Auto Switcher
- 48V Power Supply for PoE
- IR Remote
- Mounting Brackets
- Terminal Connectors
- Limited 10-Year Manufacturer Warranty (Parts & Labor)
AVPro Edge ConferX Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
12-Bit 4:2:2
10-Bit 4:2:0 |
Input
| Video Inputs |
2x RJ45 (HDBaseT) Female
6x HDMI Female |
| Input Video Format |
HDMI / RJ45 (16-Bit 4:4:4/4:2:2/4:2:0 YUV)
UHD 4K up to 60 fps |
| Audio Inputs |
4x TOSLINK Female
4x Block 5-Pin Female 1x Block 3-Pin Mic Female |
| Input Audio Format |
S/PDIF
LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Input |
HDMI
|
Output
| Video Outputs |
2x HDMI Female
2x RJ45 (HDBaseT) Female |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Output |
HDMI
|
| Multiview Output |
4-Way Multiview
|
Connectivity
| Other I/O |
4x 1/8" / 3.5 mm IR Input
4x 1/8" / 3.5 mm IR Output 2x Block 3-Pin Control Input 1x Micro-USB Control |
| Video Standard Compliance |
ITU -R BT.2020
|
| HDCP Support |
Yes, Version 2.2
|
| DTS Compatibility |
DTS, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
Hardware
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1x Proprietary (100 to 240 VAC) Input
|
| Power Consumption |
Power Supply: 48 VDC at 2.7 A (65 W)
|
Environmental
| Operating Temperature |
23 to 125°F / -5 to 51°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
5 to 90% ()
|
General
| Rack Form Factor |
1 RU
|
| Dimensions |
17.38 x 10.25 x 2" / 441.45 x 260.35 x 50.8 mm
|
| Weight |
7.4 lb / 3.4 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
