Description

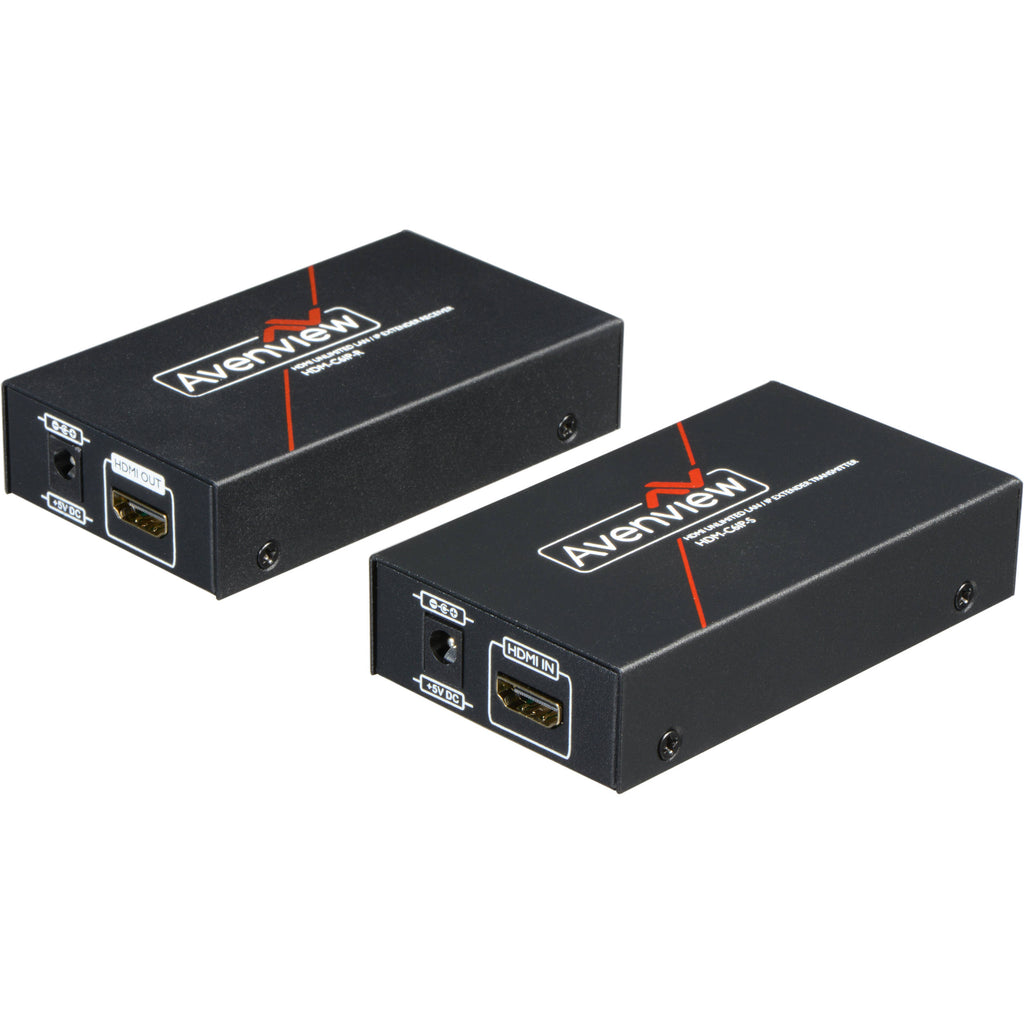

This Avenview HDMI Unlimited LAN Extender Set put together by adds two receivers to a transmitter and receiver set for a total of three receivers. Use this set with a separate switch to extend your HDMI video signal and embedded audio over your existing Cat 5E/Cat6 cable network.
The Avenview HDMI Unlimited LAN Extender Set over Single CAT6 is a transmitter and receiver set that extends an HD video signal with embedded audio up to 393 ft. You can connect the two directly or via a router. If directly, the transmitter sends the video and audio signal into the receiver's RJ45 input over a single CAT6 cable, and the receiver outputs the signal to a local display via an HDMI output. If via a router, the transmitter connects to the router and the router sends the signal to the receiver over an internet network. In this second scenario, up to 150 receivers can be connected and routed to at the same time. When using a router, you can establish and employ either an IP or DHCP address.
The max resolution the set supports is 1080p60/50 and the top audio quality is 7.1 surround sound or otherwise stereo digital audio.
- Extends 1080p60/50 video with 7.1 ch audio up to 393 ft over one CAT6 cable
- Can connect to an optional router and support a total of 150 receivers
- Silicon Image chipset
- HDMI 1.3a, HDCP compliant, EDID 1.1
- Regenerates the HDMI signal

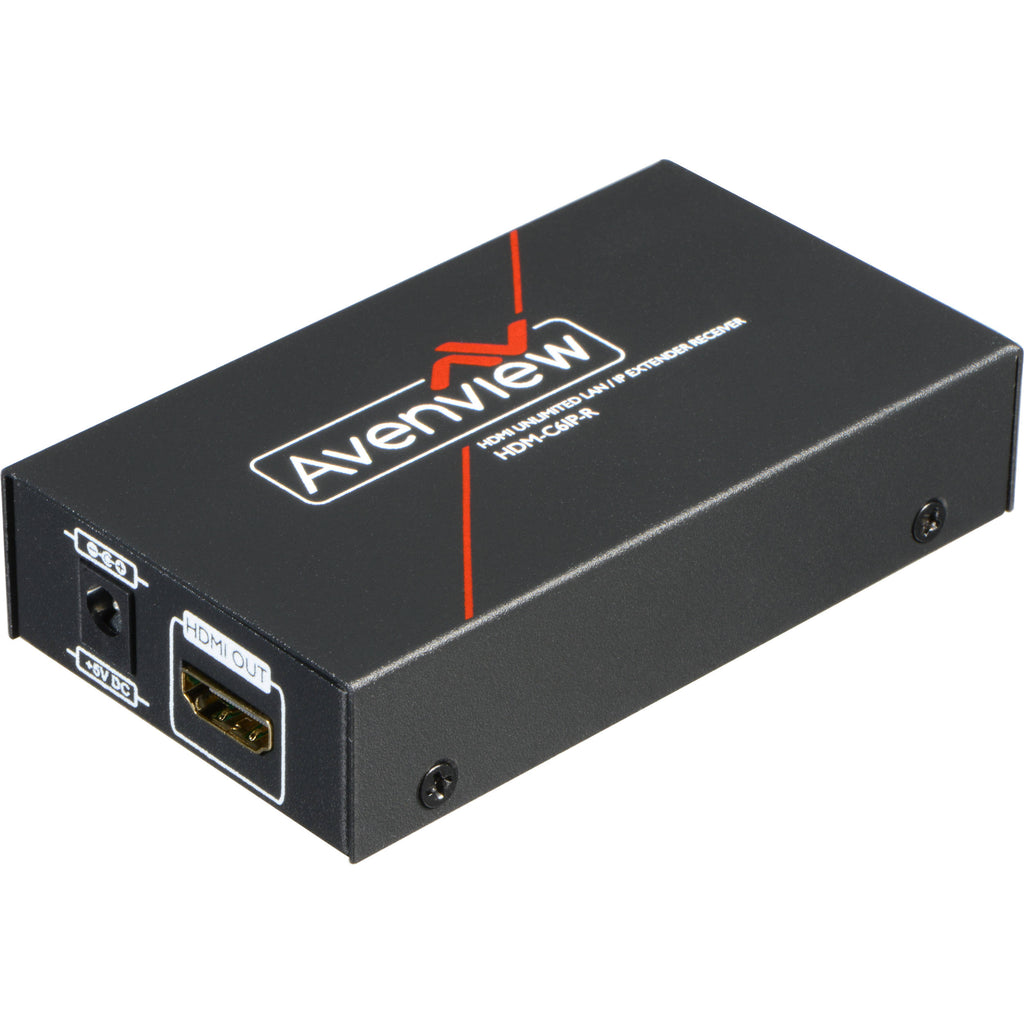

The Avenvue HDMI Unlimited LAN Receiver over Single CAT6 connects to an optional transmitter (model # HDM-C6IP-S) to extend an HD video signal with embedded audio up to 393 ft. You can connect to a transmitter directly or via a router. If directly, the transmitter sends the video and audio signal into the receiver's RJ45 input over a single CAT6 cable, and the receiver outputs the signal to a local display via an HDMI output. If via a router, the transmitter connects to the router and the router sends the signal to up to 150 receivers simultaneously over an internet network. When using a router, you can establish and employ either an IP or DHCP address.
The max resolution the receiver and the optional transmitter support is 1080p60/50 and the top audio quality is 7.1 surround sound or otherwise stereo digital audio.
- Receives 1080p60/50 video with 7.1 ch audio from 393 ft away over one CAT6 cable
- Connects directly to transmitter or alternatively to a router
- Silicon Image chipset
- HDMI 1.3a, HDCP compliant, EDID 1.1
- Regenerates the HDMI signal
Items Included
- Avenview HDMI Unlimited LAN Extender Set over Single CAT6
- 2 x Power Adapter
- User's Manual
- 3-Year Parts & Labor Warranty
- 2 x Avenview HDMI Unlimited LAN Receiver over Single CAT6
- Power Adapter
- User's Manual
- 3-Year Parts & Labor Warranty
Additional Resources
Avenview HDMI Unlimited LAN Extender Set over Single CAT6
| Input |
Transmitter:
1x HDMI 1.3a (HDCP compliant) Receiver: 1x RJ45 (WE/SS 8P8C connector with 2 LED indicators) |
| Output |
Transmitter:
1x RJ45 (WE/SS 8P8C connector with 2 LED indicators) Receiver: 1x HDMI 1.3a (HDCP compliant) 1x 3.5 mm |
| Video Bandwidth |
M-JPEG technology to process image compressing GIGABIT (10/1000) over LAN
|
| Video Resolution |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@60/50Hz, 1080i@60/50Hz, 1080p@60/50Hz
|
| Transmission Distance |
(24-bit) 1080p: 393 ft over CAT6 (120 m); 330 ft over CAT5e (100 m)
|
| Audio Support |
Up to 7.1 channel surround sound or stereo digital audio
|
| IR |
No
|
| RS-232 |
No
|
| Power |
5V/1A input (adapters included)
|
| Power Consumption |
3W max each
|
| Operating Temperature |
32 to 104?F (0 to 40?C)
|
| Storage Temperature |
-4 to 140?F (-20? to 60?C)
|
| Relative Humidity |
20 to 90% RH (no condensation)
|
| Dimensions |
4.3 x 2.3 x 1" (11 x 5.8 x 2.6 cm) each
|
| Weight |
.5 lb (.24 kg) each
|
| Package Weight |
1.315 lb
|
| Box Dimensions (LxWxH) |
8.5 x 5.9 x 3.3"
|
