| ₹ 430250.0 includes GST and import duties. | |
| B2B customers can avail ₹ 65613.13 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

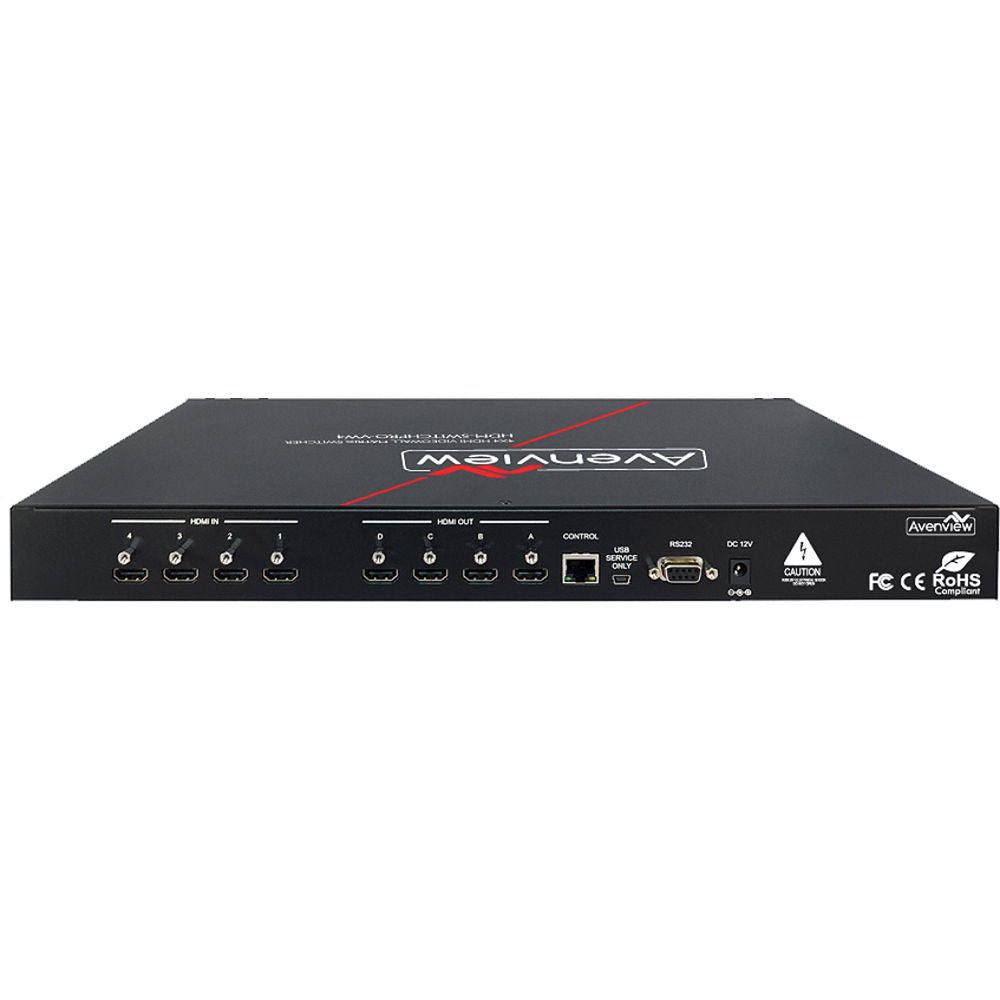

The HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support from Avenveiw is a 1 RU full HDMI HD switcher. It features four functions; 4x4 Matrix Switcher, Multi Input Splitter, Dual-Viewer, and a 2x2 Videowall. This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons.
The 4 HDMI digital source inputs of the unit can be configured as a 4x4 matrix switcher to distribute the audio and video signals to any 4 HDMI HD monitors. It can be configured as a multi input splitter to duplicate one source input to all 4 HDMI HD monitors. With the dual-viewer feature, this unit can combine 4 video signals onto 2 HDMI HD monitors. The 2x2 Videowall mode, can scale one source input across all 4 HDMI HD monitors in a 2x2 configuration.
- Input resolution settings from PC VGA, XGA, SXGA, UXGA, WUXGA
- Input from digital players from 480p up to full HD 1080p @ 60Hz
- Output resolutions from 480p to 1080p deep color 8/10/12 bit source
- Audio supports: LPCM 2Ch, 6Ch, 8Ch, AC3, DTS, Dolby Digital Plus, Dolby TruHD, and DTS-HD
- Audio formats up to 7.1 channels LPCM at 192Hz
- Fine tuning and adjustments of contrast, brightness, saturation and hue
- Preset up to 4 layout options
- Auto EDID detect from the source
- Bezel correction support for 2x2 Videowall mode
- USB for service mode and firmware upgrade
- Connection by IR Remote, Telnet or RS232 for user setup and configuration
- HDMI, HDCP and DVI compliant
- Factory reset
- Software control through USB, RS232 and Ethernet
- 1 RU rackmount size
- 2 x Rackmount Ear
- Power Cord
- IR Remote Control
- Limited 3-Year Warranty
| HDCP Compliance | Yes |
| Video Bandwidth | 225 MHz (6.75 Gbps) |
| Supported Resolution | PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) 480i, 720p, 1080i, 1080p |
| Audio Support | LPCM 2 ch, 6 ch, 8 ch, AC3, DTS, Dolby Digital Plus, Dolby TruHD & DTS-HD |
| Input | 4 x HDMI 19 pin female 1 x Mini USB |
| Output | 4 x HDMI 19 pin female |
| USB Connector | Type A Mini USB |
| RJ45 Connector | WE/SS 8P8C with 2 LED indicators |
| Switching Speed | �8 kV (air-gap discharge) �4 kV (contact discharge) |
| Power Supply | 12 VDC, 3 A |
| Operating temperature | 32 to 104�F (0 to 40�C) |
| Storage Temperature | -4 to 140�F (-20 to 60�C) |
| Relative Humidity | 20 to 90% RH (no condensation) |
| Dimensions (L x W x H) | 17.2 x 7 x 1.7" (43.7 x 17.8 x 4.3 cm) |
| Weight | 5 lb (2.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 10.3 lb |
| Box Dimensions (LxWxH) | 22.5 x 16.2 x 5.5" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 421645.0 |
| 3-5 | ₹ 417342.5 |
| 5-10 | ₹ 408737.5 |
| 10+ | ₹ 400132.5 |
Bulk discount will be automatically applied during checkout based on quantity.
