Description
ATTO Technology TLNS-5102-D00 Overview

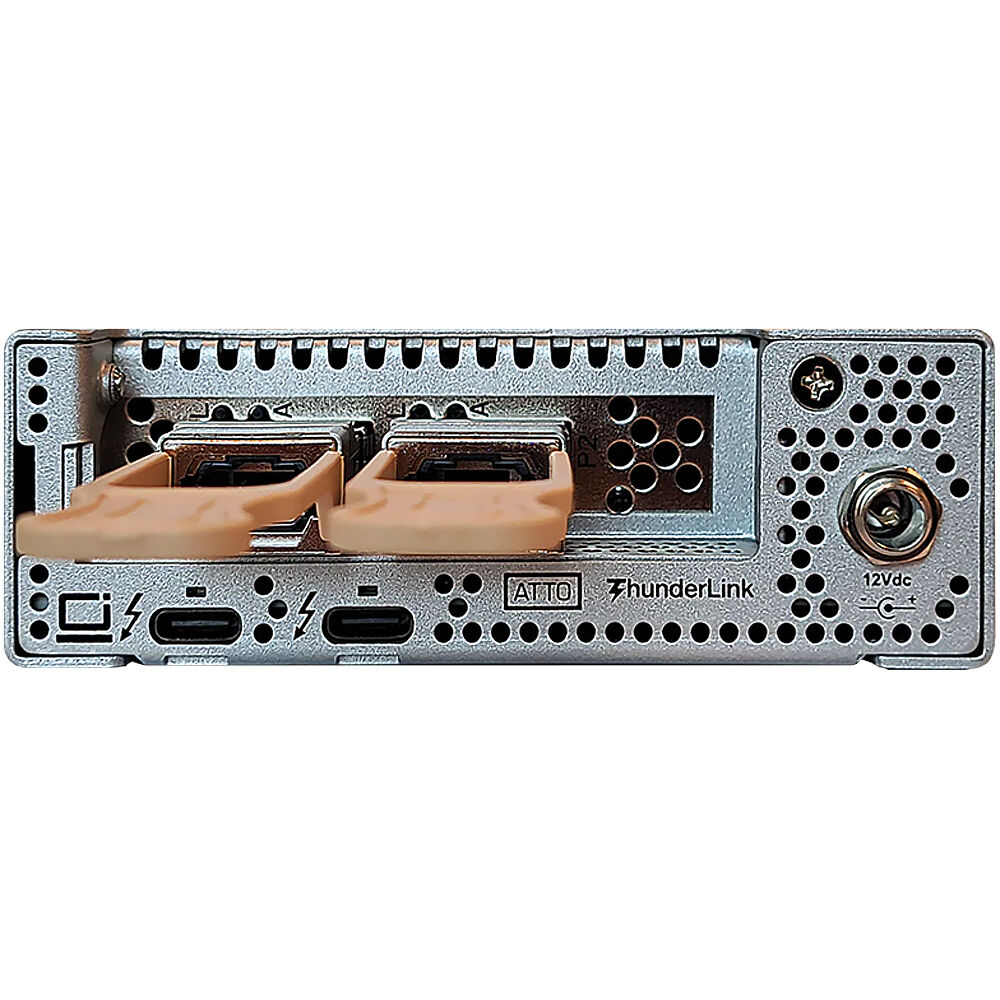

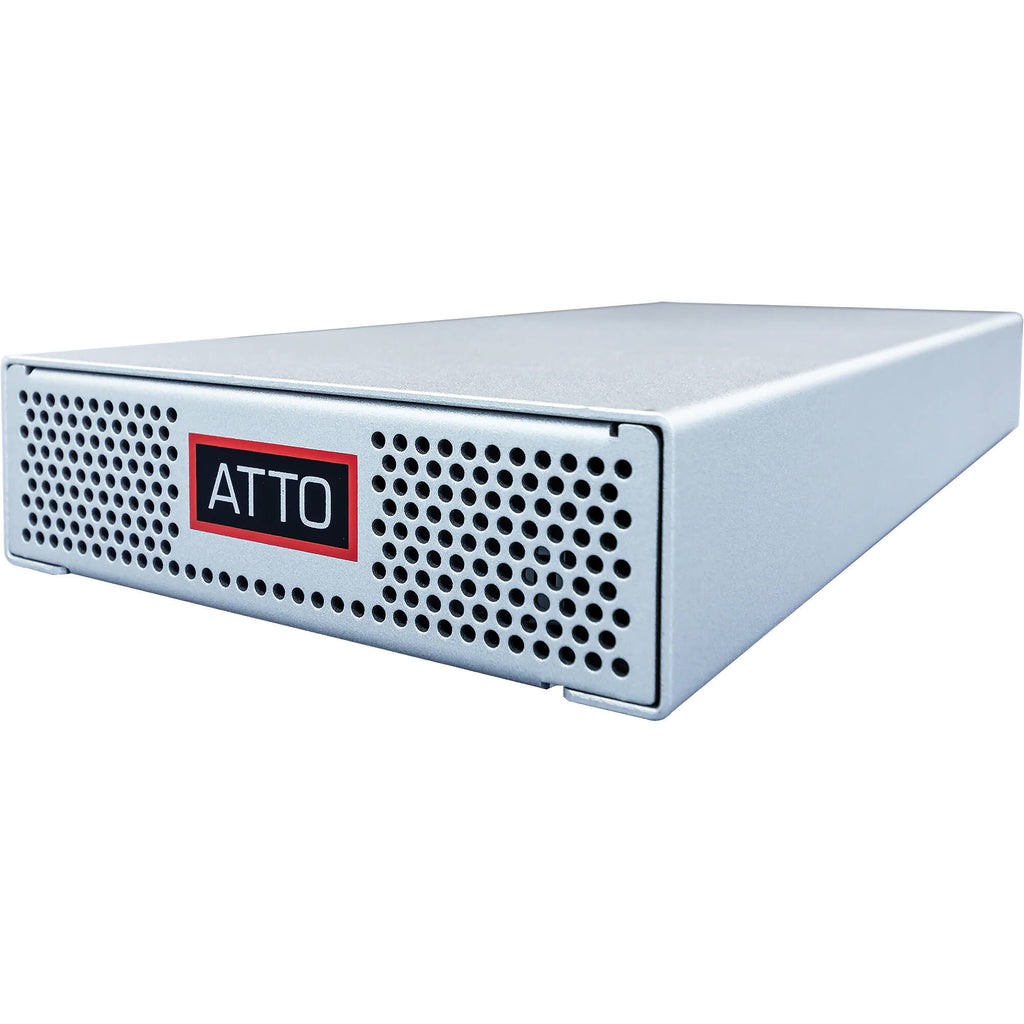

The ThunderLink NS 5102 Thunderbolt 5 to 100Gb Ethernet Adapter from ATTO Technology is designed for bandwidth-intensive applications such as data backup and restoration, clustered computing, IP content delivery, medical imaging, and video rendering. It features dual LC QSFP28 modules that support network speeds of up to 100 Gb/s and connects to your host Windows, Mac, or Linux system using one 80 Gb/s Thunderbolt 5 port, while a second Thunderbolt 5 port allows users to daisy-chain up to 5 additional Thunderbolt devices together. Both Thunderbolt 5 ports support 8K video, data transfers, and displays. Other features include backward compatibility with other Thunderbolt and USB standards, plus 10/25GbE compatibility using a QSFP28 adapter, and two LED indicators per port.
Technical Details
- 5th generation Thunderbolt 80 Gb/s
- Dual Thunderbolt 5 USB-C connectors
- Supports 8K video, file transfer, and display simultaneously with dual Thunderbolt 5 ports (80 Gb/s)
- ATTO360 Networking Software support
- Daisy-chain up to five additional Thunderbolt-enabled devices
- Backwards compatible with previous generation USB-C Thunderbolt-enabled hosts and devices
- Driver support for Windows, macOS, and Linux operating systems
- Advanced Data Streaming (ADS) Technology
- Minimized interrupts for low latency
- End-to-end Quality of Service and congestion control
- Models support QSFP28 and QSFP+ (SFP28/SFP+/RJ45 via QSA adapters)
- TCP/UDP/IP hardware based stateless offloads
- Advanced HW offloads including LRO, LSO, TSO, RSS, and TSS
- Support for downstream USB 2/3/4 devices for more coverage
- Receive Side Scaling (RSS)
- Transmit Side Scaling (TSS)
- PCI Hot Plug/Active Peripheral interconnect
Additional Details
- Data rate per port: 100GbE
- Low latency interrupts
- PCI-SIG SR-IOV support
- Interrupt levels MSI, MSI-X
- Plug and play specification support
- Advanced Packet Filtering
- VLAN support with tag filtering, insertion, and stripping
- End-to-end Quality of Service and congestion control
- Hardware offloads for NVGRE and VXLAN encapsulated traffic
- Hardware-based I/O virtualization
- Direct Cache Access (DCA) eliminates cache misses and reduces CPU load
- PCI Hot Plug/Active Peripheral interconnect
- Remote Direct Memory Access (RDMA) for Windows and Linux
- RoCE v1 and RoCE v2 support
Advanced Software/Mangement Tools
- ATTO360 Networking support
- 60 Individual tuning profiles designed to optimize for specific workflows
- ATTO Expert Alerts to eliminate bottlenecks
- Adapter and Driver Health Monitoring
- ATTOview monitoring metrics in both real-time and point-in-time
UPC: 603175009795
Items Included
- ATTO Technology ThunderLink NS 5102 Thunderbolt 5 to 100Gb Ethernet Adapter
- 2 x LC QSFP28 Optical Module
- 110V Power Cord
- Limited 3-Year Manufacturer Warranty
Additional Resources
ATTO Technology TLNS-5102-D00 Specs
Inputs/Outputs
| USB I/O |
2 x USB-C (Thunderbolt 5) Female Input/Output
|
| Network Interface |
2 x 100GbE QSFP28
|
| Network Protocols |
|
| Connectivity |
|
Power
| Power Source |
DC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 0.6 A
|
| DC Input Power |
12 VDC
|
Physical
| Color |
Silver
|
| Certifications |
EN55032, Class B/EN55024, EN60825-1 and EN60825-2, EU ROHS (2011/65/EU), (EU) 2015/863, FCC Part 15 Subpart 5, Class B, IECC62368-1, TAA, cTUVus
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 5 to 95% Humidity
|
| Storage Conditions |
-40 to 158?F / -40 to 70?C at 5 to 95% Humidity
|
| Dimensions |
9.45 x 4.07 x 1.38" / 24 x 10.34 x 3.51 cm
|
Packaging Info
| Package Weight |
4.46 lb
|
| Box Dimensions (LxWxH) |
12.1 x 9.8 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 377304.9 |
| 3-5 | ₹ 373454.85 |
| 5-10 | ₹ 365754.75 |
| 10+ | ₹ 358054.65 |
Bulk discount will be automatically applied during checkout based on quantity.
