Description

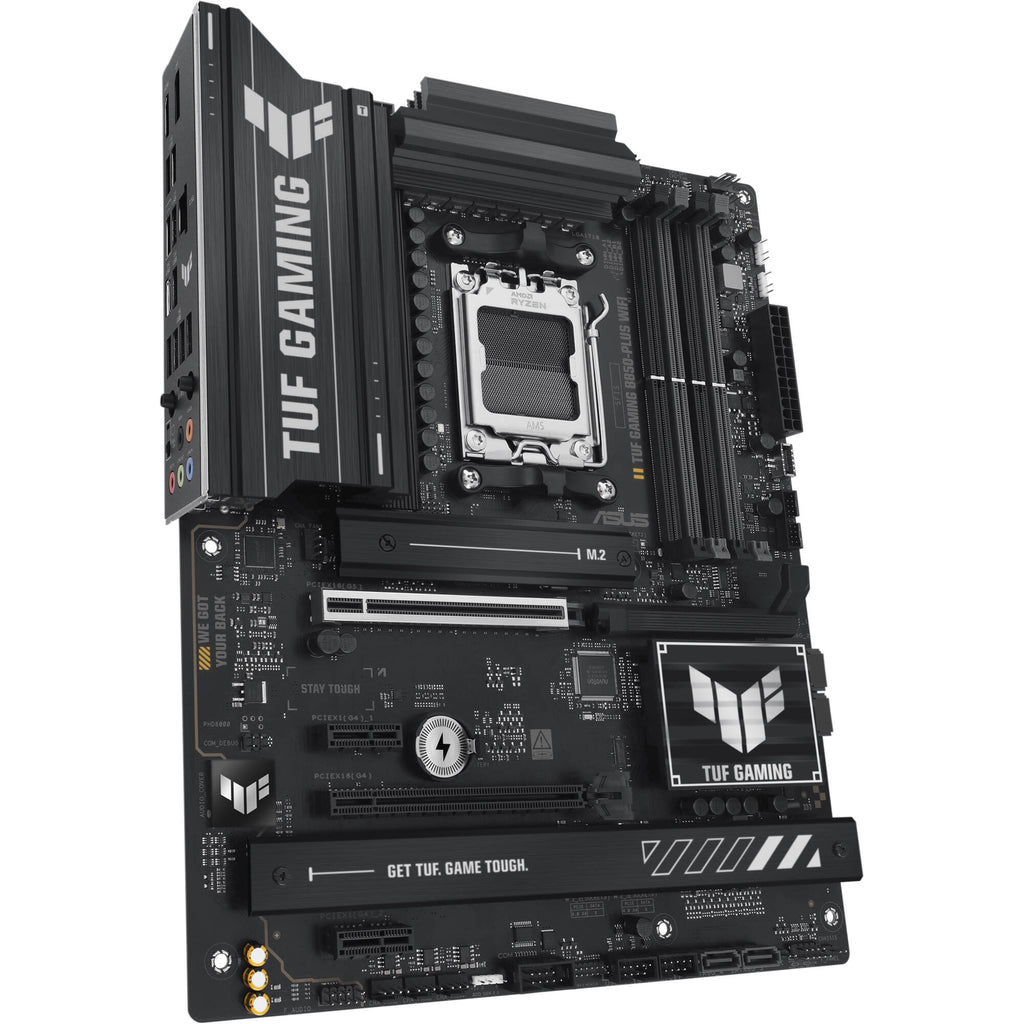

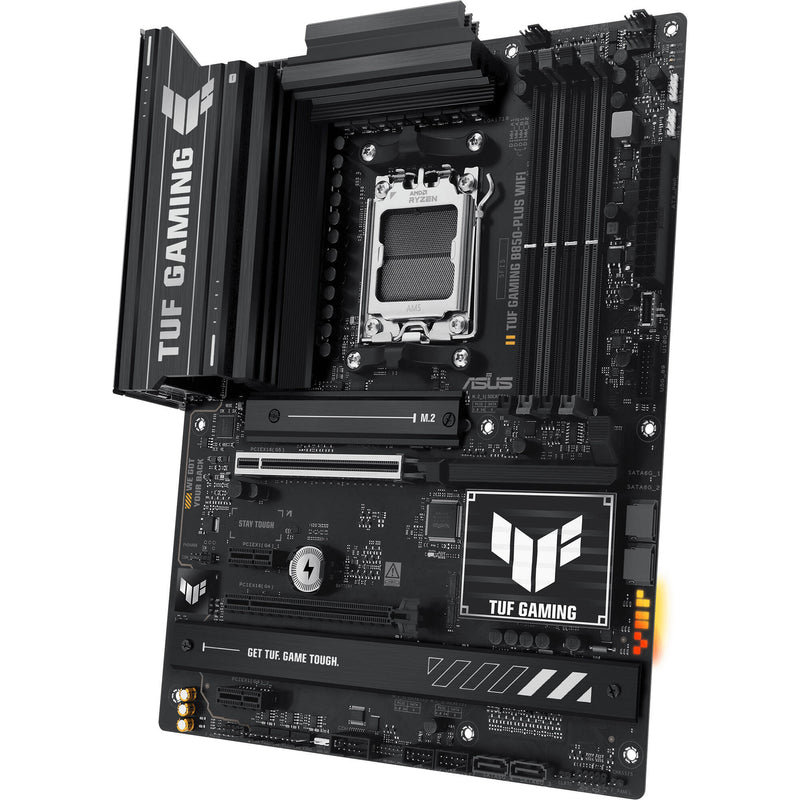

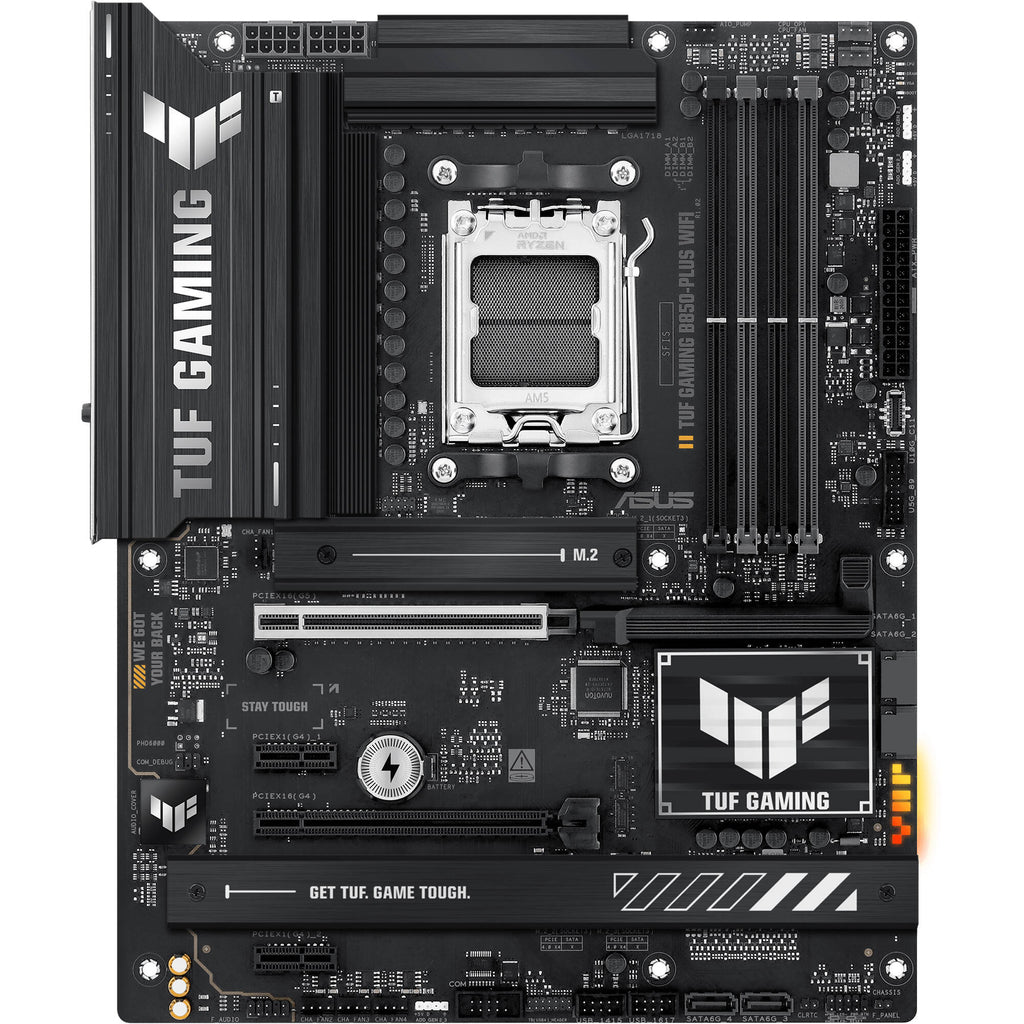

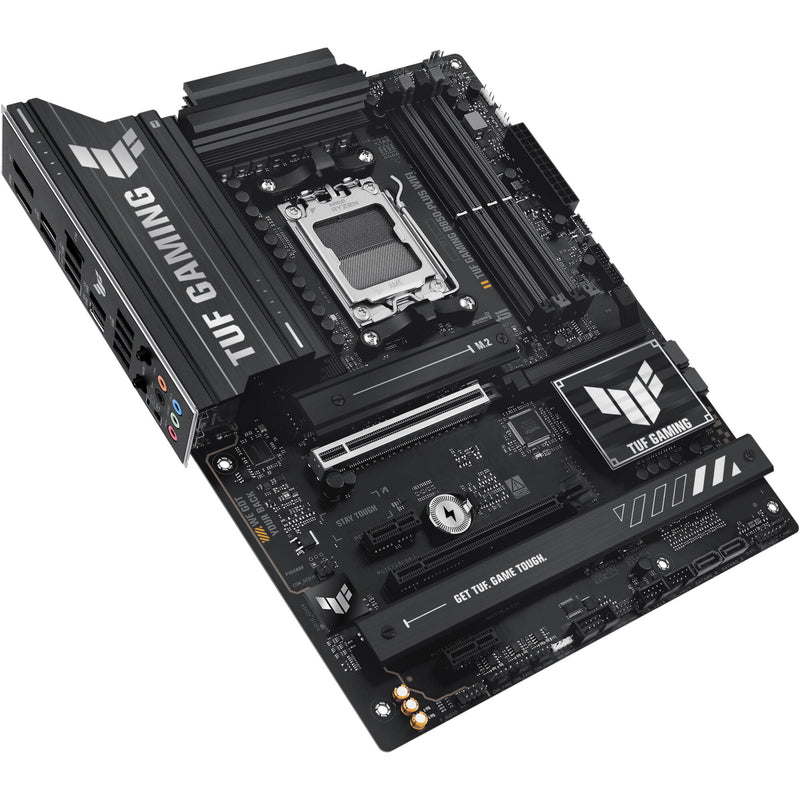

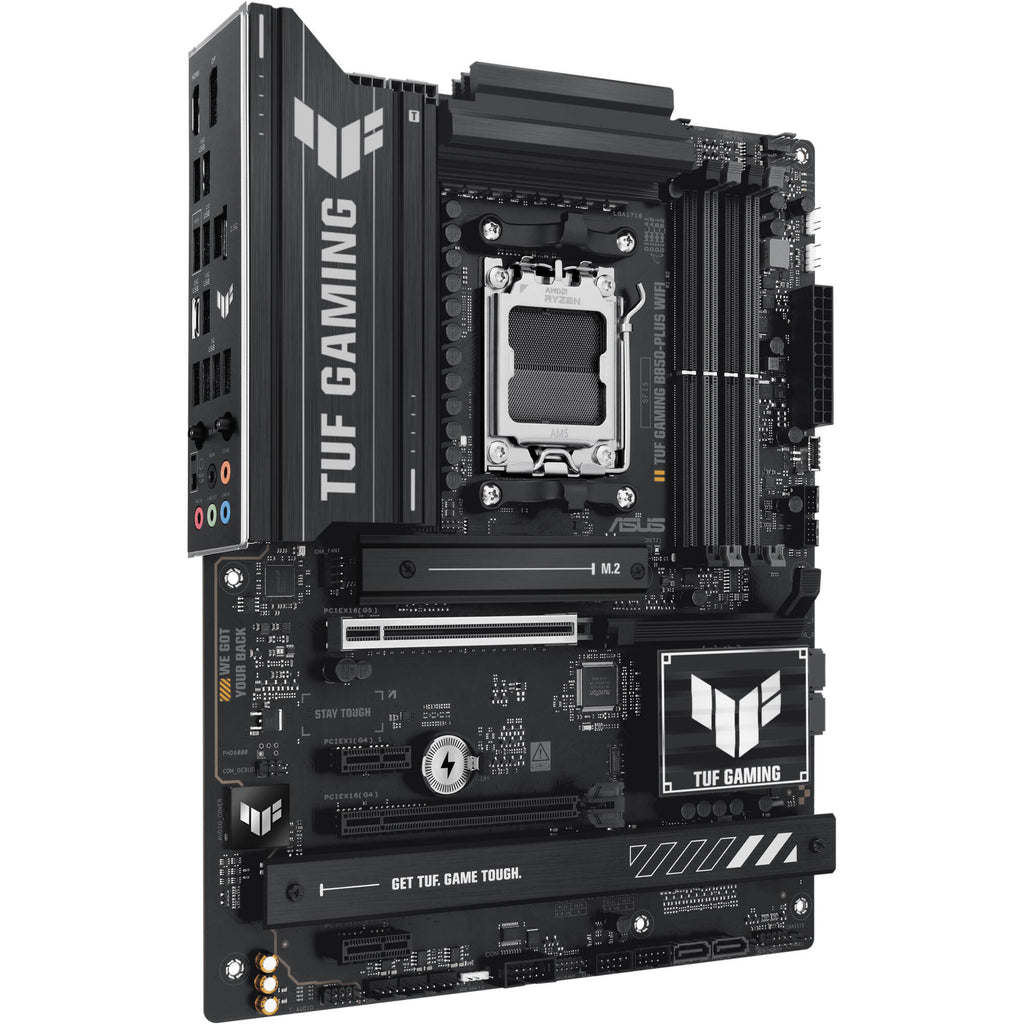

ASUS B850-PLUS Overview
Power immersive gaming and content creation with the ASUS TUF GAMING B850-PLUS WIFI ATX Motherboard as your foundation for your custom build. Designed primarily for first time builders with support for AMD 7000, 8000, and 9000 series processors, this socket AM5 motherboard offers fast connectivity and AI-driven performance features.
Four DDR5 DIMM slots are available, supporting up to 192GB of 8000 MT/s overclocked memory for smooth multitasking, large projects, and demanding applications. For storage, you can install an M.2 PCIe 5.0 SSD alongside two PCIe 4.0 and four SATA III drives to store your games library and important files. A PCIe 5.0 x16 slot is available for a powerful graphics card while the PCIe 4.0 x16 (x4 mode) and dual PCIe 4.0 x1 slots may be used for other compatible expansions.
The rear panel includes a 20 Gb/s USB-C port, which is complemented by three USB-A ports that can transfer up to 10 Gb/s with compatible devices. Four 5 Gb/s compatible USB-A 3.2 Gen 1 ports and two USB-A 2.0 ports are also available. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices. Built-in HDMI 2.1 and DisplayPort 1.4 ports work with CPUs with integrated graphics. Windows 11 or later is required to take advantage of all the motherboard's features.
Performance
AI Ready
Designed for AI computing, this motherboard offers the power and connectivity needed for demanding applications.
Overclocking Memory
This motherboard is ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
Power Design
Sporting 14+2+1 80A DrMOS power stages with ProCool power connectors, this motherboard delivers reliable and stable performance with high-core count CPUs, graphics cards, and other power-intensive components.
Advanced Cooling
Designed for overclocking, this motherboard maintains optimal performance and stability with fan and AIO pump headers, and heatsinks for the M.2 slots and VRM.
Realtek Audio
Featuring Realtek 7.1 surround sound, the integrated audio system delivers deep, immersive experiences.
DTS Audio Processing
DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies, and music sound better. It also allows you to customize audio settings.
Connectivity
Wi-Fi 7
Wi-Fi 7 supports 320 MHz bandwidth on the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
2.5G Ethernet
An onboard 2.5G Ethernet port provides fast and stable connectivity to compatible wired devices.
DIY Friendly
Easy M.2 Installation
The ASUS M.2 Q-Latch and Q-Slide allow you to quickly install or remove M.2 SSDs without the need for tools or screws.
PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot's security latch with one tap, which simplifies the process of detaching a PCIe card from the motherboard when it's time to upgrade.
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.
BIOS FlashBack
BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button. No CPU or memory needed.
Software Utilities
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
Play in Style
Aura Sync
Enjoy complete RGB lighting control and synchronize the effects with compatible peripherals such as keyboards, mice, and monitors.
Addressable Gen 2 RGB headers
The two addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear. You can sync the effects Aura Sync compatible peripherals such as keyboards, mice, and monitors.
UPC: 197105781603
Items Included
- ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Motherboard
- 2 x SATA III Cable
- ASUS WiFi Q-Antenna
- TUF GAMING Sticker
- 2 x M.2 Rubber Package
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
ASUS B850-PLUS Specs
Key Specs
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8000 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1 |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|

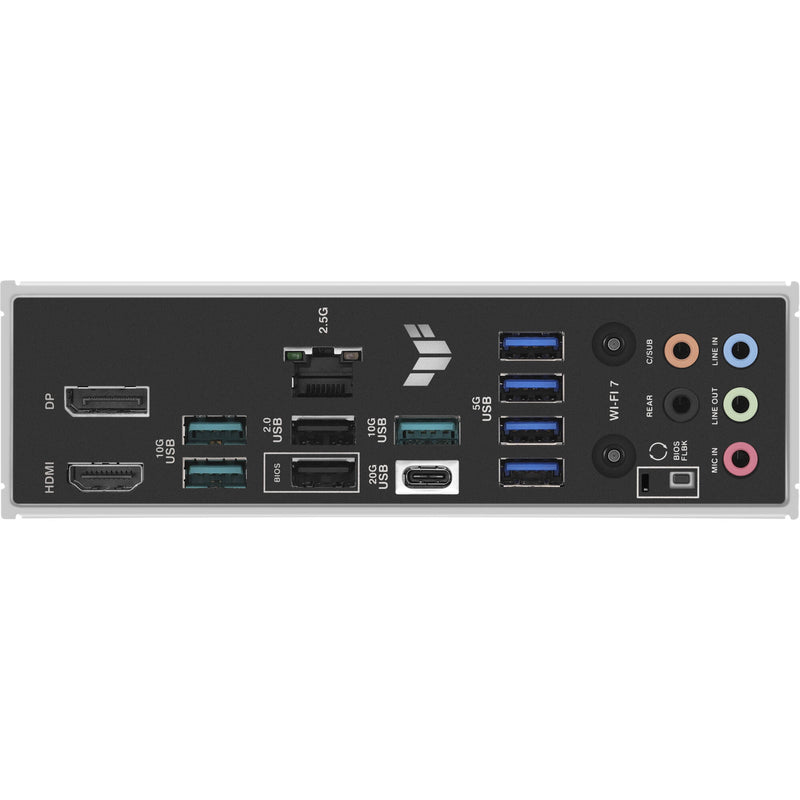

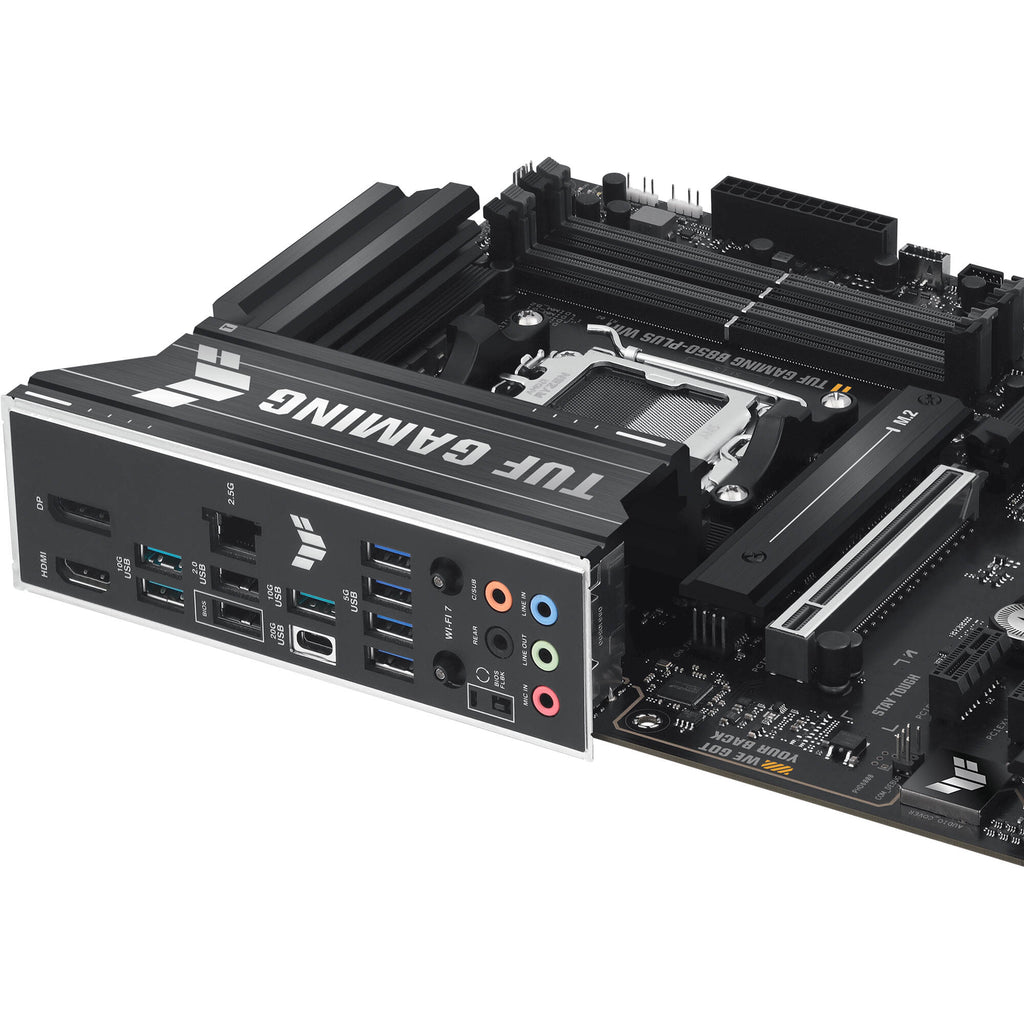

Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI 2.1
1x DisplayPort 1.4 |
| Audio |
5x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Intel 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8000 MT/s
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
2x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin CPU |
| Security |
Chassis Intrusion
|
| LED Header |
3x RGB
|
| Audio |
1x Speaker
|
| Diagnostics |
Clear CMOS
|
| Add-On |
1x Thunderbolt Header
|
| Legacy |
1x Serial
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek ALC1220P (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
5.4
|
| Module Support |
1 E Key M.2
|
Software
| OS Compatibility |
Windows 11
|
Physical
| Form Factor |
ATX
|
| Dimensions |
12 x 9.6" / 304.8 x 243.8 mm
|
Packaging Info
| Package Weight |
4.235 lb
|
| Box Dimensions (LxWxH) |
14.8 x 11.3 x 2.9"
|
