Description

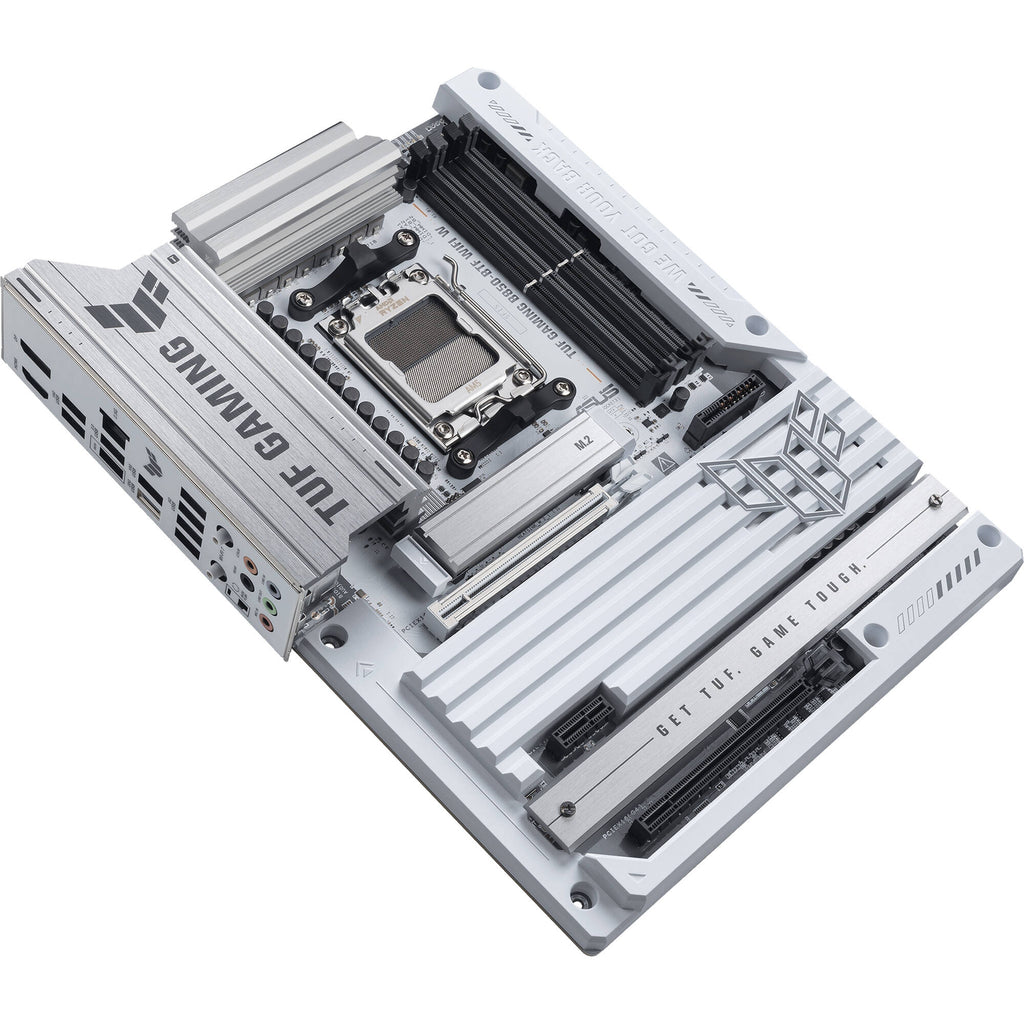

ASUS B850-BTF WIFI W WiFi Overview
Designed with support for high-power BTF components, the ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard delivers exceptional performance and connectivity with support for AMD Ryzen 9000, 8000, and 7000 series AM5 socket processors.
Install up to 256GB DDR5-8000 memory across four slots for smooth multitasking. For storage, you can add one PCIe 5.0 and two PCIe 4.0 M.2 SSDs to load demanding applications and large projects in a flash. Support for up to four SATA III drives provides space for your games library and large media files. With one PCIe 5.0 x16 slot, PCIe 4.0 x16 (in x4 mode) slot, and a PCIe 4.0 x1 slot, you can install a powerful graphics card and other expansions. The high-power graphics card slot works with ASUS BTF GPUs and delivers up to 600 watts through the motherboard, removing the need for cables. Combined with the hidden connector design, you can enjoy a clean and organized system with efficient airflow.
The rear panel features a USB-C 3.2 Gen 2x2 ports that can transfer up to 20 Gb/s with compatible devices. They are accompanied by three 10 Gb/s USB-A ports. You can use the four USB-A 3.2 Gen 1 ports with 5 Gb/s devices while reserving the two USB-A 2.0 ports for peripherals such as a mouse and keyboard. Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide fast connections to compatible networks. Windows 10 or later is required to take advantage of all the motherboard's functions.
Performance
Power Design
This motherboard features 14+2+1 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability, and performance.
Graphics Card High-Power Slot
The specialized graphics card high-power slot supplies up to 600 watts to ASUS BTF graphics cards through the motherboard itself, eliminating the need for visible 8-pin or 16-pin power cables.
DRAM Overclocking Performance
AMD Extended Profiles for Overclocking (EXPO) support makes it easy to tune the memory for higher performance. Experienced users can further tweak performance using an extensive array of settings in the UEFI BIOS.
ASUS AEMP
The ASUS Enhanced Memory Profile (AEMP) feature works with PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing, and voltage profiles that you can quickly apply.
PCIe 5.0 SSD Support
The PCIe 5.0 M.2 slot features data transfers of up to 128 Gb/s, and all M.2 slots support for RAID configurations for added performance.
Cooler By Design
An enlarged VRM heatsink covers the MOSFETs and chokes for improved heat dissipation. Additionally, each of the M.2 slots have dedicated heatsinks that help to avoid speed throttling.
Easy DIY

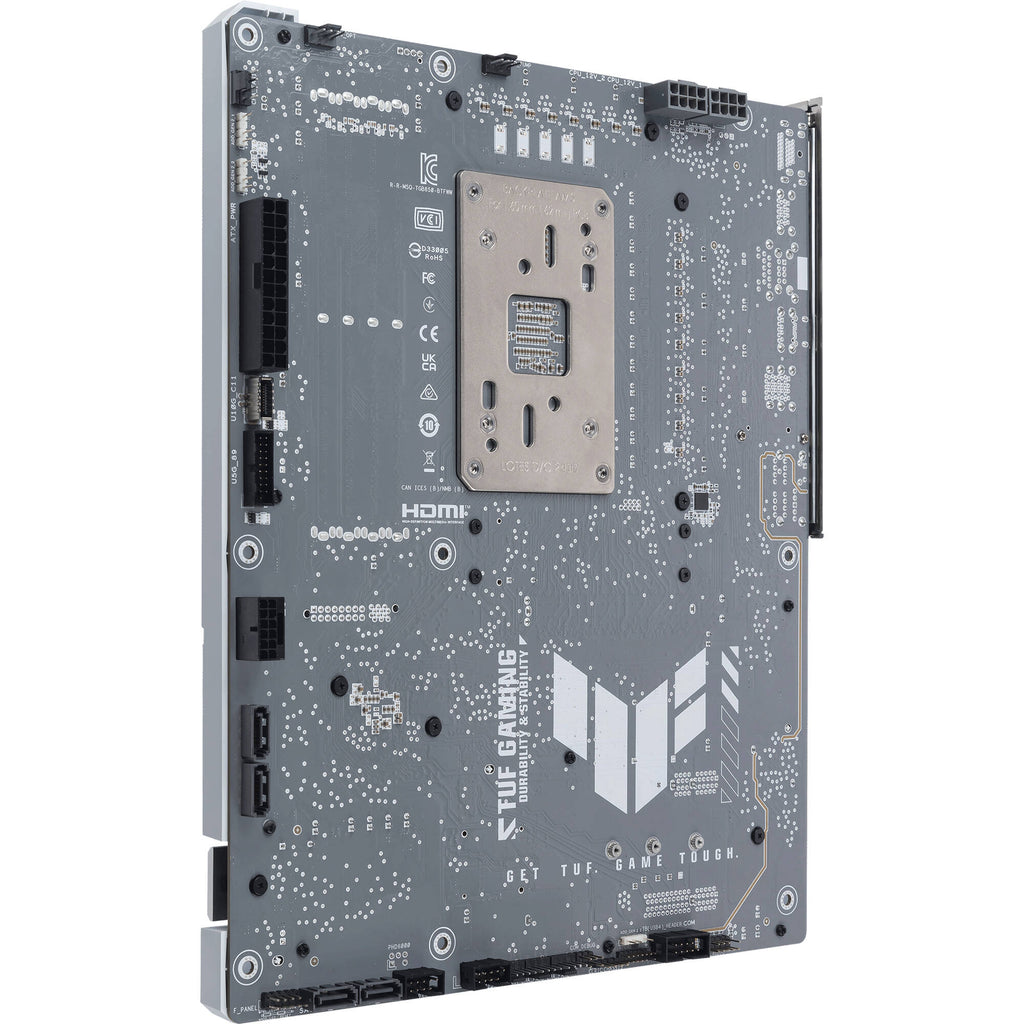

Hidden Connector Design
The hidden-connector design can be ideal for first-time builders because it provides easier cable management. The absence of visible cables also creates a clean and tidy look.
PCIe Slot Q-Release Slim
Slot Q-Release Slim, makes upgrades and maintenance easier by allowing you to simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot.
M.2 Q-Release
The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Latch
The ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.
Q-LED
The onboard Q-LED troubleshooting lights give PC builders a quick indicator to confirm that components such as the CPU, RAM, graphics card, storage devices are functioning normally during startup. It can also alert them when memory modules have not been properly installed, even before booting.
BIOS FlashBack
BIOS FlashBack simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the designated port, and press a button. No CPU or memory needed.
Safeslot and SafeDIMM
SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules, empowering you to insert your modules with speed, accuracy, and confidence.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide an extended lifespan, having passed 72-hour salt fog testing.
Immersive Gaming
7.1 Surround Sound
The Realtek ALC1220P audio codec provides pristine audio quality with a 120 dB signal-to-noise ratio for the stereo line out and a 113 dB SNR for the line in.
DTS Audio Processing
DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. Choose between Music, Movie, and Game preset modes. You can also customize the audio settings.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
UPC: 197105941878
Items Included
- ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard
- 2 x SATA III Cable
- ASUS WiFi Q-Antenna
- 2 x M.2 Rubber Package
- TUF Gaming Sticker
- Limited 3-Year Manufacturer Warranty
Additional Resources
ASUS B850-BTF WIFI W WiFi Specs
Key Specs
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8000 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16 with Direct-to-Motherboard GC-HPWR Connection
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x1 |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI 2.1
1x DisplayPort 1.4 |
| Audio |
5x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8000 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4) |
| RAID Support |
RAID 0, 1, 5, 10
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16 with Direct-to-Motherboard GC-HPWR Connection
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x1 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
2x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX 1x 12V-2X6 (12VHPWR) |
| Security |
Chassis Intrusion
|
| LED Header |
3x RGB
|
| Diagnostics |
Clear CMOS
|
| Add-On |
1x Thunderbolt Header
|
| Legacy |
1x Serial
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek ALC1220P (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
|
| Bluetooth |
5.4
|
| Module Support |
1 E Key M.2
|
Software
| OS Compatibility |
Windows 11
|
Physical
| Form Factor |
ATX
|
| Dimensions |
12 x 9.6" / 30.5 x 24.4 cm
|
Packaging Info
