Description

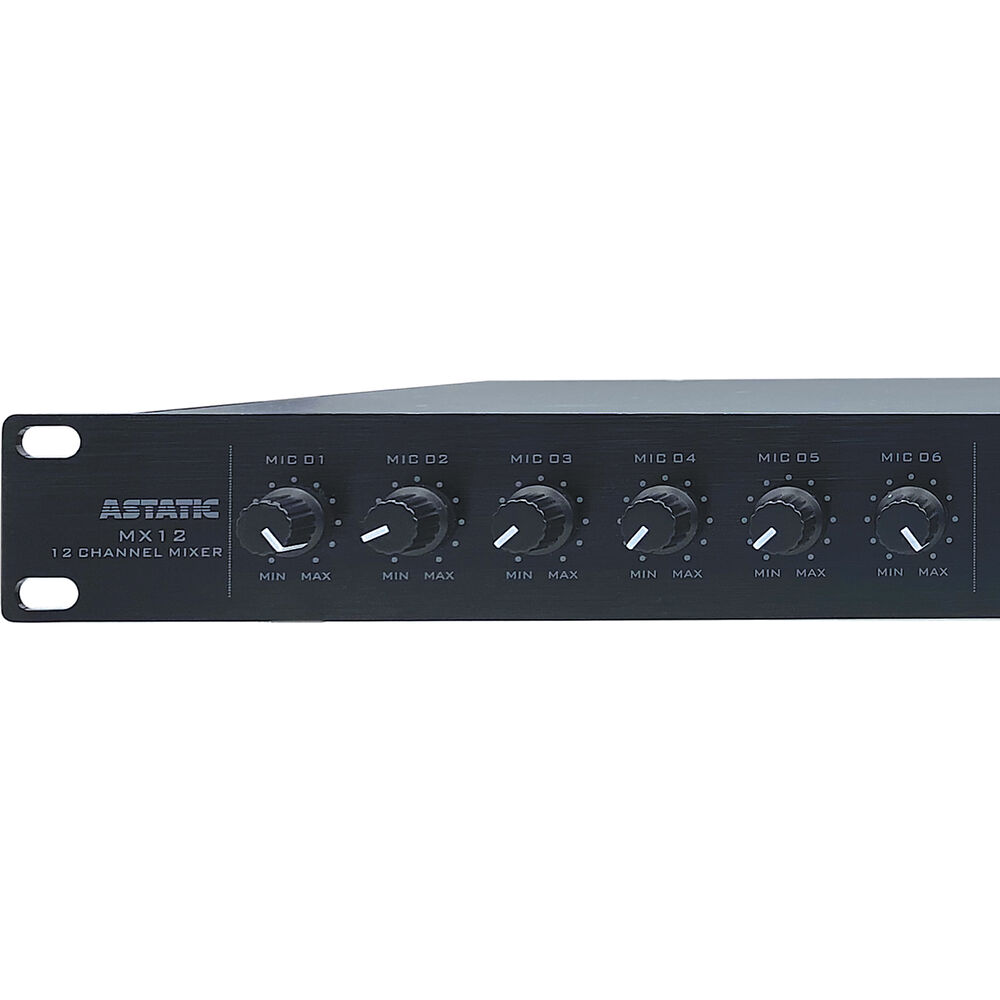

Astatic MX12S Overview
Ideal for installed sound in venues, commercial spaces, and home studios, the Astatic MX12S from CAD is a 12-channel rack-mountable audio mixer sporting six XLR-1/4" combo inputs with individually selectable mic-/line-level operation and phantom power. With a 3-band master EQ section, 8-segment LED meter, and master volume control, you can easily take command of your mix.
Along with the six combo inputs, the MX12S features three stereo RCA pairs for alternative line-level inputs, a stereo pair of balanced XLR line outputs, a 1/4" mic monitor output for private listening, and a 1/4" line output. Each input channel has a dedicated gain knob and a signal LED indicator. The mixer also features separate controls for the 1/4" mic and line outputs. The MX12S can be powered by either 120 VAC or 24 VDC power input, providing flexibility for a wide range of environments and audio system configurations.
- Six gain control knobs for mono inputs (channels 1 to 6)
- Three gain control knobs for stereo RCA inputs (channels 7 to 12)
- Mic out gain knob with on/off selector button
- Mono 1/4" out gain knob
- 3-band EQ control (Low, Mid, and High)
- Master gain control
- Power on/off switch
- Line/Mic selection switch per mono input
- Six mono XLR-1/4" combo input jacks
- Three stereo pairs of RCA line inputs
- 1/4" Mic and Mono outputs
- Stereo pair of XLR line outputs
Items Included
- Astatic MX12S 12-Channel Rackmounted Mixer
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Astatic MX12S Specs
| Audio I/O |
6x Combo XLR-1/4" 3-Pin Line/Mic Input (Selectable Mic/Line Level)
6x RCA Coaxial Line Input (3 Stereo Pairs) 2x XLR 3-Pin Line Output (1 Stereo Pair) 1x 1/4" Mic Output 1x 1/4" Line Output (Mono) |
| Power Source |
AC Input, DC Input
|
| AC Input Power |
110 to 120 VAC, 50 / 60 Hz
|
| DC Input Power |
24 VDC at 500 mA
|
| Power Consumption |
18 W
|
| Mounting |
Front: 4x Standard Rack Screw
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
19" / 48.3 cm (1 RU)
|
| Package Weight |
9 lb
|
| Box Dimensions (LxWxH) |
21.7 x 15 x 4.6"
|
