Description
ARX USB-DI PLUS VC Overview
The ARX Audibox USB DI Plus VC is a versatile 2-channel direct box designed for seamless connection between digital or analog sources and professional sound systems. With its dual-mode architecture and onboard volume control, the USB DI Plus VC offers plug-and-play simplicity for a wide range of devices?from computers to tablets and smartphones.
Switch to Analog mode and the USB DI Plus VC buffers audio from headphone or line-level outputs on mobile devices?solving compatibility issues when USB digital audio isn?t available. This mode is fully passive and needs no power, making it ideal for tablets, phones, and other analog-only sources.

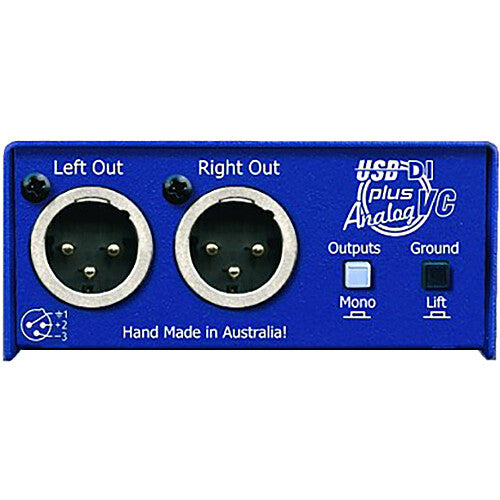

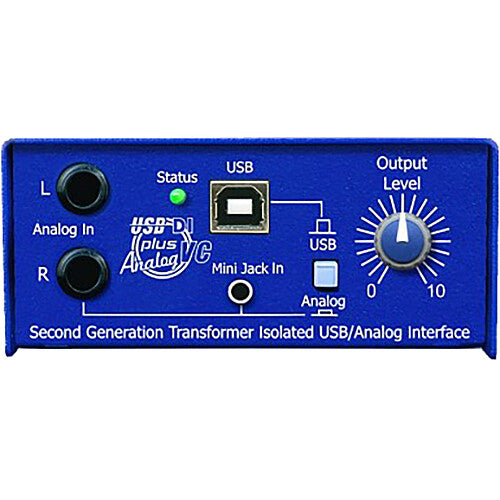

The unit also includes a mono/stereo output switch, ground lift, USB status indicator, and dual analog input options (3.5mm and 1/4" jacks). With its durable steel chassis, textured polyurethane finish, and slip-resistant base, the USB DI Plus VC is built for life on the road or in permanent installations. An optional under-table mounting bracket enhances security in fixed setups.
Handmade in Australia, the USB DI Plus VC ships with a premium USB-A to USB-B cable.
- Dual-mode USB and analog direct box
- High-resolution 24-bit USB DAC
- Supports 44.1, 48, and 96 kHz sample rates
- Balanced XLR outputs with transformer isolation
- Switchable USB/analog input with volume control
- Front-panel USB, 3.5mm, and 1/4" inputs
- Plug-and-play operation?no drivers required
- Mono output and ground-lift switches
- Rugged all-steel construction
- USB powered in digital mode; passive in analog
- Includes USB cable; handmade in Australia
Items Included
- ARX Audibox USB DI Plus VC USB/Analog Direct Box with Volume Control
- USB-A to USB-B Cable
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX USB-DI PLUS VC Specs
| Item Type |
Standard DI
|
| Number of Channels |
2-Channel
|
| Active/Passive |
Active
|
| Circuitry |
Solid-State
|
| Pad |
No
|
| Ground Lift |
Yes
|
| Polarity Reverse |
No
|
| Low-Cut/High-Pass Filter |
No
|
| Audio I/O |
2x 1/4" TS Unbalanced Input
1x 1/8" / 3.5 mm TRS Unbalanced Input 2x XLR 3-Pin Balanced Output |
| USB I/O |
1x USB-B
|
| Frequency Response |
20 Hz to 20 kHz ?0.5 dB
|
| Output Impedance |
300 Ohms
|
| Operating Voltage |
5 V (USB Bus Power)
|
